Overview

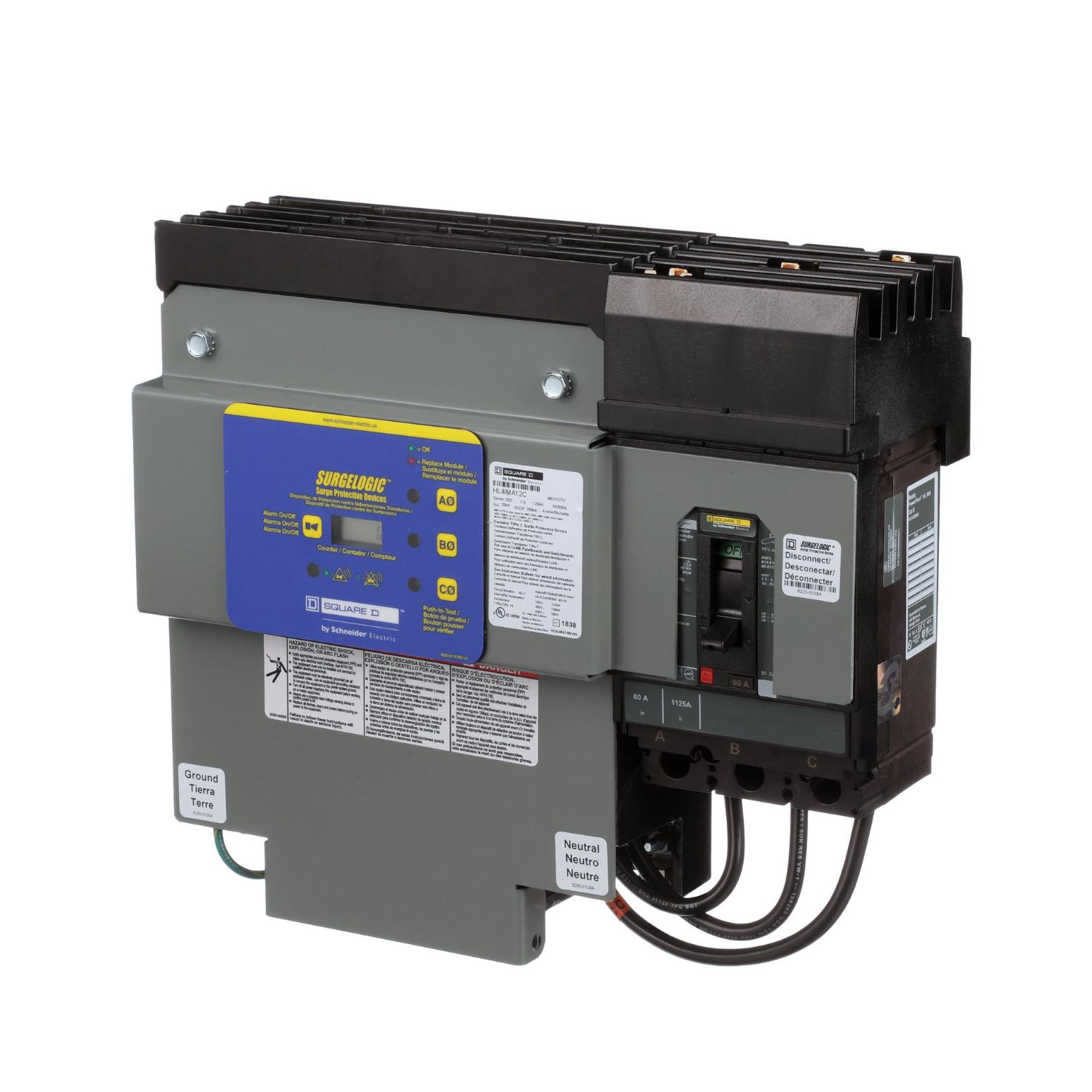

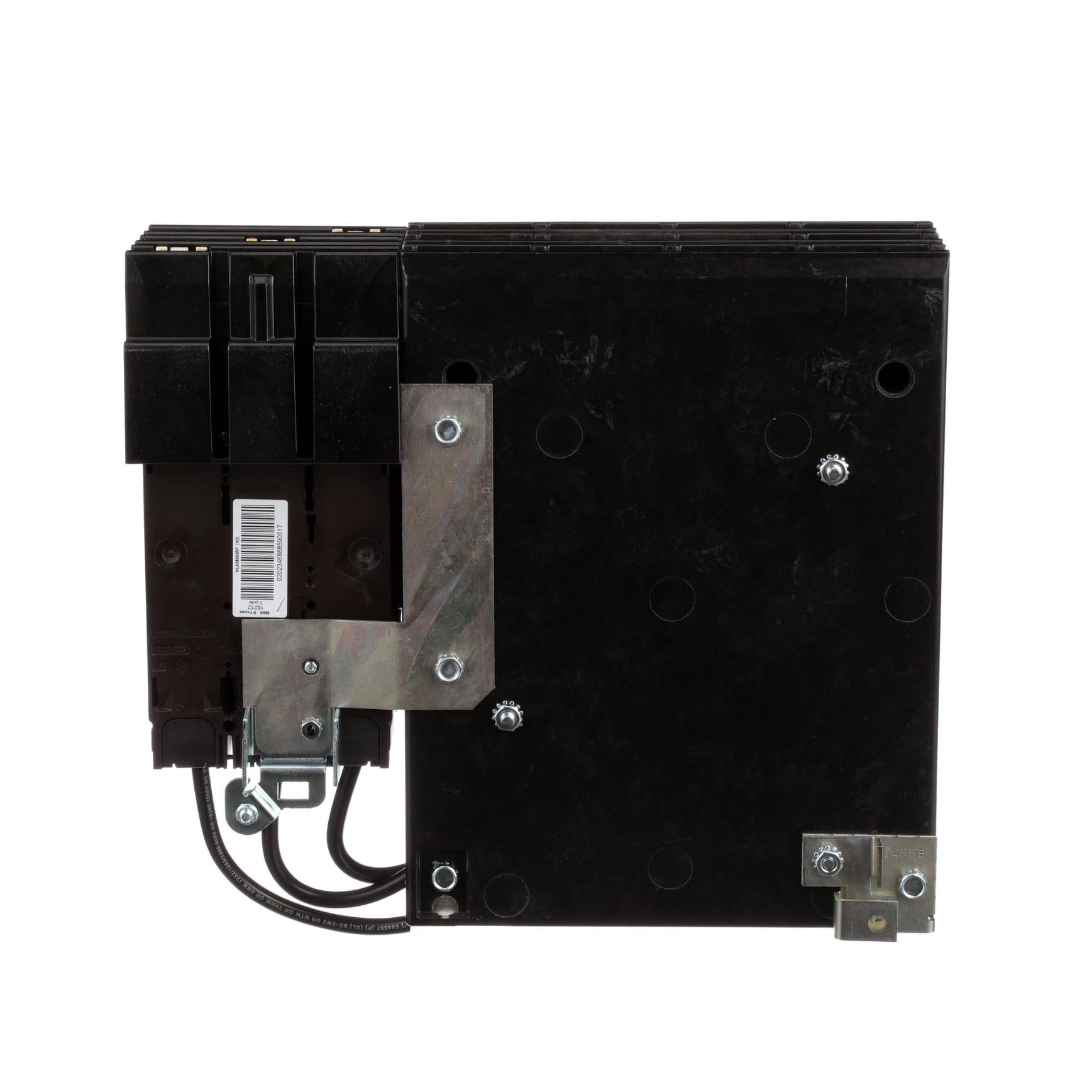

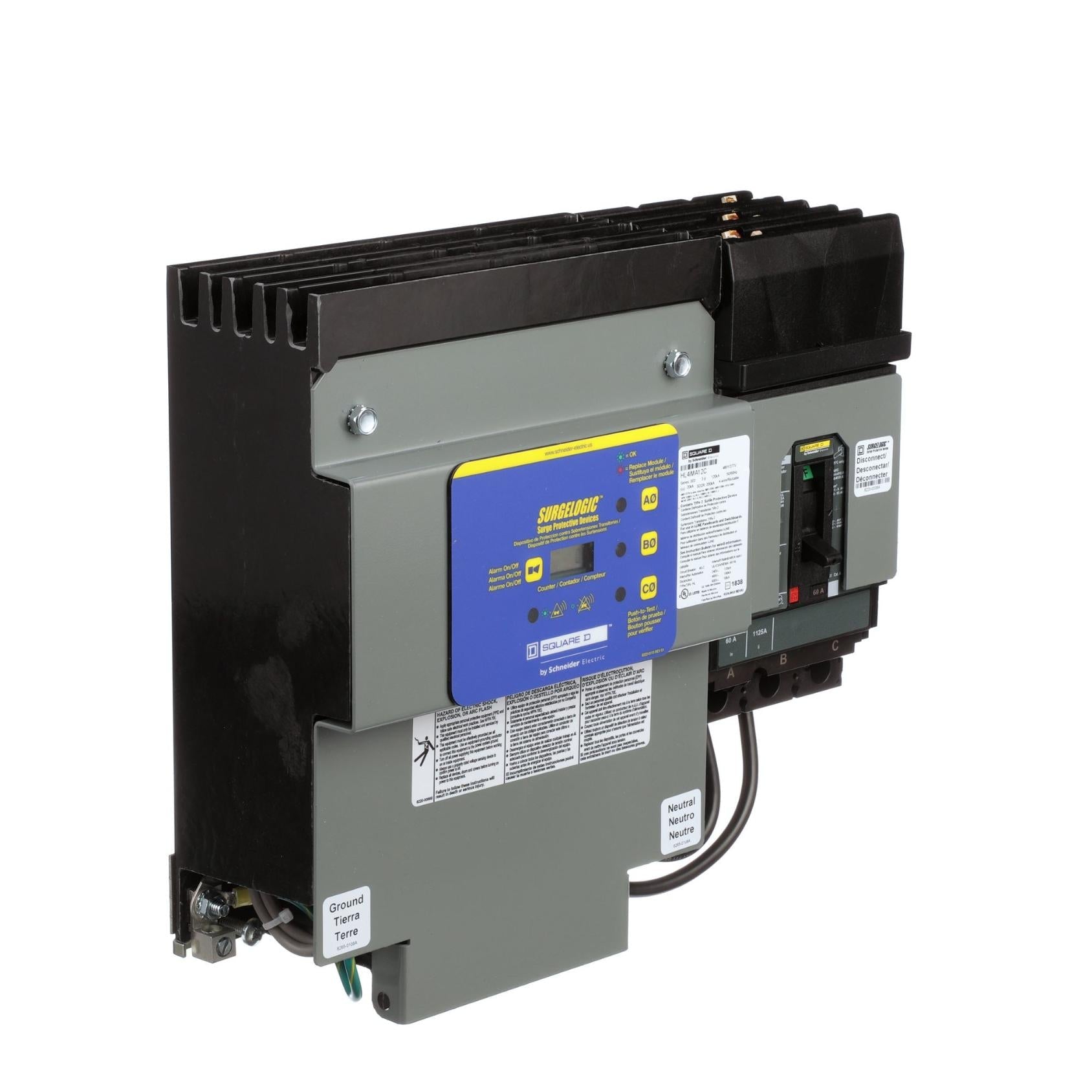

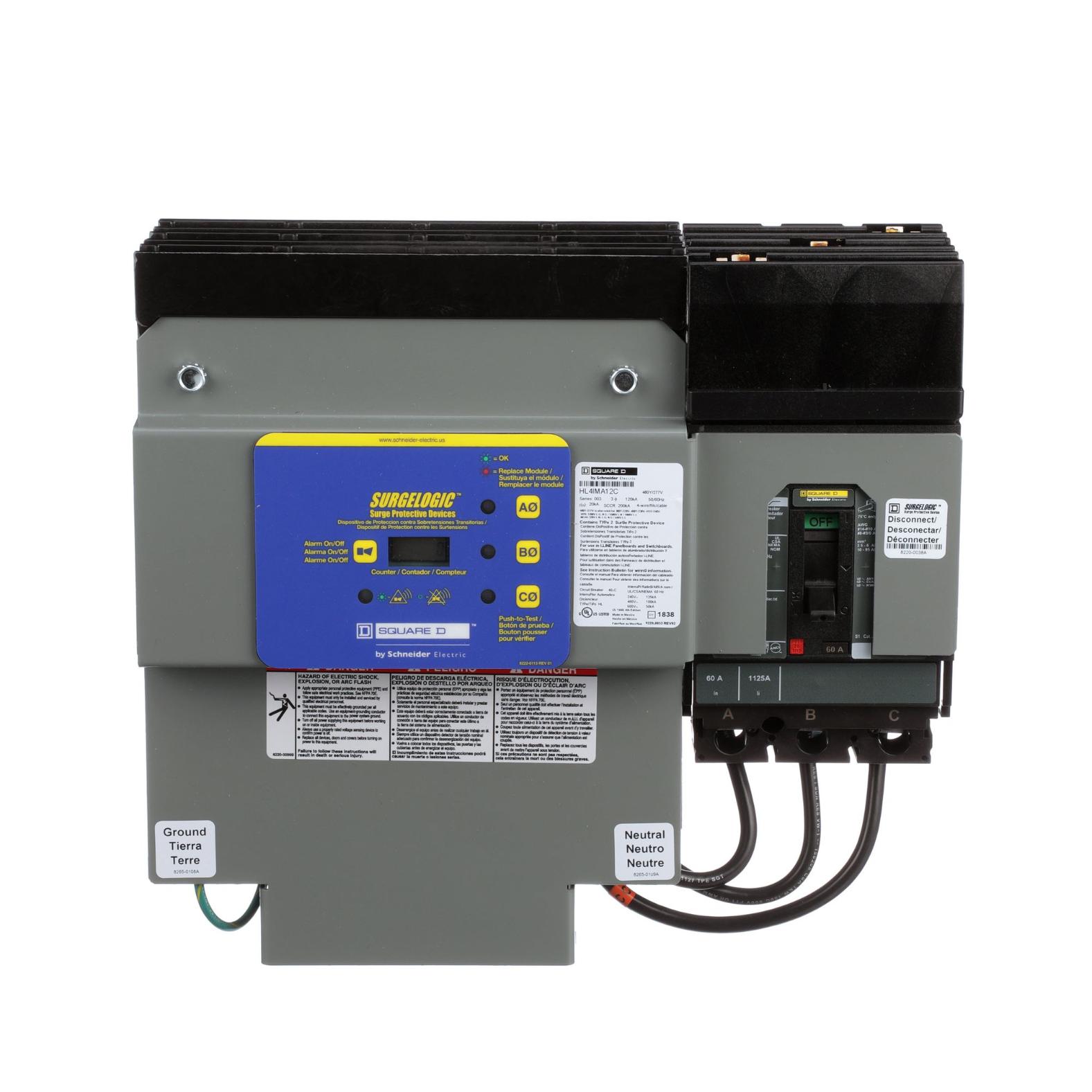

Product Specifications - HL4IMA24C - Square D Part And Accessory
-
Part Number:
HL4IMA24C -
Manufacturer:
-
Family:
SURGELOGIC
-
Category:
-
Type:
HL4
Dimensions
-
Dimensions (HxWxD):
12.16 x 13.46 x 5.59 -
Weight:
4.85 lbs
Standards
Product Description - HL4IMA24C - Square D Part And Accessory
Surgelogic™ internally mounted surge protection devices delivers specification grade performance for service entrance or critical branch I-Line panel applications. These multiphase systems provide suppression, enchanced EFI/RFI filtering for all critical modes inside electrical equipment, and shorter lead lengths with superior SPD performance. US and Canadian UL® Listed to the UL 1449 standard. They provide better performance with a diagnostic interface with push to test diagnostic switches, red and green status LEDs, module status LEDs per mode, dry contacts, audible alarm with disable switch, and a surge counter. These products have a 10 year product warranty and 10 modes of protection. This surge protection device is 3 phase, 4-wire + ground, 480Y/277 V, 50 kA breaking capacity, 240 kA surge current, and short circuit current rating of 200 kA. The device is engineered to UL 489 11th Edition, type 2 SPD and complies with UL 96A 12th Edition Master Label for Lightning Protection Systems.
