Overview
Product Specifications - NF430L1 - Schneider Electric Panelboard
-
Part Number:
NF430L1 -
Manufacturer:
-
Amp
125 -
Volt:
600 -
Phase:
3
-
Category:
-
Type:
NF
Dimensions
-
Dimensions (HxWxD):
10.44 x 27 -
Weight:
16 lb
Standards

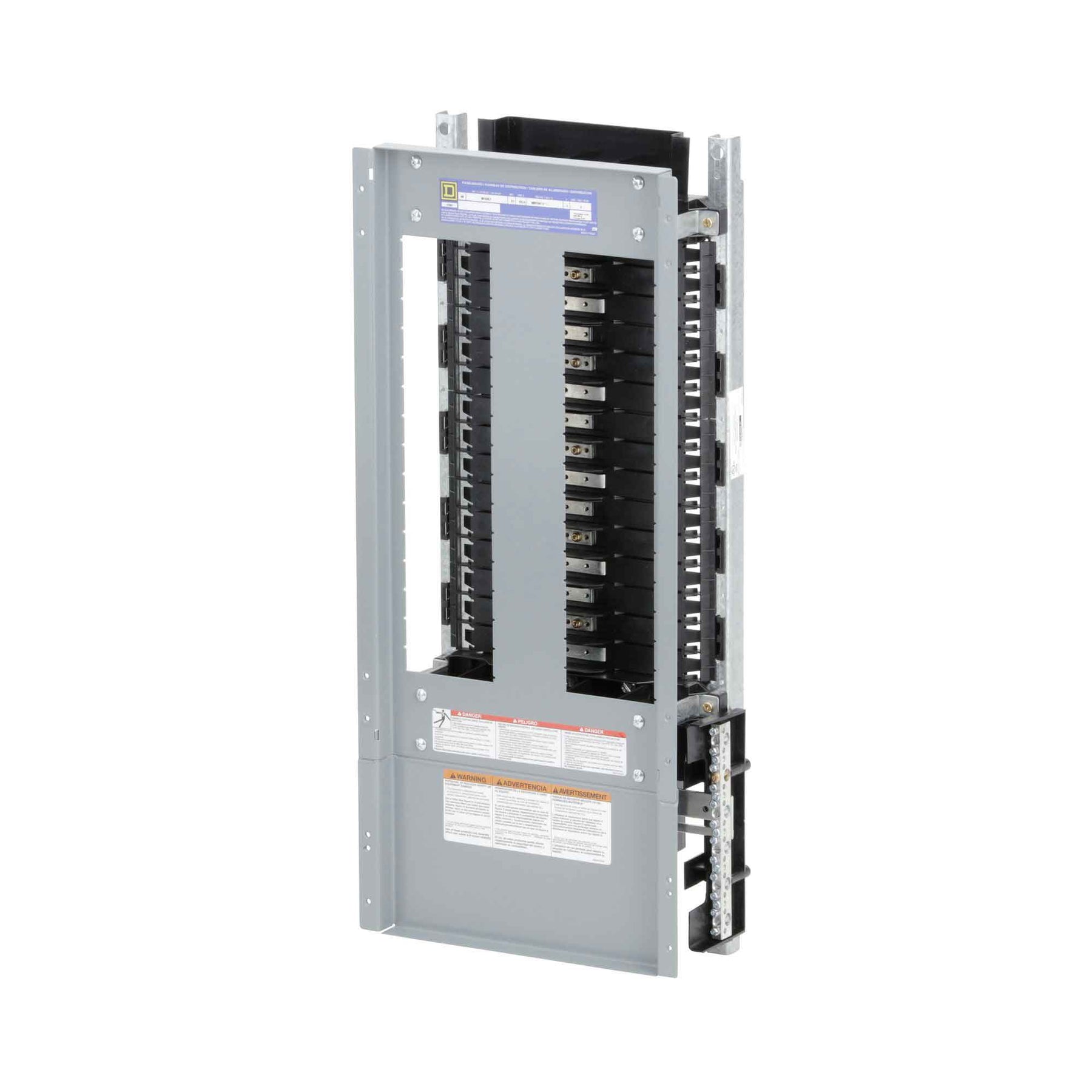

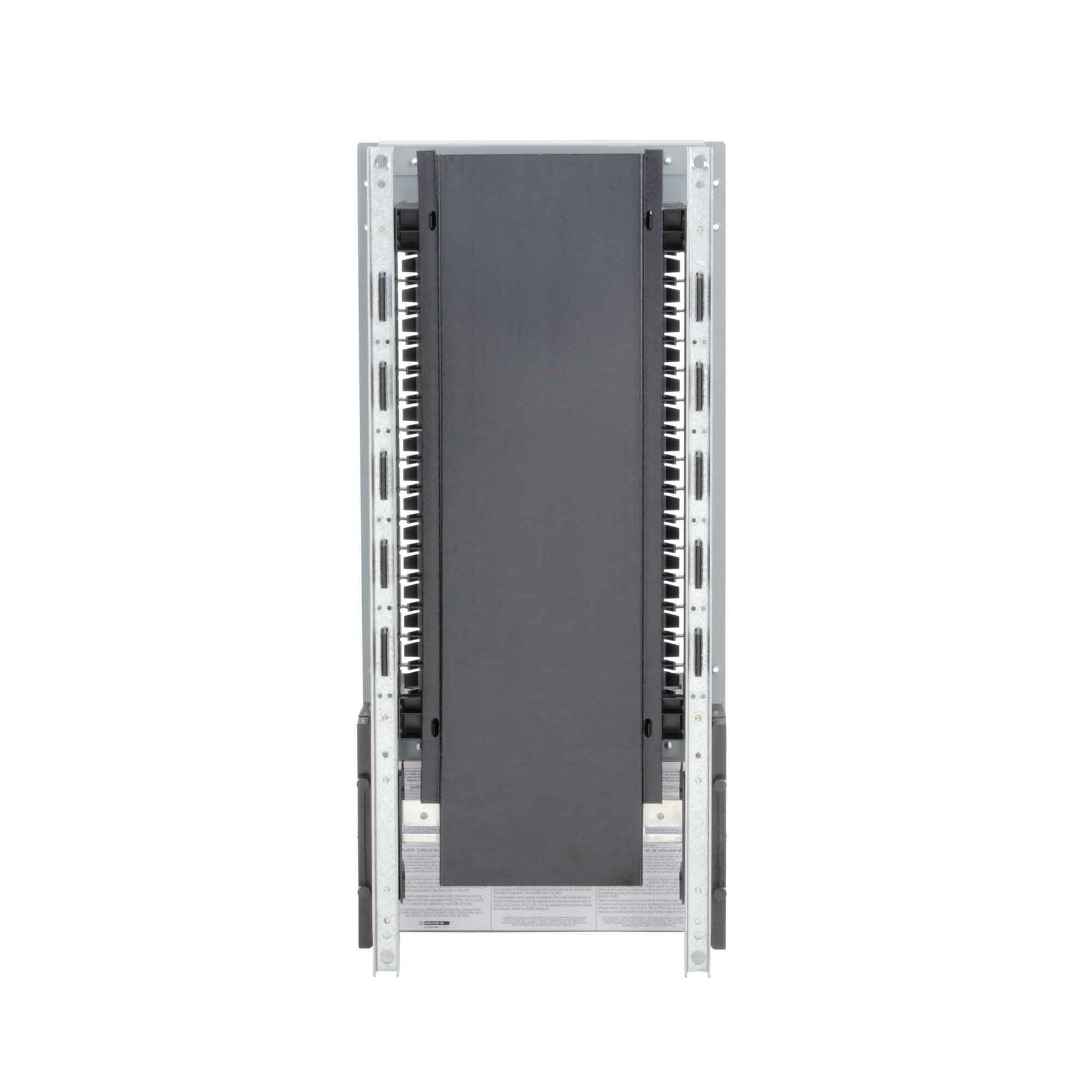

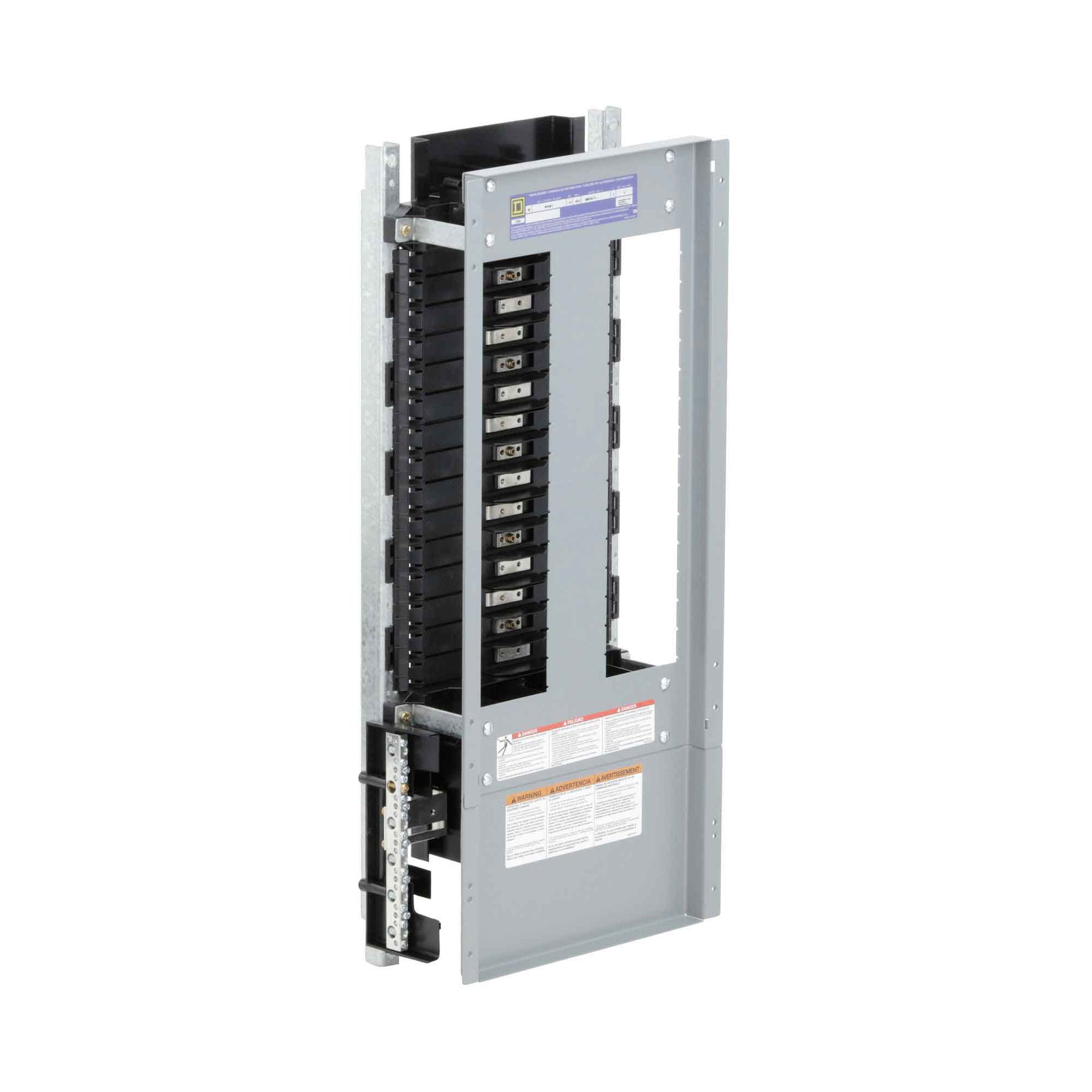

Product Description - NF430L1 - Schneider Electric Panelboard
NF Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices. These interiors provide protection for commercial and industrial applications. NF Panelboards feature a wide selection of circuit breakers, accessories, and ready to install kits. NF Panelboards are field convertible to top or bottom feed. NF Panelboards are convertible from main lug to main breaker. NF Panelboards can provide 200% rated neutrals for nonlinear loads. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. The main lugs are rated at 125A 480Y/277 VAC 3 phase. Interior has an interrupt current rating of up to 65 kA. This interior is for a 4 wire system with 30 spaces and has an aluminum bus bar. Interior is for EDB, EDG, and EDJ branch circuit breakers. Line lug connections will accept 6 AWG to 2/0 AWG copper or aluminum wire. The interior is 27 inches tall and 10.44 inches wide. This interior is UL listed and CSA certified. NFQ Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices.
