9065ST520 - Square D - Overload Relay

Square D SKU: 9065ST520
9065ST520 - Square D - Overload Relay

Images are for reference only

9065ST520 - Square D - Overload Relay

Square D SKU: 9065ST520
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Shipping calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

Overview

Product Specifications - 9065ST520 -Square D Overload Relay

Dimensions

  • Dimensions (HxWxD):

    8.25 x 7.75 x 7.38

  • Weight:

    2.84 lbs

Standards

CSA Approved logo

Product Description - 9065ST520 -Square D Overload Relay

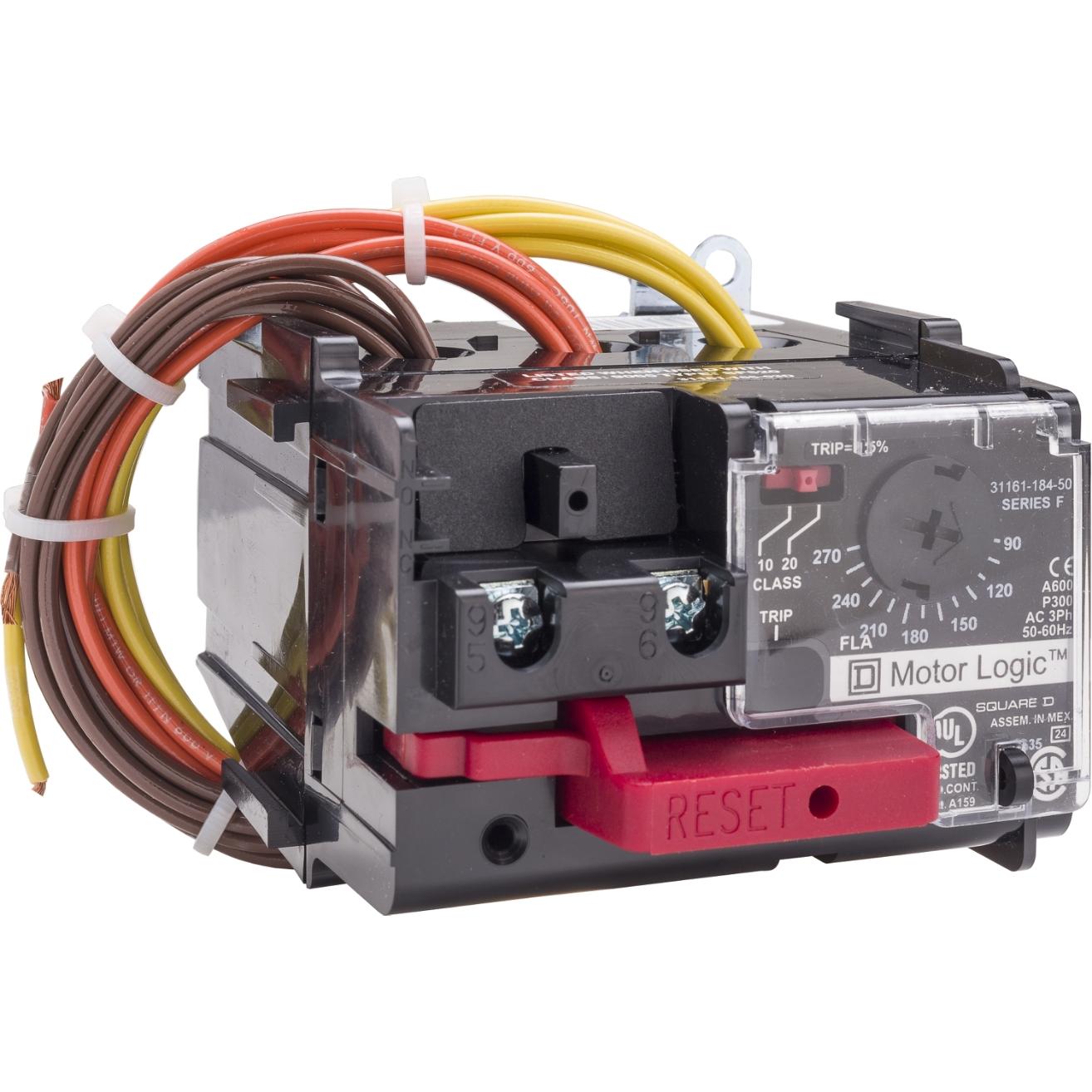

Motor Logic overload relays can be standalone devices or can be used on Type S full voltage non-reversing and reversing starters and combination starters. Motor Logic relays are ambient insensitive and self-powered. Designed to protect 50/60 Hz, three phase AC motors from overloads, phase unbalance and phase loss conditions. This replacement Motor Logic solid state overload relay is for use with Type S NEMA size 5 three pole starters. This Motor Logic solid state overload relay has a full load current rating of 90A to 270A. Maximum voltage rating of 600 V. The trip free operation will help the motor from overheating. Switch selectable from Class 10 to Class 20 overload trip. The trip free operation will help the motor from overheating. The visible trip indicator and trip test function make trouble shooting much quicker. Electrical remote reset is available. This overload relay is 8.25 inches tall, 7.75 inches wide and 7.38 inches deep. Motor Logic SSOLR are UL listed and CSA certified.
