Overview
Product Specifications - 8911DPSG32V09 - Square D Motor Starter
-
Part Number:
8911DPSG32V09 -
Manufacturer:
-
Family:
Class 8911 -
Pole:
2 -
Amp
30 -
Volt:
600 -
Phase:
1
-
Category:
-
Type:
DPS
Dimensions
-
Dimensions (HxWxD):
6.60 x 7.10 x 11.20 -
Weight:
5.75 lb
Standards
Product Description - 8911DPSG32V09 - Square D Motor Starter

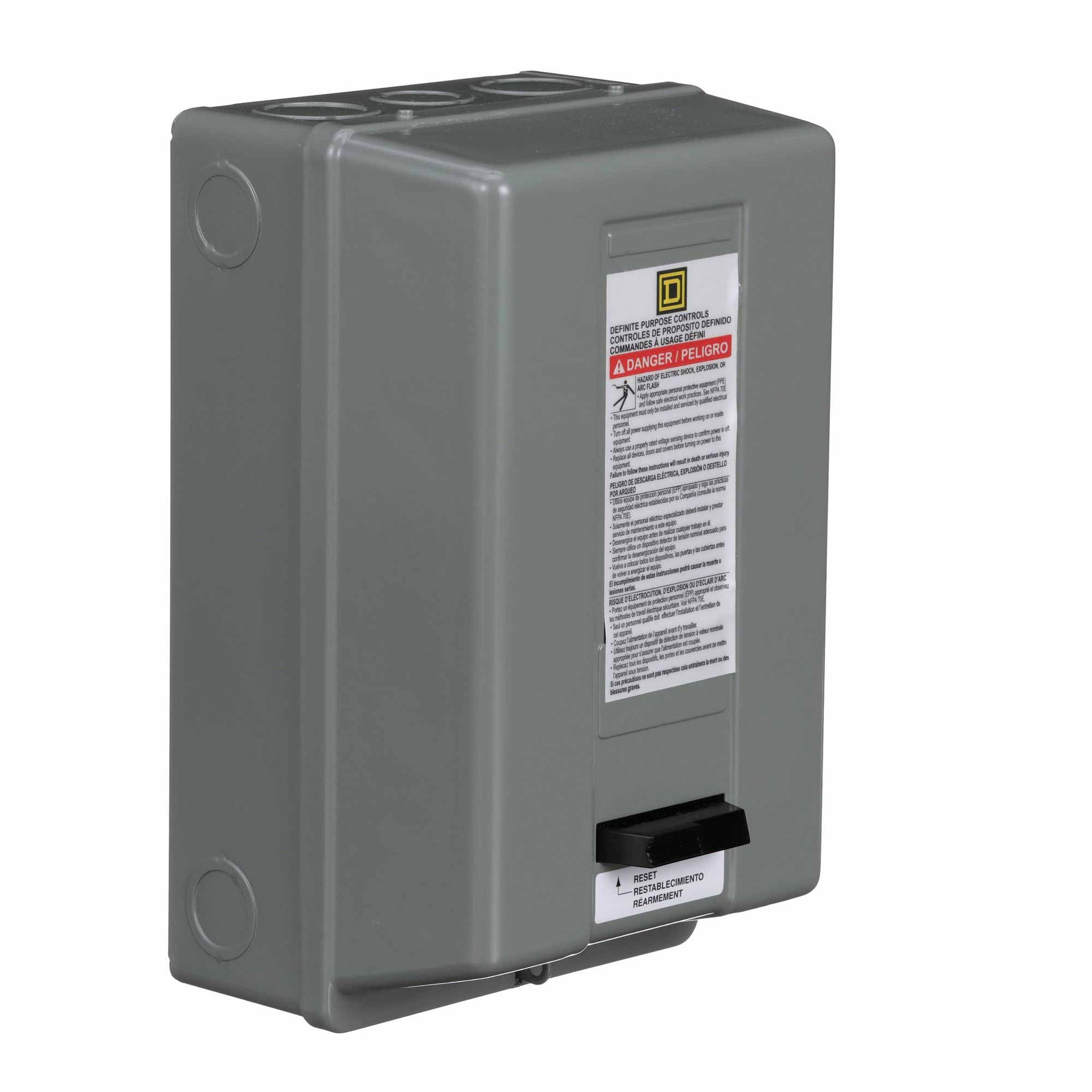

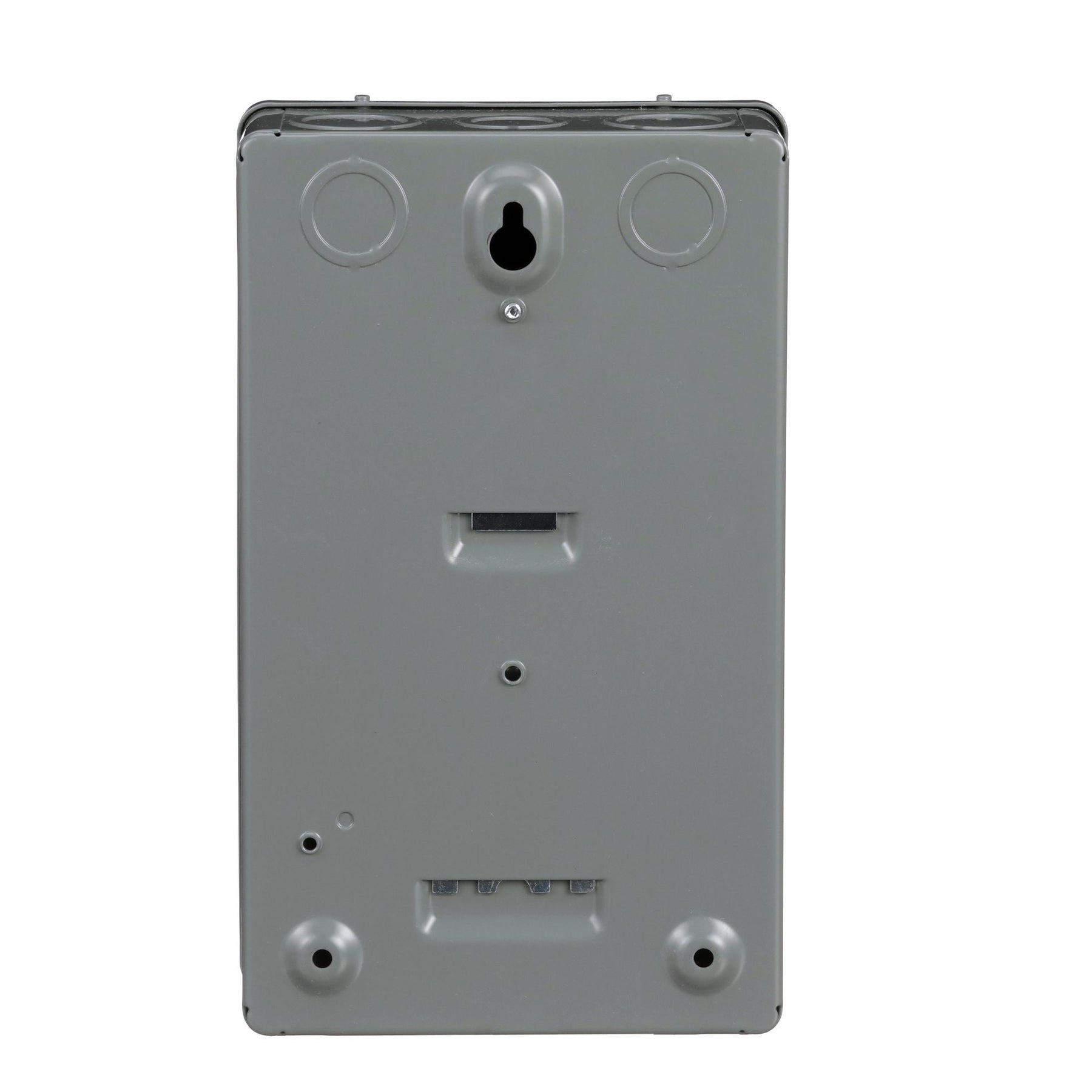

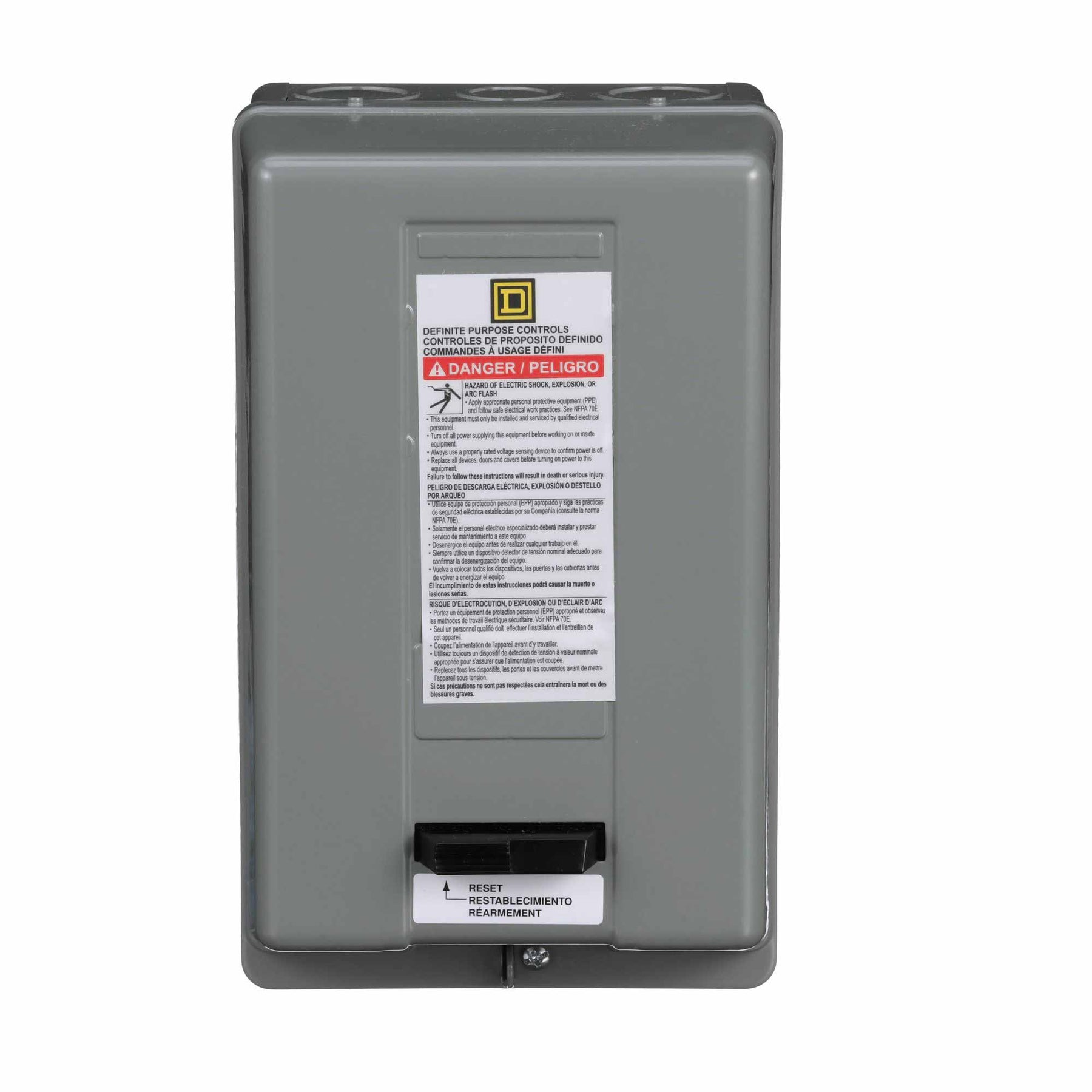

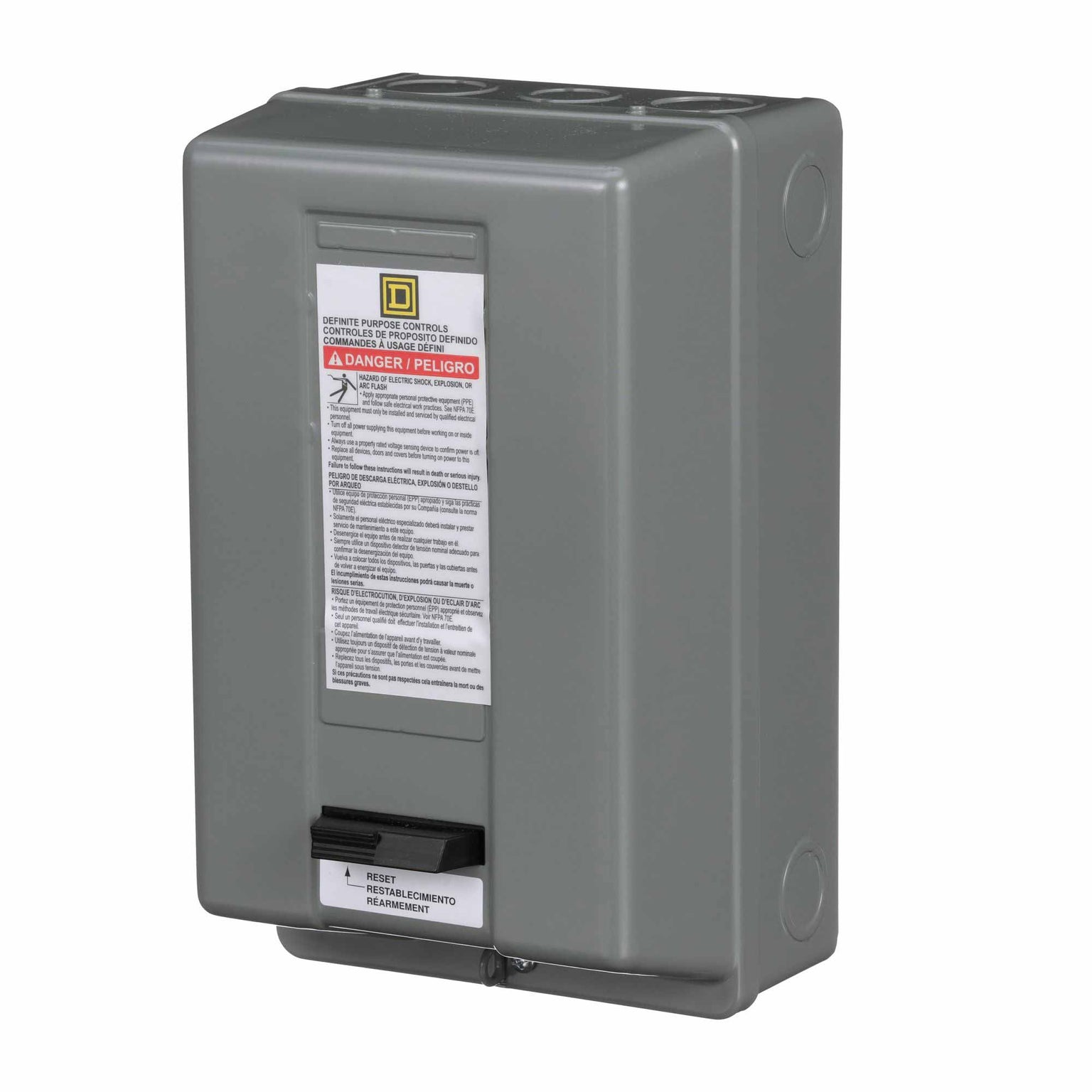

8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This two pole definite purpose starter has a full load rating of 30 amperes. This starter has ratings of 2 HP at 115 VAC and 5 HP at 230 VAC single phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208 to 240 VAC 60 HZ and 220 VAC 50 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this definite purpose starter. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.56 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.
