2510MBR2 - Square D - Motor Starter
Square D
SKU: 2510MBR2
Images are for reference only
Returns are easy
You may return items within 30 days of delivery for a refund.
FREE Shipping on orders over $49.
Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).
Overview
Product Specifications - 2510MBR2 - Square D Motor Starter
-
Part Number:
2510MBR2 -
Manufacturer:
-
Category:
-
Type:
251
Dimensions
-
Dimensions (HxWxD):
10.5 x 6 x 6.13 -
Weight:
32.13 lb
Standards
Product Description - 2510MBR2 - Square D Motor Starter

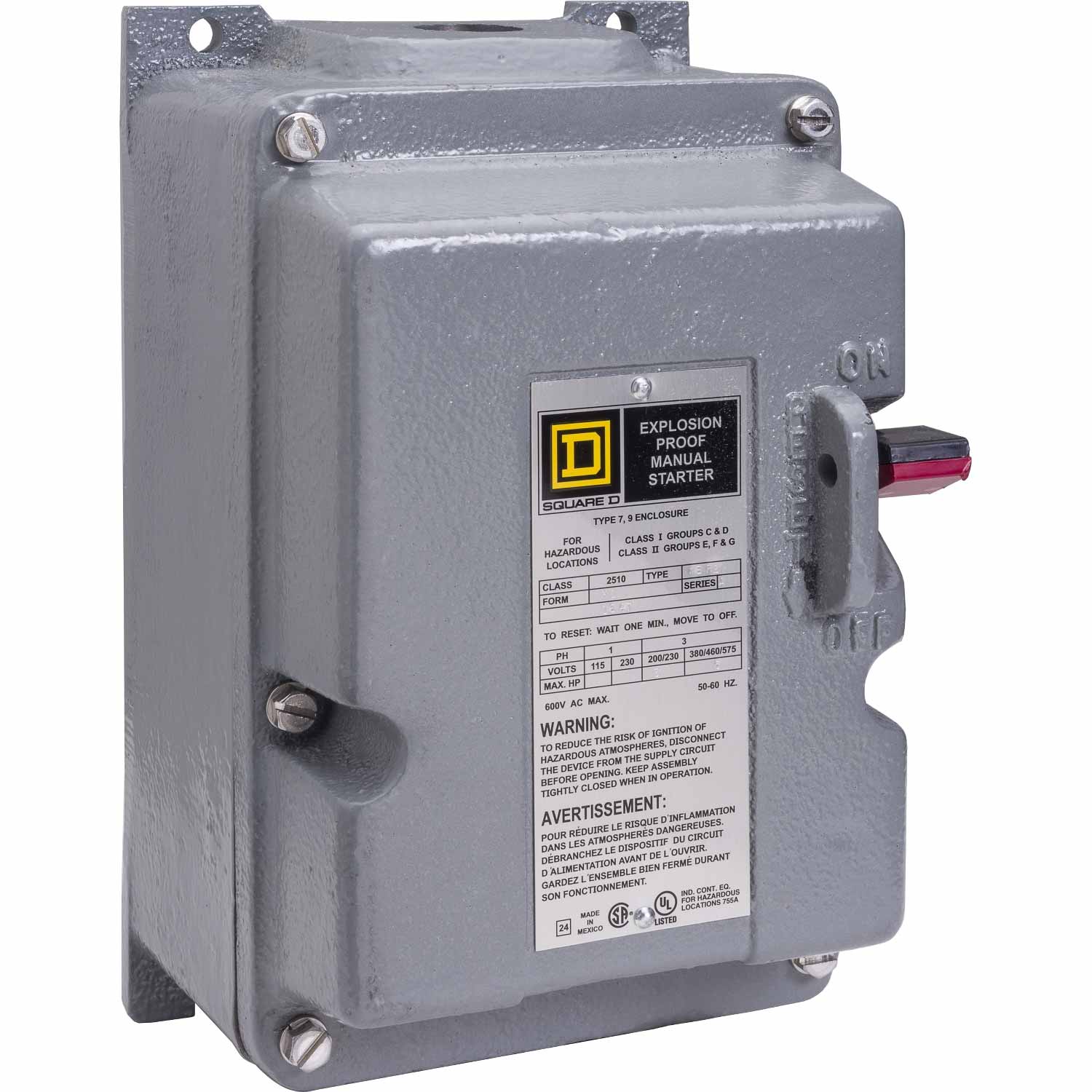

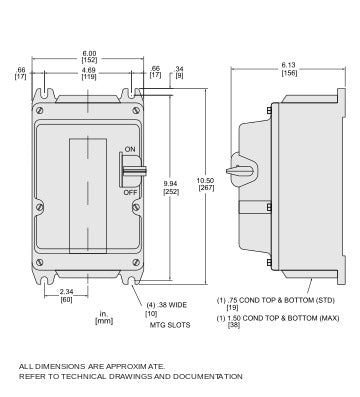

2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. These non-reversing integral horsepower manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. This NEMA Size M-0 three pole starter is rated for 3 HP at 200-230 VAC and 5 HP at 380-575 VAC three phase. Three melting alloy thermal units are used with this manual starter to sense over current conditions. These thermal units are ordered separately to match motor data. A cast aluminum NEMA 7 and 9 hazardous location, Class 1, Groups C & D and Class II, Groups E, F, & G enclosure is used to protect this starter. This enclosure has one 0.75 inch conduit entry on the bottom and one on the top. Enclosure is 10.50 inches tall, 6.00 inches wide and 6.13 inches deep. A toggle handle is used to turn the manual switch on and off. The toggle handle can be padlocked in the off or stop position. 2510M integral horsepower starters are UL listed and CSA certified. The toggle handle can be padlocked in the off or stop position. 2510M integral horsepower starters are UL listed and CSA certified.
