Overview

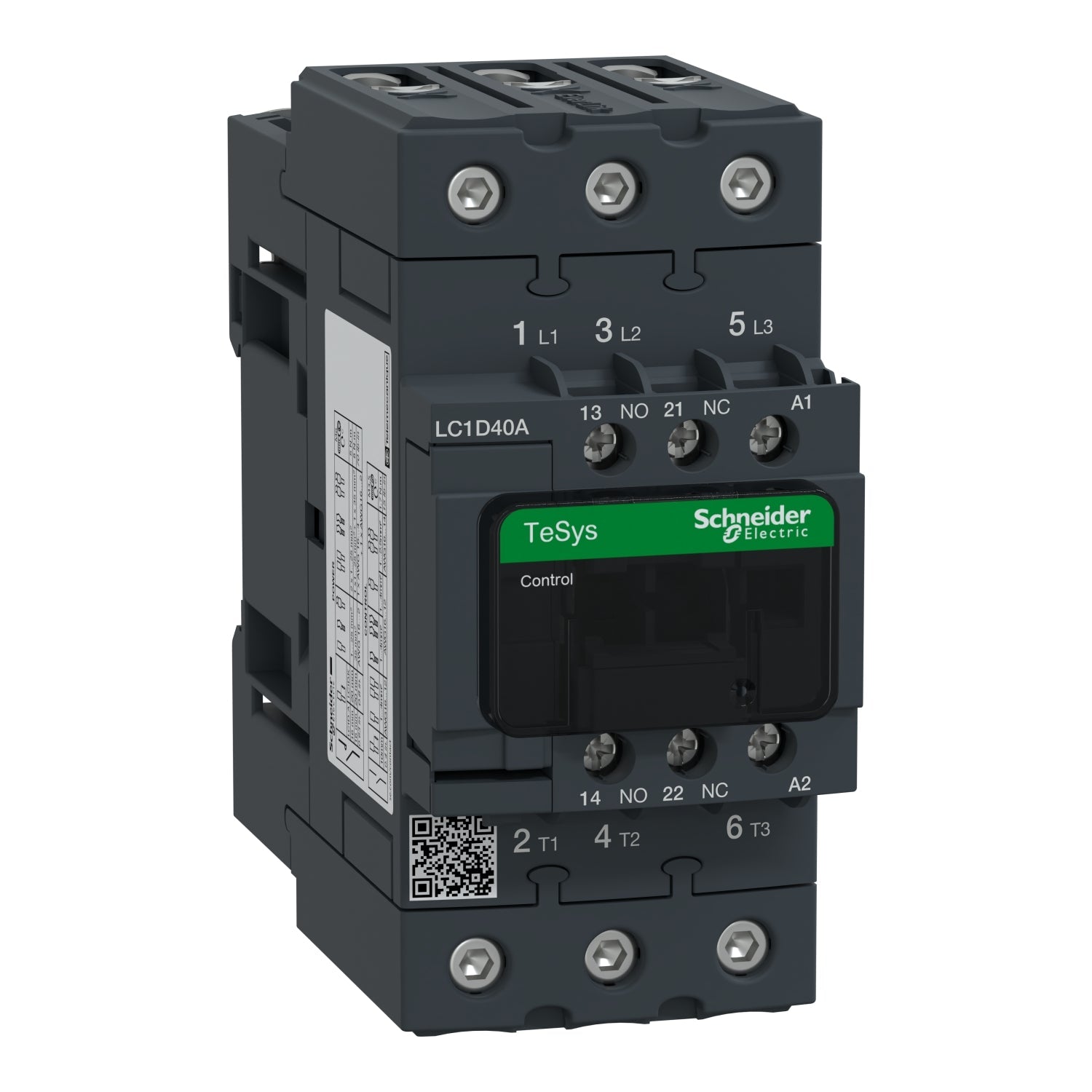

Product Specifications - LC1D40AP7 - Square D Motor Control Part And Accessory
-
Part Number:
LC1D40AP7 -
Manufacturer:
-
Family:
TeSys D -
Volt:
600
-
Category:
-
Type:
LC
Standards
Product Description - LC1D40AP7 - Square D Motor Control Part And Accessory
TeSys D contactor, 3 poles (3NO), for motor control applications up to 40A/440V AC-3/3e (18.5kW@400V). It provides a 230V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh
