Overview
Product Specifications - CAD32F7 - Square D Motor Control Part And Accessory
-
Part Number:
CAD32F7 -
Manufacturer:
-
Family:
TeSys D
-
Category:
-
Type:
CAD
Dimensions
-
Dimensions (HxWxD):
3.03 x 1.77 x .3.31 -
Weight:
1.28 lbs
Standards
Product Description - CAD32F7 - Square D Motor Control Part And Accessory

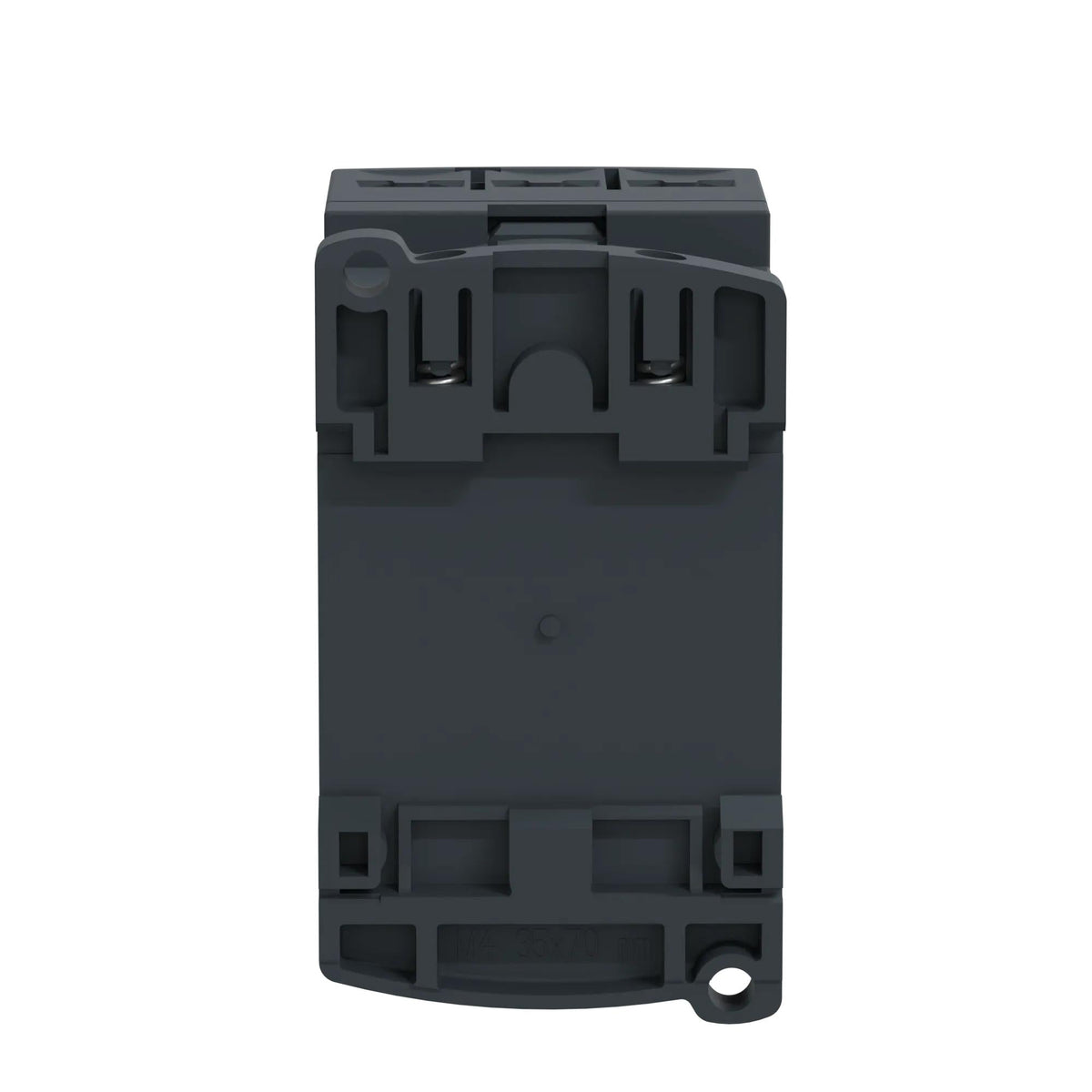

TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 110V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
