Name: PGL36100U41A - Square D - Molded Case Circuit Breakers
Brand: Schneider Electric
SKU: PGL36100U41A
Price: 12200.0 USD
Availability: InStock

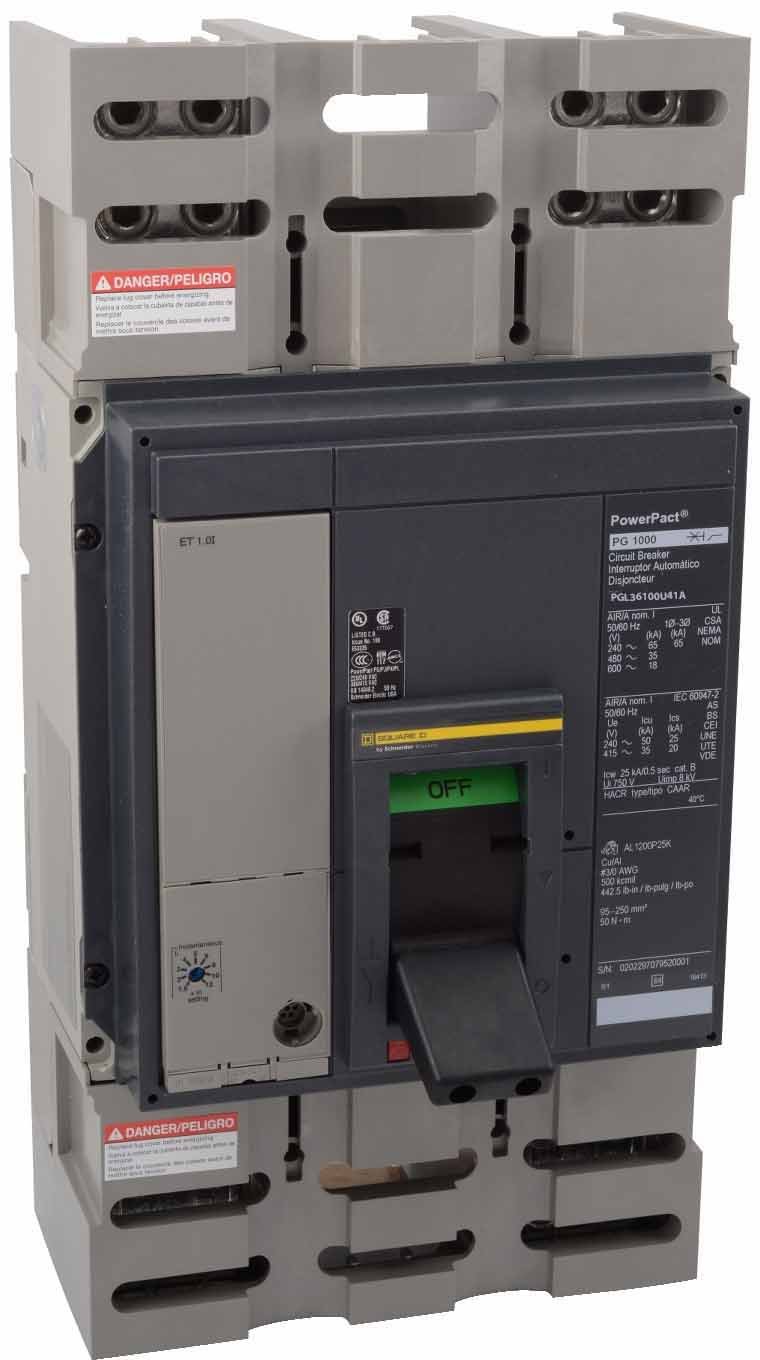

PGL36100U41A - Square D 1000 Amp 3 Pole 600 Volt Molded Case Circuit Breaker

Images are for reference only

Save $8,488

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned

Quantity

Secure transaction

FREE & fast shipping on orders over $49

1 year warranty

30 day returns

[{"id":40023861395536,"title":"New","option1":"New","option2":null,"option3":null,"sku":"PGL36100U41A","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"PGL36100U41A - Square D - Molded Case Circuit Breakers - New","public_title":"New","options":["New"],"price":1220000,"weight":14515,"compare_at_price":2068800,"inventory_management":"shopify","barcode":"785901212843","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40331667963984,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"PGL36100U41A_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"PGL36100U41A - Square D - Molded Case Circuit Breakers - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":891999,"weight":14515,"compare_at_price":2068800,"inventory_management":"shopify","barcode":"785901212843","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

Overview

Product Specifications - PGL36100U41A - Square D Molded Case Circuit Breakers

Part Number:

PGL36100U41A
Manufacturer:
Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

1000
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

Feed-Thru
Type:

PGL
Functions:

LI - Long-Time and Instantaneous
Protection:

Solid State
AIC Ratings:

35kA@480V

Dimensions

Dimensions (HxWxD):

16.16" x 8.27" x 8.05"

Weight:

32 lbs

Standards

Additional Details

Trip Unit Technology:

Electronic, ammeter, MicroLogic 3.0 A, LI
Line Rated Current:

1000 Amp

Breaking Capacity Code

G
Electrical Connection:

Lugs load / Lugs line
Continuous Current Rating

80%
Control Type:

Toggle
AWG Gauge:

4 x AWG 3/0...500 kcmil aluminium/copper

Product Description - PGL36100U41A - Square D Molded Case Circuit Breakers

Schneider Electric / Square D, 3P, 3PH, 1000A, 600V, 35kA@480V, standard interrupting capacity, complete with micrologic interchangeable ammeter 3.0A trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Molded Case Circuit Breaker

Documentation

Catalogue

Technical Specifications

PGL36100U41A - Square D - Molded Case Circuit Breakers

Feed Thru - 1000 Amp - 3 Pole - 600 Volt

PGL36100U41A - Square D - Molded Case Circuit Breakers

Feed Thru - 1000 Amp - 3 Pole - 600 Volt
