Name: LJA36400U44X - Square D - Molded Case Circuit Breakers
Brand: Schneider Electric
SKU: LJA36400U44X
Price: 7256.99 USD
Availability: InStock

LJA36400U44X - Square D - Molded Case Circuit Breakers

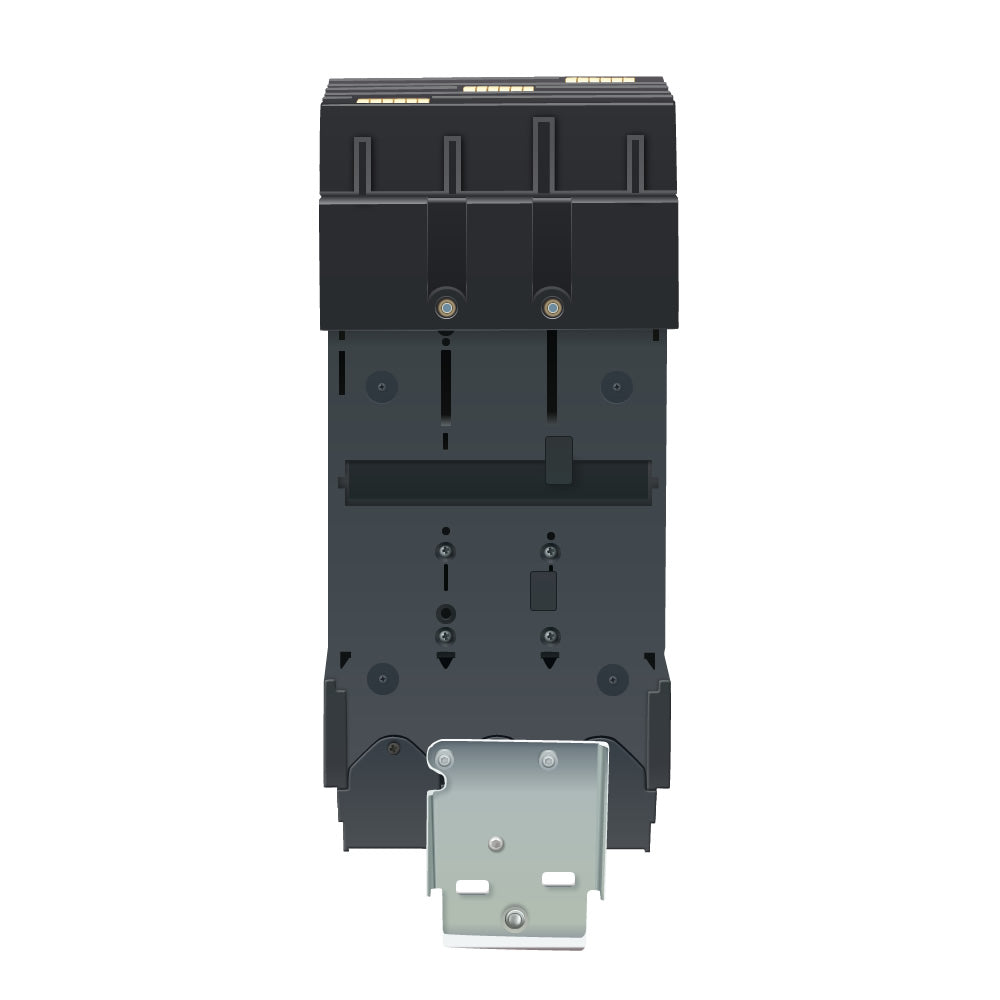

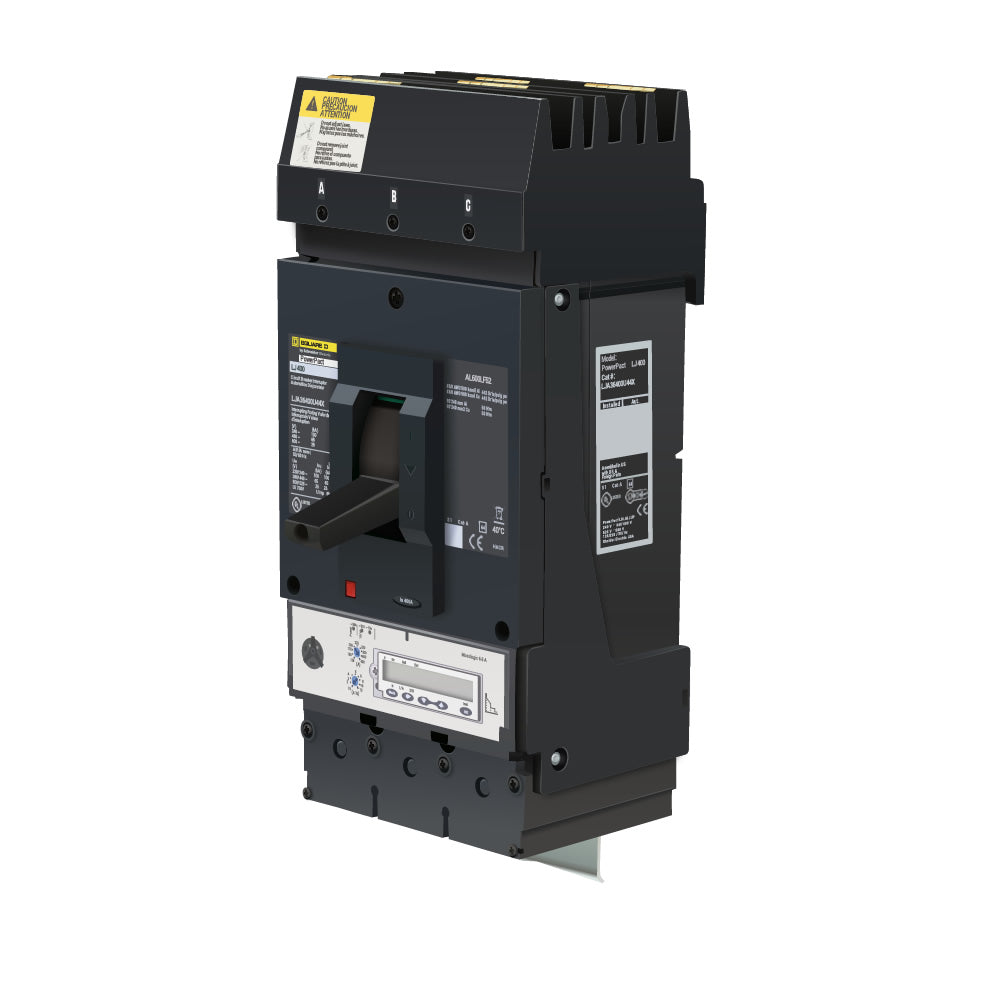

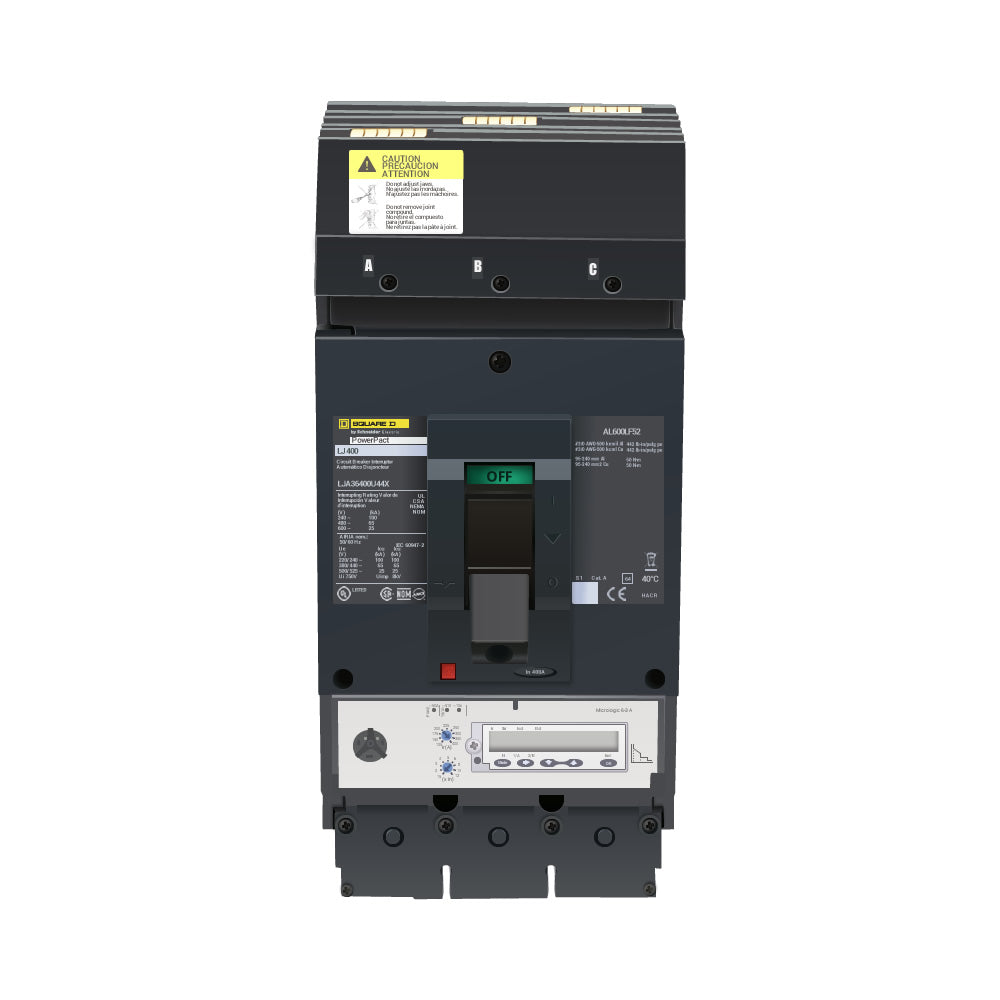

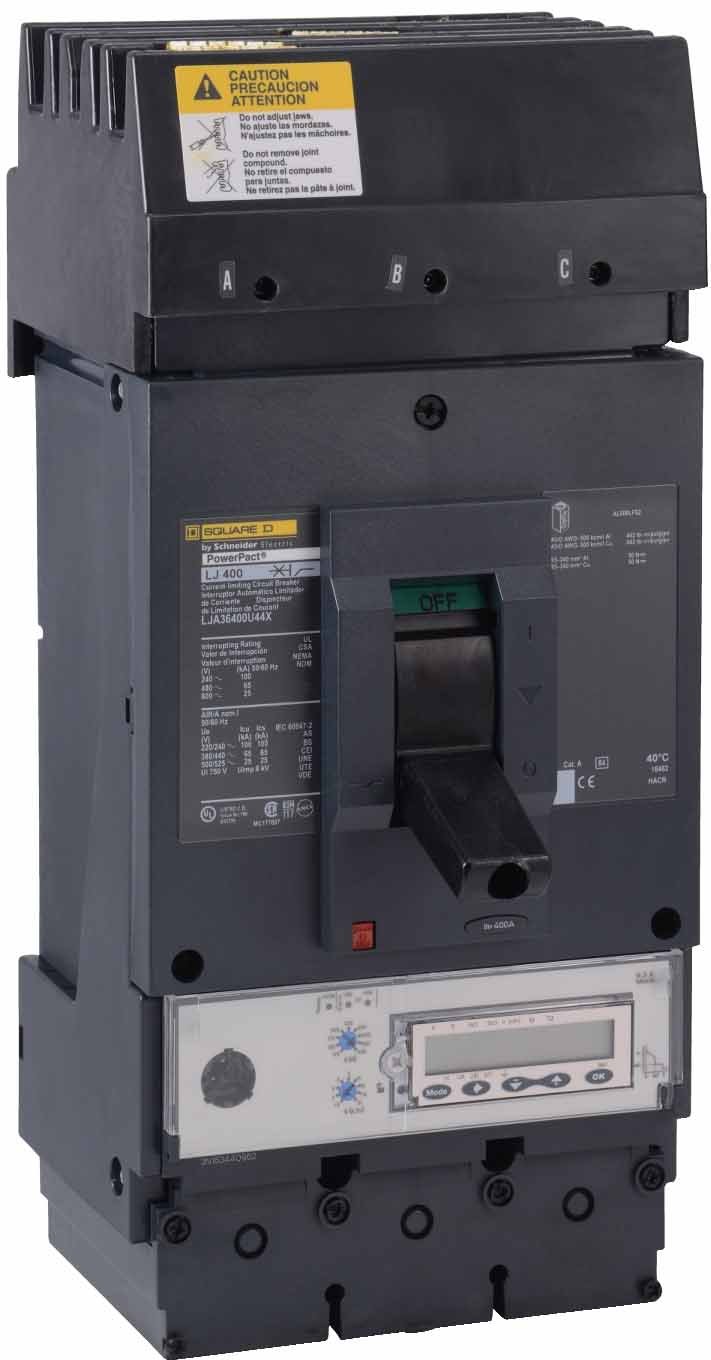

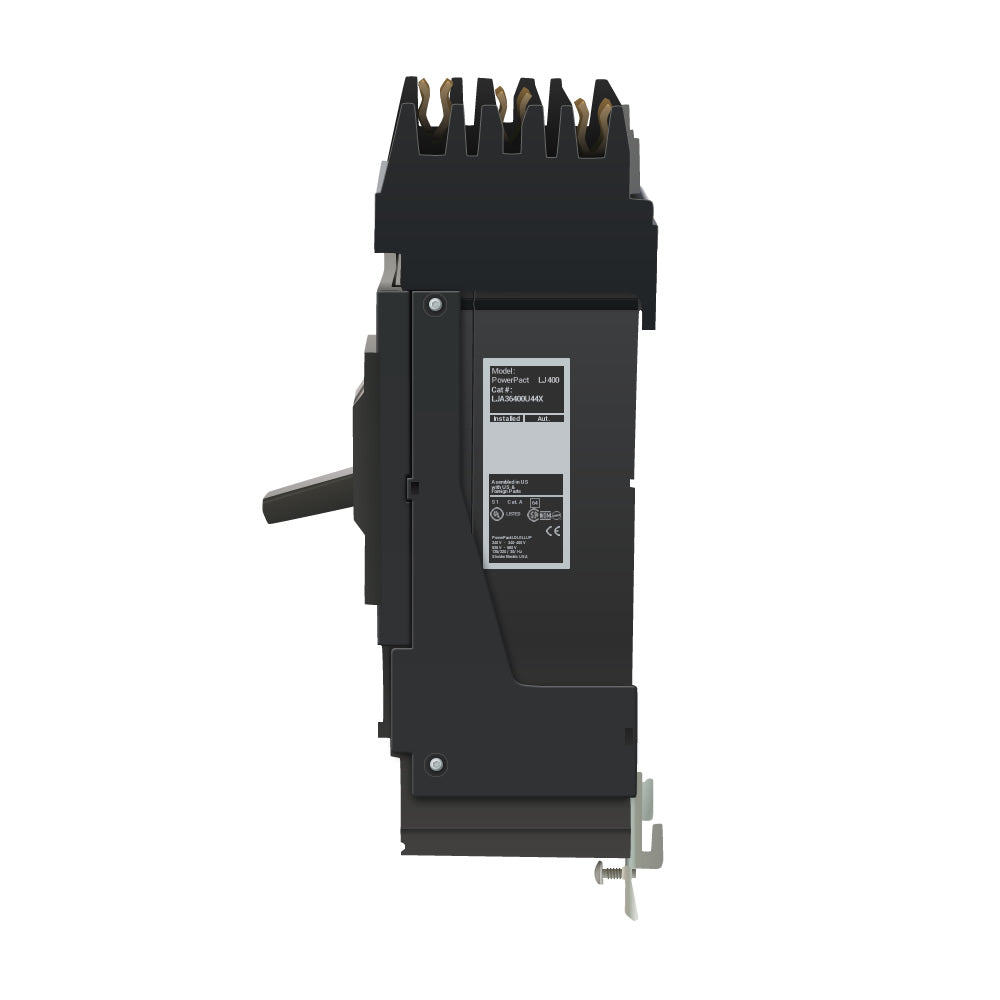

LJA36400U44X - Square D 400 Amp 3 Pole 600 Volt Molded Case Circuit Breaker

Images are for reference only

Save $5,013.01

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned

Quantity

Secure transaction

FREE & fast shipping on orders over $49

1 year warranty

30 day returns

[{"id":40023861690448,"title":"New","option1":"New","option2":null,"option3":null,"sku":"LJA36400U44X","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LJA36400U44X - Square D - Molded Case Circuit Breakers - New","public_title":"New","options":["New"],"price":725699,"weight":6201,"compare_at_price":1227000,"inventory_management":"shopify","barcode":"785901805212","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40331665506384,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"LJA36400U44X_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LJA36400U44X - Square D - Molded Case Circuit Breakers - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":444299,"weight":6201,"compare_at_price":1227000,"inventory_management":"shopify","barcode":"785901805212","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

Overview

Product Specifications - LJA36400U44X - Square D Molded Case Circuit Breakers

Part Number:

LJA36400U44X
Manufacturer:
Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

400
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

I-Line Style Plug-In
Type:

LJA
Functions:

LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
Protection:

Solid State
AIC Ratings:

65kA@480V

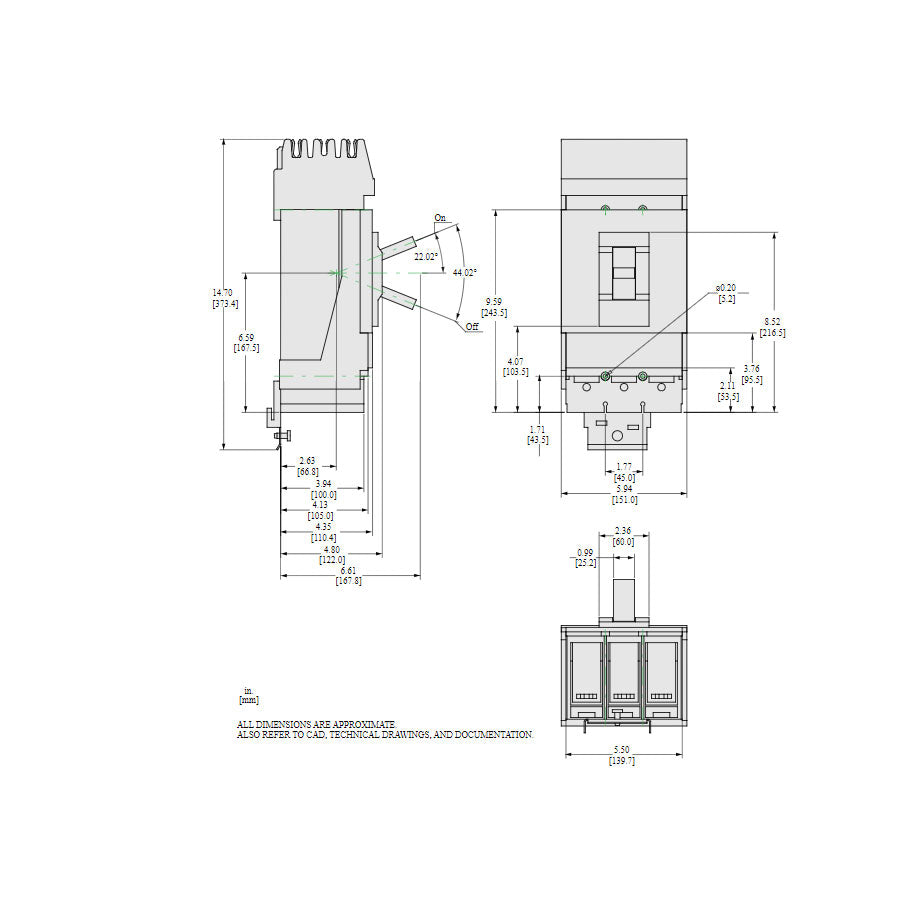

Dimensions

Dimensions (HxWxD):

13.39" x 5.51" x 4.33"

Weight:

13.67 lbs

Standards

Additional Details

Trip Unit Technology:

Electronic, ammeter, MicroLogic 6.3 A, LSIG
Line Rated Current:

400 Amp
Mounting Mode:

I-Line bracket

Breaking Capacity Code

J
Electrical Connection:

I-Line connection line / Lugs load
Continuous Current Rating

80%
Control Type:

Toggle
AWG Gauge:

AWG 3/0...500 kcmil aluminium/copper

Product Description - LJA36400U44X - Square D Molded Case Circuit Breakers

Schneider Electric / Square D, 3P, 3PH, 400A, 600V, 65kA@480V, UL listed, standard interrupting capacity, i-line style plug-in, can used for 2P applications, complete with non-interchangeable micrologic ammeter 6.3A trip, Molded Case Circuit Breaker

Documentation

Catalogue

Data Sheet

LJA36400U44X - Square D - Molded Case Circuit Breakers

I-Line Plug-In - 400 Amp - 3 Pole - 600 Volt

LJA36400U44X - Square D - Molded Case Circuit Breakers

I-Line Plug-In - 400 Amp - 3 Pole - 600 Volt
