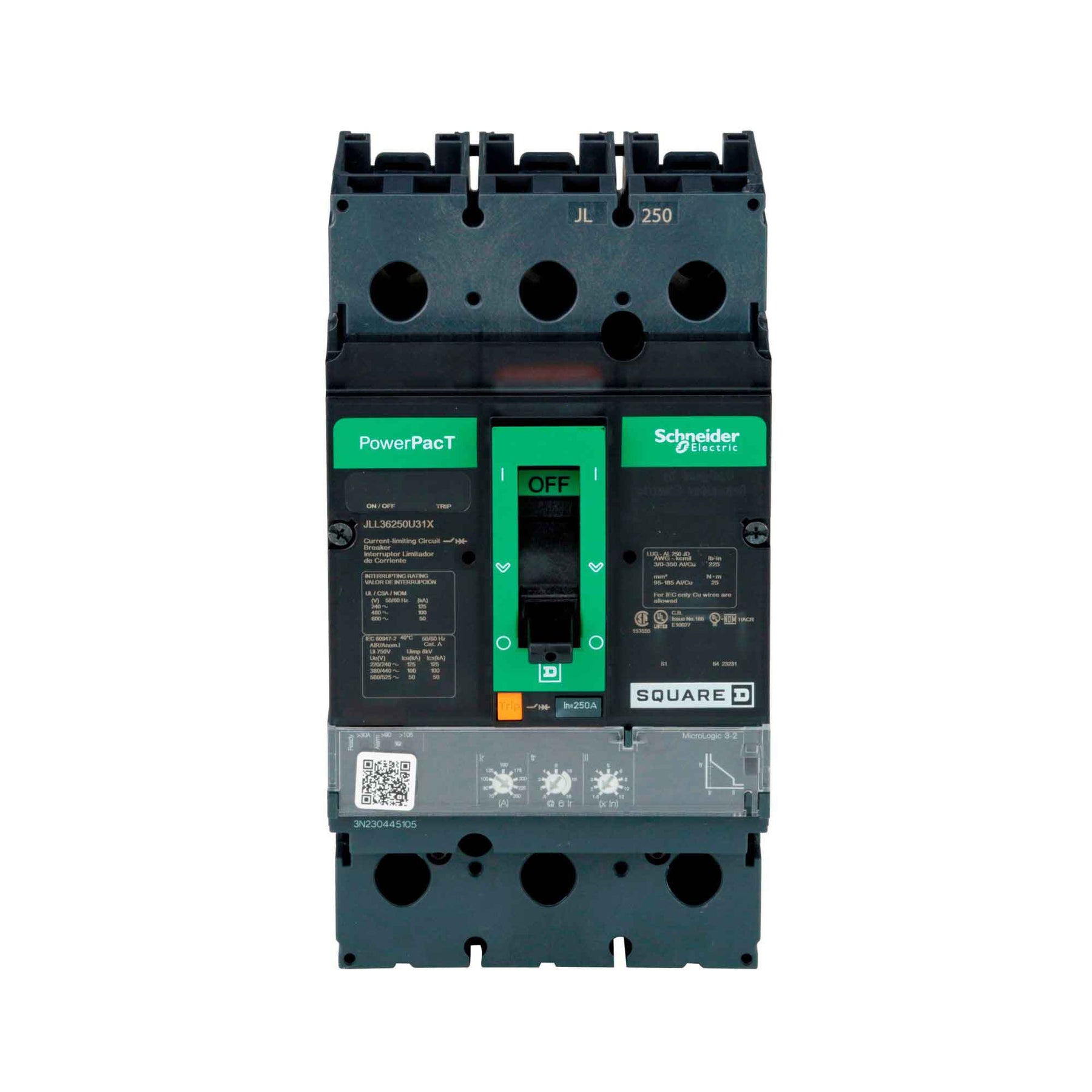

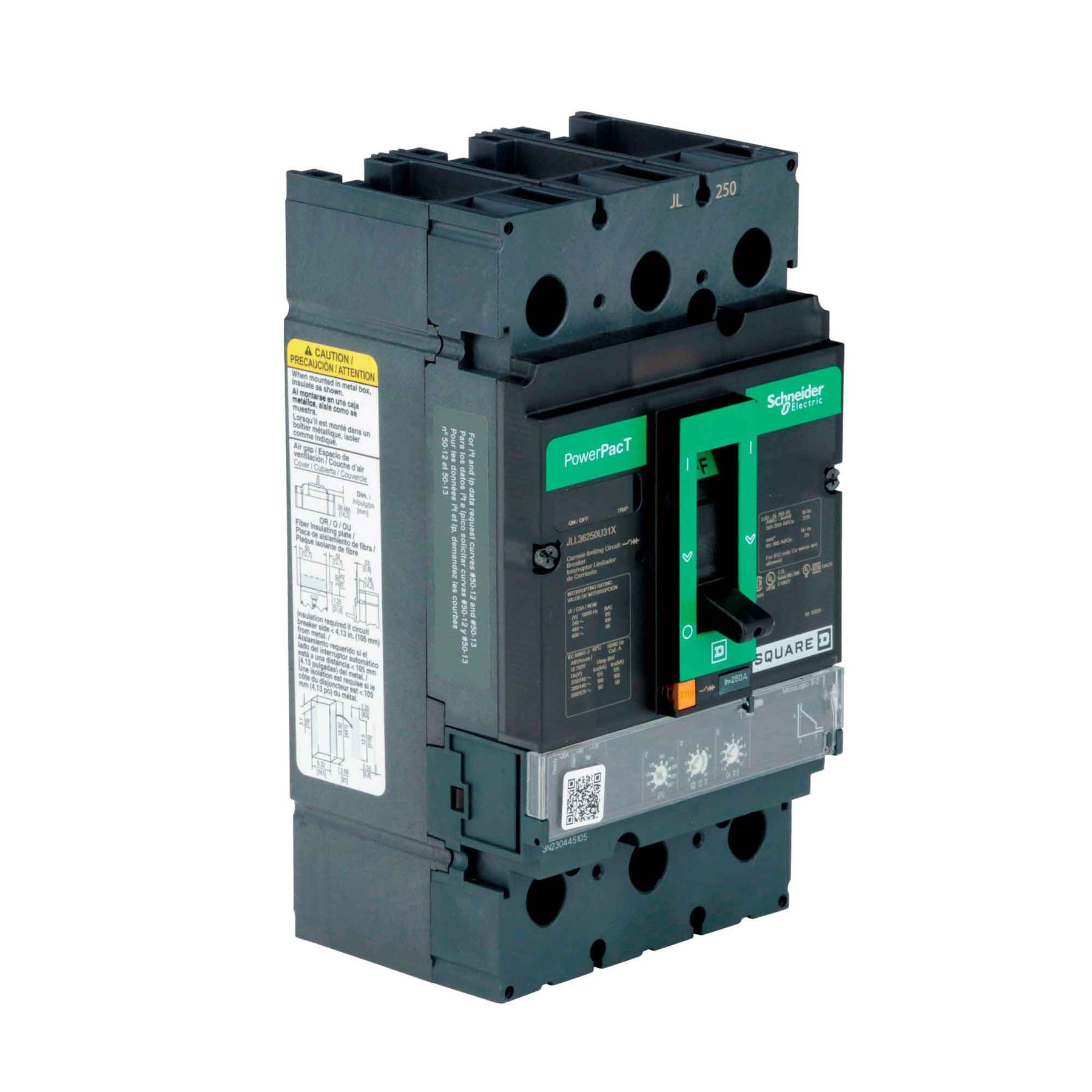

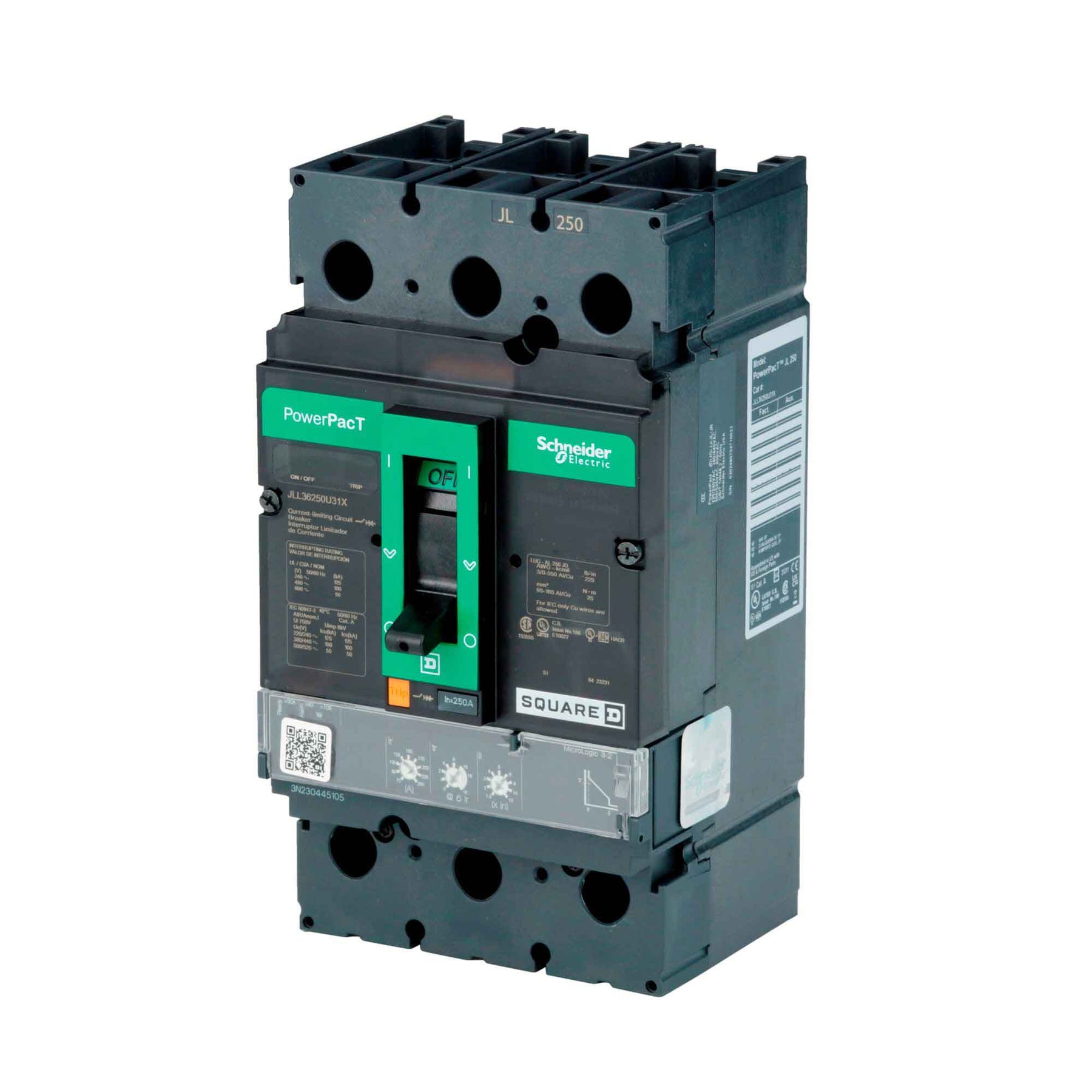

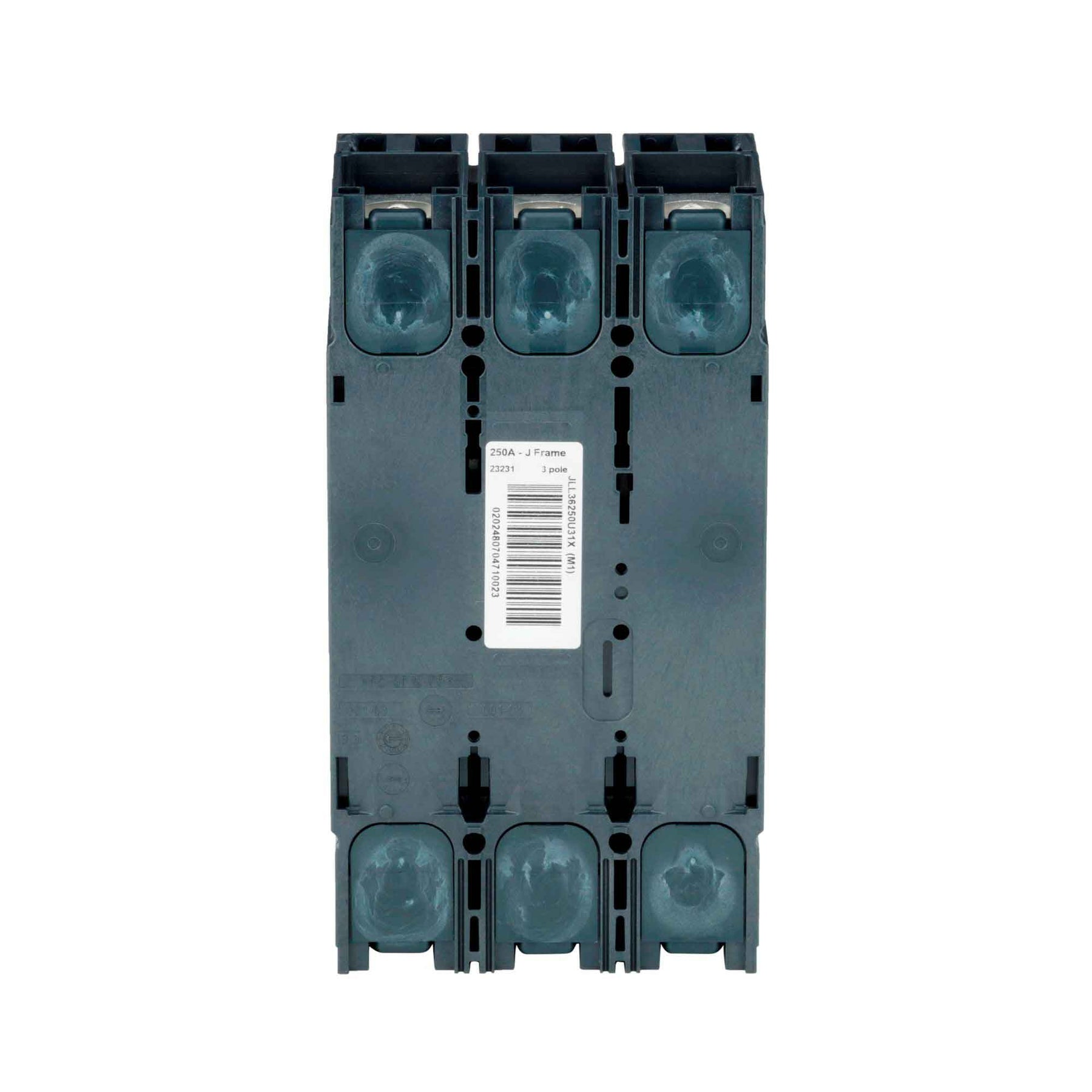

Product Specifications - JLL36250U31X - Schneider Electric Molded Case Circuit Breakers
-
Part Number:
JLL36250U31X -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
250 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
J Frame -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
100kA@480V
Dimensions
-
Dimensions (HxWxD):
3.39 x 4.09 x 7.52 -
Weight:
5.29 lb
Standards
Product Description - JLL36250U31X - Schneider Electric Molded Case Circuit Breakers
Square D, Schneider Electric, Powerpact type JLL, 3P, 3PH, 250A, 600V, 100kA@480V, current limiting, Feed-Thru, UL listed, suitable for reverse fed applications, can be used for 2P applications. It comes complete with micrologic standard non-interchangeable trip, offering LI (Long-Time and Instantaneous) trip functions and line & load side lug terminals. The breaker incorporates Solid State technology and comes in a molded case.
