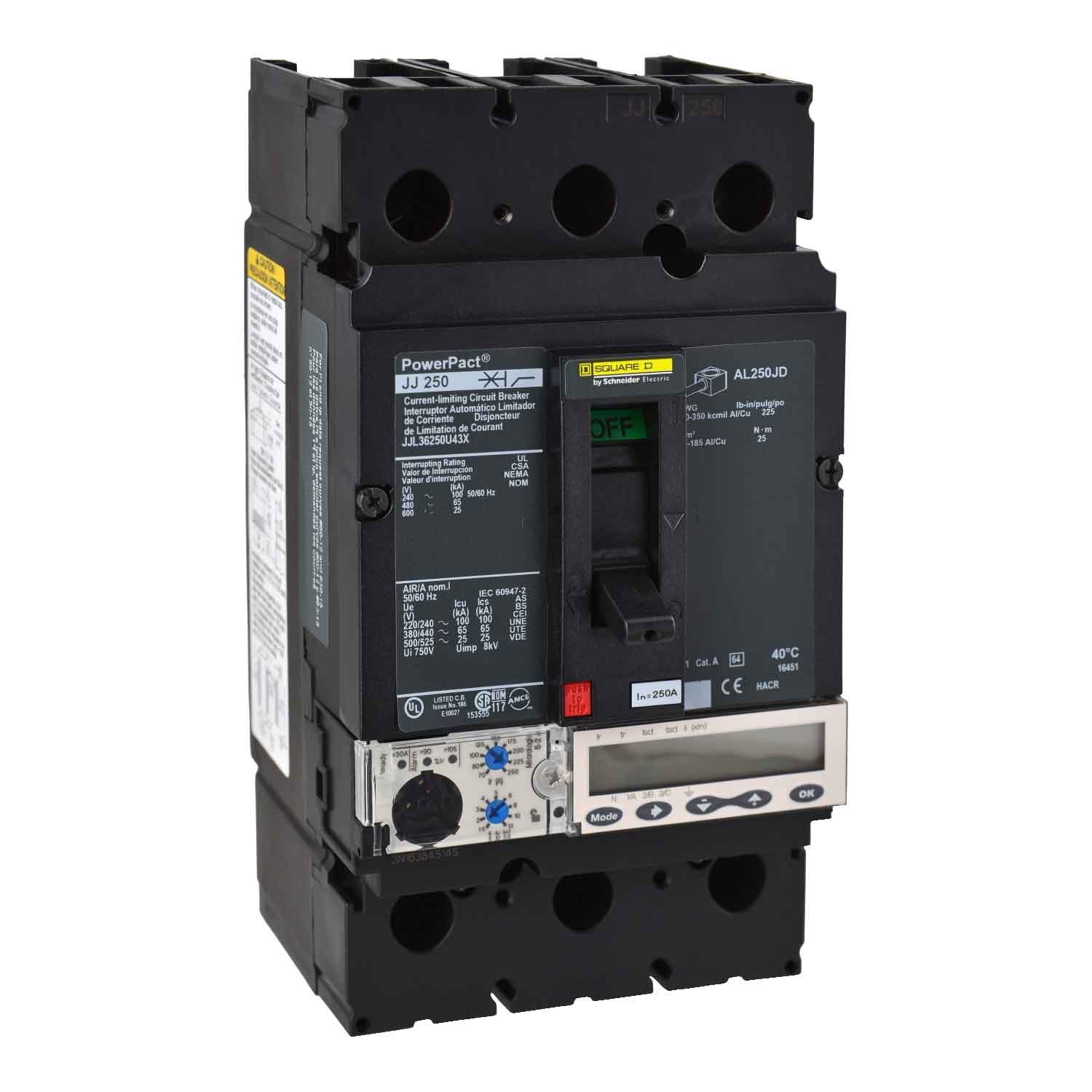

JJL36250U43X - Square D - Molded Case Circuit Breakers
Feed-Thru - 250 Amp - 3 Pole - 600 V
Schneider Electric
SKU: JJL36250U43X
Images are for reference only
Returns are easy
You may return items within 30 days of delivery for a refund.
FREE Shipping on orders over $49.
Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).
Overview
Product Specifications - JJL36250U43X - Schneider Electric Molded Case Circuit Breakers
-
Part Number:
JJL36250U43X -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
250 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
J Frame -
Functions:
LSI - Long-Time, Short-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
3.39 x 4.09 x 7.52 -
Weight:
5.29 lb
Standards
Product Description - JJL36250U43X - Schneider Electric Molded Case Circuit Breakers
Square D, Schneider Electric, Powerpact type JJL, 3P, 3PH, 250A, 600V, 65kA@480V, current limiting, Feed-Thru, UL listed, suitable for reverse fed applications. It features a micrologic ammeter non-interchangeable trip with LSI (Long-Time, Short-Time, and Instantaneous) trip functions and line & load side lug terminals. The breaker incorporates Solid State technology and comes in a molded case.
