JDA36250U44X - Square D - Molded Case Circuit Breakers

I-Line Plug-In - 250 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: JDA36250U44X

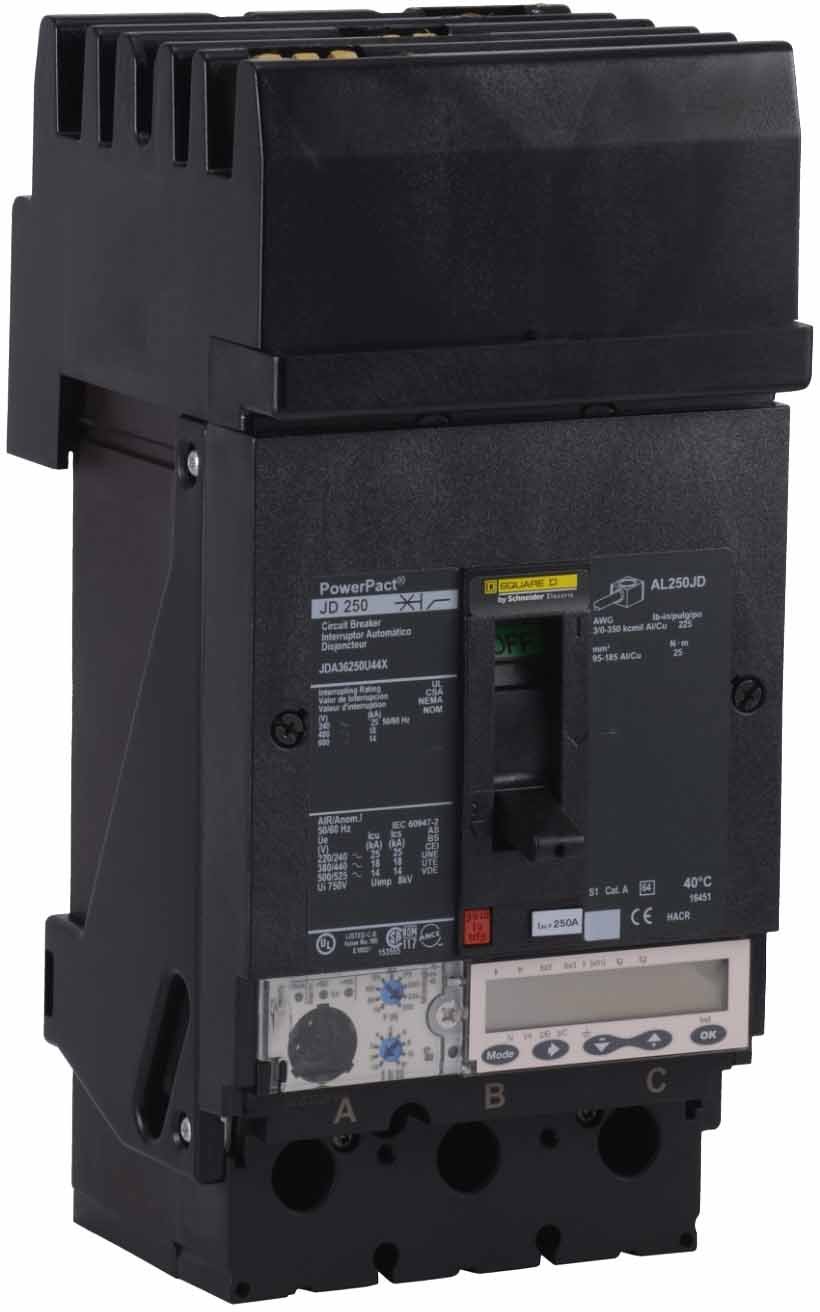

JDA36250U44X - Square D 250 Amp 3 Pole 600 Volt Molded Case Circuit Breaker
JDA36250U44X - Square D - Molded Case Circuit Breakers

Images are for reference only

JDA36250U44X - Square D - Molded Case Circuit Breakers

I-Line Plug-In - 250 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: JDA36250U44X
Regular price $3,171.23 Sale price $2,563.99 Save $607.24
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Shipping calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

Overview

Product Specifications - JDA36250U44X - Square D Molded Case Circuit Breakers

  • Category:

  • Connection:

    I-Line Style Plug-In
  • Type:

    JDA
  • Functions:

    LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
  • Protection:

    Solid State
  • AIC Ratings:

    18kA@480V

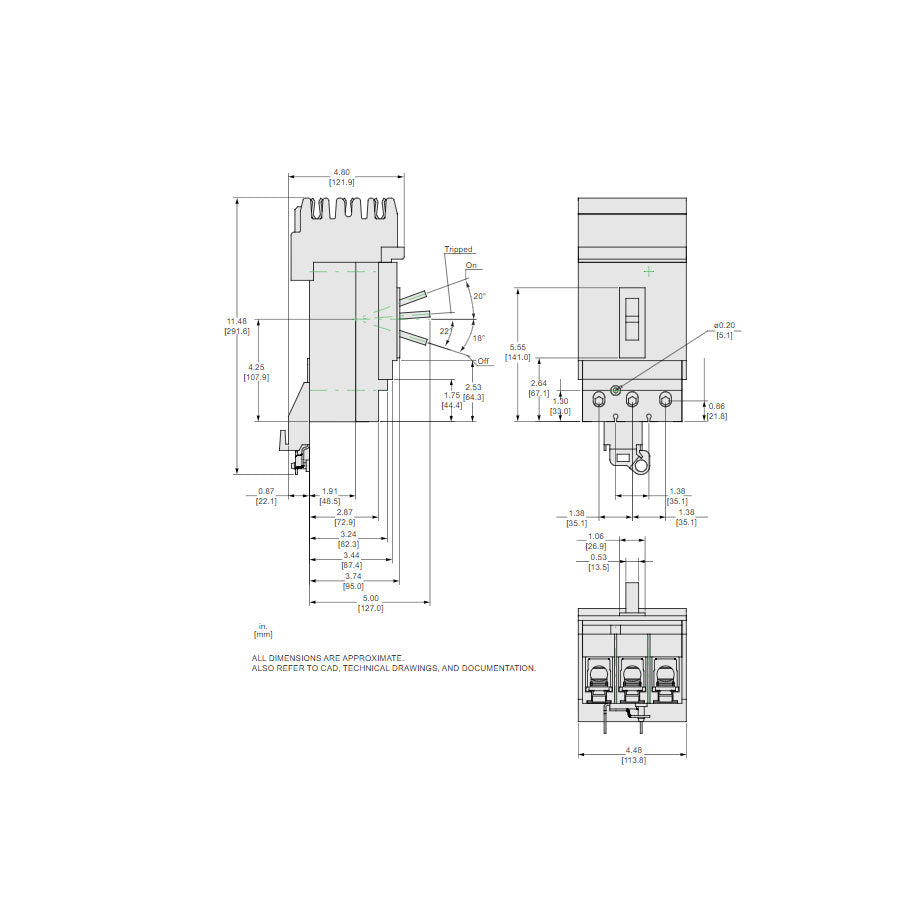

Dimensions

  • Dimensions (HxWxD):

    7.52" x 4.09" x 3.39"
  • Weight:

    5.29 lbs

Standards

CSA Approved logo

Additional Details

  • Protection Type:

    Short-Circuit / Overload
  • Trip Unit Technology:

    Electronic, ammeter, MicroLogic 6.2 A, LSIG
  • Line Rated Current:

    250 Amp
  • Mounting Mode:

    I-Line bracket
  • Breaking Capacity Code

    D
  • Electrical Connection:

    I-Line connection line / Lugs load
  • Magnetic Hold Current:

    1250 Amp
  • Continuous Current Rating

    80%
  • Control Type:

    Toggle
  • AWG Gauge:

    AWG 3/0...350 kcmil aluminium/copper terminals

Product Description - JDA36250U44X - Square D Molded Case Circuit Breakers

Square D, type JDA, 3P, ABC phase connection, 3PH, 250A, 600V, 18kA@480V, standard interrupting capacity, suitable for reverse connection, complete with micrologic ammeter 6.2A non-interchangeable trip, LSIG - Long-Time, Short-Time, solid state electronic, Molded Case Circuit Breaker


Documentation

PDF Icon Catalogue

PDF Icon Installation Instructions

PDF Icon Technical Specifications
