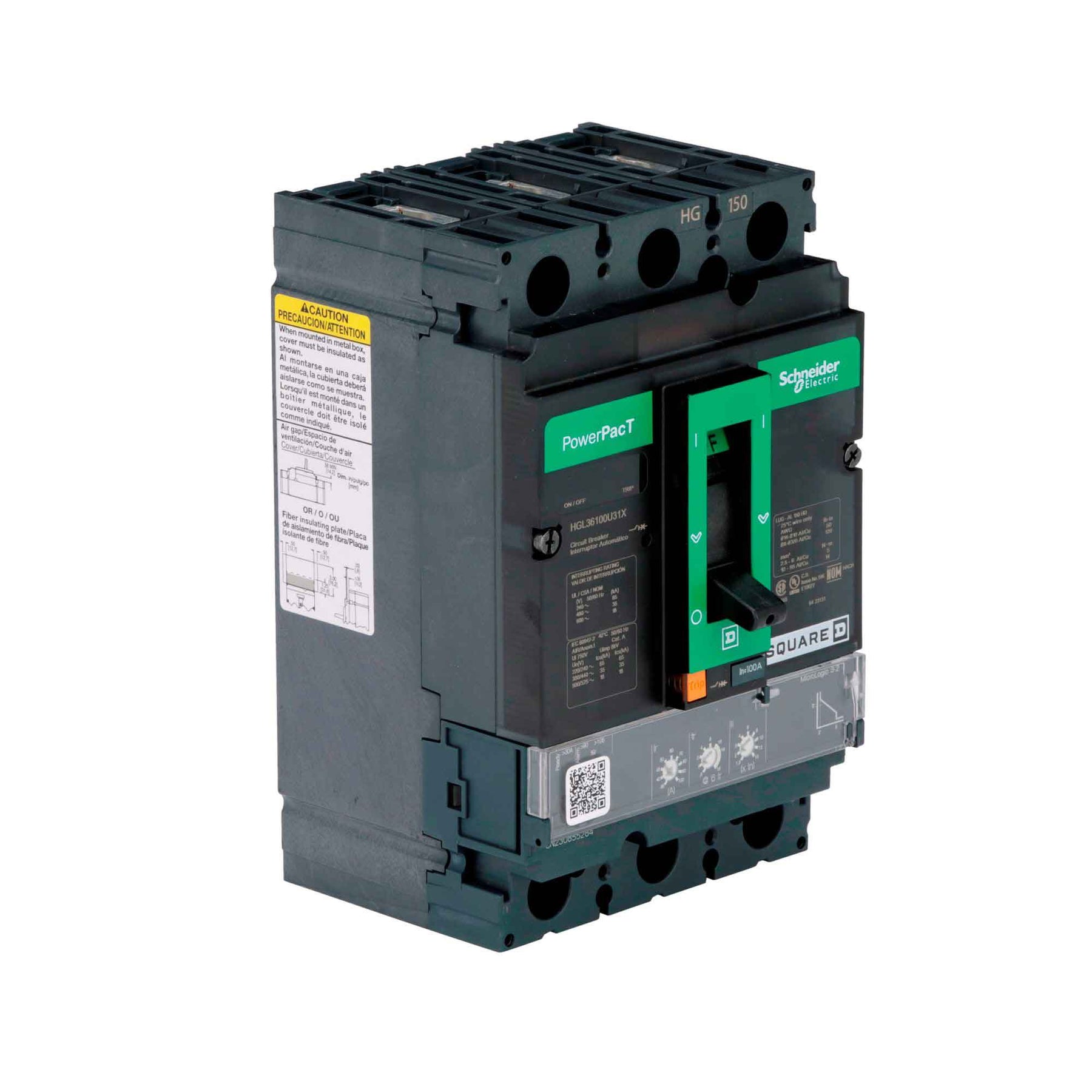

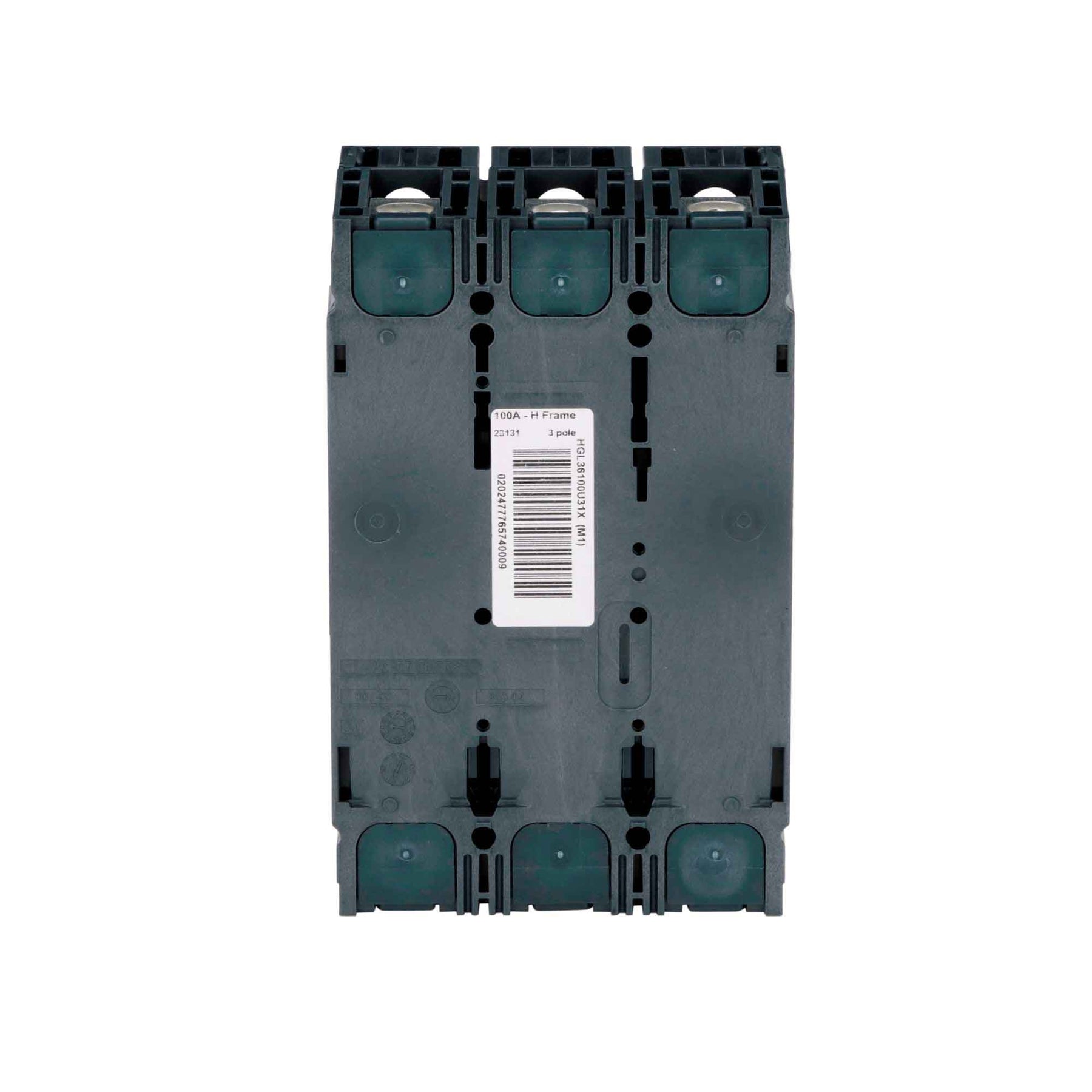

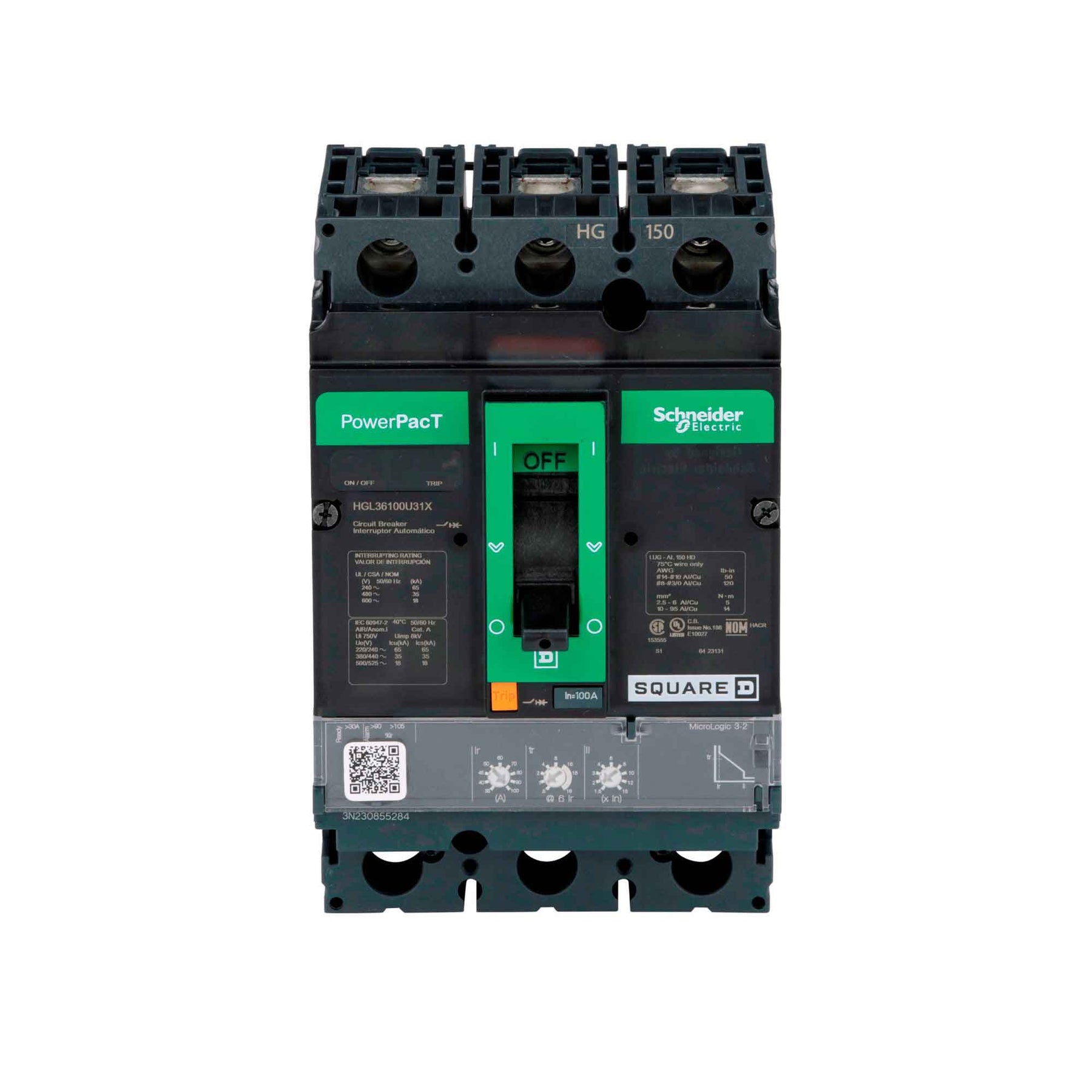

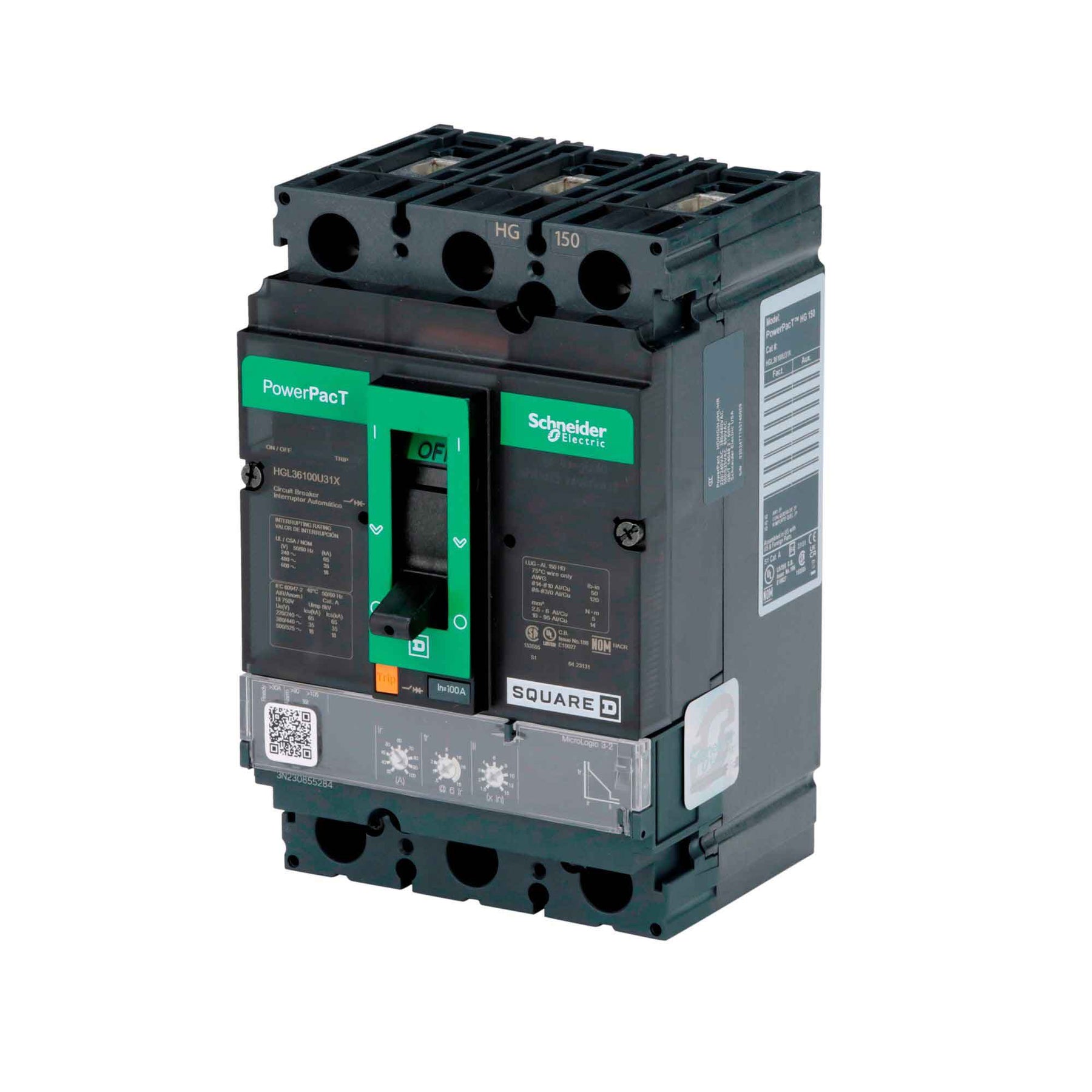

HGL36100U31X - Square D - Molded Case Circuit Breakers
Feed-Thru - 100 Amp - 3 Pole - 600 V
Schneider Electric
SKU: HGL36100U31X
Images are for reference only
Returns are easy
You may return items within 30 days of delivery for a refund.
FREE Shipping on orders over $49.
Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer). Extended warranties are available upon request.
Overview
Product Specifications - HGL36100U31X - Schneider Electric Molded Case Circuit Breakers
-
Part Number:
HGL36100U31X -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
100 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
H Frame -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
3.39 x 4.09 x 6.42 -
Weight:
4.85 lb
Standards
Product Description - HGL36100U31X - Schneider Electric Molded Case Circuit Breakers
Schneider Electric introduces the HGL36100U31X, a distinguished member of the Powerpact series. This 3-phase molded case circuit breaker is engineered for excellence with a 100A capacity, 600V rating, and an impressive 35kA@480V interrupting capacity. Designed with versatility in mind, it features Feed-Thru functionality and is UL listed, making it suitable for reverse fed applications. Notably, it can be utilized for 2P applications as well. The breaker is complete with a micrologic standard non-interchangeable trip, offering Long-Time (LI) and Instantaneous trip functions. Line and load side lug terminals add to its flexibility, and the use of Solid State electronic technology ensures reliable performance in various scenarios
