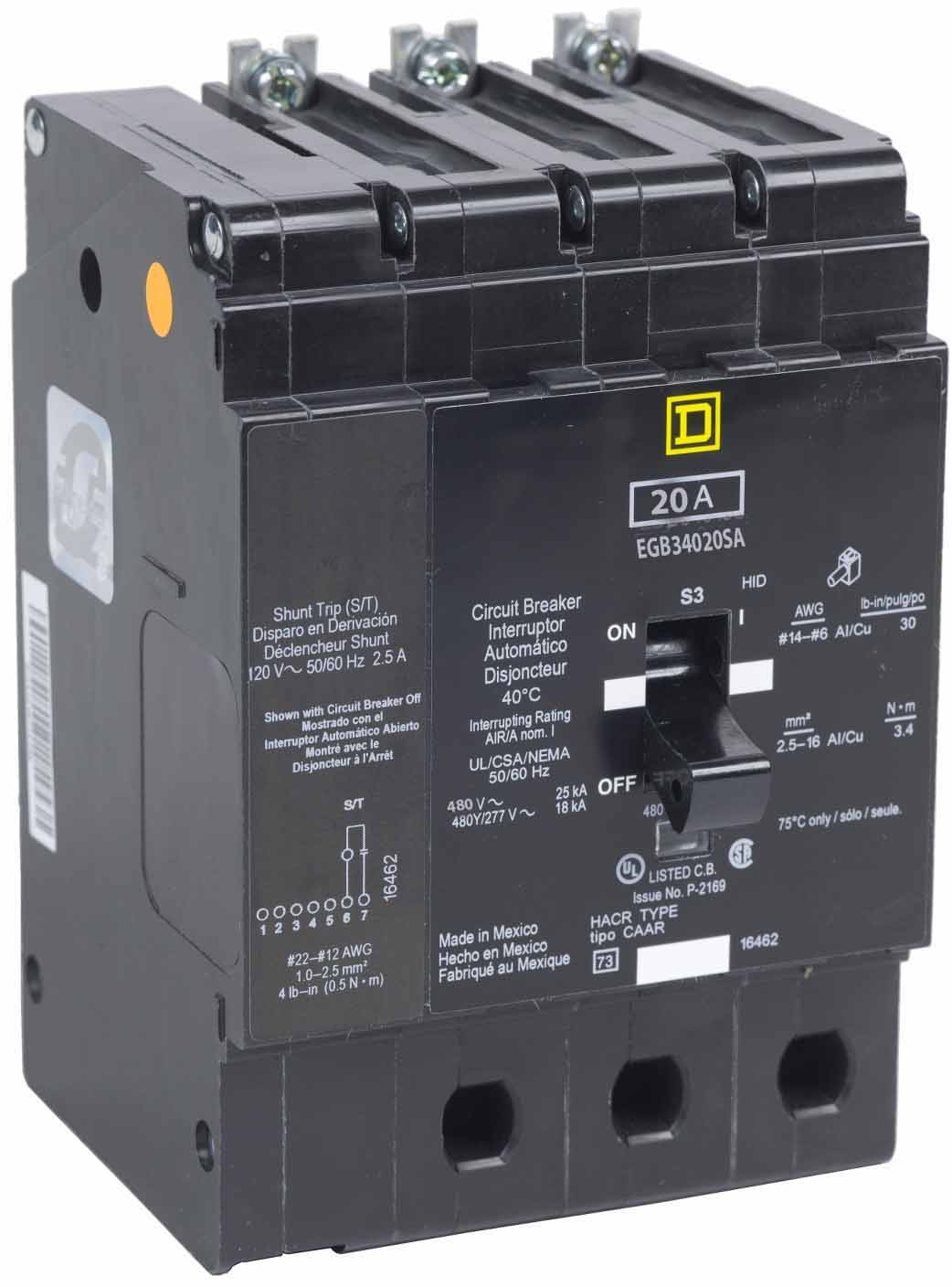

EGB34020SA - Square D - Molded Case Circuit Breakers
Bolt On - 20 Amp - 3 Pole - 480 Volt
Schneider Electric
SKU: EGB34020SA
Images are for reference only
Returns are easy
You may return items within 30 days of delivery for a refund.
FREE Shipping on orders over $49.
Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).
Overview
Product Specifications - EGB34020SA - Square D Molded Case Circuit Breakers
-
Part Number:
EGB34020SA -
Manufacturer:
Schneider Electric / Square D -
Family:
EGB Series -
Pole:
3 -
Amp
20 -
Volt:
480 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
EGB -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
5.66" x 3.92" x 4.05"
-
Weight:
4 lbs
Standards
Additional Details
-
Protection Type:
Short-Circuit / Overload -
Module Type:
E-Frame -
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
20 Amp -
Maximum Operating Voltage:
480Y/277 V AC -
Mounting Mode:
Bolt-on
-
Breaking Capacity Code
G -
Electrical Connection:
Lugs aluminium -
AWG Gauge:
AWG 12...AWG 6 aluminium / AWG 14...AWG 6 copper
Product Description - EGB34020SA - Square D Molded Case Circuit Breakers
Square D / Schneider Electric, type EGB, 3P, 3PH, 20A, 277/480V, 35kA@480V, complete with 120V shunt trip, high interrupting capacity, 40°C, Molded Case Circuit Breaker
