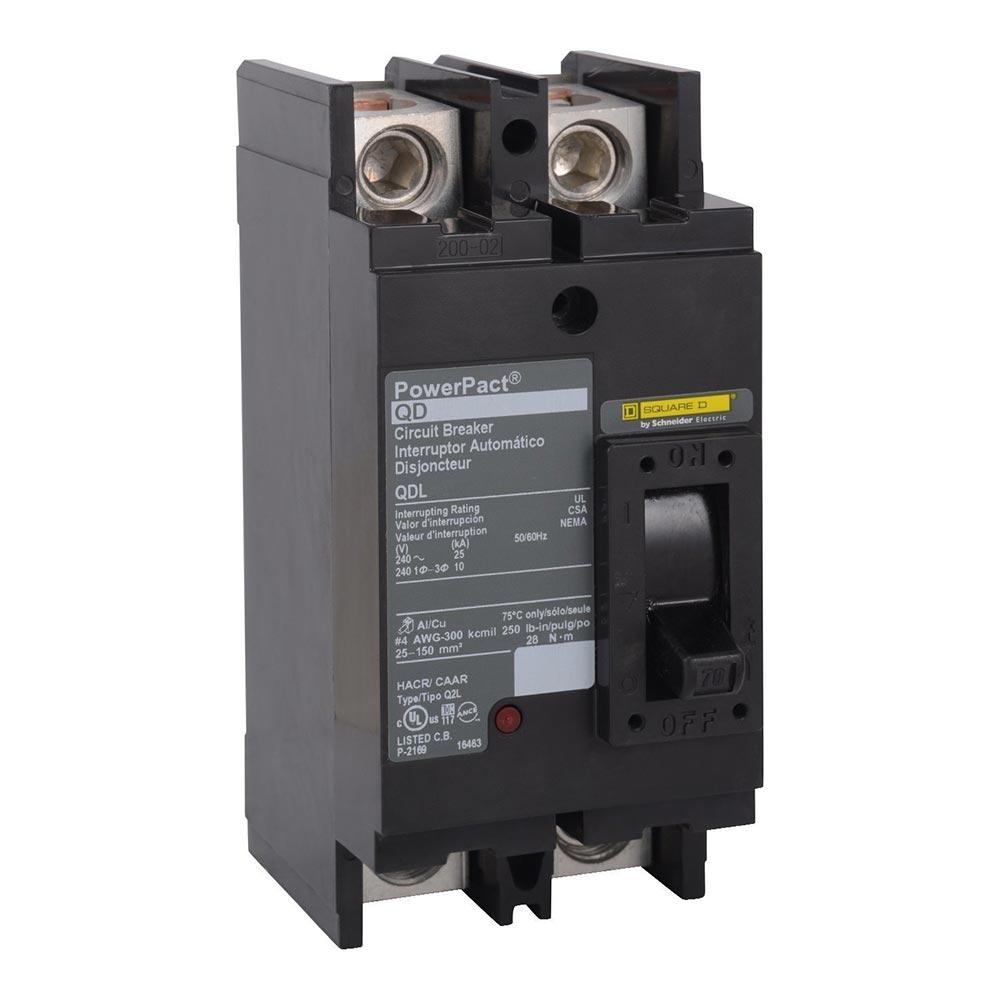

QDL22225 - Square D - Molded Case Circuit Breaker
Feed-Thru - 225 Amp - 2 Pole - 240 Volt
Schneider Electric
SKU: QDL22225
Images are for reference only
Returns are easy
You may return items within 30 days of delivery for a refund.
FREE Shipping on orders over $49.
Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).
Overview
Product Specifications - QDL22225 - Square D Powerpact Circuit Breaker
-
Part Number:
QDL22225 -
Manufacturer:
-
Family:
Powerpact -
Pole:
2 -
Amp
225 -
Volt:
240 -
Phase:
1
-
Category:
-
Connection:
Feed-Thru -
Type:
QDL -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
25kA@240V
Dimensions
-
Dimensions (HxWxD):
6.47" x 3" x 3.93"
-
Weight:
4.9 lbs
Standards
Additional Details
-
Frame Type:
Q-Frame -
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
225 Amp -
Mounting Mode:
Unit mount lug
-
Breaking Capacity Code:
D -
Electrical Connection:
Lugs load/Lugs line -
Magnetic Hold Current:
1200 Amp -
Continuous Current Rating:
80% -
Control Type:
Operating handle
Product Description - QDL22225 - Square D Powerpact Circuit Breaker
Schneider Electric / Square D, Powerpact, type QDL, 2P, 1PH, 225A, 240V, 25kA@240V, UL listed, standard interrupting capacity, feed-thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers.
