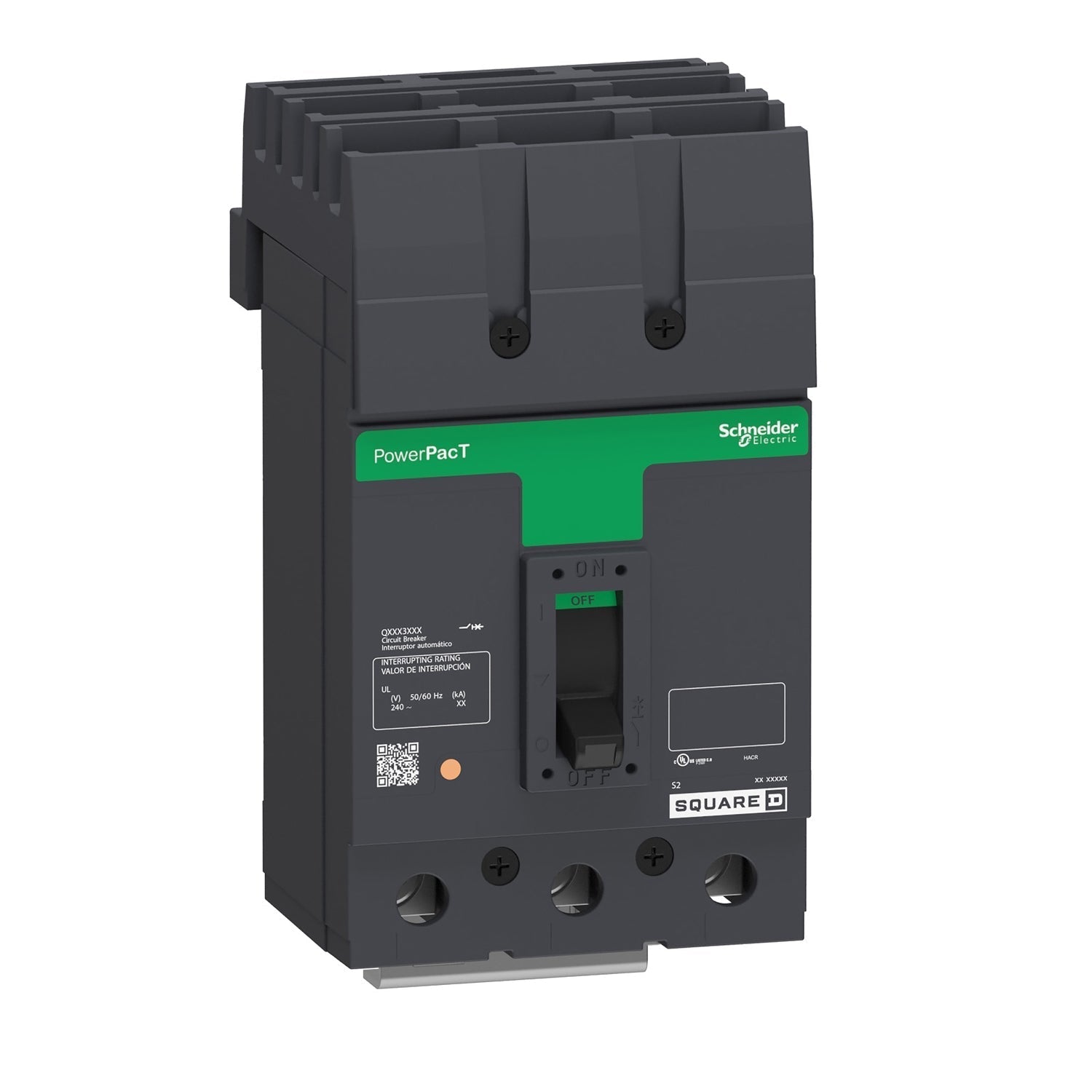

QDA32125 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 125 Amp - 3 Pole - 240 Volt

Schneider Electric SKU: QDA32125
QDA32125 - Square D - Molded Case Circuit Breaker

Images are for reference only

QDA32125 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 125 Amp - 3 Pole - 240 Volt

Schneider Electric SKU: QDA32125
Save $1,137.01
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Shipping calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

Overview

Product Specifications - QDA32125 - Square D I-Line Circuit Breaker

  • Category:

    Molded Case / 3-Pole

  • Connection:

    I-Line Style Plug-In

  • Type:

    QDA

  • Functions:

    LI - Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    25kA@240V

Dimensions

  • Dimensions (HxWxD):

    6.47" x 4.5" x 3.93"

  • Weight:

    4.9 lbs

Standards

CSA Approved logo

Additional Details

  • Frame Type:

    Q-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    125 Amp

  • Mounting Mode:

    I-Line bracket

  • Breaking Capacity Code:

    D

  • Electrical Connection:

    I-Line connection line/Lugs load

  • Magnetic Hold Current:

    1200 Amp

  • Continuous Current Rating:

    80%

  • Control Type:

    Operating handle

Product Description - QDA32125 - Square D I-Line Circuit Breaker

Square D, I-Line, type QDA, 3P, ABC phase connection, 3PH, 125A, 240V, 25kA@240V, UL listed, standard interrupting capacity, i-line style plug-in, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, thermal magnetic, molded case circuit breakers.
