QBL22150 - Square D - Molded Case Circuit Breaker

Feed-Thru - 150 Amp - 2 Pole - 240 Volt

Schneider Electric SKU: QBL22150

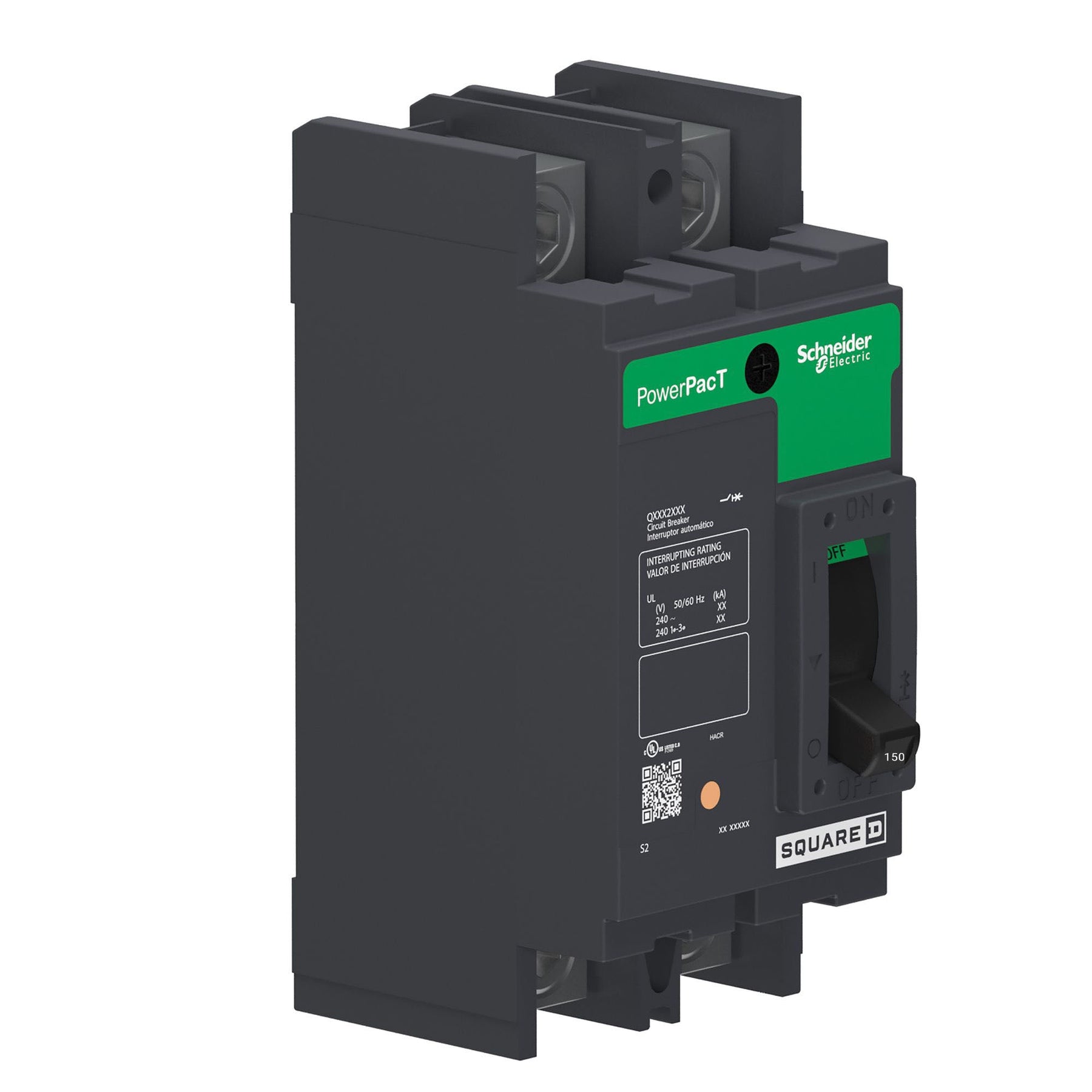

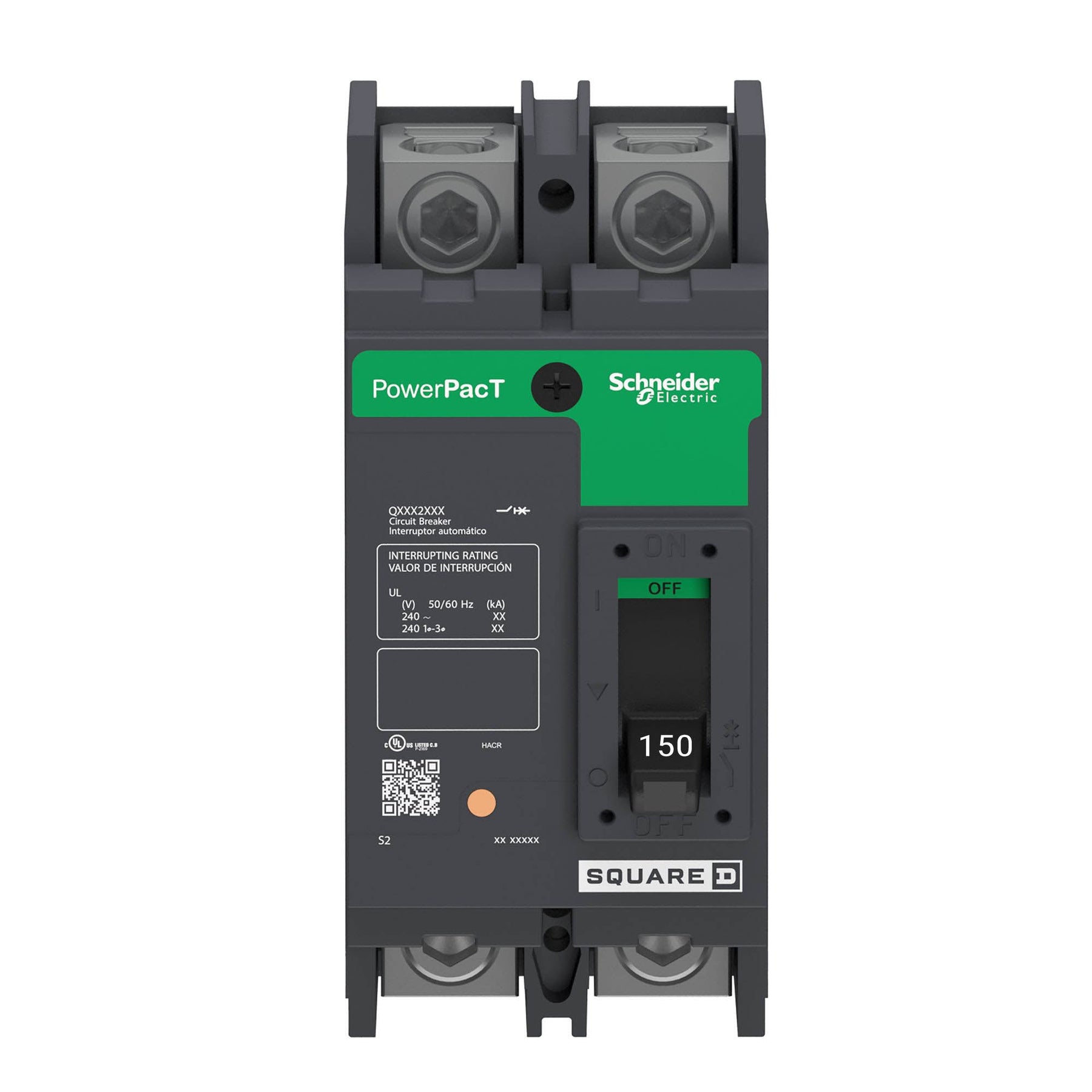

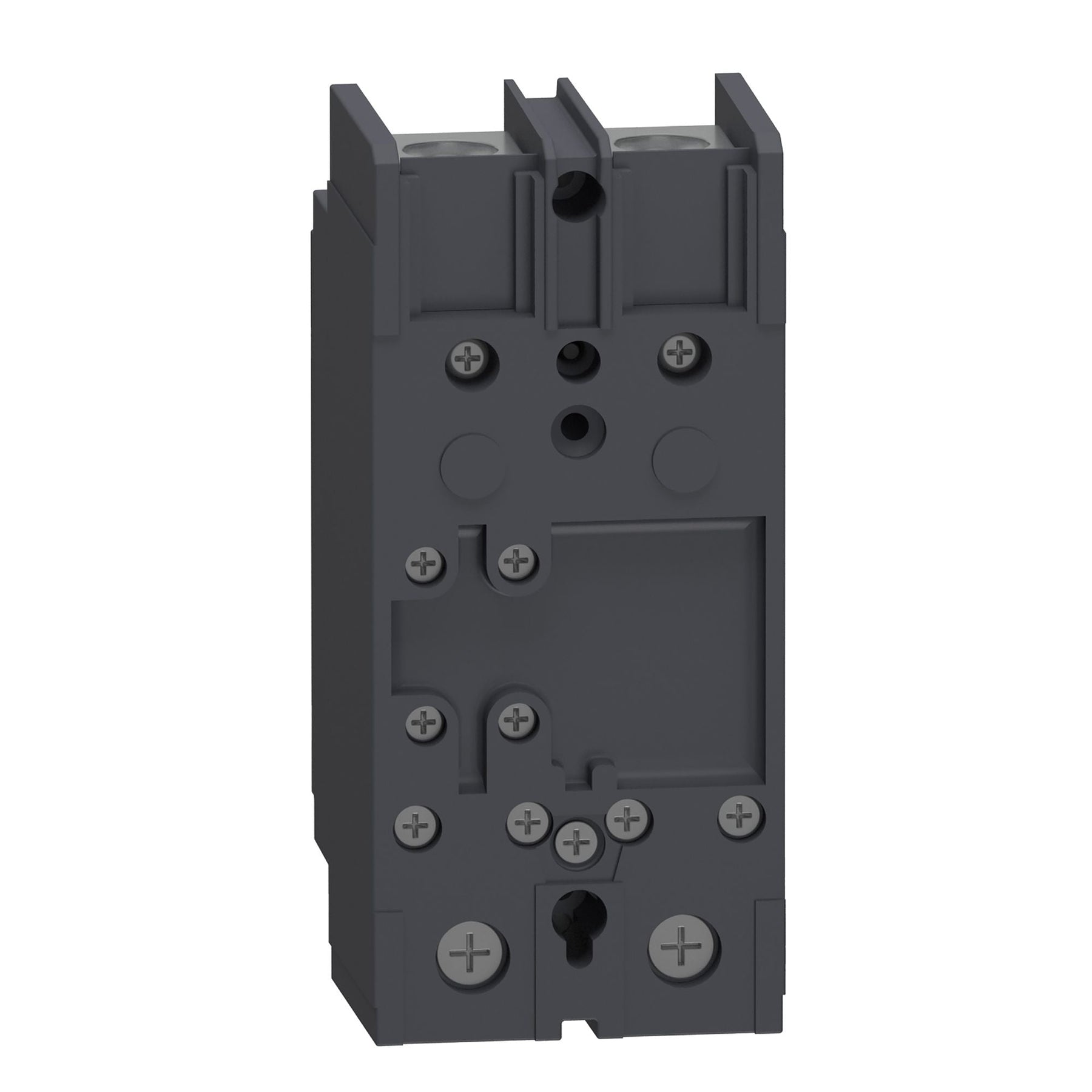

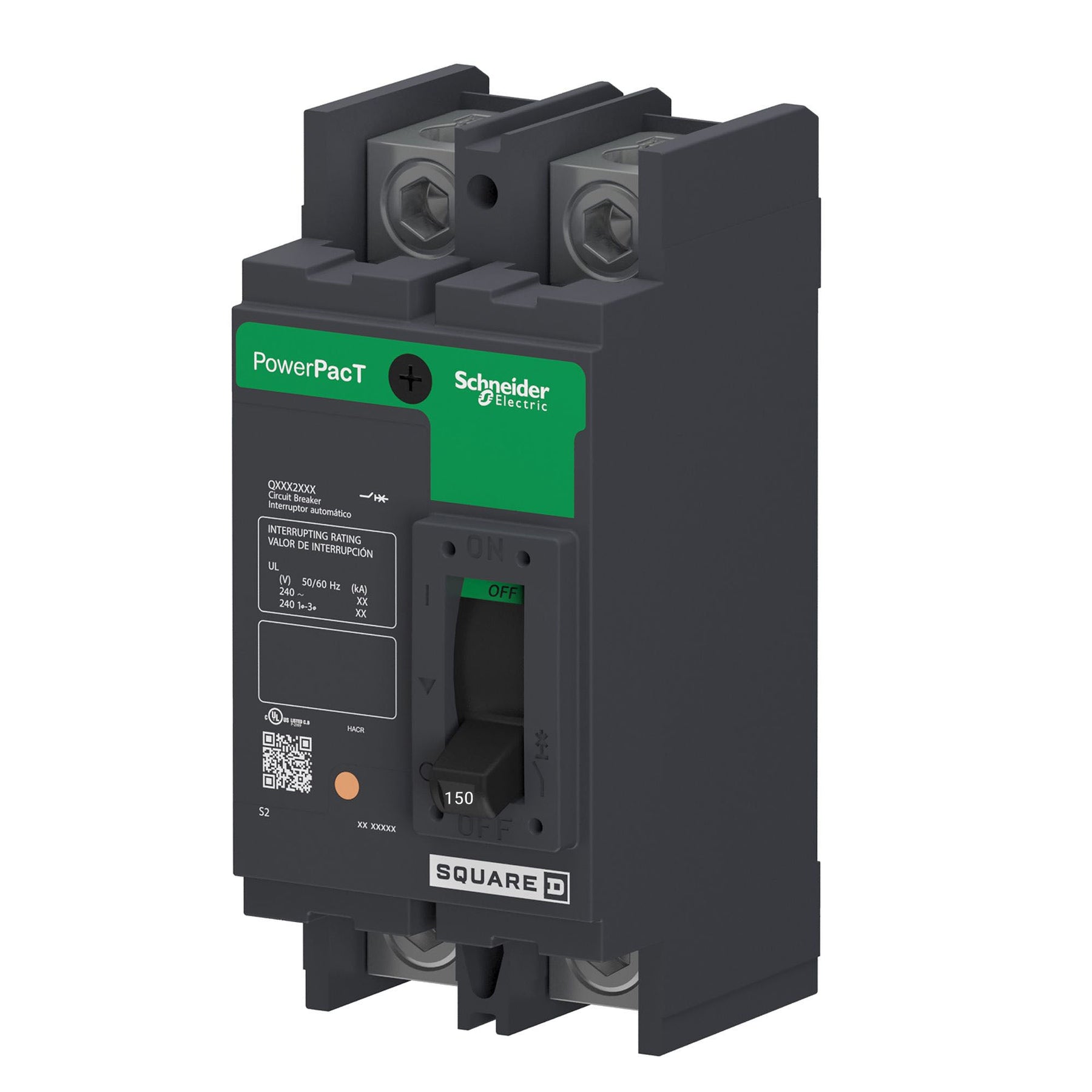

QBL22150 - Square D 150 Amp 2 Pole 240 Volt Thermal Magnetic Molded Case Circuit Breaker
QBL22150 - Square D - Molded Case Circuit Breaker
QBL22150 - Square D - Molded Case Circuit Breaker
QBL22150 - Square D - Molded Case Circuit Breaker

Images are for reference only

QBL22150 - Square D - Molded Case Circuit Breaker

Feed-Thru - 150 Amp - 2 Pole - 240 Volt

Schneider Electric SKU: QBL22150
Regular price $367.99
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Shipping calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

Overview

Product Specifications - QBL22150 - Square D Molded Case Circuit Breakers

  • Part Number:

    QBL22150
  • Manufacturer:

  • Family:

    Powerpact
  • Pole:

    2
  • Amp

    150
  • Volt:

    240
  • Phase:

    1
  • Category:

  • Connection:

    Feed-Thru
  • Type:

    QBL
  • Functions:

    LI - Long-Time and Instantaneous
  • Protection:

    Thermal Magnetic
  • AIC Ratings:

    10kA@240V

Dimensions

  • Dimensions (HxWxD):

    6.47" x 3" x 3.93"

Additional Details

  • Frame Type:

    Q-Frame
  • Trip Unit Technology:

    Thermal-magnetic
  • Line Rated Current:

    150 Amp
  • Magnetic Hold Current:

    1200 A
  • Mounting Mode:

    Unit Mount Lug
  • Breaking Capacity Code:

    B
  • Electrical Connection:

    Lugs line / Lugs load
  • Continuous Current Rating:

    80%
  • Control Type:

    Operating Handle

Standards

CSA Approved logo

Product Description - QBL22150 - Square D Molded Case Circuit Breakers

Schneider Electric / Square D, Powerpact, type QBL, 2P, 1PH, 150A, 240V, 10kA@240V, UL listed, standard interrupting capacity, feed-thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers


Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications
