Overview

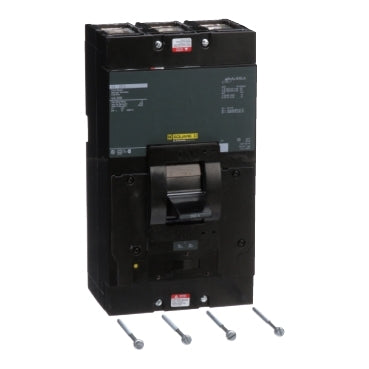

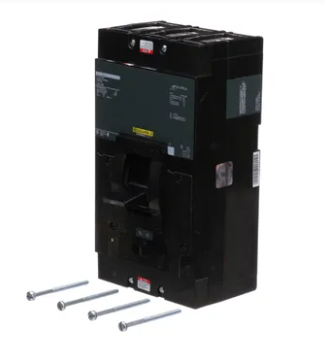

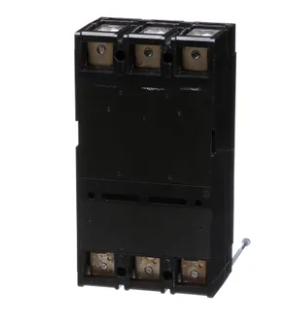

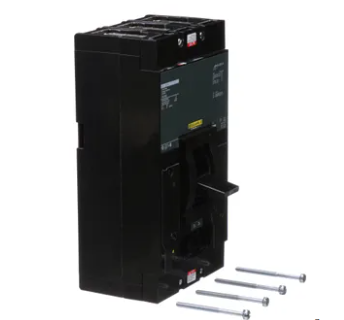

Product Specifications - Q4L3250 - Square D Molded Case Circuit Breakers
-
Part Number:
Q4L3250 -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
250 -
Volt:
240 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
Q4L -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
25kA@240V

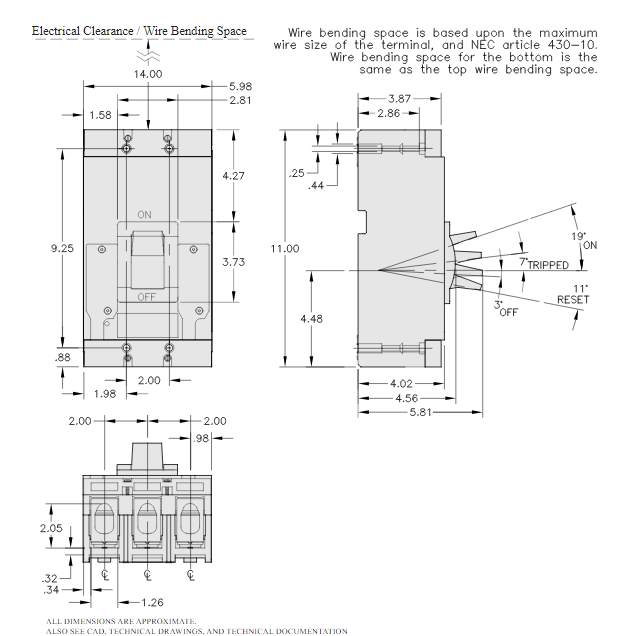

Dimensions
-
Dimensions (HxWxD):
11.0" x 6.0" x 5.84"
Additional Details
-
Trip Unit Technology:
Electronic, basic, ET 1.0I, I -
Line Rated Current:
250 Amp -
Mounting Mode:
Unit Mount
-
Breaking Capacity Code:
Q4 -
Electrical Connection:
Lugs line / Lugs load
Standards
Product Description - Q4L3250 - Square D Molded Case Circuit Breakers
Square D, Q4L Series, type Q4L, 3P, 3PH, 250A, 240V, 25kA@240V, standard interrupting capacity, 40 degree C, feed-thru, LI - Long-Time and Instantaneous trip functions, line & load side lug terminals, thermal magnetic, molded case circuit breakers.
