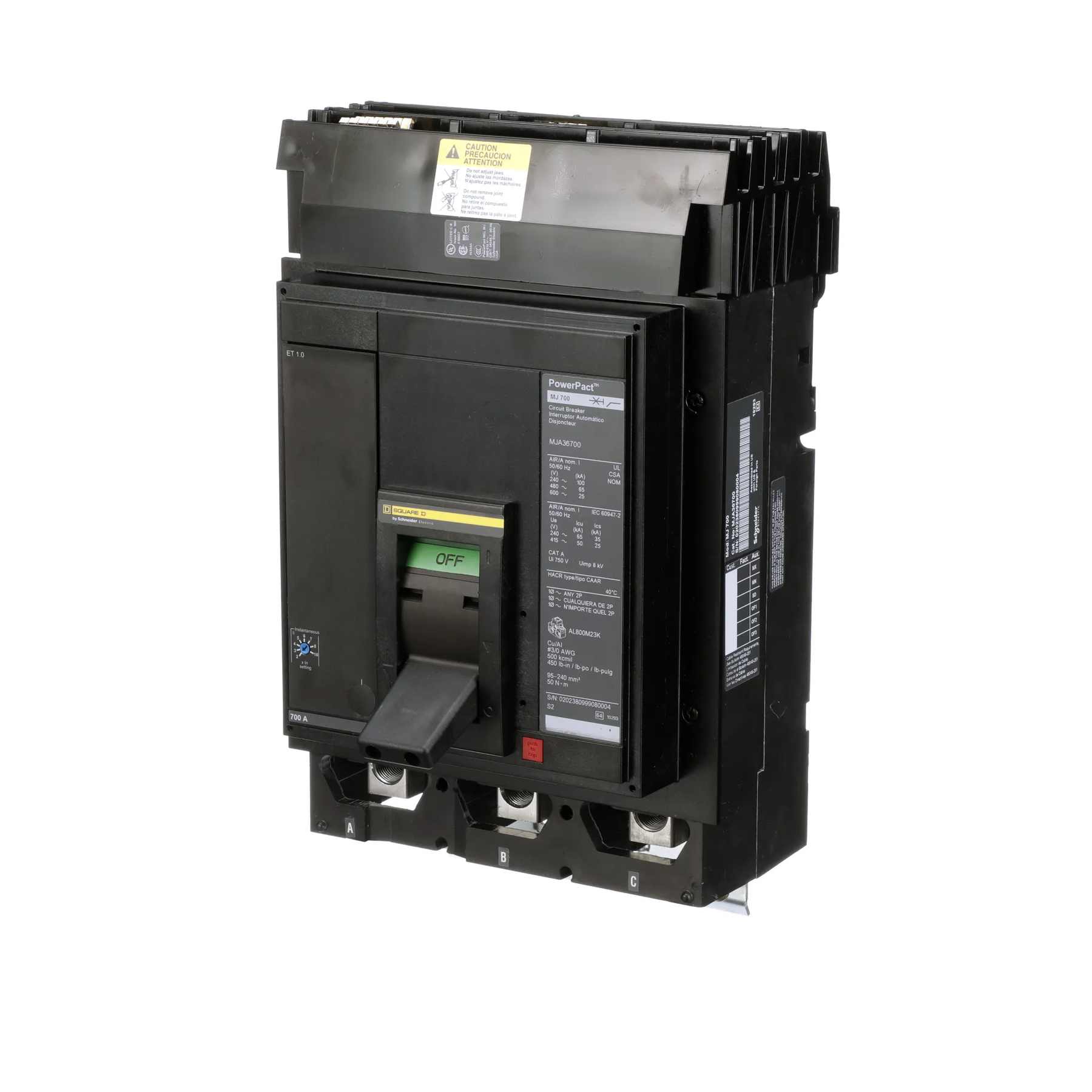

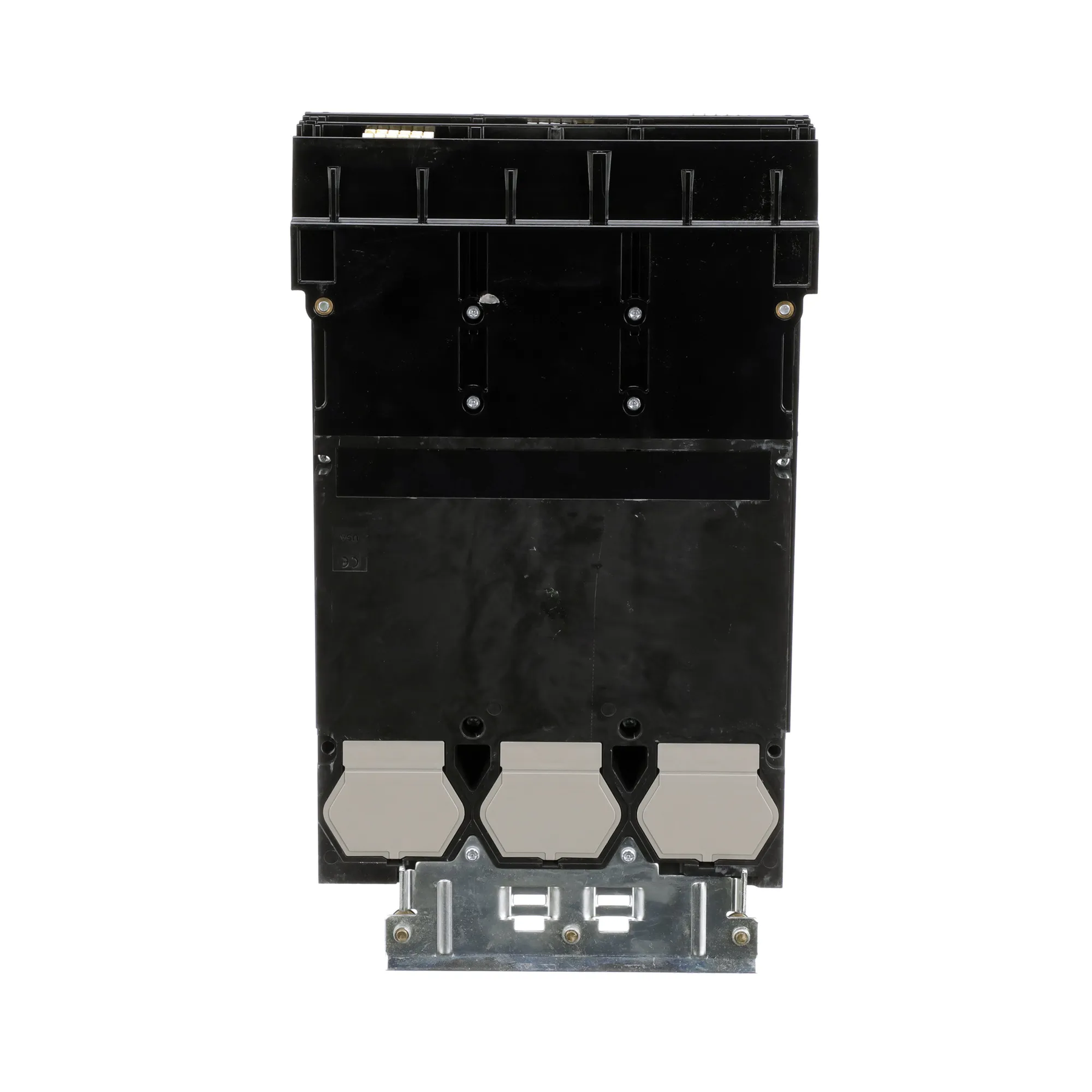

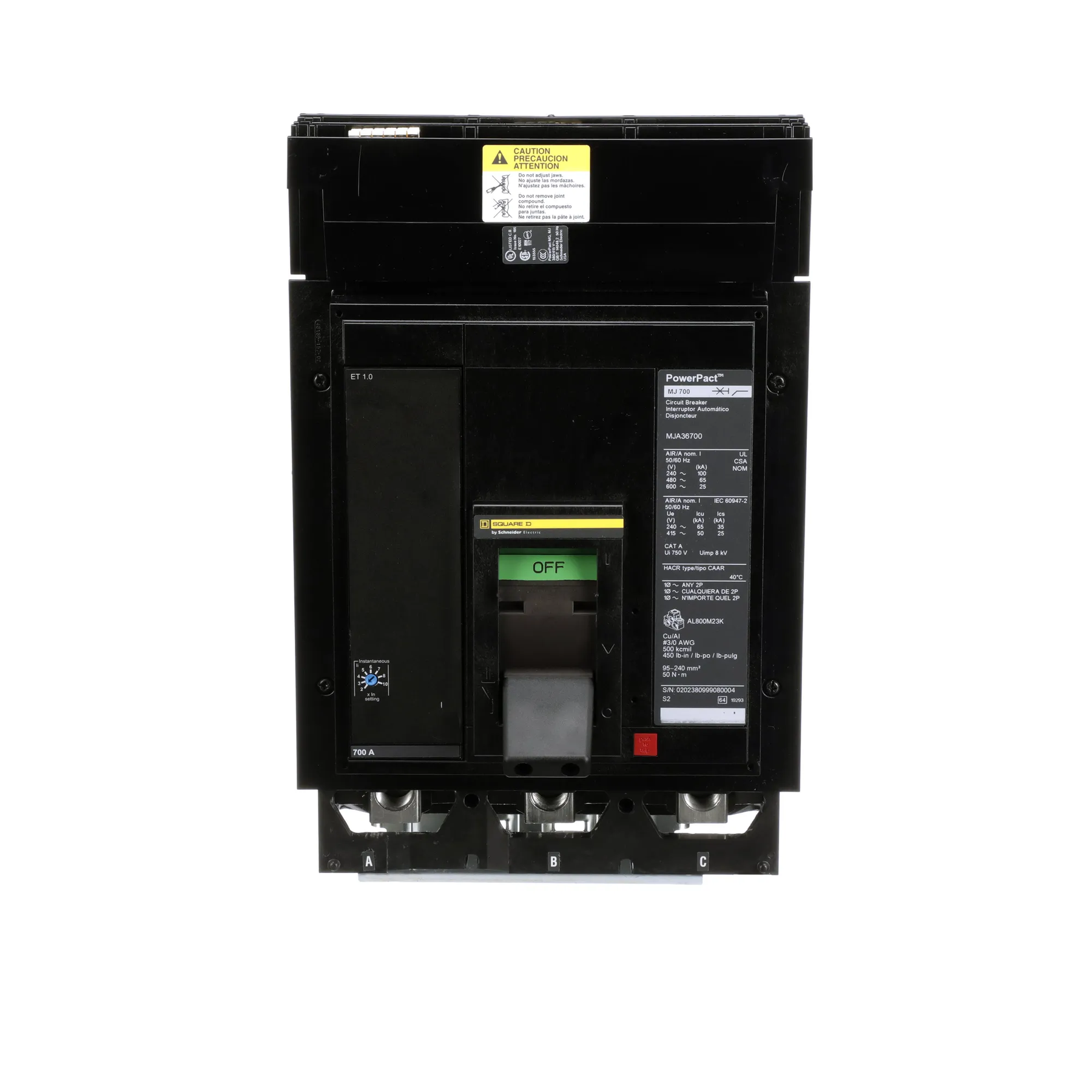

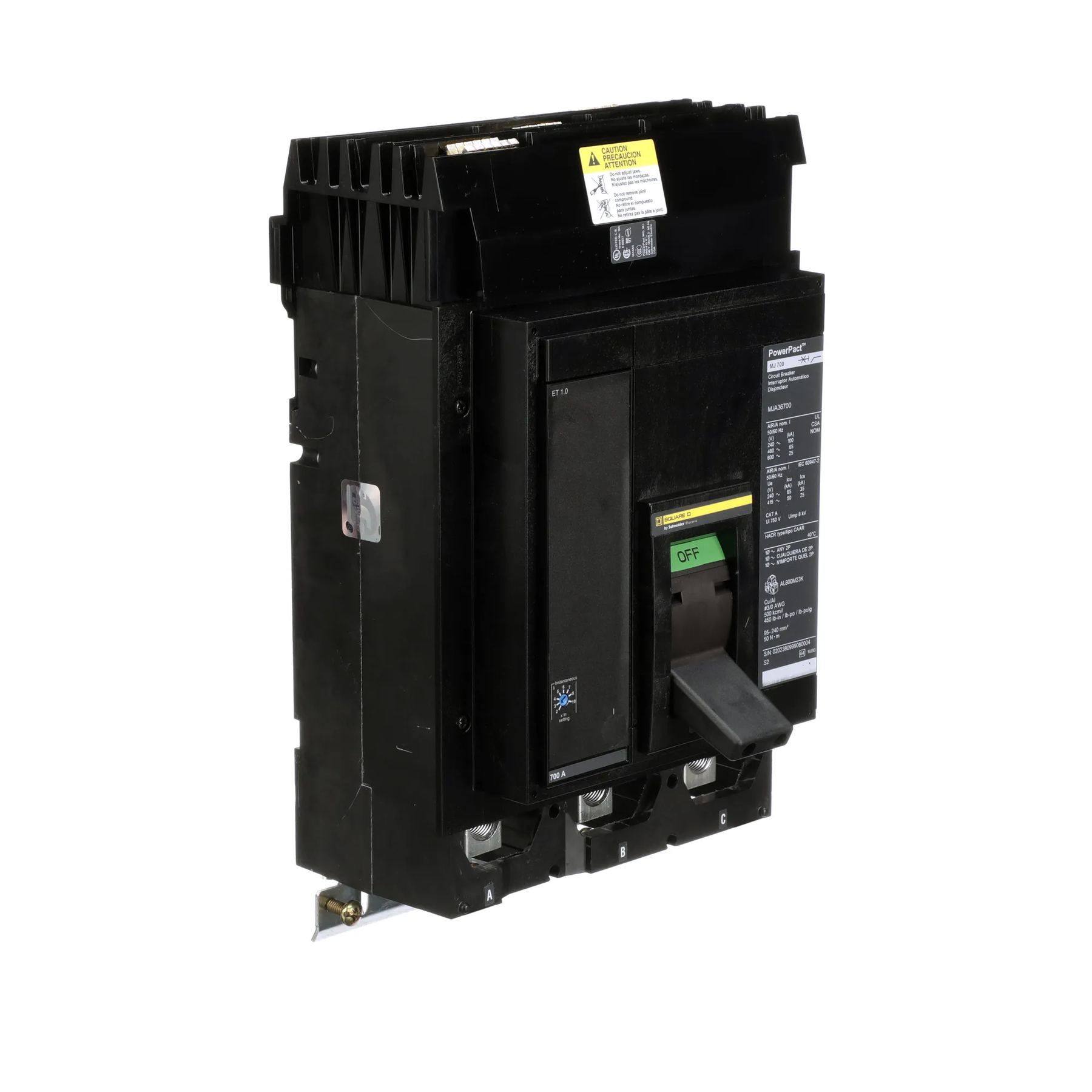

MJA36700 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 700 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: MJA36700
MJA36700 - Square D 700 Amp 3 Pole 600 Volt Plug-In Molded Case Circuit Breaker
MJA36700 - Square D - Molded Case Circuit Breaker
MJA36700 - Square D - Molded Case Circuit Breaker
MJA36700 - Square D - Molded Case Circuit Breaker
MJA36700 - Square D - Molded Case Circuit Breaker

Images are for reference only

MJA36700 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 700 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: MJA36700
Regular price $12,630.00 Sale price $5,999.99 Save $6,630.01
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Shipping calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

Overview

Product Specifications - MJA36700 - Square D Powerpact Circuit Breaker

  • Category:

  • Connection:

    I-Line Style Plug-In
  • Type:

    MJA
  • Functions:

    LI - Long-Time and Instantaneous
  • Protection:

    Solid State
  • AIC Ratings:

    65kA@480V

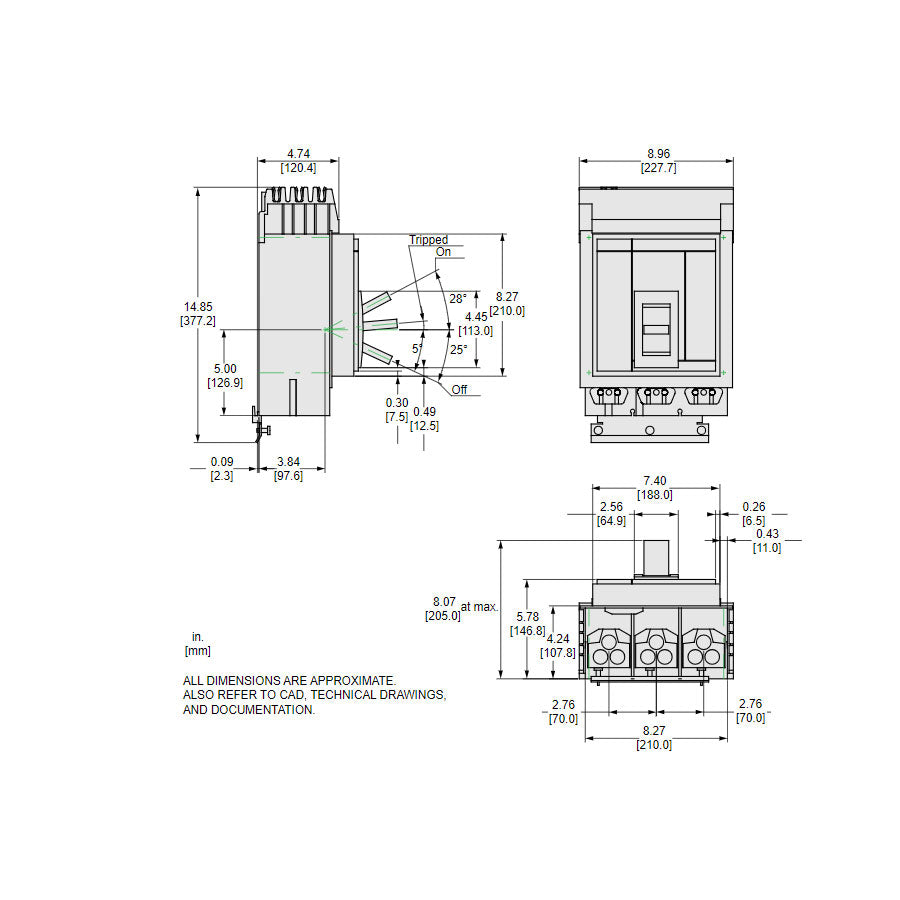

Dimensions

  • Dimensions (HxWxD):

    12.86" x 0.32" x 8.27"
  • Weight:

    29 lbs

Standards

CSA Approved logo

Additional Details

  • FrameType:

    M Frame
  • Trip Unit Technology:

    Electronic, basic, ET 1.0
  • Line Rated Current:

    700
  • Mounting Mode:

    I-Line bracket
  • Breaking Capacity Code

    J
  • Electrical Connection:

    I-Line connection line / Lugs load
  • Continuous Current Rating:

    80%
  • Control Type:

    Toggle
  • AWG Gauge:

    AWG 3/0...350 kcmil Aluminum/Copper Terminals

Product Description - MJA36700 - Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type MJA, 3P, ABC phase circuit configuration, 3PH, 700A, 600V, 65kA@480V, UL listed, current limiting, i-line style plug-in, complete with basic non-interchangeable 1.0 trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, solid state electronic, molded case circuit breakers.


Documentation

PDF Icon Catalogue

PDF Icon Data Sheet
