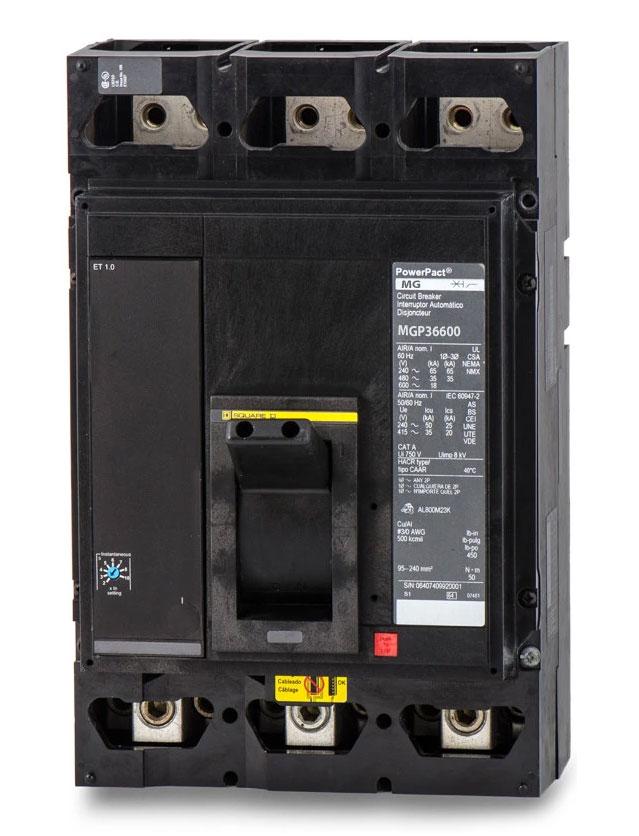

MGP36600 - Square D - Molded Case Circuit Breaker
Bolt On - 600 Amp - 3 Pole - 600 Volt
Schneider Electric
SKU: MGP36600
Images are for reference only
Returns are easy
You may return items within 30 days of delivery for a refund.
FREE Shipping on orders over $49.
Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer). Extended warranties are available upon request.
Overview
Product Specifications - MGP36600 - Square D Molded Case Circuit Breakers
-
Part Number:
MGP36600 -
Manufacturer:
Schneider Electric / Square D -
Family:
Powerpact -
Pole:
3 -
Amp
600 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
MGP -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
12.86" x 8.27" x 8.05"
-
Weight:
29 lbs
Standards
Additional Details
-
Trip Unit Technology:
Electronic, basic, ET 1.0 -
Line Rated Current:
600 Amp -
Maximum Operating Voltage:
600V AC -
Mounting Mode:
Unit mount lug
-
Breaking Capacity Code
G -
Electrical Connection:
Terminal nut line / Lugs load -
Continuous Current Rating
80% -
Control Type:
Operating handle -
AWG Gauge:
3 x AWG 3/0...3 x 500 kcmil aluminium/copper
Product Description - MGP36600 - Square D Molded Case Circuit Breakers
Schneider Electric / Square D, Powerpact, type MGP, 3P, 3PH, 600A, 600V, 18kA@600V, 35kA@480V, 65kA@240V, UL listed, high interrupting capacity, bolt-on, load side lugs, solid state electronic, molded case circuit breakers
