Overview
Product Specifications - MGA36350 - Square D Powerpact Circuit Breaker
-
Part Number:
MGA36350 -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
350 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
MGA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
12.86" x 0.32" x 8.27" -
Weight:
29 lbs
Standards
Additional Details
-
Frame Type:
M-Frame -
Trip Unit Technology:
Electronic, basic, ET 1.0, -
Line Rated Current:
350 Amp -
Mounting Mode:
I-Line bracket
-
Breaking Capacity Code:
G -
Electrical Connection:
I-Line connection line / Lugs load -
Continuous Current Rating:
80% -
Control Type:
Toggle -
AWG Gauge:
3 x AWG 3/0...3 x 500 kcmil aluminium/copper

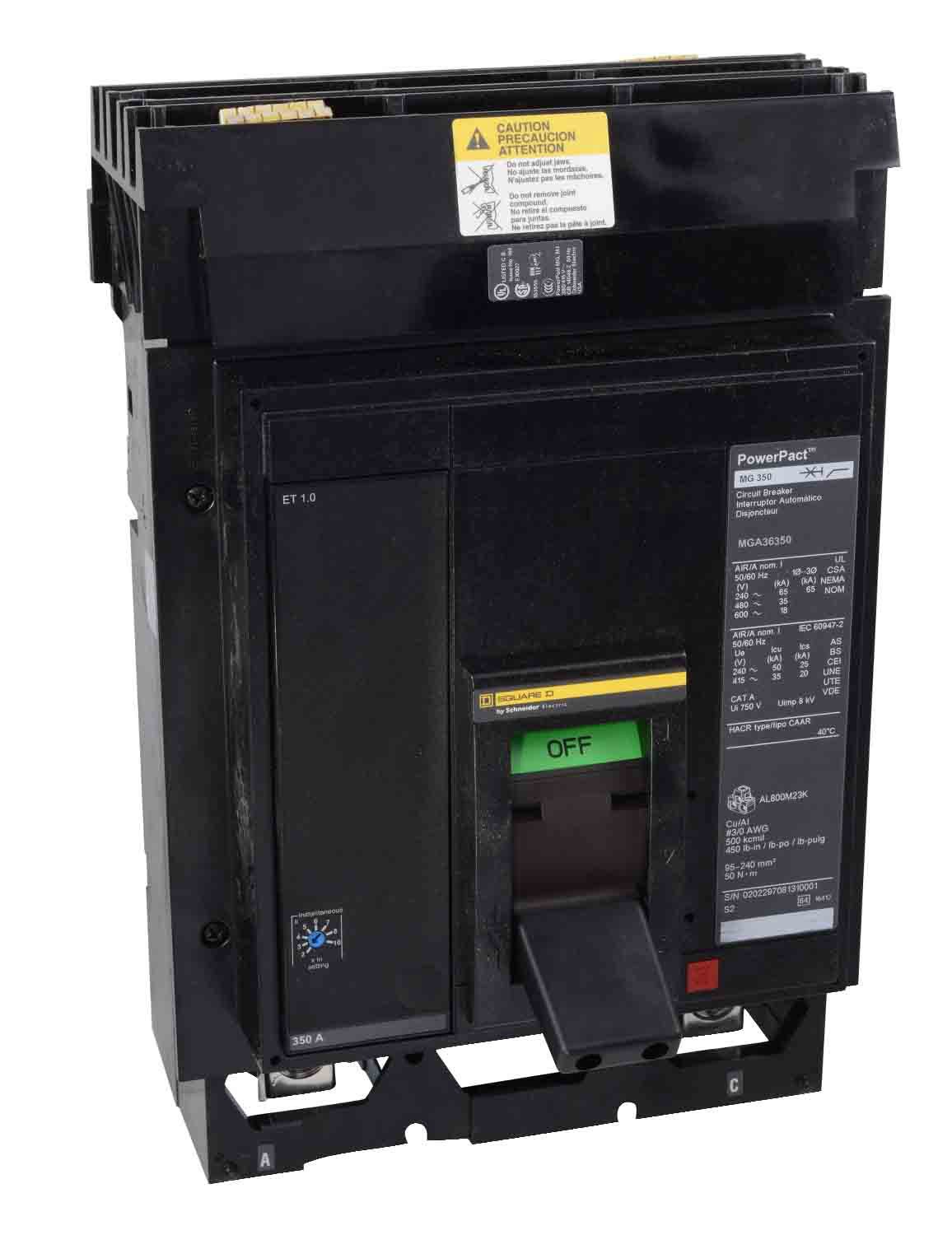

Product Description - MGA36350 - Square D Powerpact Circuit Breaker
Schneider Electric / Square D, Powerpact, type MGA, 3P, ABC phase connection, 3PH, 350A, 600V, 35kA@480V, UL listed, high interrupting capacity, i-line style plug-in, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, solid state.
