Overview

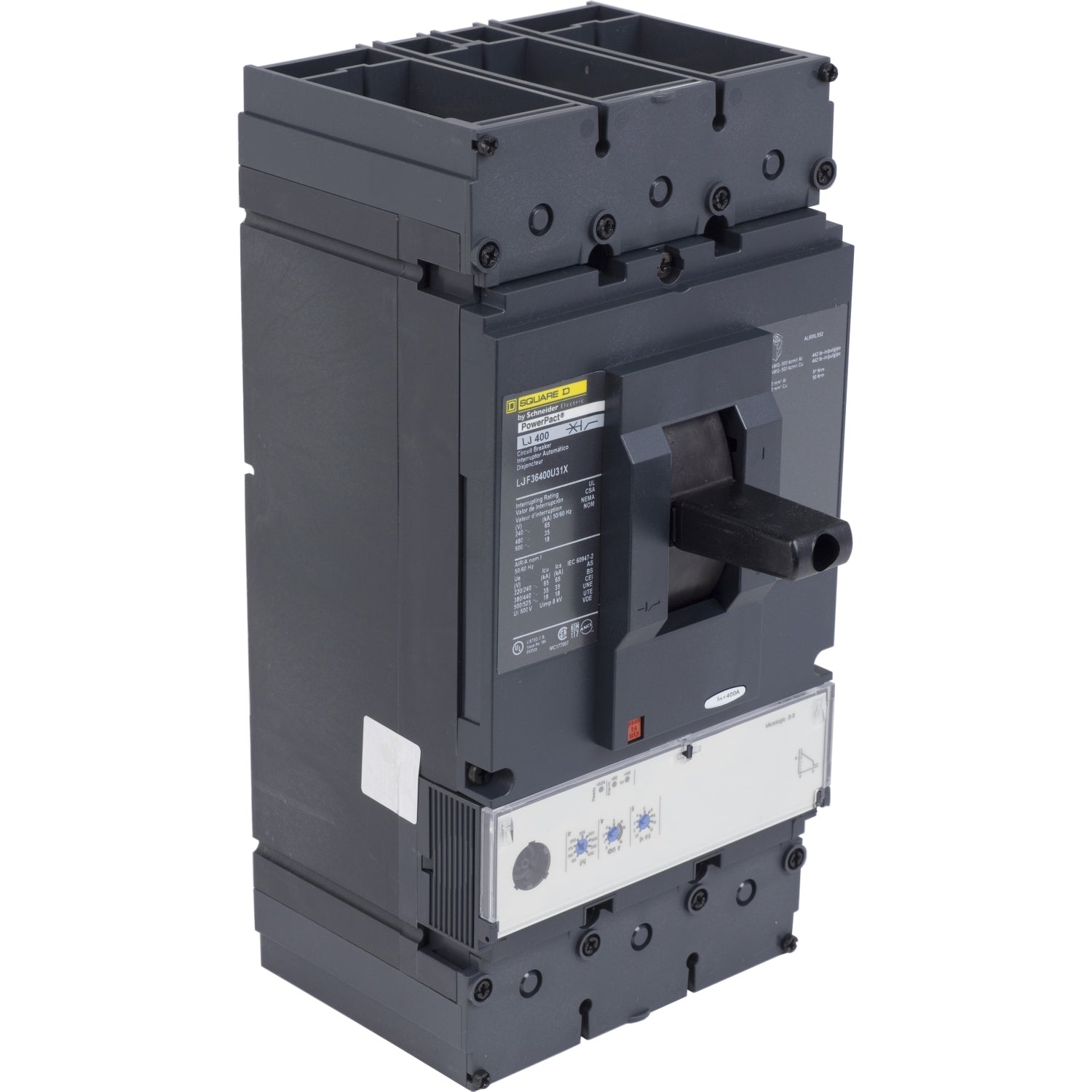

Product Specifications - LJF36400U31X - Square D Powerpact Circuit Breaker
-
Part Number:
LJF36400U31X -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
400 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt On -
Type:
LJF -
Functions:
LSI - Long-Time, Short-Time and Instantaneous -
Protection:
Solid State -
Frame Type:
L Frame -
AIC Ratings:
65kA@480V

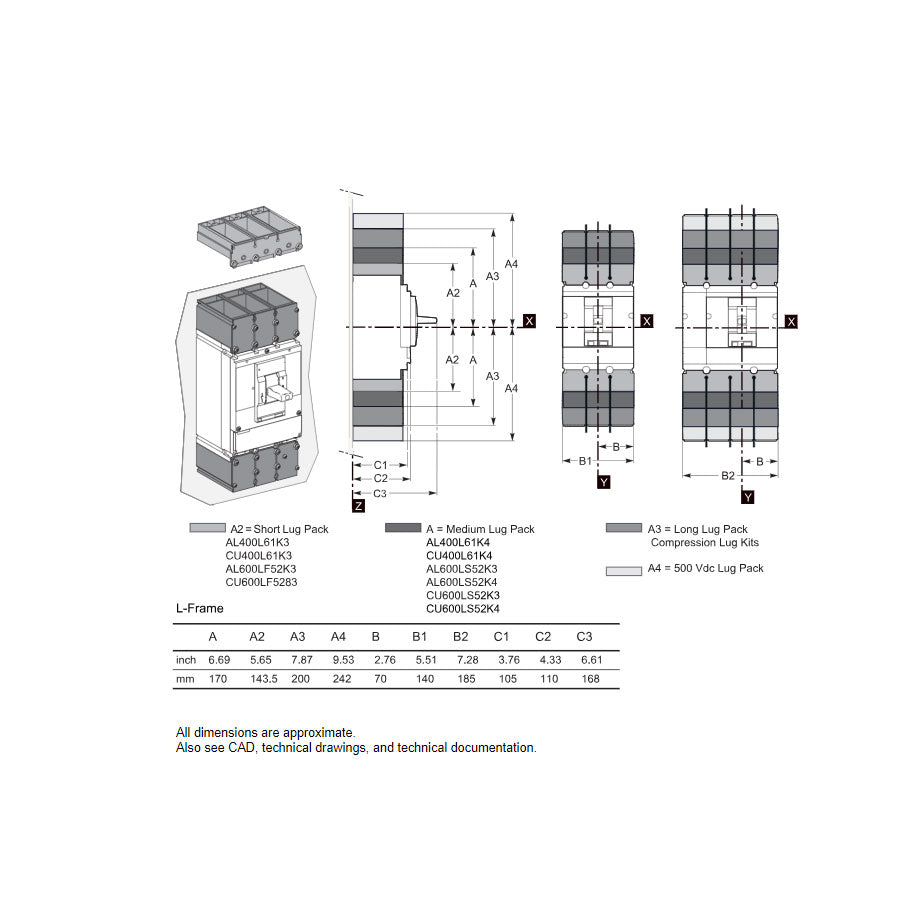

Dimensions
-
Dimensions (HxWxD):
13.39" x 5.51" x 4.33"
Standards
Additional Details
-
Trip Unit Technology:
Electronic, standard, MicroLogic 3.3, LI -
Line Rated Current:
400 Amp -
Mounting Mode:
i-Line Bracket
-
Breaking Capacity Code:
J -
Electrical Connection:
I-Line connection line / Lugs load
Product Description - LJF36400U31X - Square D Powerpact Circuit Breaker
Schneider Electric,Square D, Powerpact, type LJF, 3P, 3PH, 400A, 600V, 65kA@480V, UL listed, current limiting, bolt-on, can used for 2P applications, complete with non-interchangeable micrologic standard 3.3 trip, LI - Long-Time and Instantaneous trip functions, lugs not included, solid state electronic.
