Overview

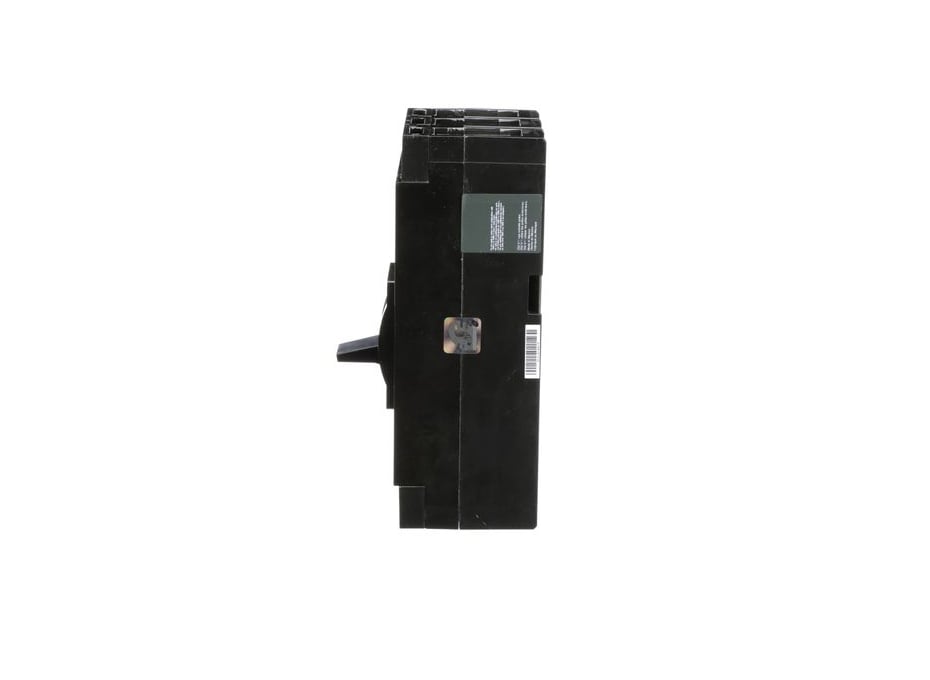

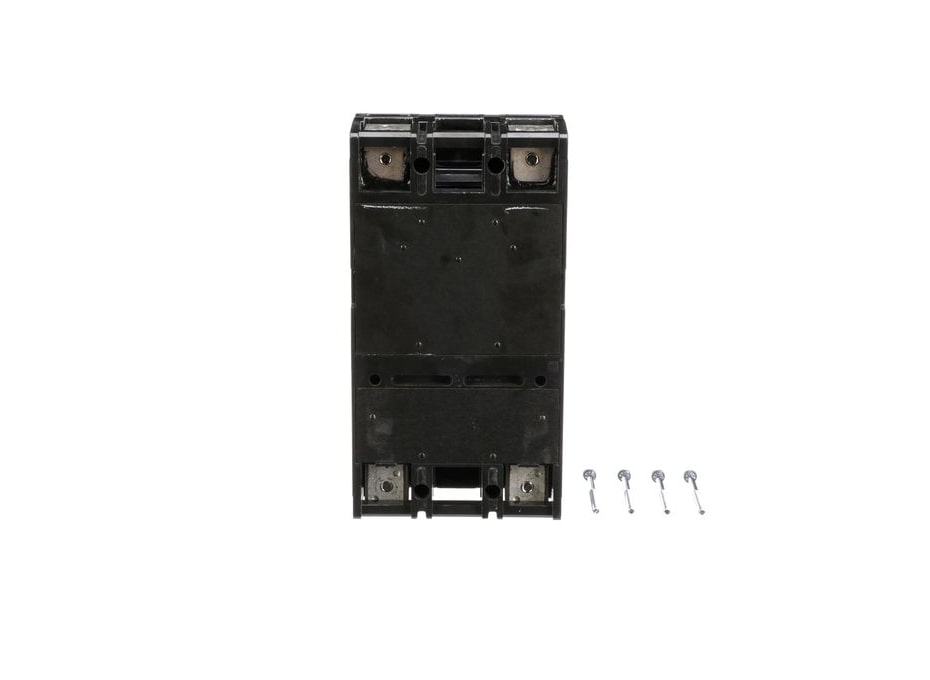

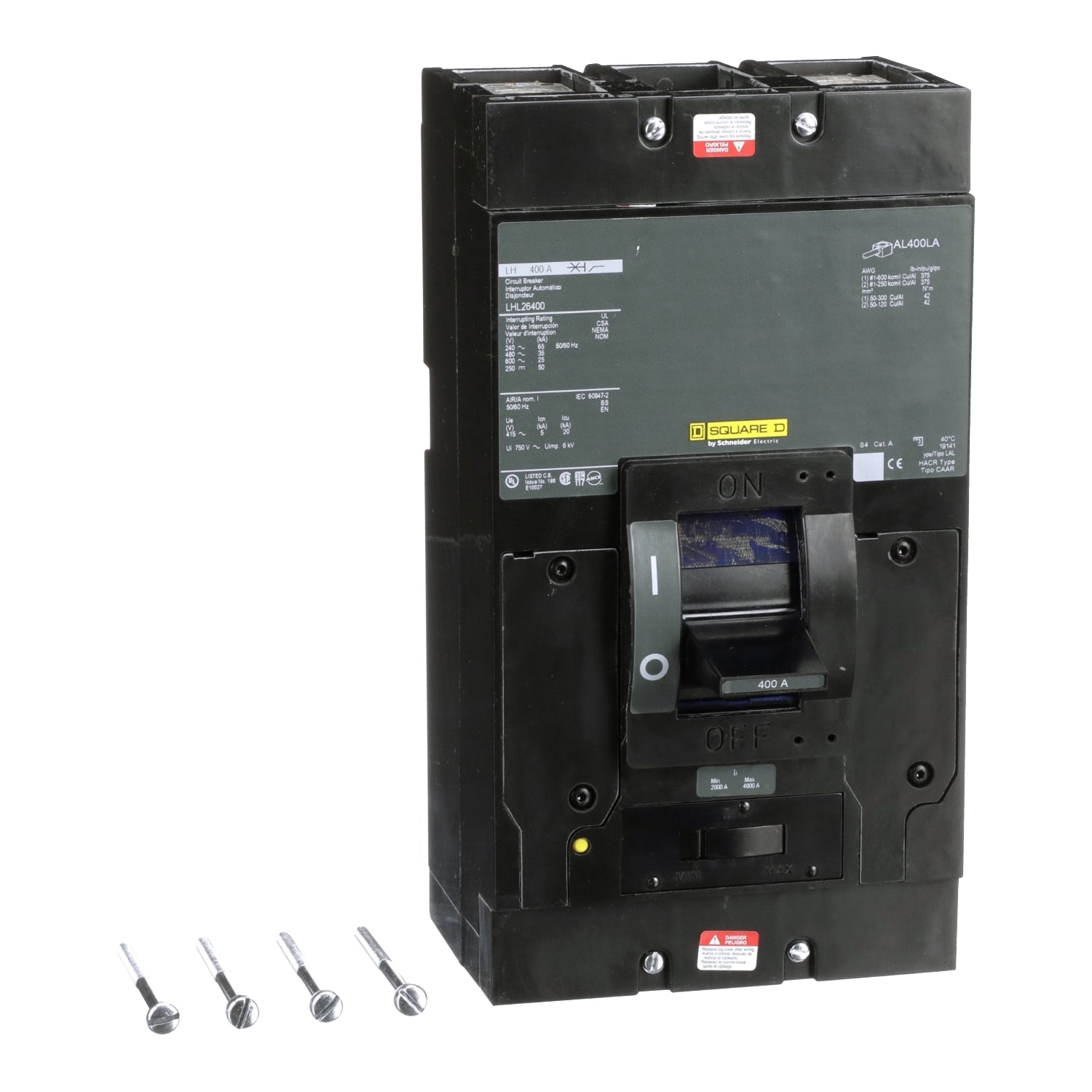

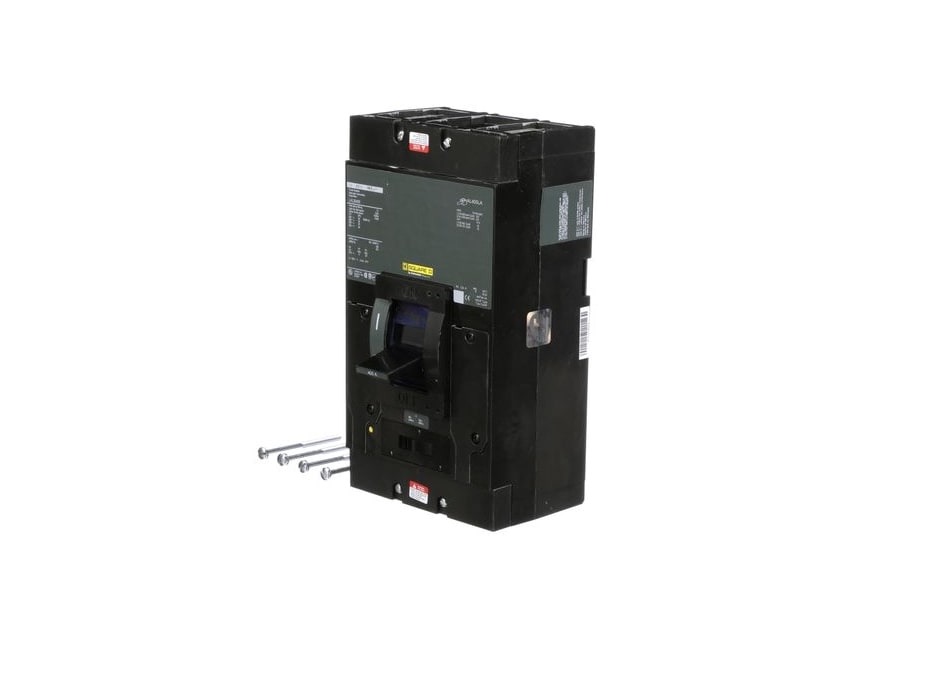

Product Specifications - LHL26400 - Square D Powerpact Circuit Breaker
-
Part Number:
LHL26400 -
Manufacturer:
-
Family:
LHL Series -
Pole:
2 -
Amp
400 -
Volt:
600 -
Phase:
1
-
Category:
-
Connection:
Feed-Thru -
Type:
LHL -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
Frame Type:
L Frame -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
11.0" x 6.0" x 5.84"
Standards
Additional Details
-
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
400 Amp -
Mounting Mode:
Unit Mount
-
Breaking Capacity Code:
H -
Magnetic Hold Current:
2000 A -
Electrical Connection:
Lugs line / Lugs load
Product Description - LHL26400 - Square D Powerpact Circuit Breaker
Square D, LHL Series, type LHL, 2P, 1PH, 400A, 600V, 35kA@480V, high interrupting capacity, feed-thru, complete with LI - Long-Time and Instantaneous trip functions and line & load side lug terminals.
