LGL36600U44X - Square D - Molded Case Circuit Breaker
Feed-Thru - 600 Amp - 3 Pole - 600 Volt
Square D
SKU: LGL36600U44X
Images are for reference only
Returns are easy
You may return items within 30 days of delivery for a refund.
FREE Shipping on orders over $49.
Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer). Extended warranties are available upon request.

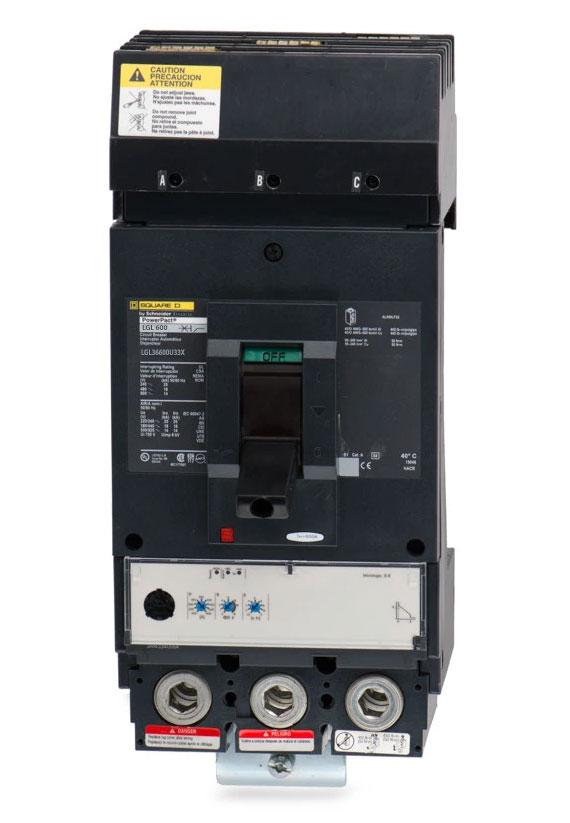

LGL36600U33X - Square D 600 Amp 3 Pole 600 Volt Molded Case Circuit Breaker
Schneider Electric / Square D, Powerpact, type LGL, 3P, 3PH, 600A, 600V, 18kA@600V, 35kA@480V, 65kA@240V, UL listed, high interrupting capacity, feed-thru,can used for 2P applications, complete with non-interchangeable micrologic standard 3.3S trip unit with LSIG trip functions and line & load side lug terminals, solid state electronic, molded case circuit breakers
- Manufacturer: Square D
- Family: Powerpact
- Type: LGL
- CSA Approved and UL Listed
Interrupting Rating
- AIC Rating: 18kA@600V
- AIC Rating: 35kA@480V
- AIC Rating: 65kA@240V
Specifications
- L Frame
- 3 Pole
- 600 Amp
- 600 Volt
- 3 Phase
- Protection: Solid State
- Electronic, ammeter, MicroLogic 6.3 A, LSIG
- Dimensions (H x W x L): 11.3" x 5.5" x 6.61"
