JJL36250U33X - Square D - Molded Case Circuit Breaker

Feed Thru - 250 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: JJL36250U33X

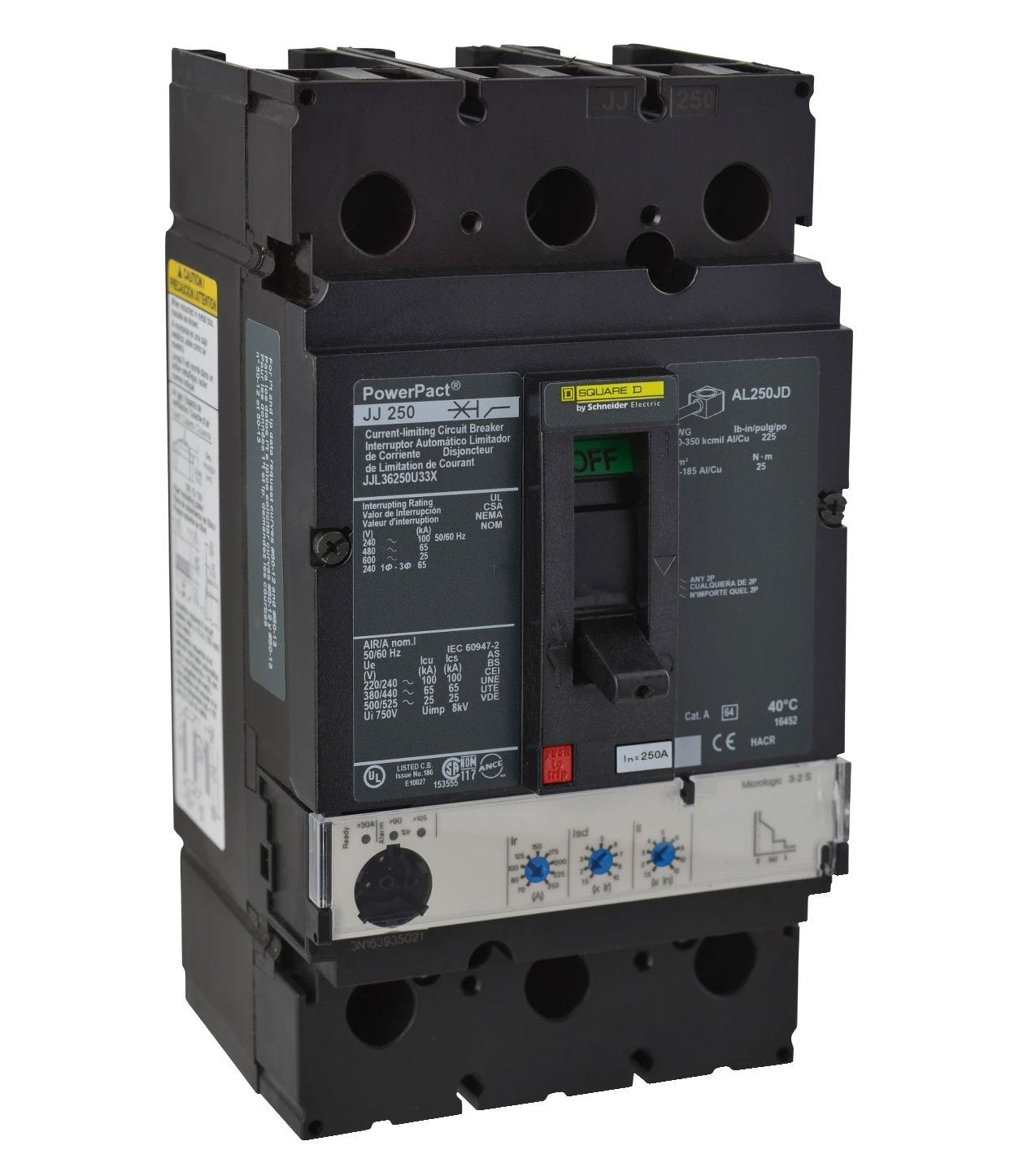

JJL36250U33X - Square D 250 Amp 3 Pole 600 Volt Molded Case Circuit Breaker

Images are for reference only

JJL36250U33X - Square D - Molded Case Circuit Breaker

Feed Thru - 250 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: JJL36250U33X
Regular price $5,923.00 Sale price $3,799.99 Save $2,123.01
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Shipping calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

Overview

Product Specifications - JJL36250U33X - Square D Molded Case Circuit Breakers

  • Category:

  • Connection:

    Feed-Thru
  • Type:

    JJL
  • Functions:

    LSI - Long-Time, Short-Time and Instantaneous
  • Protection:

    Solid State
  • AIC Ratings:

    65kA@480V

Dimensions

  • Dimensions (HxWxD):

    7.52" x 4.09" x 3.39"
  • Weight:

    5.29 lbs

Standards

CSA Approved logo

Additional Details

  • Protection Type:

    Short-Circuit / Overload
  • Trip Unit Technology:

    Electronic, standard, MicroLogic 3.2 S, LSI
  • Line Rated Current:

    250 Amp
  • Mounting Mode:

    Unit mount lug
  • Breaking Capacity Code

    J
  • Electrical Connection:

    Lugs line / Lugs load
  • Continuous Current Rating

    80%
  • Control Type:

    Toggle
  • AWG Gauge:

    AWG 3/0...350 kcmil aluminium/copper terminals

Product Description - JJL36250U33X - Square D Molded Case Circuit Breakers

Schneider Electric / Square D, Powerpact, type JJL, 3P, 3PH, 250A, 600V, 65kA@480V, current limiting, feed-thru, UL listed, suitable for reverse fed applications, can be used for 2P applications, complete with micrologic standard non-interchangeable trip, LSI - Long-Time, Short-Time and Instantaneous trip functions and line & load side lug terminals, solid state, molded case circuit breakers


Documentation

PDF Icon Catalogue

PDF Icon Installation Instructions

PDF Icon Technical Specifications
