JJA36150 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 150 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: jja36150
JJA36150 - Square D - Molded Case Circuit Breaker
JJA36150 - Square D - Molded Case Circuit Breaker
JJA36150 - Square D - Molded Case Circuit Breaker
JJA36150 - Square D - Molded Case Circuit Breaker
JJA36150 - Square D - Molded Case Circuit Breaker

Images are for reference only

JJA36150 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 150 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: jja36150
Regular price $2,449.00 Sale price $1,999.99 Save $449.01
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Shipping calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

Overview

Product Specifications - JJA36150 - Square D Powerpact Circuit Breaker

  • Category:

  • Connection:

    I-Line Style Plug-In
  • Type:

    JJA
  • Functions:

    LI - Long-Time and Instantaneous
  • Protection:

    Thermal Magnetic
  • AIC Ratings:

    65kA@480V

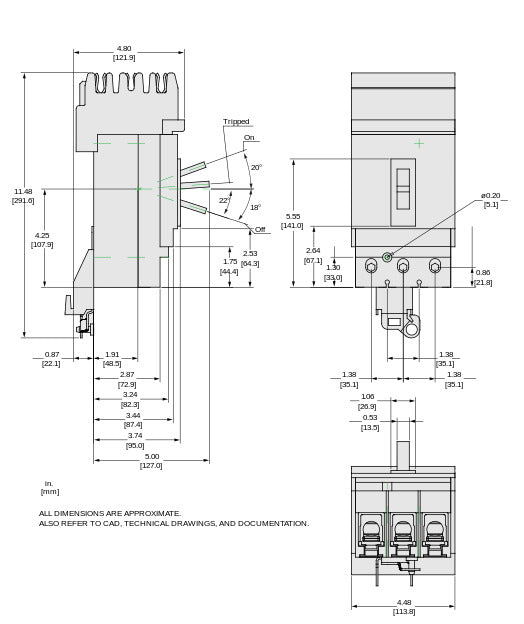

Dimensions

  • Dimensions (HxWxD):

    11.48" x 4.48" x 5.87"
  • Weight:

    5.29 lbs

Standards

CSA Approved logo

Additional Details

  • Protection Type:

    Overload protection / Short-circuit protection
  • Frame Type:

    J-Frame
  • Trip Unit Technology:

    Thermal-magnetic
  • Line Rated Current:

    150 Amp
  • Mounting Mode:

    I-Line bracket
  • Breaking Capacity Code:

    J
  • Electrical Connection:

    I-Line connection line / Lugs load
  • Magnetic Hold Current:

    750 Amp
  • Continuous Current Rating:

    80%
  • Control Type:

    Toggle
  • AWG Gauge:

    AWG 4...AWG 4/0 aluminium/copper terminal

Product Description - JJA36150 - Square D Powerpact Circuit Breaker

Square D, Powerpact, type JJA, 3P, ABC phase connection, 3PH, 150A, 600V, 65kA@480V, UL listed, current limiting, i-line style plug-in, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, thermal magnetic, molded case circuit breakers.


Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications
