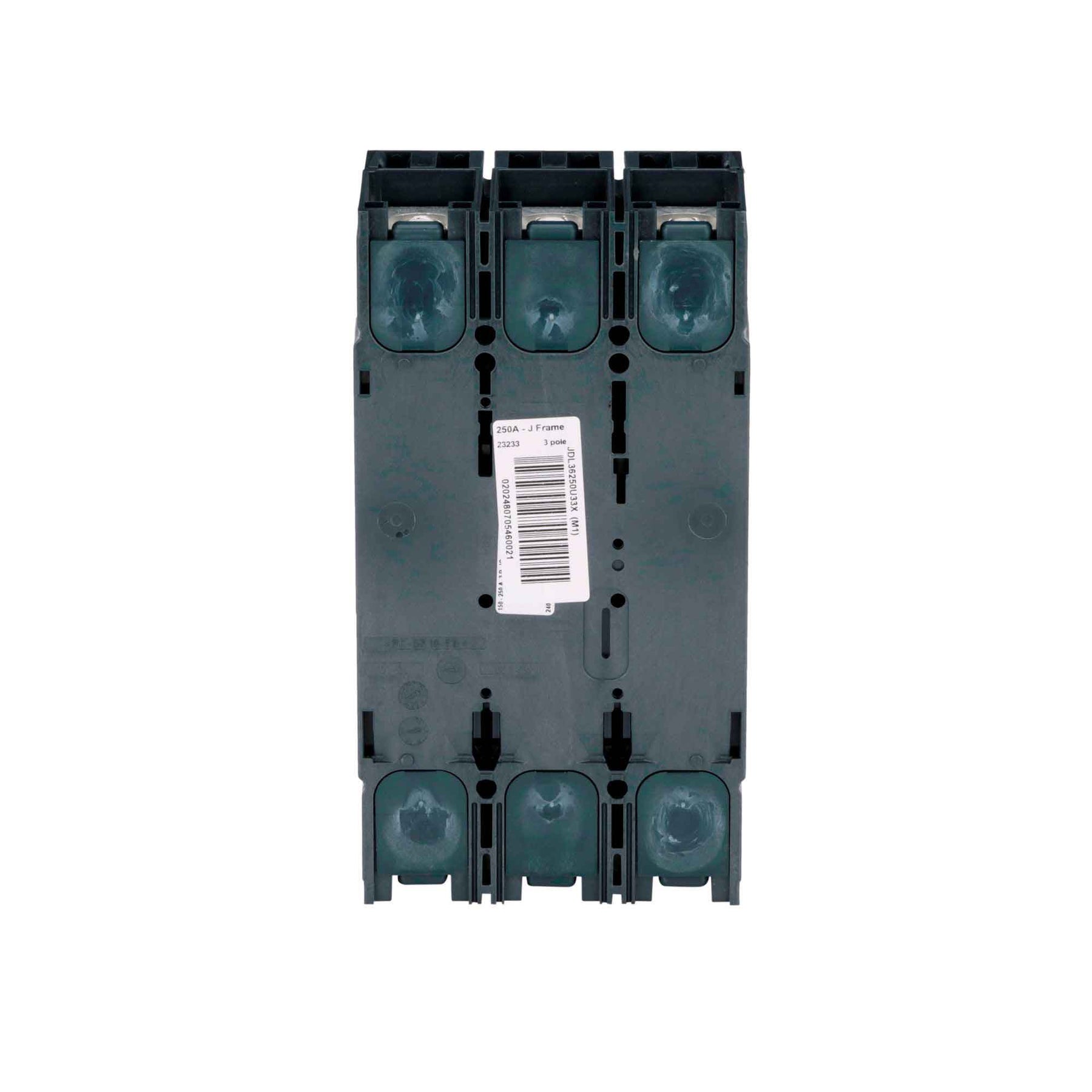

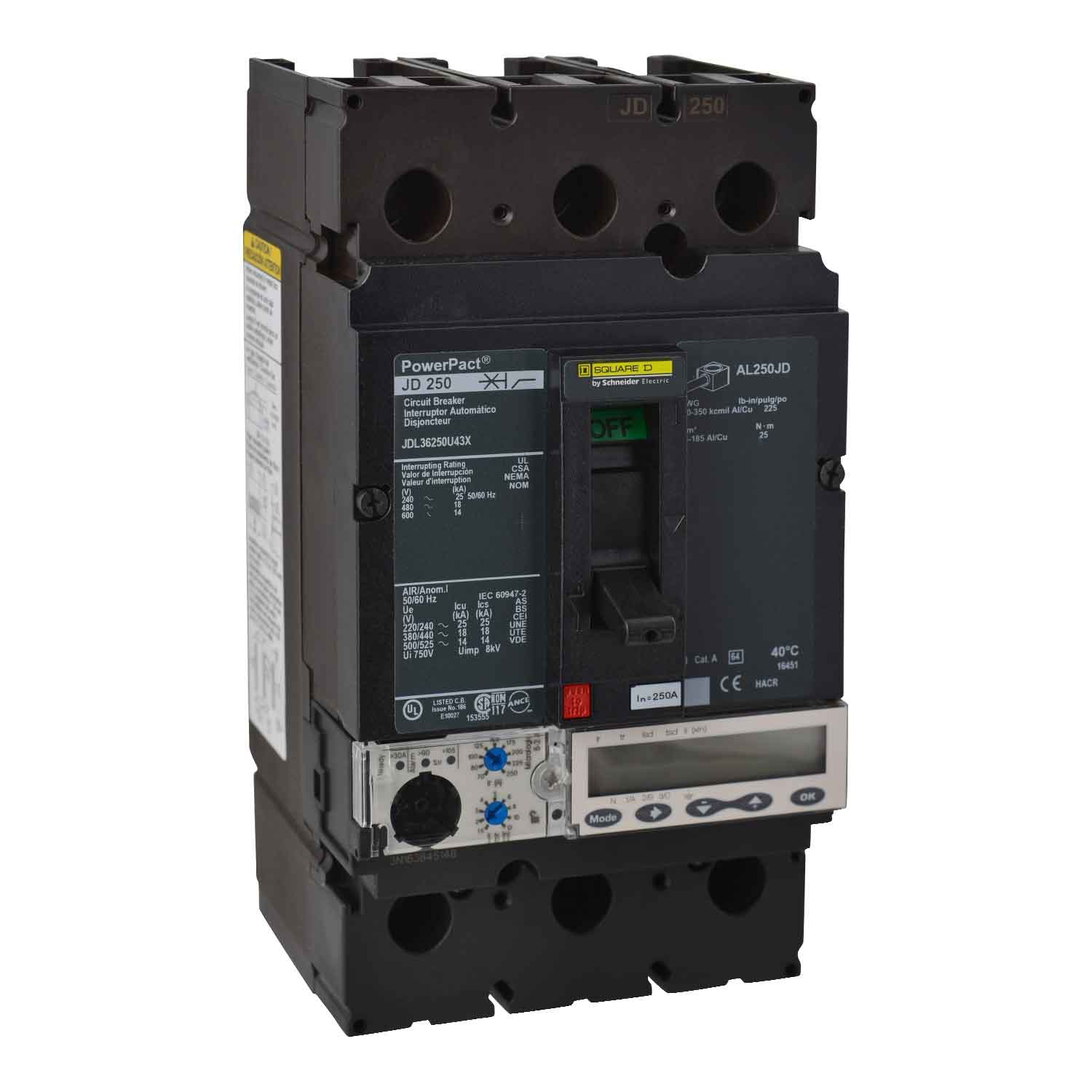

Name: JDL36250U53X - Square D - Molded Case Circuit Breaker
Brand: Schneider Electric
SKU: JDL36250U53X
Price: 3119.99 USD
Availability: InStock

Images are for reference only

Save $1,468.01

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned

Quantity

Secure transaction

FREE & fast shipping on orders over $49

1 year warranty

30 day returns

[{"id":40023850811472,"title":"New","option1":"New","option2":null,"option3":null,"sku":"JDL36250U53X","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"JDL36250U53X - Square D - Molded Case Circuit Breaker - New","public_title":"New","options":["New"],"price":311999,"weight":2722,"compare_at_price":458800,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40331655413840,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"JDL36250U53X_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"JDL36250U53X - Square D - Molded Case Circuit Breaker - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":187199,"weight":2722,"compare_at_price":458800,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

Overview

Product Specifications - JDL36250U53X - Square D Powerpact Circuit Breaker

Part Number:

JDL36250U53X
Manufacturer:

Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

250
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

Feed-Thru
Type:

JDL
Functions:

LSI - Long-Time, Short-Time and Instantaneous
Protection:

Solid State
AIC Ratings:

18kA@480V

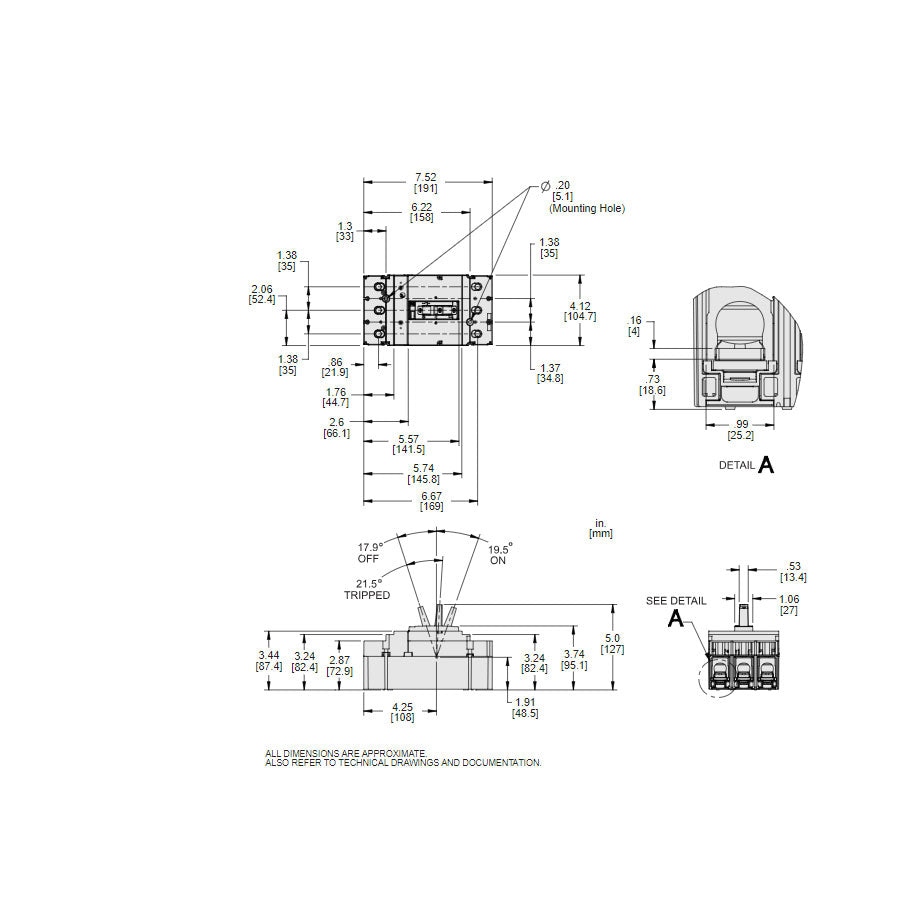

Dimensions

Dimensions (HxWxD):

7.52" x 4.09" x 3.29"

Weight:

5.29 lbs

Standards

Additional Details

Protection Type:

Overload protection / Short-circuit protection
Frame Type:

J-Frame
Trip Unit Technology:

Electronic, energy, Micrologic 5.2 E, LSI
Line Rated Current:

250 Amp
Mounting Mode:

Unit Mount Lug

Breaking Capacity Code:

D
Electrical Connection:

Lug line / Lugs load
Continuous Current Rating:

80%
Control Type:

Toggle

Product Description - JDL36250U53X - Square D Powerpact Circuit Breaker

Square D,Schneider Electric, Powerpact, type JDL, 3P, 3PH, 250A, 600V, 18kA@480V, standard interrupting capacity, feed-thru, UL listed, suitable for reverse fed applications, complete with micrologic energy non-interchangeable trip with LSI, LSI - Long-Time, Short-Time and Instantaneous trip functions and line & load side lug terminals, solid state.

Documentation

Catalogue

Technical Specification

JDL36250U53X - Square D - Molded Case Circuit Breaker

Feed-Thru - 250 Amp - 3 Pole - 600 Volt

JDL36250U53X - Square D - Molded Case Circuit Breaker

Feed-Thru - 250 Amp - 3 Pole - 600 Volt
