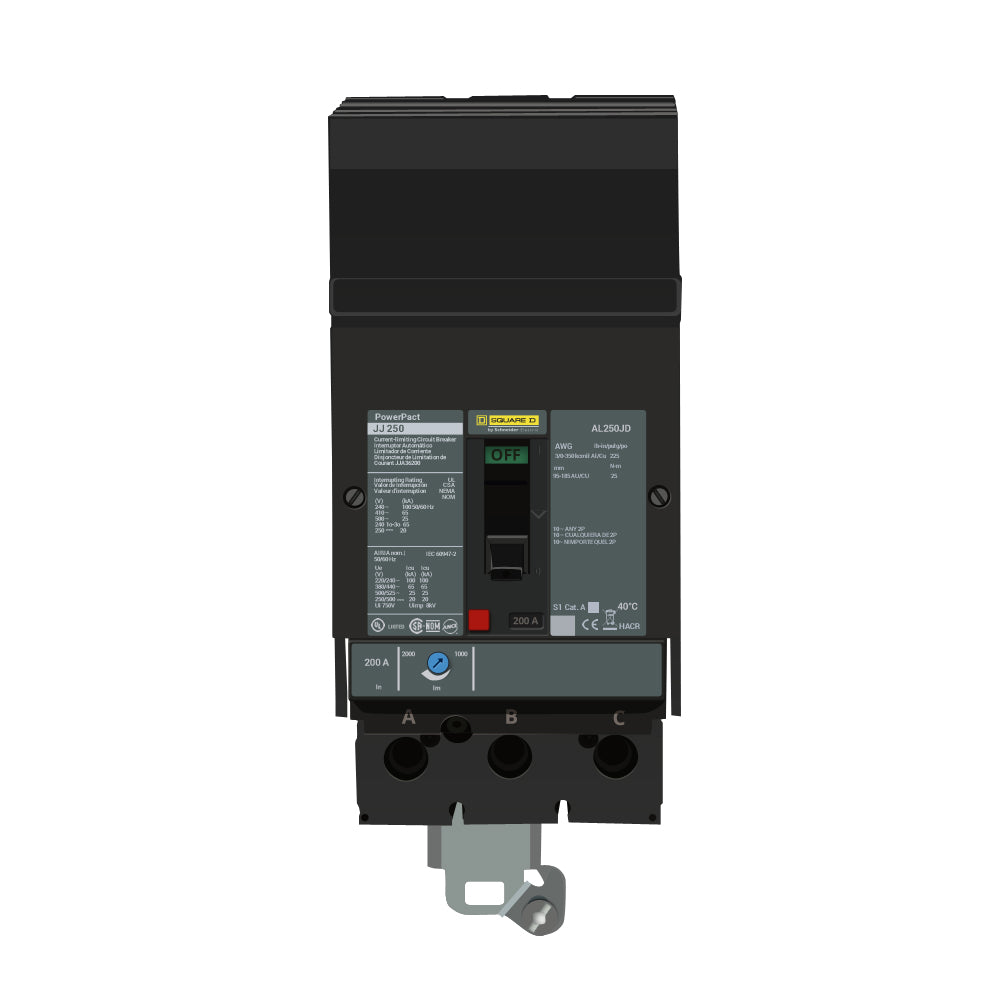

JDA36200 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 200 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: JDA36200
JDA36200 - Square D - Molded Case Circuit Breaker
JDA36200 - Square D - Molded Case Circuit Breaker
JDA36200 - Square D - Molded Case Circuit Breaker
JDA36200 - Square D - Molded Case Circuit Breaker
JDA36200 - Square D - Molded Case Circuit Breaker

Images are for reference only

JDA36200 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 200 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: JDA36200
Regular price $2,867.00 Sale price $1,386.99 Save $1,480.01
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Shipping calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

Overview

Product Specifications - JDA36200 - Square D Powerpact Circuit Breaker

  • Category:

  • Connection:

    I-Line Style Plug-In
  • Type:

    JDA
  • Functions:

    LI - Long-Time and Instantaneous
  • Protection:

    Thermal Magnetic
  • AIC Ratings:

    14kA@600V |18kA@480V | 18kA@277V | 25kA@240V

Dimensions

  • Dimensions (HxWxD):

    7.52" x 4.09" x 3.39"
  • Weight:

    5.29 lbs

Standards

CSA Approved logo

Additional Details

  • Protection Type:

    Short-Circuit / Overload
  • Module Type:

    J-Frame
  • Trip Unit Technology:

    Thermal-magnetic
  • Line Rated Current:

    200 Amp
  • Maximum Operating Voltage:

    600V AC
  • Mounting Mode:

    I-Line bracket
  • Breaking Capacity Code

    D
  • Electrical Connection:

    I-Line connection line / Lugs load
  • Magnetic Hold Current:

    1000 Amp
  • Continuous Current Rating

    80%
  • Control Type:

    Toggle
  • AWG Gauge:

    AWG 3/0...350 kcmil Aluminum/Copper Terminals

Product Description - JDA36200 - Square D Powerpact Circuit Breaker

Schneider Electric / Square Dbs JDA36200 powerpact circuit breaker is a reliable device designed to protect electrical systems from damage caused by overloads and short circuits. This circuit breaker complies with UL-listed, CSA, NOM, CCC, and IEC standards and is CE marked.

The JDA36200 is a 3-pole powerpact circuit breaker with a rated current of 200A and a breaking capacity of 14kA@600VAC. The device is an i-line breaker suitable for reverse-fed applications, complete with a non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, thermal-magnetic trip units, and bbABC phase connection.

The amperage ratings of the thermal trip elements for Square Dbs JDA36200 Powerpact Circuit Breaker are calibrated to 40 degrees C free air ambient temperature. Per the NEC and the Canadian Electrical Code, standard circuit breakers may only be applied continuously at up to 80% of their rating.


Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications

PDF Icon Installation Instructions
