HGL36020 - Square D - Molded Case Circuit Breaker

Feed-Thru - 20 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: HGL36020
HGL36020 - Square D 20 Amp 3 Pole 600 Volt Molded Case Circuit Breaker
HGL36020 - Square D - Molded Case Circuit Breaker
HGL36020 - Square D - Molded Case Circuit Breaker
HGL36020 - Square D - Molded Case Circuit Breaker
HGL36020 - Square D - Molded Case Circuit Breaker

Images are for reference only

HGL36020 - Square D - Molded Case Circuit Breaker

Feed-Thru - 20 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: HGL36020
Regular price $1,493.00 Sale price $599.99 Save $893.01
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Shipping calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

Overview

Product Specifications - HGL36020 - Square D Powerpact Circuit Breaker

  • Category:

  • Connection:

    Feed-Thru
  • Type:

    HGL
  • Functions:

    LI - Long-Time and Instantaneous
  • Protection:

    Thermal Magnetic
  • AIC Ratings:

    35kA@480V

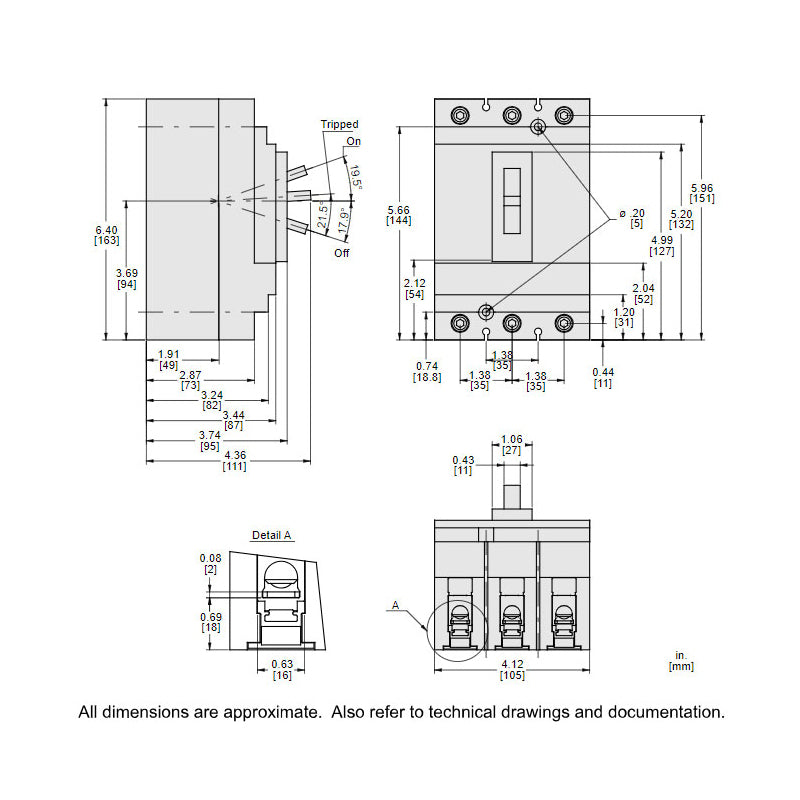

Dimensions

  • Dimensions (HxWxD):

    6.4" x 4.12" x 4.36"
  • Weight:

    4.85 lbs

Standards

CSA Approved logo

Additional Details

  • Frame Type:

    H-Frame
  • Trip Unit Technology:

    Thermal-magnetic
  • Line Rated Current:

    20 A
  • Mounting Mode:

    Unit Mount Lug
  • Breaking Capacity Code

    G
  • Electrical Connection:

    Lugs line / Lugs load
  • Magnetic Hold Current:

    350 A
  • Continuous Current Rating:

    80%
  • Control Type:

    Toggle
  • AWG Gauge:

    AWG 14...AWG 3/0 aluminium/copper terminal

Product Description - HGL36020 - Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type HGL, 3P, 3PH, 20A, 600V, 35kA@480V, high interrupting capacity, feed-thru, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers


Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications
