Name: HGL26050 - Square D - Molded Case Circuit Breaker
Brand: Schneider Electric
SKU: HGL26050
Price: 639.99 USD
Availability: OutOfStock

Images are for reference only

Save $629.01

Condition

New

Reconditioned

Quantity

Secure transaction

FREE & fast shipping on orders over $49

1 year warranty

30 day returns

[{"id":40023932895312,"title":"New","option1":"New","option2":null,"option3":null,"sku":"HGL26050","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"HGL26050 - Square D - Molded Case Circuit Breaker - New","public_title":"New","options":["New"],"price":63999,"weight":2268,"compare_at_price":126900,"inventory_management":"shopify","barcode":"00785901883777","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40331639554128,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"HGL26050_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"HGL26050 - Square D - Molded Case Circuit Breaker - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":38399,"weight":2268,"compare_at_price":126900,"inventory_management":"shopify","barcode":"00785901883777","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

Overview

Product Specifications - HGL26050 - Square D Powerpact Circuit Breaker

Part Number:

HGL26050
Manufacturer:

Schneider Electric / Square D
Family:

Powerpact
Pole:

2
Amp

50
Volt:

600
Phase:

1

Category:

Molded Case / 2-Pole
Connection:

Feed-Thru
Type:

HGL
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

35kA@480V

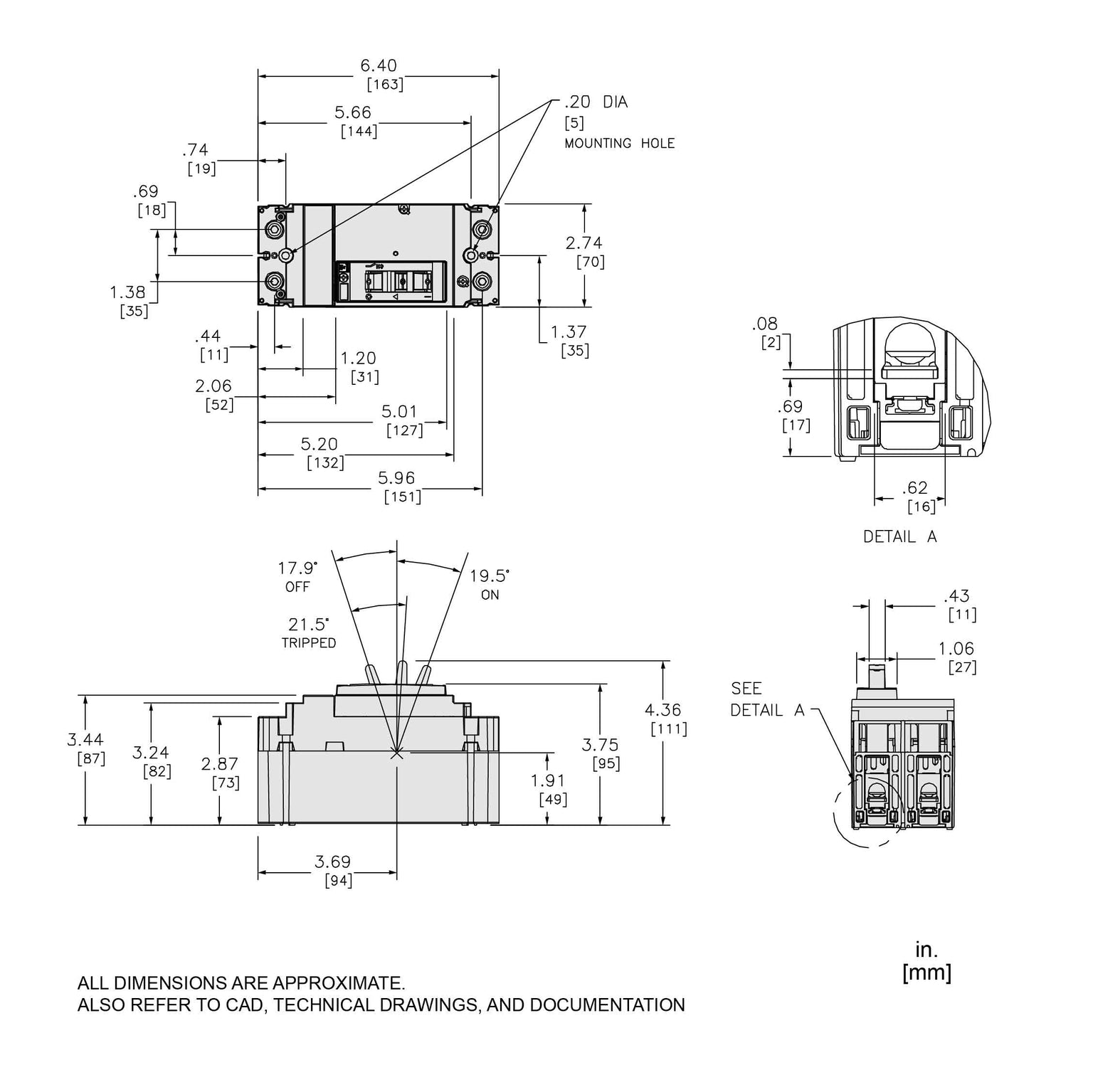

Dimensions

Dimensions (HxWxD):

6.4" x 2.74" x 4.36"

Weight:

4.85 lbs

Standards

Additional Details

Frame Type:

H-Frame
Trip Unit Technology:

Thermal-magnetic
Line Rated Current:

50 A
Mounting Mode:

Unit Mount Lug

Breaking Capacity Code

G
Electrical Connection:

Lugs line / Lugs load
Magnetic Hold Current:

400 A
Continuous Current Rating:

80%
Control Type:

Toggle
AWG Gauge:

AWG 14...AWG 3/0 aluminium/copper terminal

Product Description - HGL26050 - Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type HGL, 2P, 1PH, 50A, 600V, 35kA@480V, high interrupting capacity, feed-thru, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers.

Documentation

Catalogue

Technical Specifications

amazing

very good service, very quick response, fair price and same day delivery. wow!

Perfect

Had to add a new breaker to existing box and this one did the trick.

Good product quick delivery

Easy to install
