HDA36100 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 100 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: HDA36100

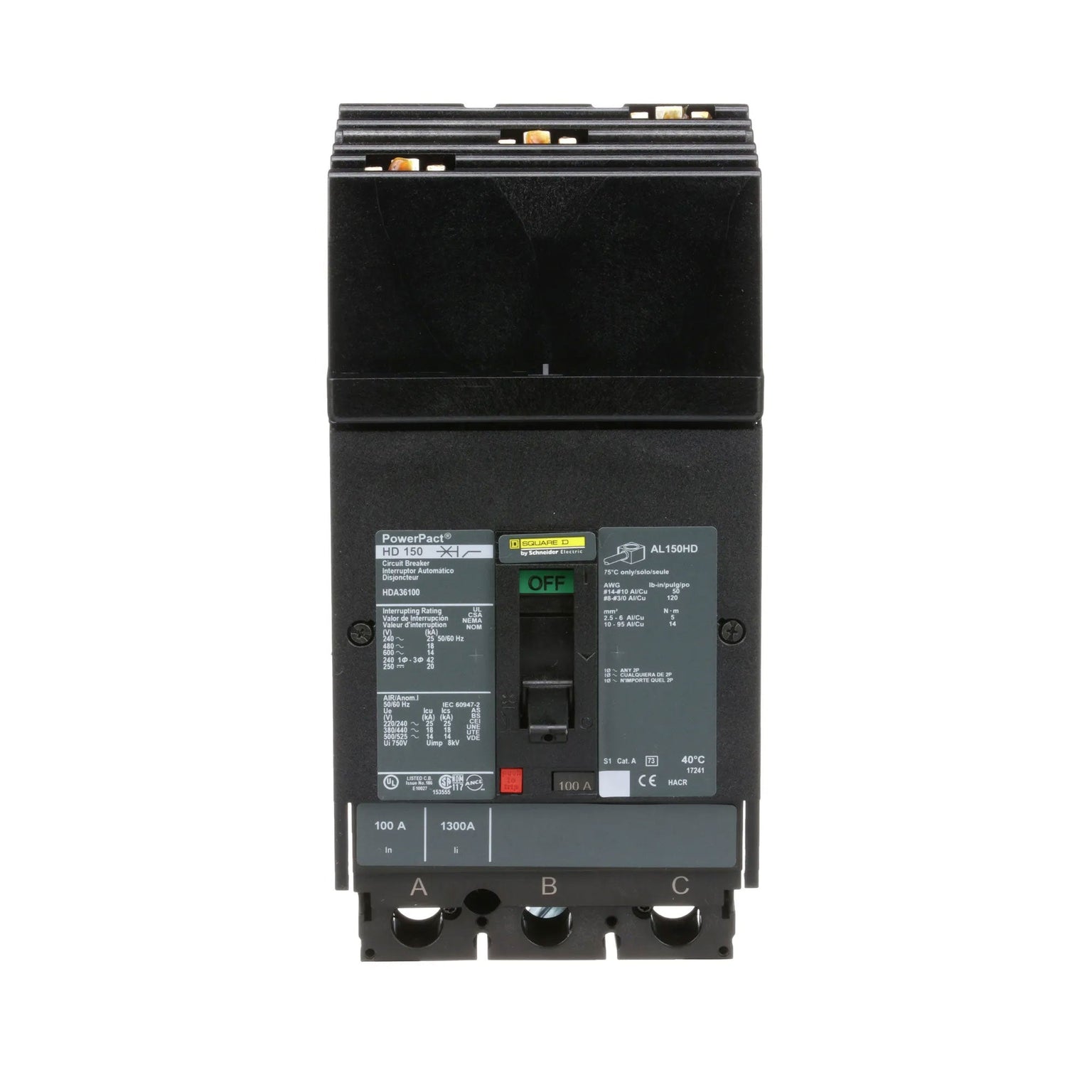

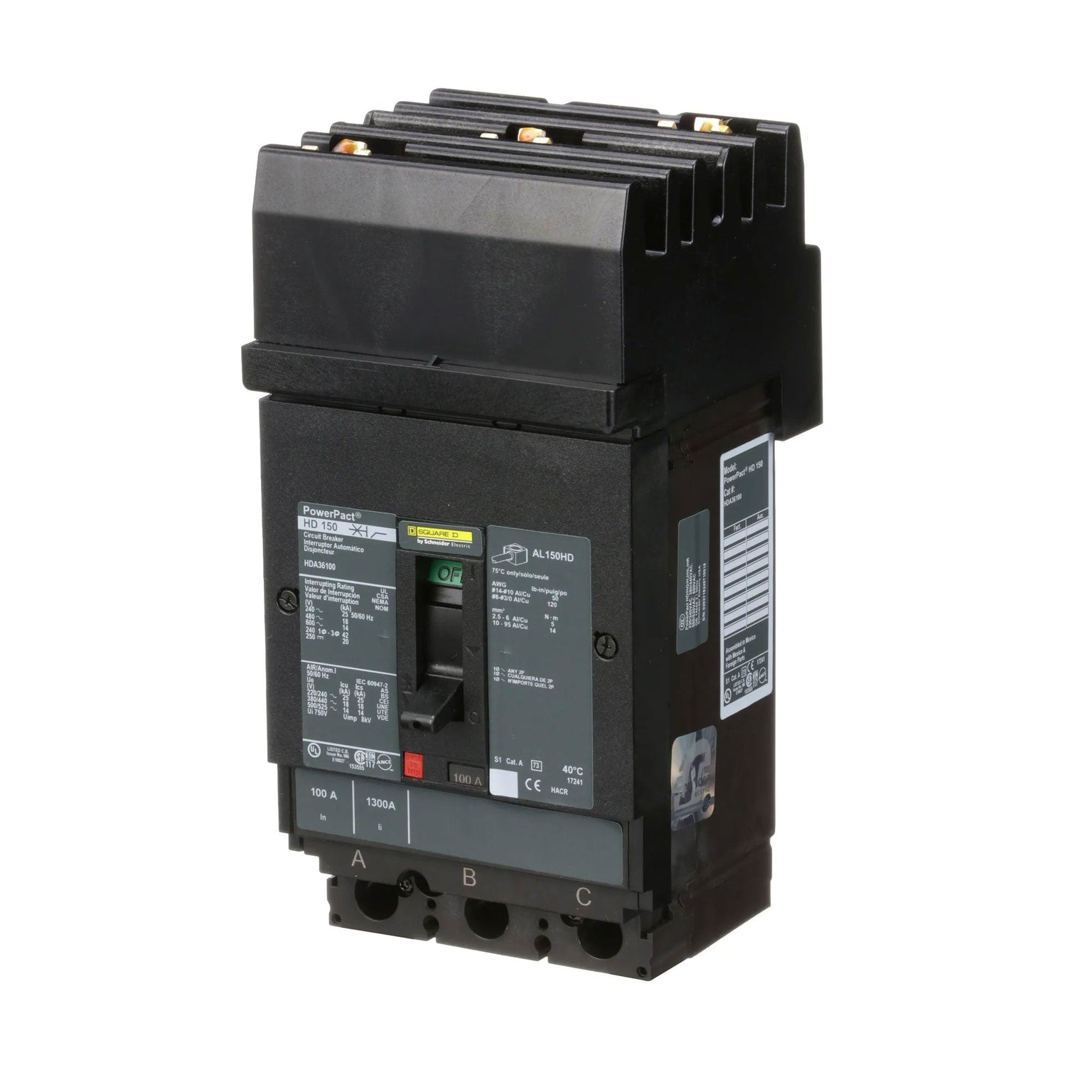

HDA36100 - Square D 100 Amp 3 Pole 600 Volt Plug-In Molded Case Circuit Breaker
HDA36100 - Square D - Molded Case Circuit Breaker
HDA36100 - Square D - Molded Case Circuit Breaker
HDA36100 - Square D - Molded Case Circuit Breaker
HDA36100 - Square D - Molded Case Circuit Breaker
HDA36100 - Square D 100 Amp 3 Pole 600 Volt Plug-In Molded Case Circuit Breaker

Images are for reference only

HDA36100 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 100 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: HDA36100
Save $661.01
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Shipping calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

Overview

Product Specifications - HDA36100 - Square D Powerpact Circuit Breaker

  • Category:

    Molded Case / 3-Pole

  • Connection:

    I-Line Style Plug-In

  • Type:

    HDA

  • Functions:

    LI - Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    18kA@480V

Dimensions

  • Dimensions (HxWxD):

    9.73" x 4.48" x 4.8"

  • Weight:

    2.47 lbs

Standards

CSA Approved logo

Additional Details

  • Frame Type:

    H-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    100 A

  • Mounting Mode:

    I-Line bracket

  • Breaking Capacity Code

    D

  • Electrical Connection:

    I-Line connection line / Lugs load

  • Magnetic Hold Current:

    800 A

  • Continuous Current Rating:

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 14...AWG 3/0 aluminium/copper terminal

Product Description - HDA36100 - Square D Powerpact Circuit Breaker

Square D, Powerpact, type HDA, 3PH, 3P, ABC phase connection, 100A, 600V, 18kA@480V, standard interrupting capacity, i-line style plug-in, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, thermal magnetic, molded case circuit breakers.

Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications


This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Customer Reviews

Based on 3 reviews
67%
(2)
0%
(0)
33%
(1)
0%
(0)
0%
(0)
C
Conner
Great customer service.

Even after holding an order for 3 months to find out it was the wrong parts, David allowed me to return the wrong part and did his best to try and find the correct part for my application.

C
Chromatic
Perfect match!

Works great, as described. Matches all of the other breakers in the panel. Easy installation and simply fits perfectly. (In the picture I am pointing to it with a screw driver)

R
Ray Ann Benedict
good

They worked fine
