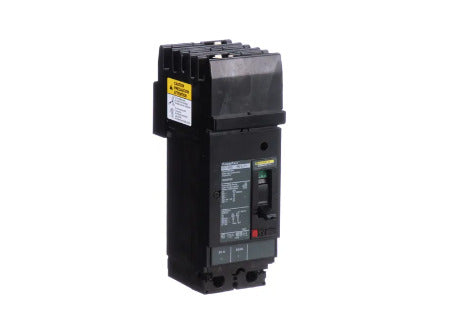

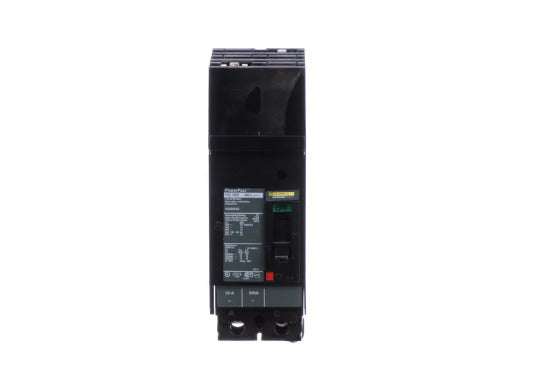

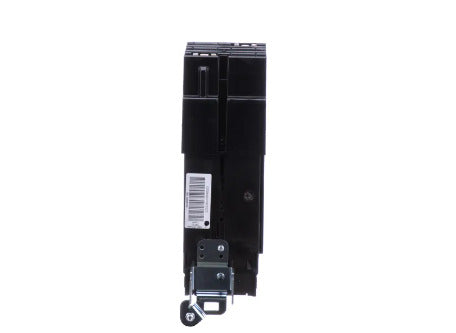

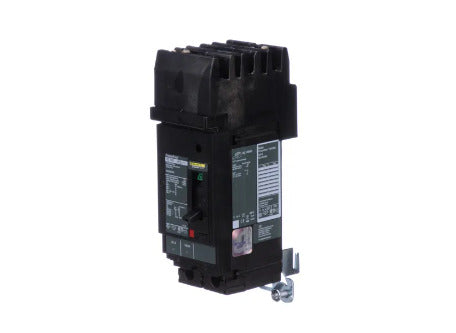

HDA260302 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 30 Amp - 2 Pole - 600 Volt

Schneider Electric SKU: HDA260302
HDA260302 - Square D 30 Amp 2 Pole 600 Volt Plug-In Molded Case Circuit Breaker
HDA260302 - Square D - Molded Case Circuit Breaker
HDA260302 - Square D - Molded Case Circuit Breaker
HDA260302 - Square D - Molded Case Circuit Breaker
HDA260302 - Square D - Molded Case Circuit Breaker
HDA260302 - Square D 30 Amp 2 Pole 600 Volt Plug-In Molded Case Circuit Breaker

Images are for reference only

HDA260302 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 30 Amp - 2 Pole - 600 Volt

Schneider Electric SKU: HDA260302
Save $286.01
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Shipping calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

Overview

Product Specifications - HDA260302 - Square D Powerpact Circuit Breaker

  • Category:

    Molded Case / 2-Pole

  • Connection:

    I-Line Style Plug-In

  • Type:

    HDA

  • Functions:

    LI - Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    18kA@480V

Dimensions

  • Dimensions (HxWxD):

    9.73" x 2.94" x 4.8"

  • Weight:

    1.86 lbs

Standards

CSA Approved logo

Additional Details

  • Frame Type:

    H-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    30 A

  • Mounting Mode:

    I-Line bracket

  • Breaking Capacity Code

    D

  • Electrical Connection:

    I-Line connection line / Lugs load

  • Magnetic Hold Current:

    350 A

  • Continuous Current Rating

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 14...AWG 3/0 aluminium/copper terminal

Product Description - HDA260302 - Square D Powerpact Circuit Breaker

Square D, Powerpact, type HDA, 1PH, 2P, A & C phase connection, 30A, 600V, 18kA@480V, standard interrupting capacity, i-line style plug-in, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, thermal magnetic, molded case circuit breakers.

Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications


This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Customer Reviews

Based on 3 reviews
67%
(2)
33%
(1)
0%
(0)
0%
(0)
0%
(0)
H
Houds
I wish I could give 10 stars but the max here is 5 stars.

I searched so many stores and many more and they all had the Siemens breakers that I needed out of stock and priced sky high but luckily for me I found this company, who not only had the breakers in stock, they had the lowest price for crying out loud. I received 4 breakers on the second day of placing the order and it seemed like Siemens shipped it directly as the quality was mint and outstanding, beating all the big box stores out of the box. I highly recommend as they helped me when no other store could. 10 stars

T
T.G.
A functional breaker

I do not think you can write a sexy review of a circuit breaker. This replaced a 20 amp breaker that had been in service for 20 years. I only decided to change the breaker when installing new fixtures on the circuit and learned it was wire with 14 gauge wire, so I stepped down the breaker. This is breaker matches the brand of my breaker box everything lines up.

R
Rabuf
Four Stars

Arrived in a reasonable time and as described...
