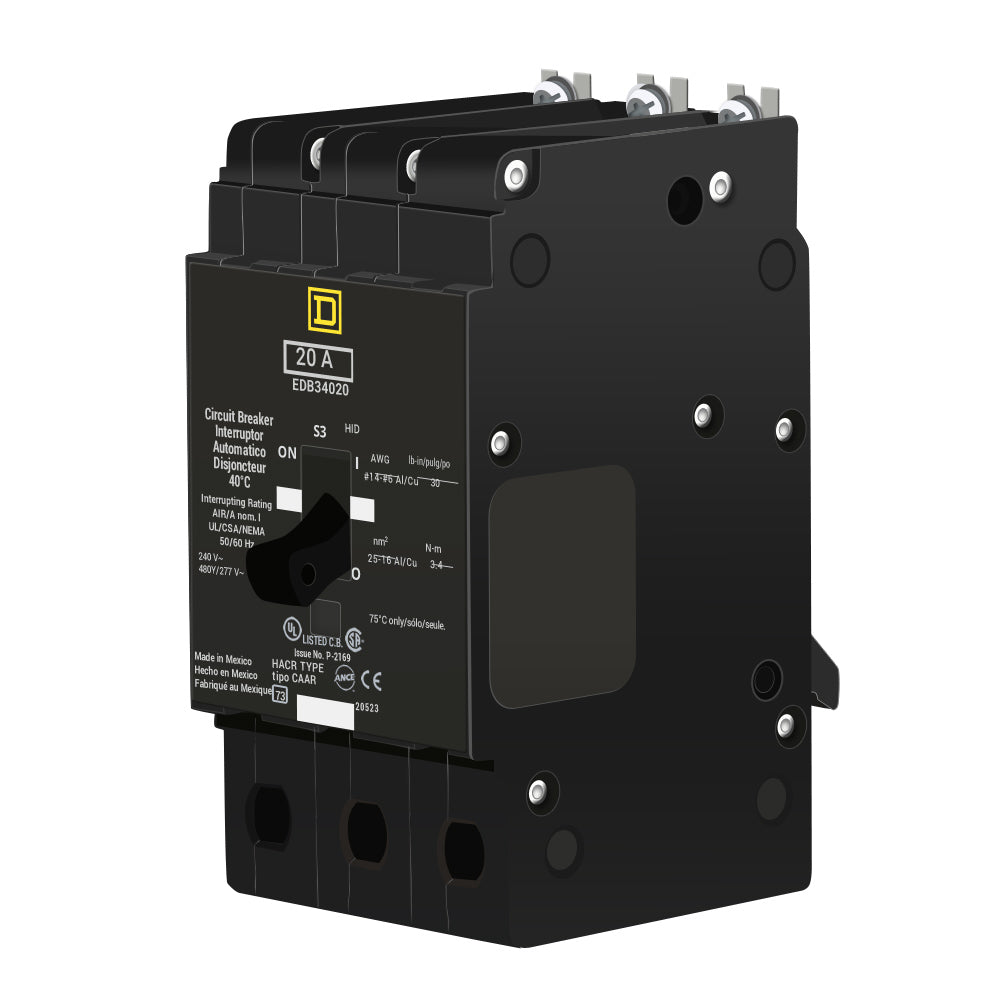

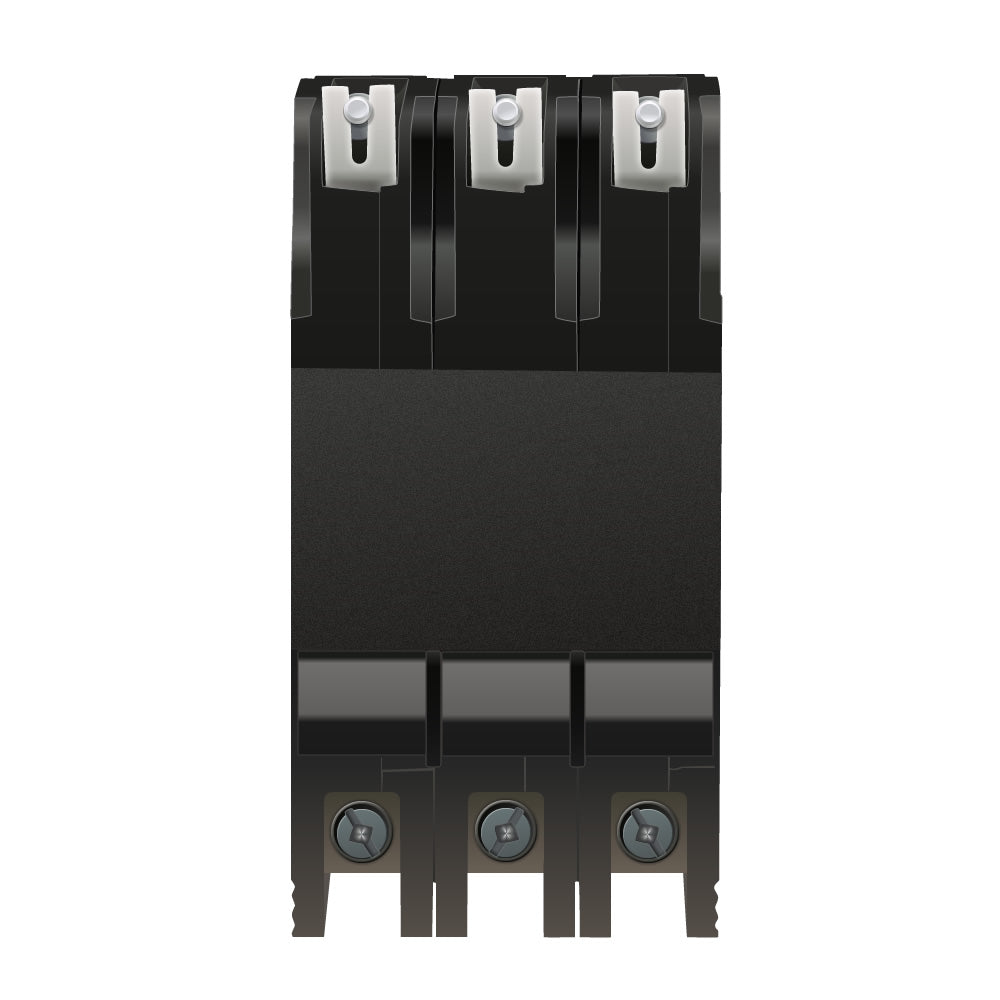

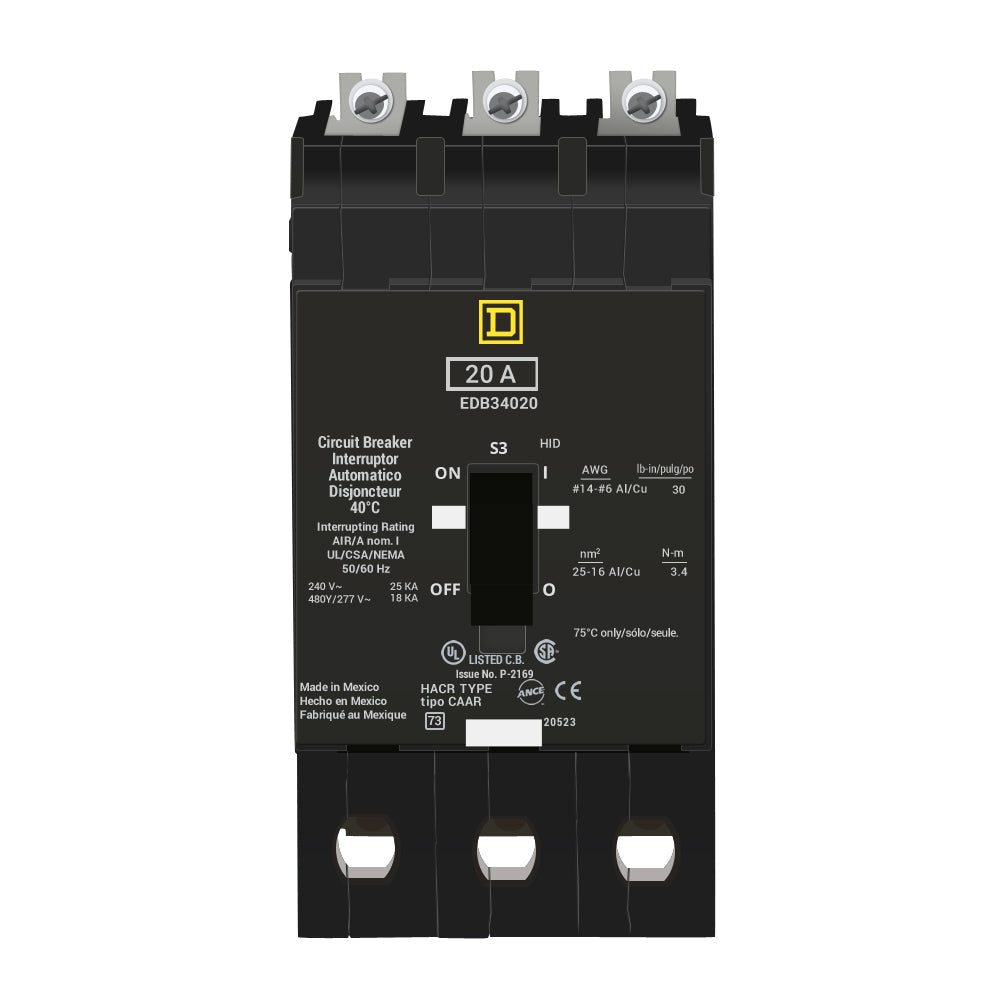

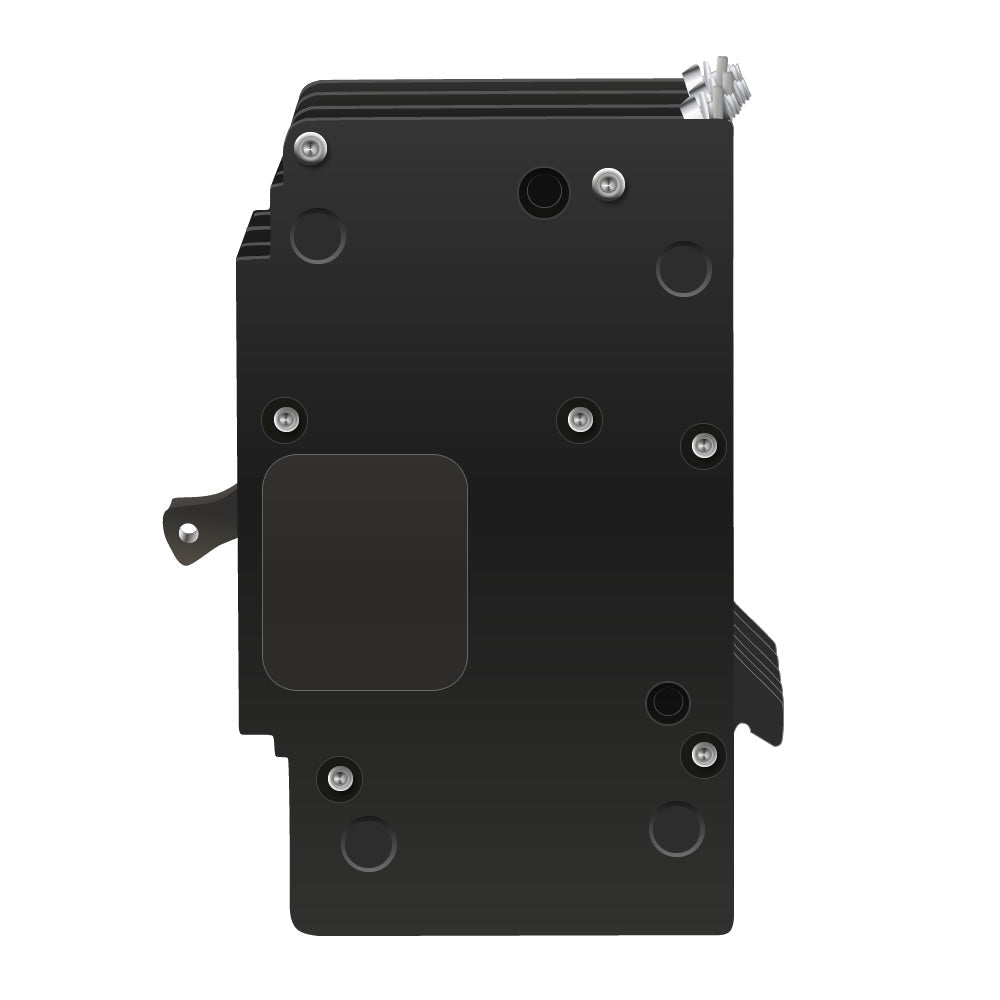

EDB34020 - Square D - Molded Case Circuit Breaker

Bolt-On - 20 Amp - 3 Pole - 480 Volt

Schneider Electric SKU: EDB34020
EDB34020 - Square D - Molded Case Circuit Breaker
EDB34020 - Square D - Molded Case Circuit Breaker
EDB34020 - Square D - Molded Case Circuit Breaker
EDB34020 - Square D - Molded Case Circuit Breaker

Images are for reference only

EDB34020 - Square D - Molded Case Circuit Breaker

Bolt-On - 20 Amp - 3 Pole - 480 Volt

Schneider Electric SKU: EDB34020
Regular price $669.00 Sale price $239.99 Save $429.01
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Shipping calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

Overview

Product Specifications - EDB34020 - Square D Bolt-On Circuit Breaker

  • Category:

  • Connection:

    Bolt-On
  • Type:

    EDB
  • Functions:

    LI - Long-Time and Instantaneous
  • Protection:

    Thermal Magnetic
  • AIC Ratings:

    18kA@480V | 18kA@277V | 25kA@240V | 25kA@120V

Dimensions

  • Dimensions (HxWxD):

    5.66" x 2.94" x 4.05"
  • Weight:

    4lbs

Standards

CSA Approved logo

Additional Details

  • Protection Type:

    Short-Circuit / Overload
  • Module Type:

    E-Frame
  • Trip Unit Rating:

    875 Amp
  • Line Rated Current:

    20 Amp
  • Maximum Operating Voltage:

    480Y/277 V AC
  • Mounting Mode:

    Bolt-On
  • Product Destination:

    Square D NF Panelboard
  • Electrical Connection:

    Aluminum Lugs
  • Holding Current:

    270 Amp
  • Local Signaling:

    Trip Indicator
  • Circuit Breaker Application:

    HID-Rated / HACR-Rated
  • AWG Gauge:

    AWG 12...AWG 6 Aluminum | AWG 14...AWG 6 Copper

Product Description - EDB34020 - Square D Bolt-On Circuit Breaker

Schneider Electric / Square D's EDB34020 bolt-on molded case circuit breaker is a reliable and easy-to-install device designed for use in Square D NF Panelboards. This circuit breaker is CSA-rated, HID-rated and HACR-rated, and UL Listed as High-Intensity Discharge.

The EDB34020 is a 3-pole bolt-on circuit breaker, rated at 20A at a system voltage of 480Y/277V AC. The circuit breaker has a thermal-magnetic trip unit and a signal indicator to indicate when a trip occurred. The device has a hold current of 270A (the maximum current the breaker can be held at to ensure a trip will occur) and a trip current of 875A (the current value when the breaker is guaranteed to trip).

Square D's EDB34020 circuit breaker is calibrated for 40 degrees C and has aluminum lugs with a terminal lug rating of AWG 12...AWG 6 (aluminum) and AWG 14...AWG 6 (copper).

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Customer Reviews

Based on 21 reviews
86%
(18)
10%
(2)
0%
(0)
0%
(0)
5%
(1)
E
Edwin G Rodriguez
Nice shopping experience

Right breakers, excellent conditions, fast shipping and fair price

A
Anthony Catalano
Breakers

Great service

E
Electrician
Missing parts

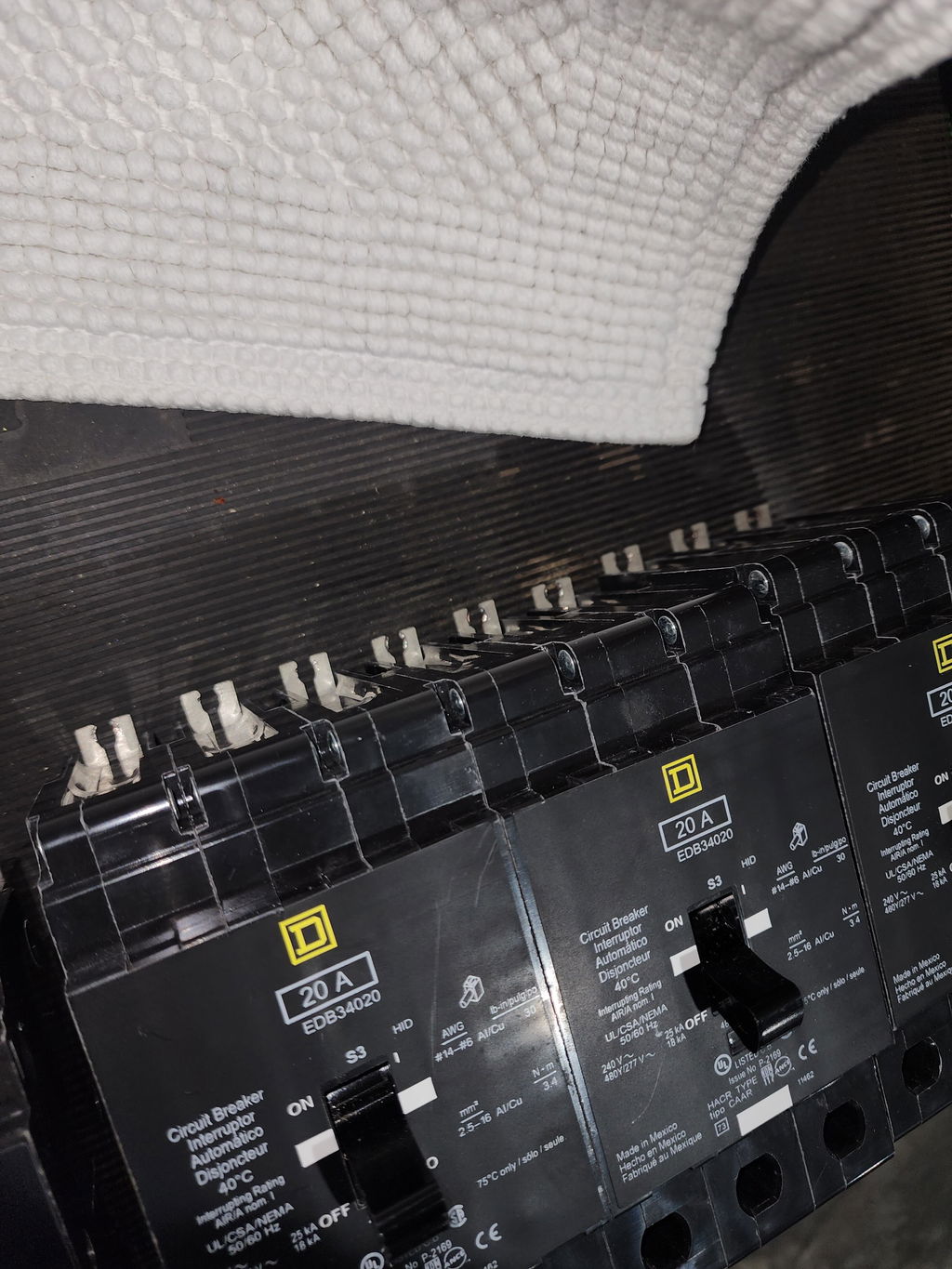

Three Breakers are missing the hold down screws that attach the breaker to the buss.
