Overview
Product Specifications - EDB26100 - Square D Bolt-On Circuit Breaker
-
Part Number:
EDB26100 -
Manufacturer:
-
Family:
EDB Series -
Pole:
2 -
Amp
100 -
Volt:
600 -
Phase:
1
-
Category:
-
Connection:
Bolt-On -
Type:
EDB -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
14 kA 600Y/347 V AC
Dimensions
-
Dimensions (HxWxD):
5.66" x 1.96" x 4.05"
-
Weight:
3lbs
Standards
Additional Details
-
Protection Type:
Short-Circuit / Overload -
Module Type:
E-Frame -
Trip Unit Rating:
875 Amp -
Line Rated Current:
100 Amp -
Maximum Operating Voltage:
600Y/347 V AC -
Mounting Mode:
Bolt-On
-
Product Destination:
Square D NF Panelboard -
Electrical Connection:
Aluminum Lugs -
Holding Current:
270 Amp -
Local Signaling:
Trip Indicator -
Circuit Breaker Application:
HID-Rated / HACR-Rated -
AWG Gauge:
AWG 12...AWG 6 Aluminum | AWG 14...AWG 6 Copper
Product Description - EDB26100 - Square D Bolt-On Circuit Breaker

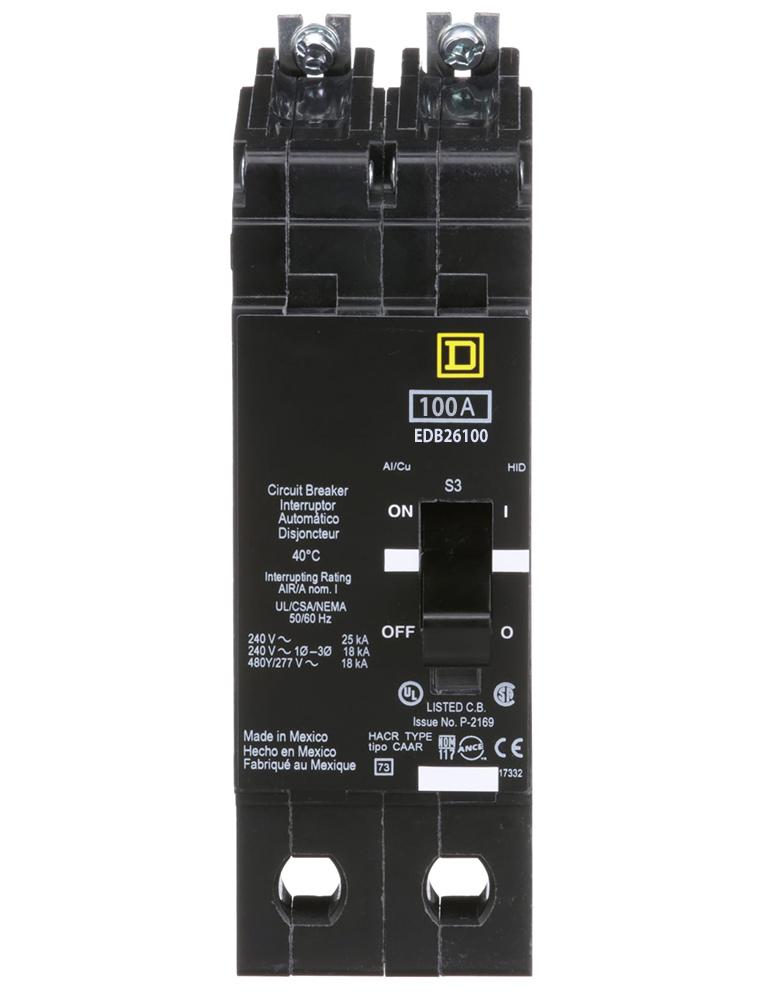

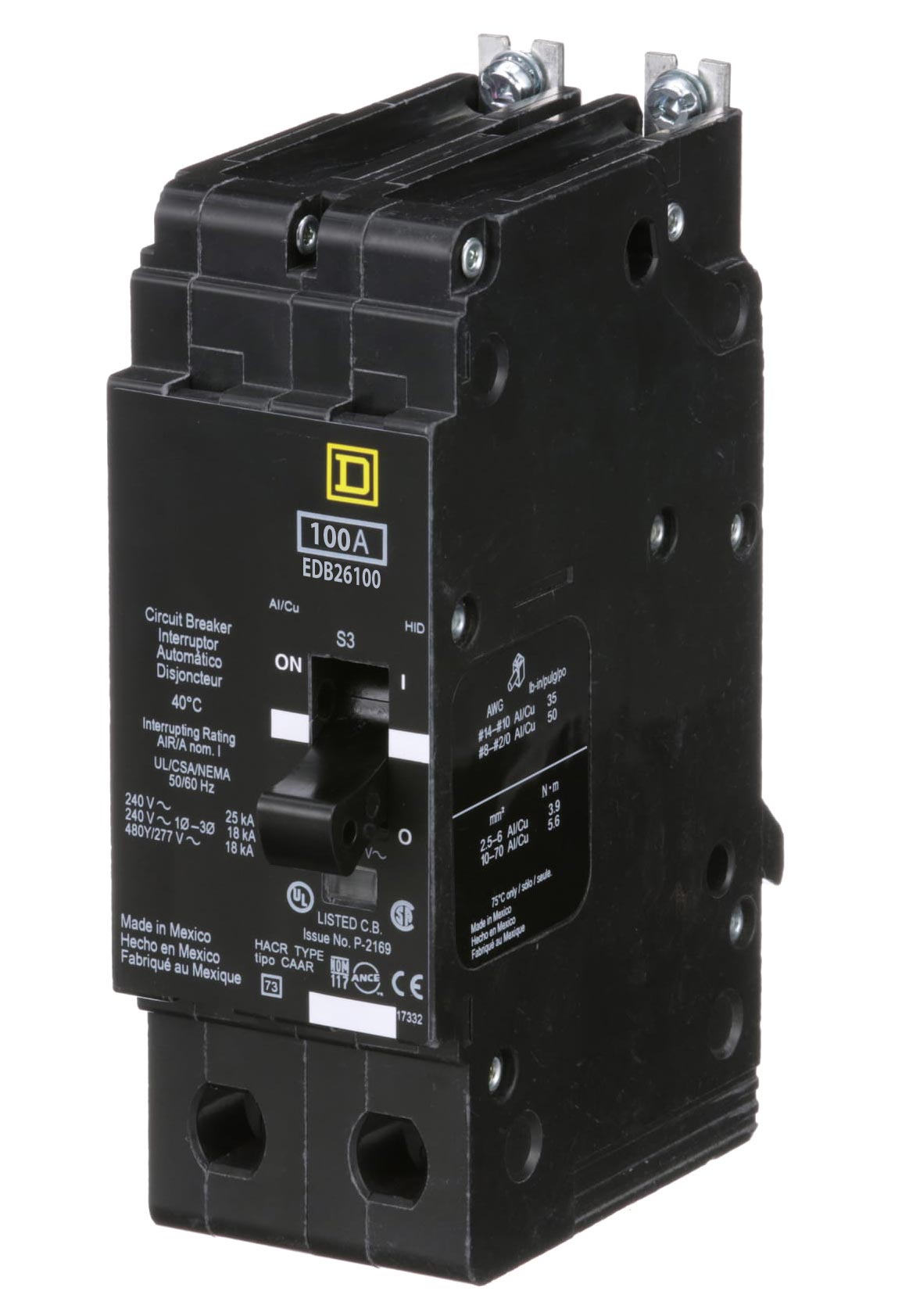

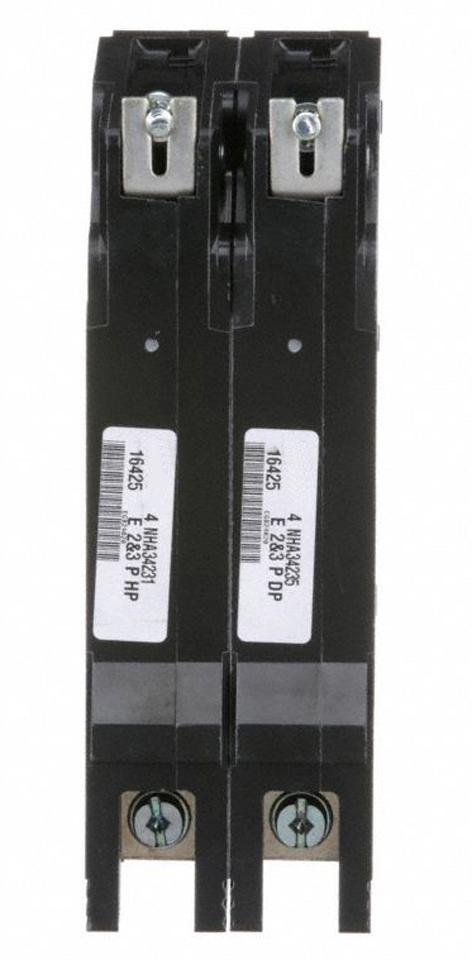

Schneider Electric / Square D's EDB26100 bolt-on molded case circuit breaker is a reliable and easy-to-install device designed for use in Square D NF Panelboards. This circuit breaker is CSA-rated, HID-rated and HACR-rated, and UL Listed as High-Intensity Discharge.
The EDB26100 is a 2-pole bolt-on circuit breaker, rated at 100A at a system voltage of 600Y/347 V AC. The circuit breaker has a thermal-magnetic trip unit and a signal indicator to indicate when a trip occurred. The device has a hold current of 270A (the maximum current the breaker can be held at to ensure a trip will occur) and a trip current of 875A (the current value when the breaker is guaranteed to trip).

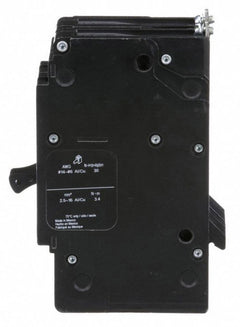

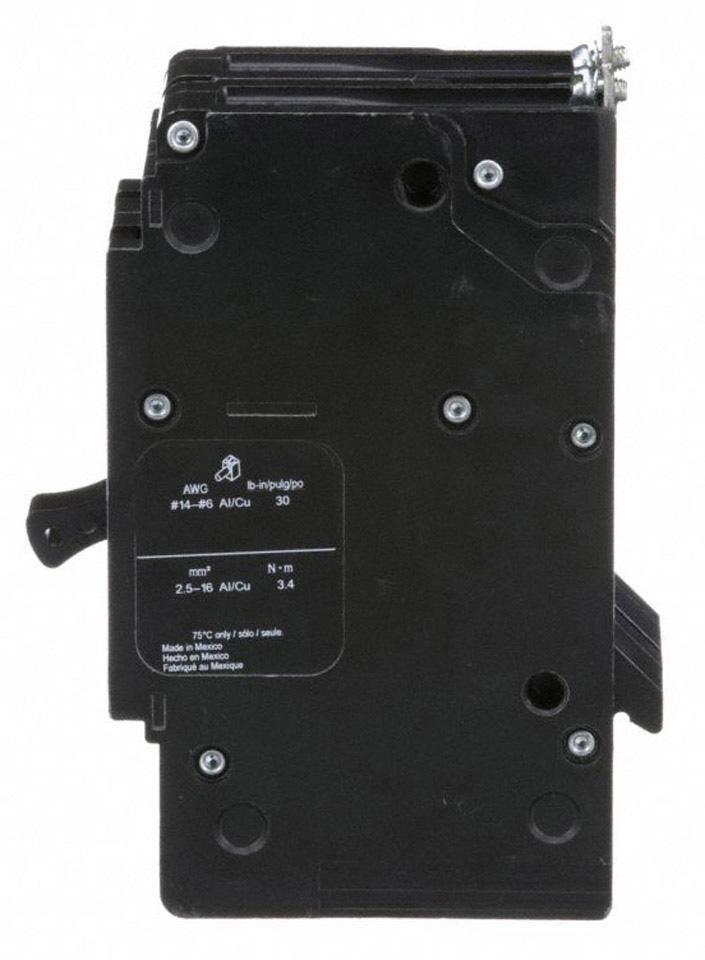

Square D's EDB26100 circuit breaker is calibrated for 40 degrees C and has aluminum lugs with a terminal lug rating of AWG 12...AWG 6 (aluminum) and AWG 14...AWG 6 (copper).
