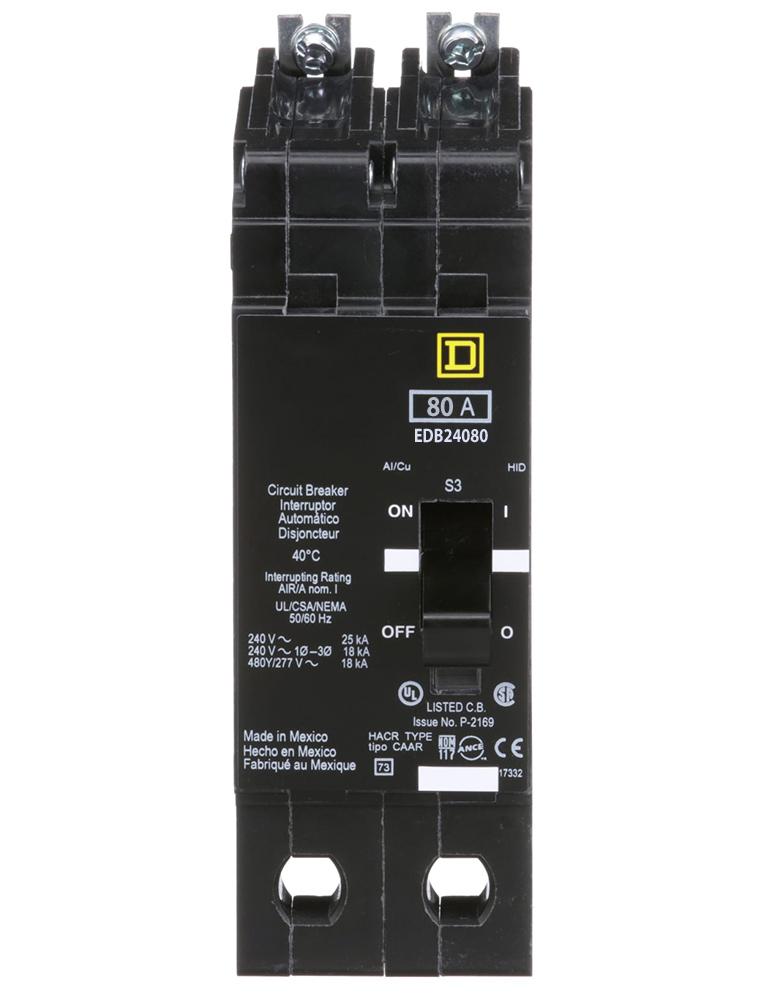

EDB24080 - Square D - Molded Case Circuit Breaker
Bolt-On - 80 Amp - 2 Pole - 480 Volt
Schneider Electric
SKU: EDB24080
Images are for reference only
Returns are easy
You may return items within 30 days of delivery for a refund.
FREE Shipping on orders over $49.
Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer). Extended warranties are available upon request.
Overview
Product Specifications - EDB24080 - Square D Bolt-On Circuit Breaker
-
Part Number:
EDB24080 -
Manufacturer:
-
Family:
EDB Series -
Pole:
2 -
Amp
80 -
Volt:
480 -
Phase:
1
-
Category:
-
Connection:
Bolt-On -
Type:
EDB -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
18kA@480V | 18kA@277V | 25kA@240V | 25kA@120V
Dimensions
-
Dimensions (HxWxD):
5.66" x 1.96" x 4.05"
-
Weight:
4lbs
Standards
Additional Details
-
Protection Type:
Short-Circuit / Overload -
Module Type:
E-Frame -
Trip Unit Rating:
875 Amp -
Line Rated Current:
80 Amp -
Maximum Operating Voltage:
480Y/277 V AC -
Mounting Mode:
Bolt-On
-
Product Destination:
Square D NF Panelboard -
Electrical Connection:
Aluminum Lugs -
Holding Current:
270 Amp -
Local Signaling:
Trip Indicator -
Circuit Breaker Application:
HID-Rated / HACR-Rated -
AWG Gauge:
AWG 12...AWG 6 Aluminum | AWG 14...AWG 6 Copper
Product Description - EDB24080 - Square D Bolt-On Circuit Breaker
Schneider Electric / Square D's EDB24080 bolt-on molded case circuit breaker is a reliable and easy-to-install device designed for use in Square D NF Panelboards. This circuit breaker is CSA-rated, HID-rated and HACR-rated, and UL Listed as High-Intensity Discharge.
The EDB24080 is a 2-pole bolt-on circuit breaker, rated at 80A at a system voltage of 480Y/277V AC. The circuit breaker has a thermal-magnetic trip unit and a signal indicator to indicate when a trip occurred. The device has a hold current of 270A (the maximum current the breaker can be held at to ensure a trip will occur) and a trip current of 875A (the current value when the breaker is guaranteed to trip).
Square D's EDB24080 circuit breaker is calibrated for 40 degrees C and has aluminum lugs with a terminal lug rating of AWG 12...AWG 6 (aluminum) and AWG 14...AWG 6 (copper).
