BGA36060 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 30 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: BGA36060
BGA36060 - Square D 60 Amp 3 Pole 600 Volt Molded Case Circuit Breaker
BGA36060 - Square D - Molded Case Circuit Breaker
BGA36060 - Square D - Molded Case Circuit Breaker
BGA36060 - Square D - Molded Case Circuit Breaker
BGA36060 - Square D - Molded Case Circuit Breaker
BGA36060 - Square D 60 Amp 3 Pole 600 Volt Molded Case Circuit Breaker

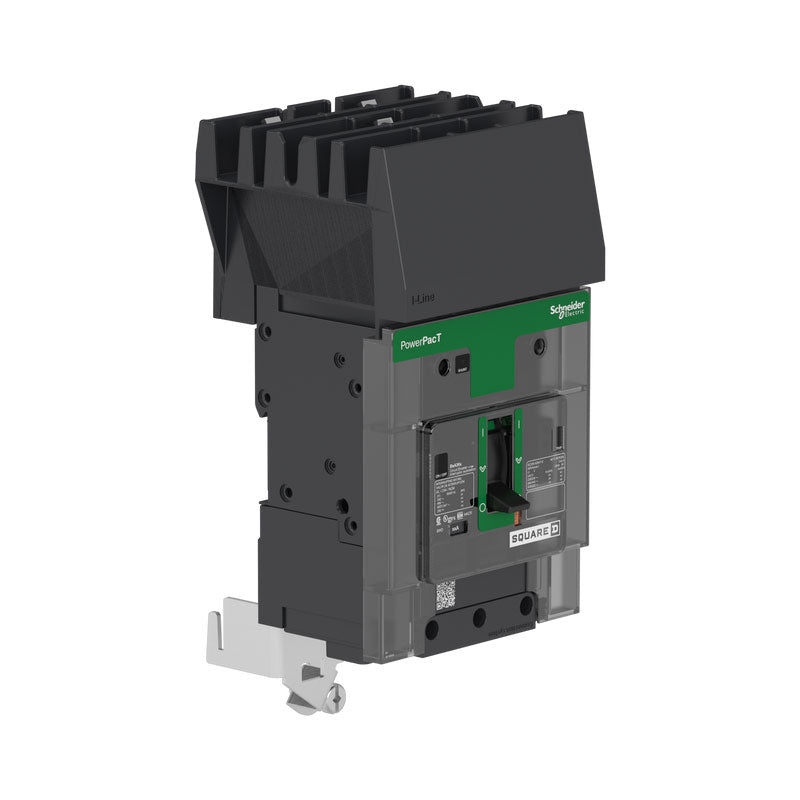

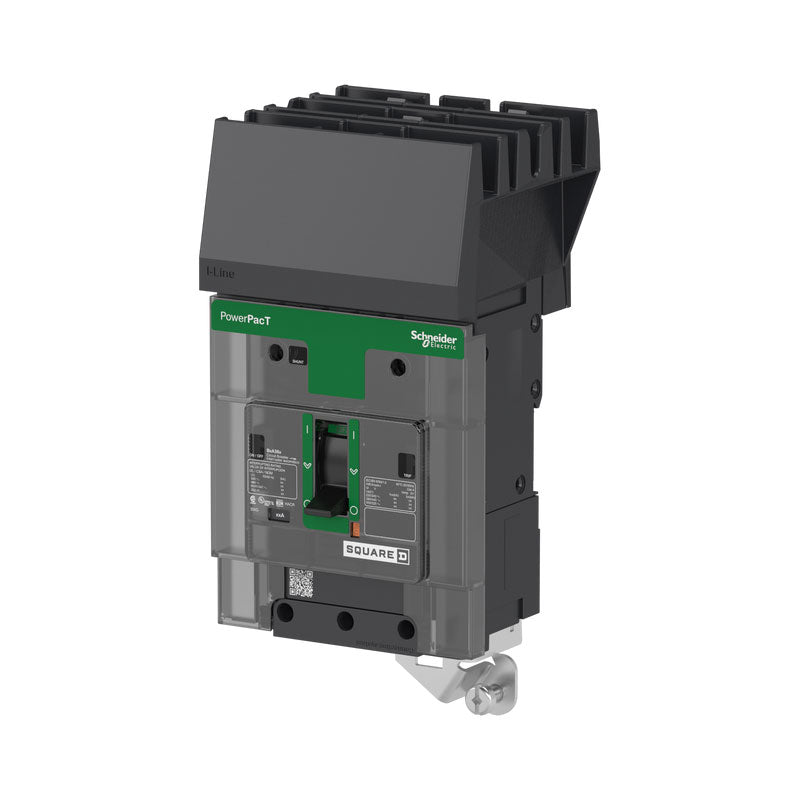

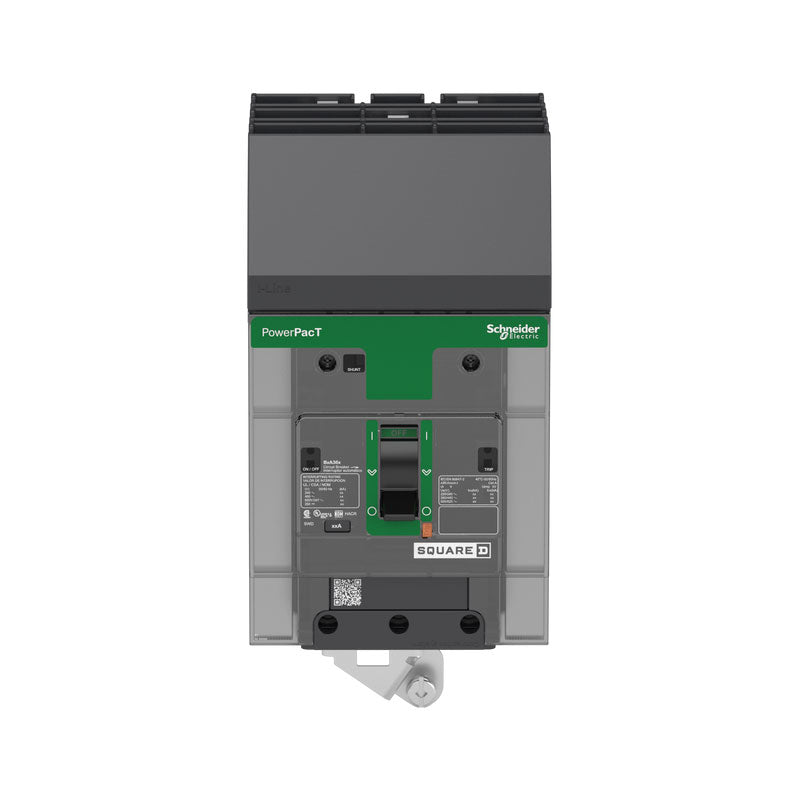

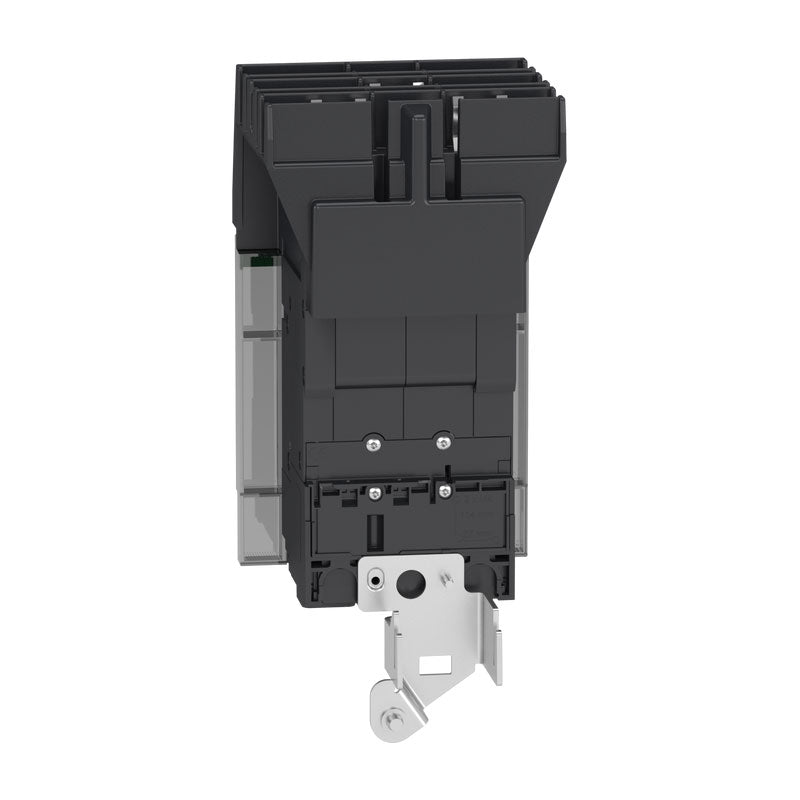

Images are for reference only

BGA36060 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 30 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: BGA36060
Save $668.01
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Shipping calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

Overview

Product Specifications - BGA36060 - Square D Molded Case Circuit Breakers

  • Part Number:

    BGA36060

  • Manufacturer:

    Square D

  • Family:

    Powerpact

  • Pole:

    3

  • Amp

    60

  • Volt:

    600

  • Phase:

    3

  • Category:

    Molded Case / 3-Pole

  • Connection:

    I-Line Style Plug-In

  • Type:

    BGA

  • Functions:

    LI - Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    35kA@480V

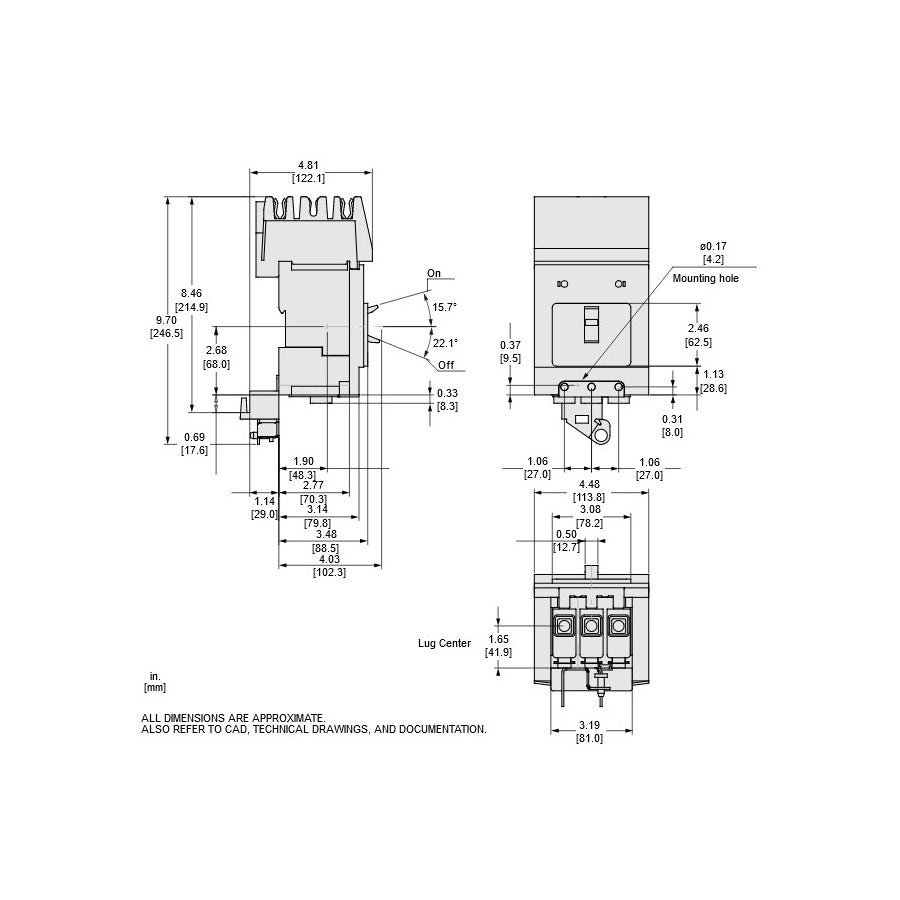

Dimensions

  • Dimensions (HxWxD):

    5.39" x 3.19" x 3.50"

  • Weight:

    2.90 lbs

Additional Details

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    60 Amp

  • Mounting Mode:

    I-Line

  • Breaking Capacity Code:

    G

  • Electrical Connection:

    I-Line connection line / Lugs load

  • Continuous Current Rating:

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 14...AWG 2/0 aluminium/copper

Standards

CSA Approved logo

Product Description - BGA36060 - Square D Molded Case Circuit Breakers

Square D / Schneider Electric, Powerpact, type BGA, 3PH, 3P, 600Y/347Vac, 60A, 35kA@480V rated, i-line style plug-in with ABC phase connection, complete with non-interchangeable trip.

Documentation

PDF Icon Catalogue

PDF Icon Product Specifcation
