BDL26030 - Square D - Molded Case Circuit Breaker

Feed-Thru - 30 Amp - 2 Pole - 600 Volt

Schneider Electric SKU: BDL26030

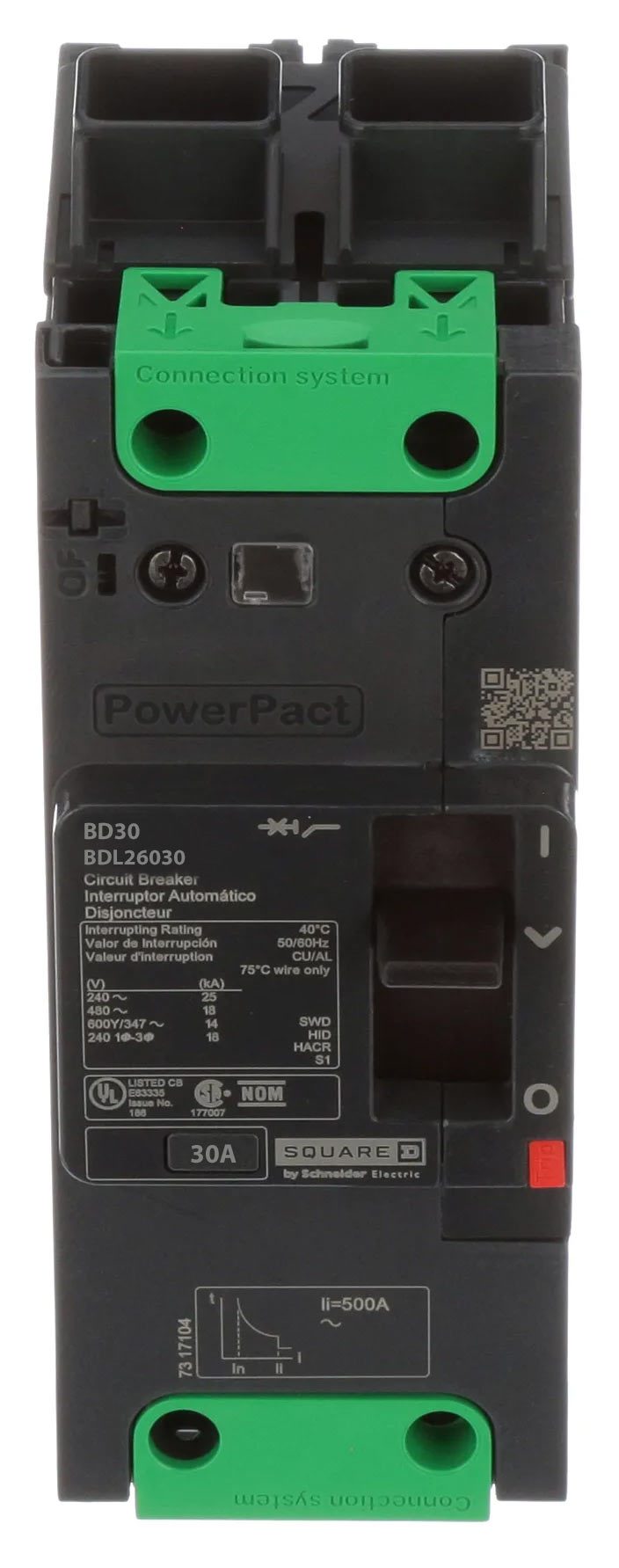

BDL26030 - Square D 30 Amp 2 Pole 600 Volt Molded Case Circuit Breaker
BDL26030 - Square D - Molded Case Circuit Breaker
BDL26030 - Square D - Molded Case Circuit Breaker
BDL26030 - Square D - Molded Case Circuit Breaker

Images are for reference only

BDL26030 - Square D - Molded Case Circuit Breaker

Feed-Thru - 30 Amp - 2 Pole - 600 Volt

Schneider Electric SKU: BDL26030
Regular price $855.99
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Shipping calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

Overview

Product Specifications - BDL26030 - Square D Molded Case Circuit Breakers

  • Part Number:

    BDL26030
  • Manufacturer:

  • Family:

    Powerpact
  • Pole:

    2
  • Amp

    30
  • Volt:

    600
  • Phase:

    1
  • Category:

  • Connection:

    Feed-Thru
  • Type:

    BDL
  • Functions:

    LI - Long-Time and Instantaneous
  • Protection:

    Thermal Magnetic
  • AIC Ratings:

    18kA@480V

Dimensions

  • Dimensions (HxWxD):

    5.39" x 2.13" x 3.15"
  • Weight:

    1.70 lbs

Additional Details

  • Trip Unit Technology:

    Thermal-magnetic
  • Line Rated Current:

    30 Amp
  • Mounting Mode:

    Clip-on 35 x 15 mm symmetrical DIN rail)
    By screws plate)
  • Breaking Capacity Code

    D
  • Electrical Connection:

    Everlink lug line / Everlink lug load
  • Continuous Current Rating

    80%
  • Control Type:

    Toggle
  • AWG Gauge:

    AWG 6...AWG 2/0 fine stranded aluminium/copper
    AWG 14...AWG 3/0 rigid or stranded aluminium/copper

Standards

CSA Approved logo

Product Description - BDL26030 - Square D Molded Case Circuit Breakers

Square D / Schneider Electric, Powerpact, type BDL, 1PH, 2P, 600Y/347Vac, 20A, 18kA@480V, feed-thru with EverLink connectors, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals.


Documentation

PDF Icon Catalogue

PDF Icon Product Specifcation
