Name: BDA36080 - Square D - Molded Case Circuit Breaker
Brand: Schneider Electric
SKU: BDA36080
Price: 684.99 USD
Availability: InStock

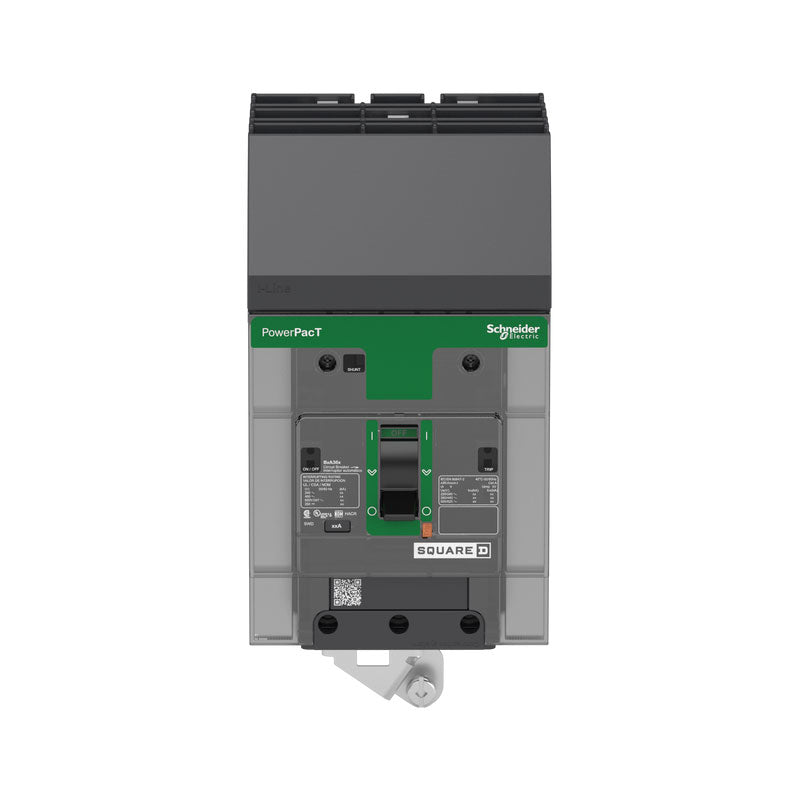

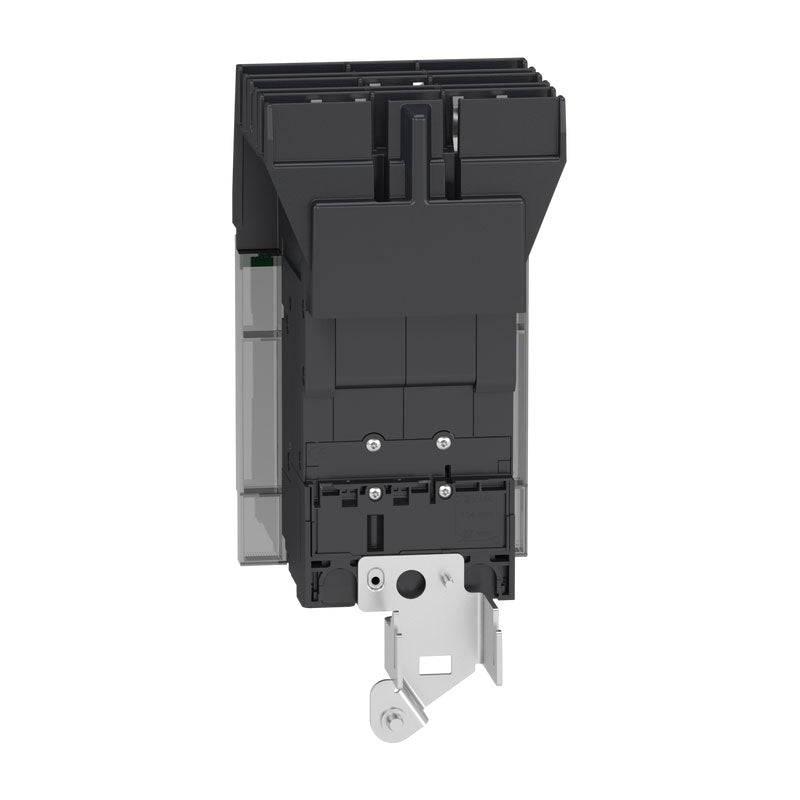

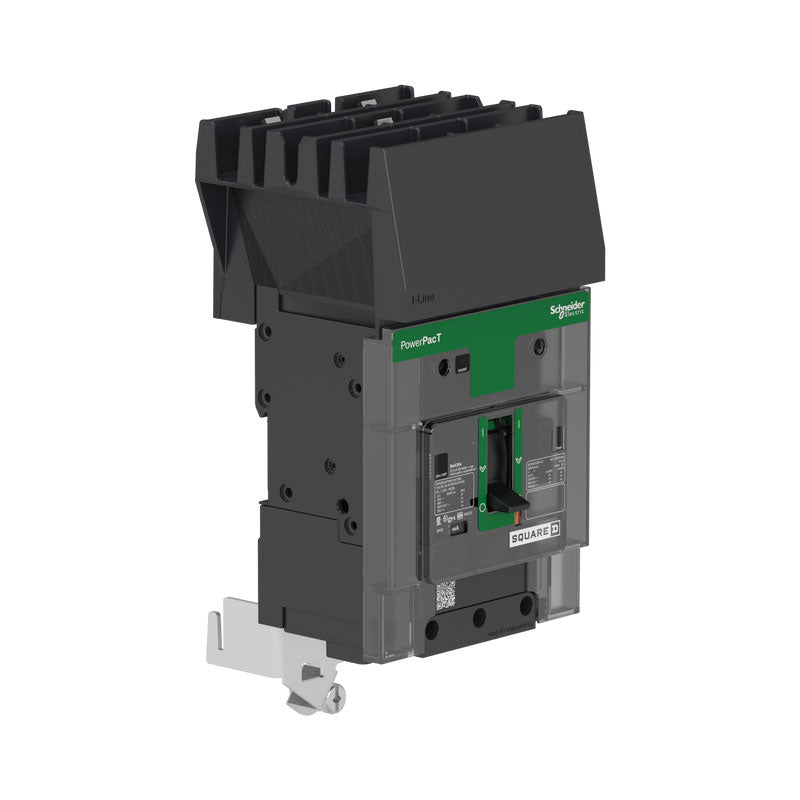

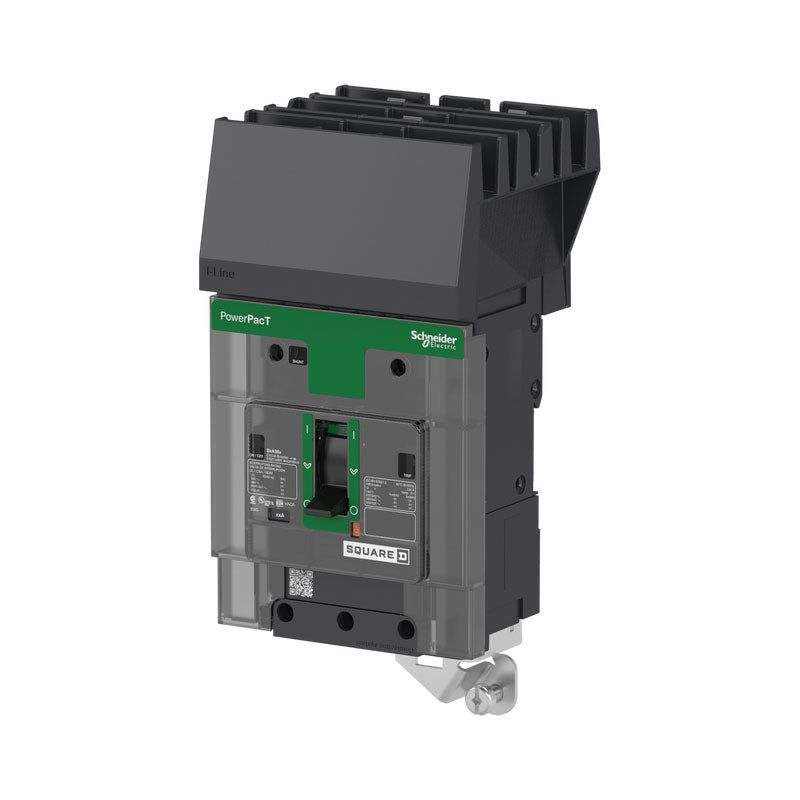

BDA36080 - Square D 80 Amp 3 Pole 600 Volt Plug-In Molded Case Circuit Breaker

BDA36080 - Square D - Molded Case Circuit Breaker

Images are for reference only

Save $540.01

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned

Quantity

Secure transaction

FREE & fast shipping on orders over $49

1 year warranty

30 day returns

[{"id":40023926112336,"title":"New","option1":"New","option2":null,"option3":null,"sku":"BDA36080","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BDA36080 - Square D - Molded Case Circuit Breaker - New","public_title":"New","options":["New"],"price":68499,"weight":2268,"compare_at_price":122500,"inventory_management":"shopify","barcode":"785901338758","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40306657919056,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"BDA36080_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BDA36080 - Square D - Molded Case Circuit Breaker - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":59999,"weight":2268,"compare_at_price":122500,"inventory_management":"shopify","barcode":"785901338758","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

Overview

Product Specifications - BDA36080 - Square D Molded Case Circuit Breakers

Part Number:

BDA36080
Manufacturer:

Square D
Family:

Powerpact
Pole:

3
Amp

80
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

I-Line Style Plug-In
Type:

BDA
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

18kA@480V

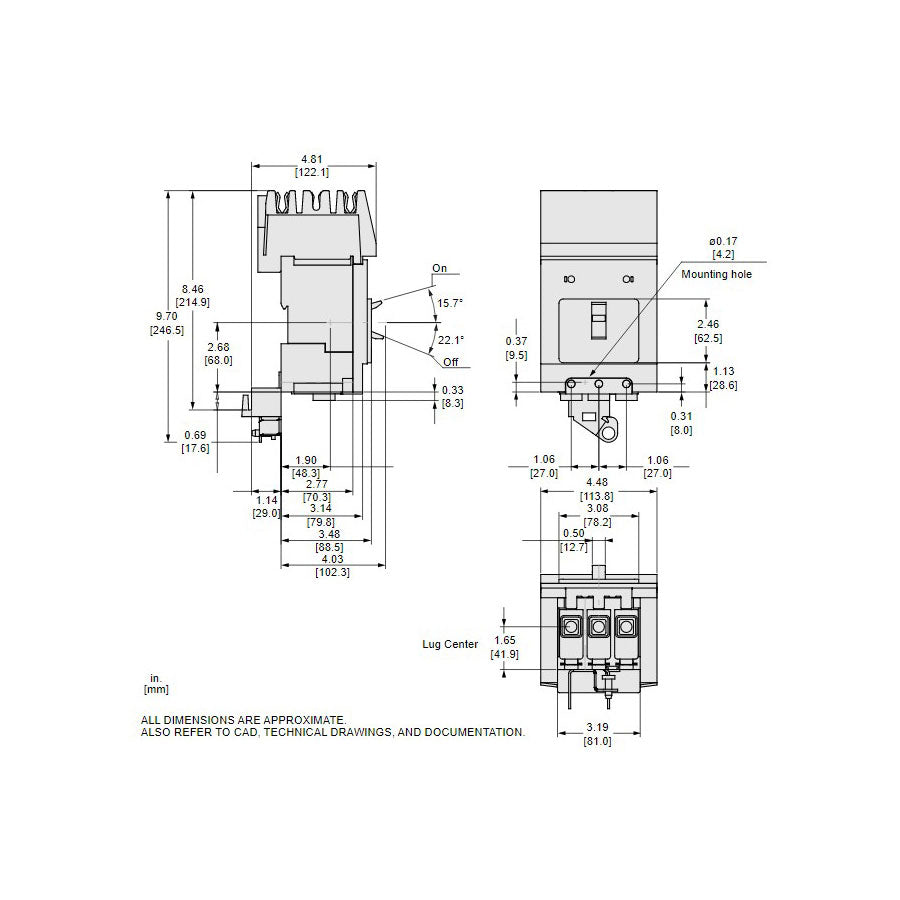

Dimensions

Dimensions (HxWxD):

5.39" x 3.19" x 3.50"

Weight:

2.90 lbs

Additional Details

Trip Unit Technology:

Thermal-magnetic
Line Rated Current:

80 Amp
Mounting Mode:

I-Line

Breaking Capacity Code

D
Electrical Connection:

I-Line connection line / Lugs load
Continuous Current Rating

80%
Control Type:

Toggle
AWG Gauge:

AWG 14...AWG 2/0 aluminium/copper

Standards

Product Description - BDA36080 - Square D Molded Case Circuit Breakers

Square D / Schneider Electric, Powerpact, type BDA, 3PH, 3P, 600Y/347Vac, 80A, 18kA@480V rated, i-line style plug-in with ABC phase connection, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side mechanical lug terminals, thermal magnetic, molded case circuit breakers

Documentation

Catalogue

Product Specifcation

BDA36080 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 80 Amp - 3 Pole - 600 Volt

BDA36080 - Square D - Molded Case Circuit Breaker

I-Line Plug-In - 80 Amp - 3 Pole - 600 Volt
