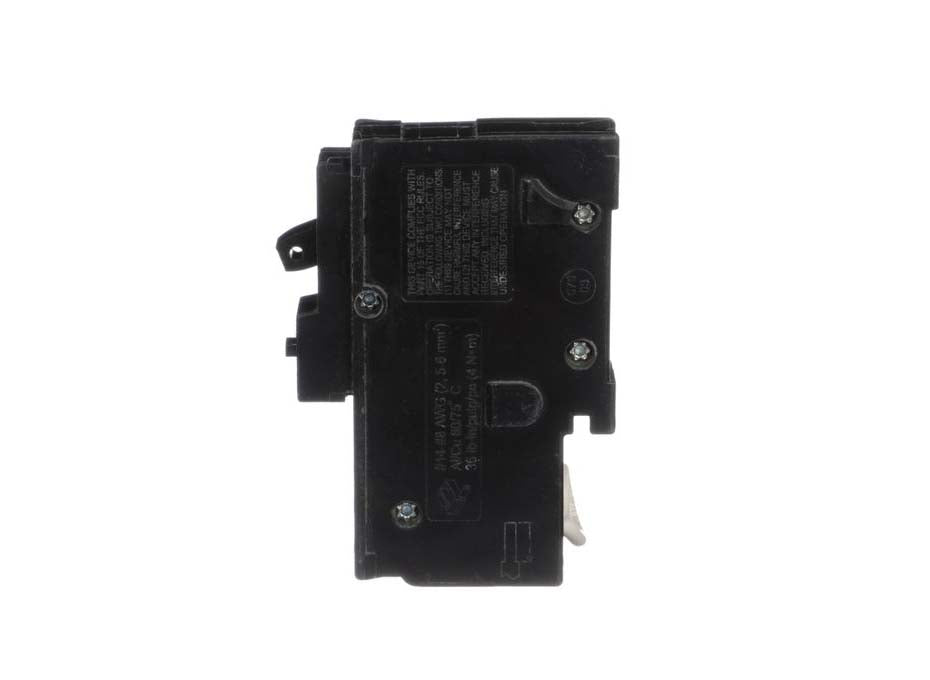

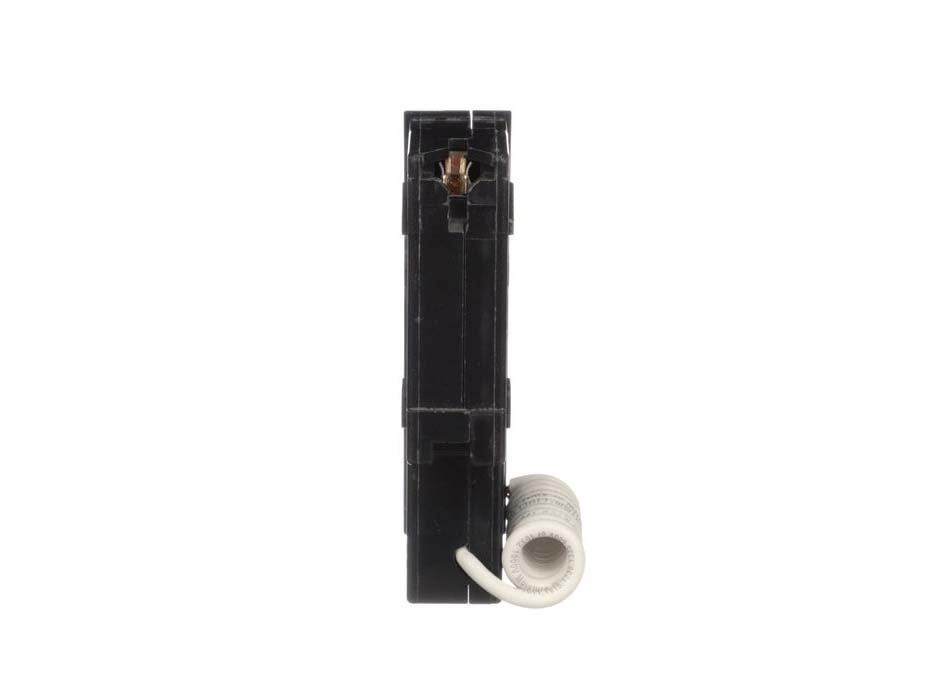

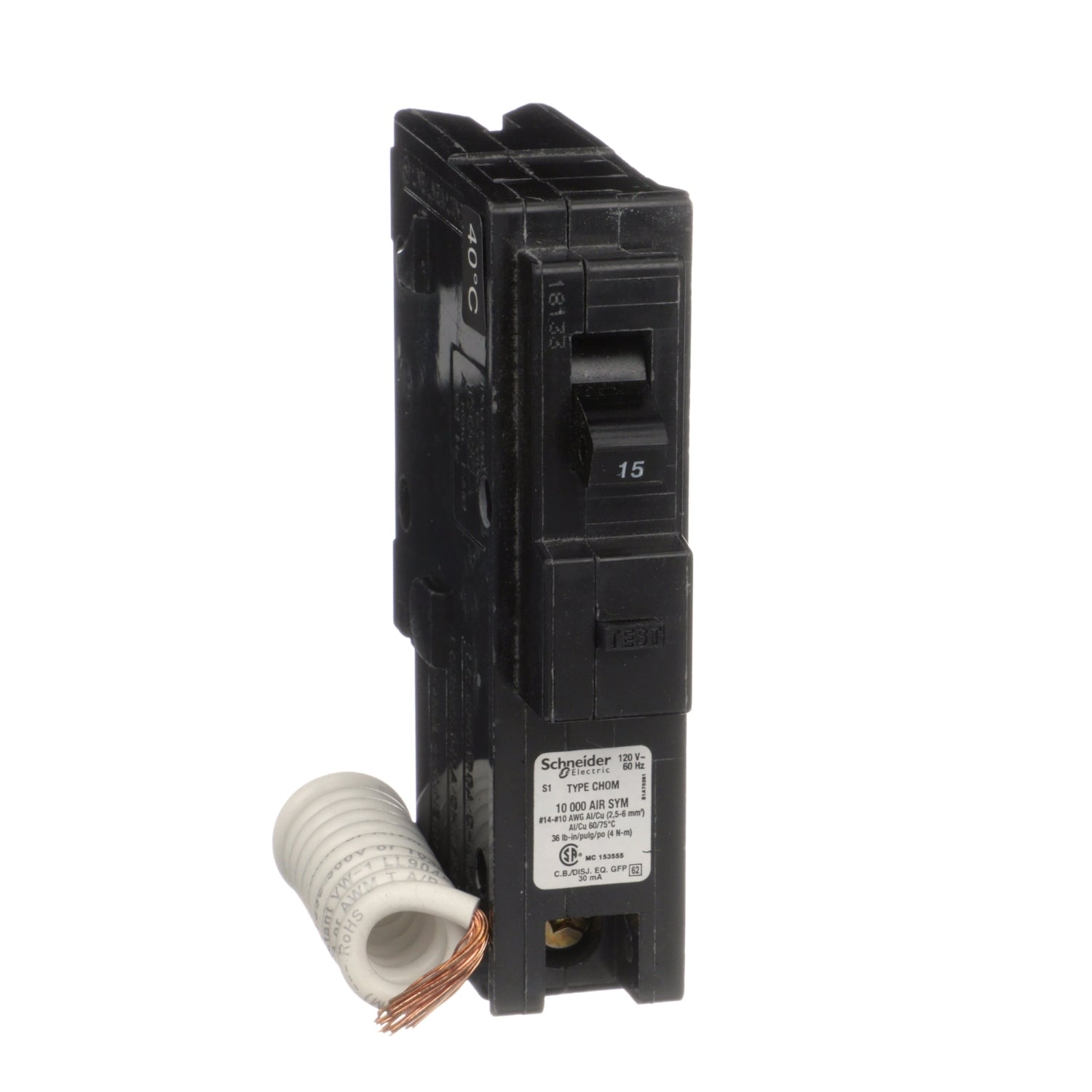

HOM115EPD - Square D Homeline - GFEP Circuit Breaker
Plug-In - 15 Amp - 1 Pole - 120 Volt
Schneider Electric
SKU: HOM115EPD
Images are for reference only
Returns are easy
You may return items within 30 days of delivery for a refund.
FREE Shipping on orders over $49.
Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer). Extended warranties are available upon request.
Overview
Product Specifications - HOM115EPD - Square D Homeline GFEP Circuit Breaker
-
Part Number:
HOM115EPD -
Manufacturer:
Schneider Electric / Homeline -
Family:
Homeline -
Pole:
1 -
Amp
15 -
Volt:
120 -
Phase:
1
-
Category:
-
Connection:
Plug-In -
Type:
HOM -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
10kA@120V
Dimensions
-
Dimensions (HxWxD):
3.13 x 2 x 2.98 -
Weight:
225 lbs
Standards
Product Description - HOM115EPD - Square D Homeline GFEP Circuit Breaker
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 15A at 120 VAC. HOM breakers provide 10 kA breaking capacity. This Homeline circuit breaker has Class B equipment protection ground fault protection. This Homeline circuit breakers has 30mA equipment ground fault protection. The electrical connection is a clamp terminal that will accept 1 wire. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed.
