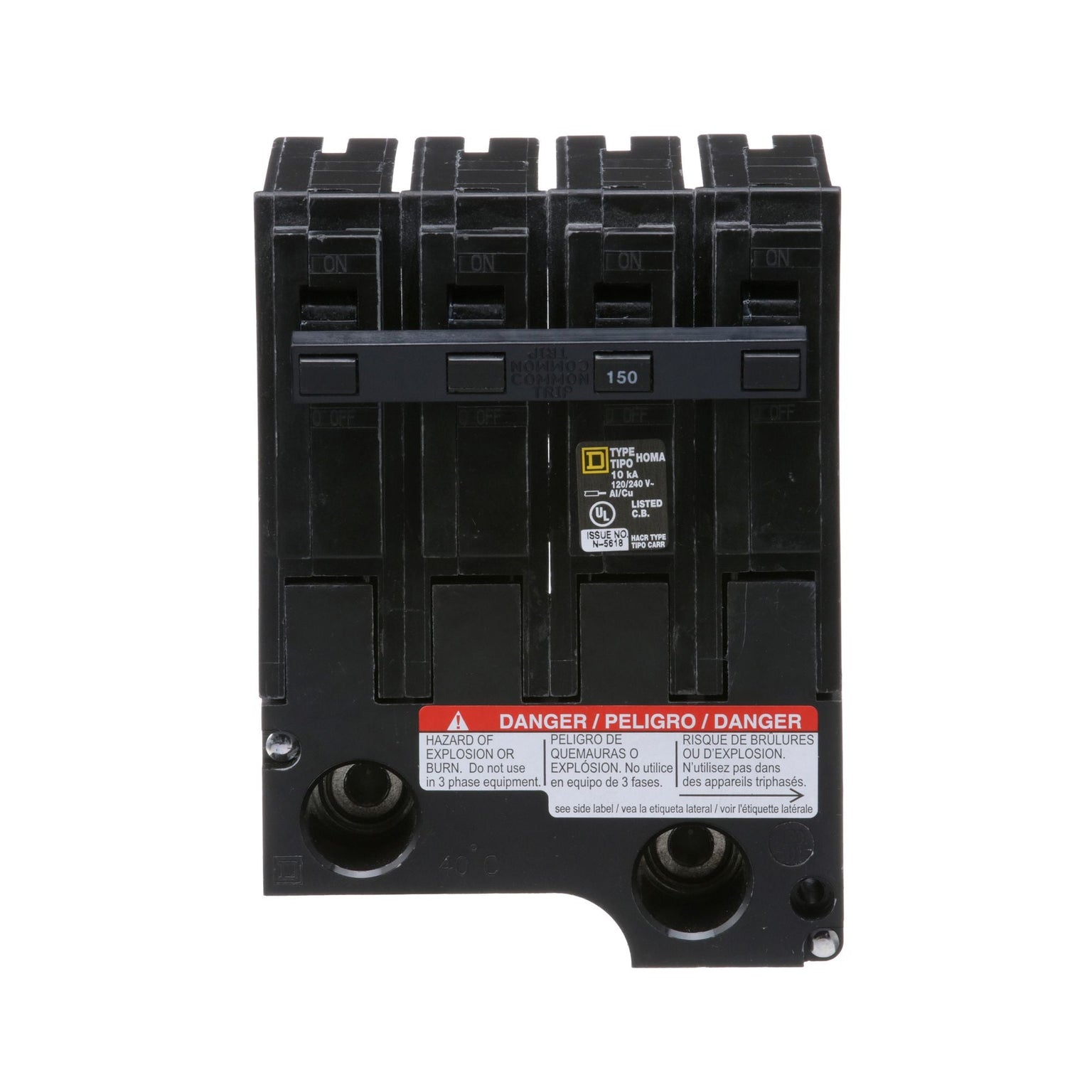

HOM2150BB - Square D Homeline - Circuit Breaker
Plug-In - 150 Amp - 2 Pole - 240 Volt
Schneider Electric
SKU: HOM2150BB
Images are for reference only
Returns are easy
You may return items within 30 days of delivery for a refund.
FREE Shipping on orders over $49.
Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer). Extended warranties are available upon request.
Overview
Product Specifications - HOM2150BB - Square D Homeline Circuit Breaker
-
Part Number:
HOM2150BB -
Manufacturer:
Schneider Electric / Homeline -
Family:
Homeline -
Pole:
2 -
Amp
150 -
Volt:
240 -
Phase:
1
-
Category:
-
Connection:
Plug-In -
Type:
HOM -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
10kA@240V
Dimensions
-
Dimensions (HxWxD):
5.39 x 3.98 x 3.13 -
Weight:
2.2 lbs
Standards
Product Description - HOM2150BB - Square D Homeline Circuit Breaker
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 150 A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs that will accept 1 wires. The box lugs will accept a wire range of 4 AWG to 300 kcmil copper or aluminum wire. This circuit breaker has a height of 5.39 inches, a width of 3.98 inch and depth of 3.13 inches. HOM Homeline miniature circuit breakers are UL Listed.
