HOM115CP - Square D Homeline - Circuit Breaker

Schneider Electric SKU: HOM115CP
HOM115CP - Square D Homeline - Circuit Breaker
HOM115CP - Square D Homeline - Circuit Breaker
HOM115CP - Square D Homeline - Circuit Breaker
HOM115CP - Square D Homeline - Circuit Breaker
HOM115CP - Square D Homeline - Circuit Breaker

Images are for reference only

HOM115CP - Square D Homeline - Circuit Breaker

Schneider Electric SKU: HOM115CP
Regular price $8.99
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Shipping calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

Overview

Product Specifications - HOM115CP - Square D Homeline Circuit Breaker

  • Category:

  • Connection:

    Plug-In
  • Type:

    HOM
  • Functions:

    LI - Long-Time and Instantaneous
  • Protection:

    Thermal Magnetic
  • AIC Ratings:

    10kA@120V

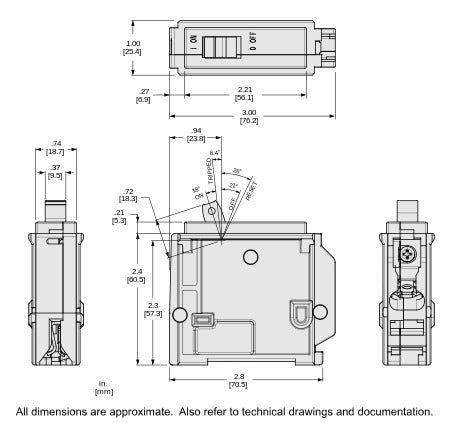

Dimensions

  • Dimensions (HxWxD):

    3 x 1 x 2.5
  • Weight:

    0.3 lbs

Standards

CSA Approved logo

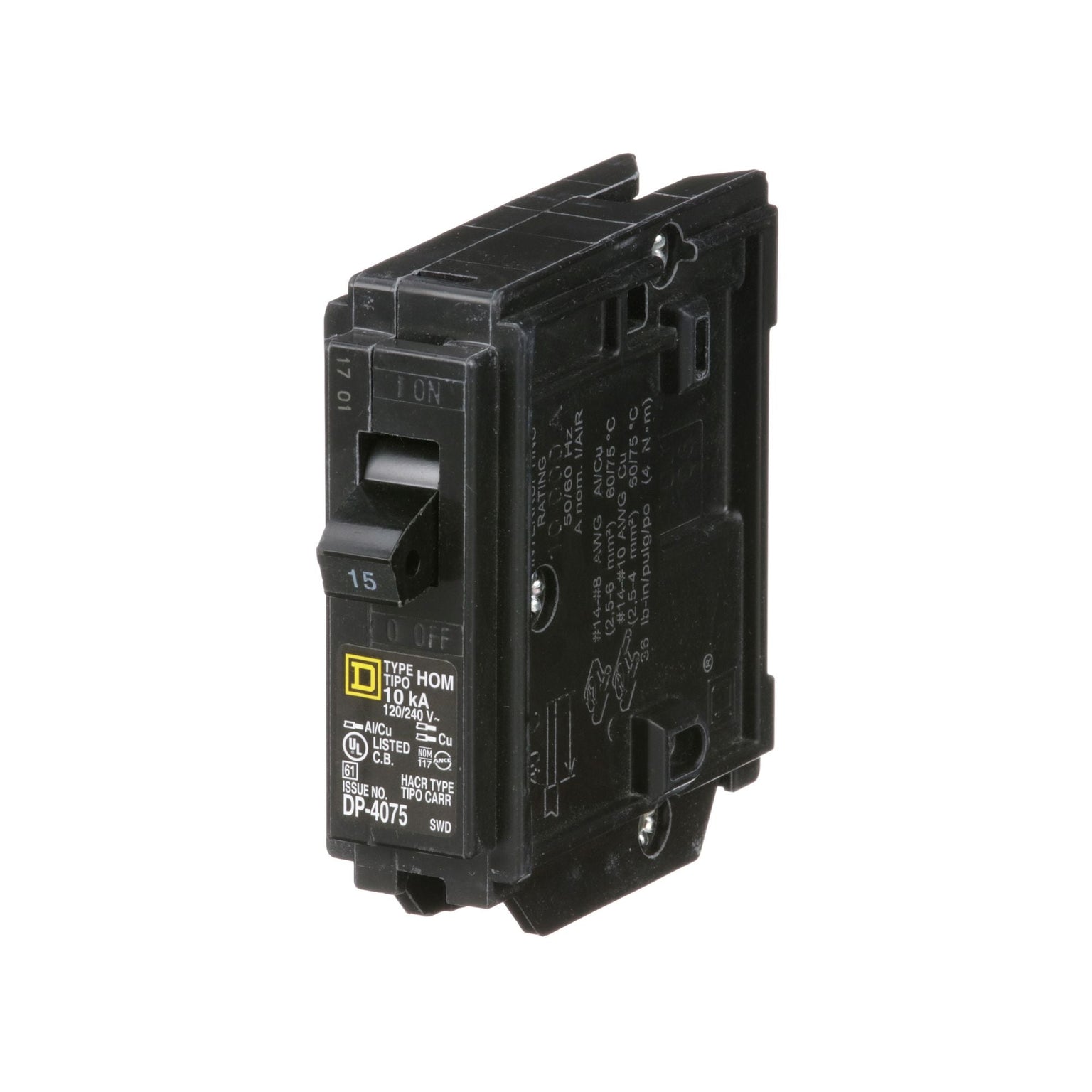

Product Description - HOM115CP - Square D Homeline Circuit Breaker

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 15A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.
