8736SCG8V02S - Square D - Electric Motor Starter
27 Amp - 3 Pole - 600 Volt
Schneider Electric
SKU: 8736SCG8V02S
Images are for reference only
Returns are easy
You may return items within 30 days of delivery for a refund.
FREE Shipping on orders over $49.
Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

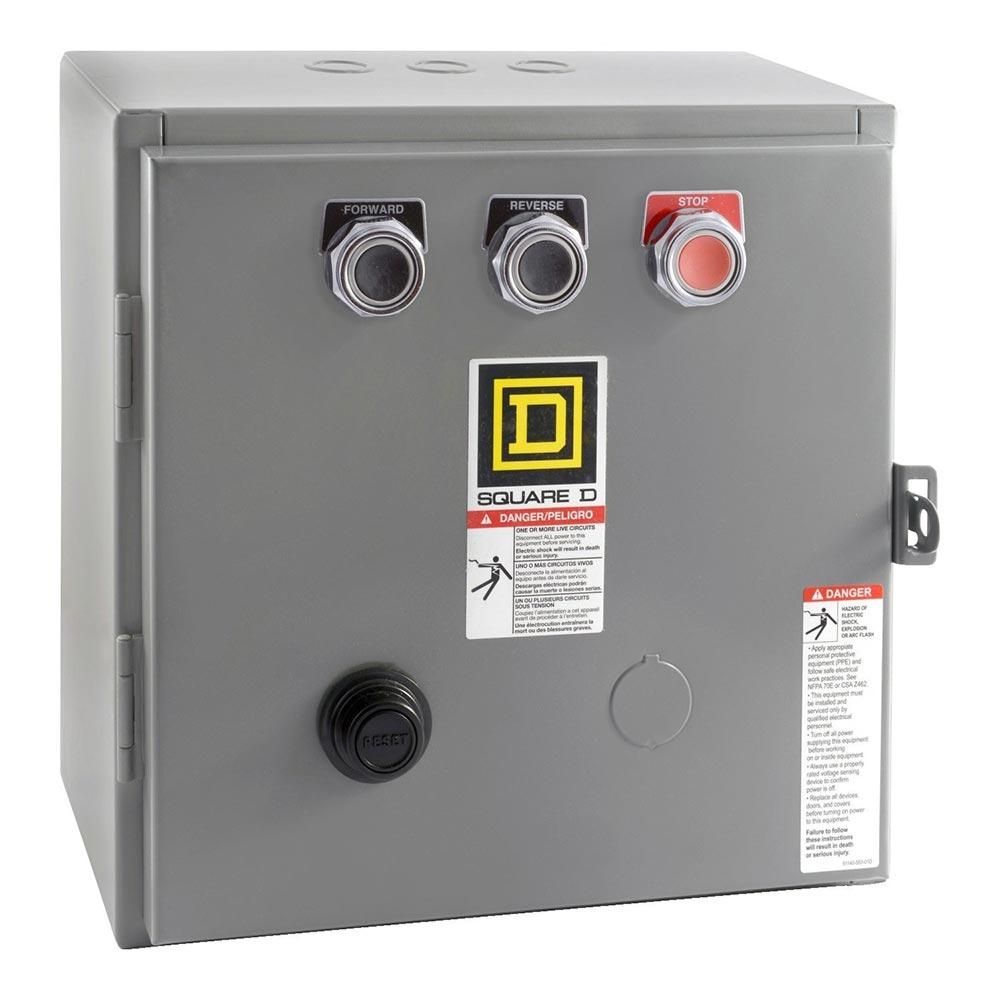

8736SCG8V02S - Square D Reversing NEMA Motor Starter
Specifications:
- Product: Starter
- Type: S
- Control Circuit Type: Separate control circuit
- Control Circuit Voltage: 110 V AC 50 Hz, 120 V AC 60 Hz
- Starter Type: Reversing
- Number of Poles: 3P
- Phase: 3 phases
- Current Rating: 27 A
- Horsepower Rating: 7.5 HP 200 V AC, 7.5 HP 230 V AC, 10 HP 460 V AC, 10 HP 575 V AC
- Maximum Voltage Rating: 600 V AC
- Control Units: No control units
- Thermal overload type: Melting alloy 3
- Electrical connection: Screw clamp terminals
- NEMA size: 1
- Height: 11.89 in (302 mm)
- Depth: 7.52 in (191 mm)
- Width: 11.89 in (302 mm)
- Enclosure Type: NEMA 1 painted sheet steel
- Product certifications: UL listed, NEMA, CSA
- Authentic Square D Product
- Dimensions (H x W x L): 11.89" x 11.89" x 7.52"
- 3 phase
