Overview
Product Specifications - HU362RB - Square D Disconnect
-
Part Number:
HU362RB -
Manufacturer:
-
Family:
Series E -
Pole:
3 -
Amp:
60 -
Volt:
600 -
Phase:
3
-
Category:
-
Type:
HU -
AIC Ratings:
200kA@600V
Dimensions
-
Dimensions (HxWxD):
6.38 x 10.5 x 21.25 -
Weight:
15.43 lbs
Standards

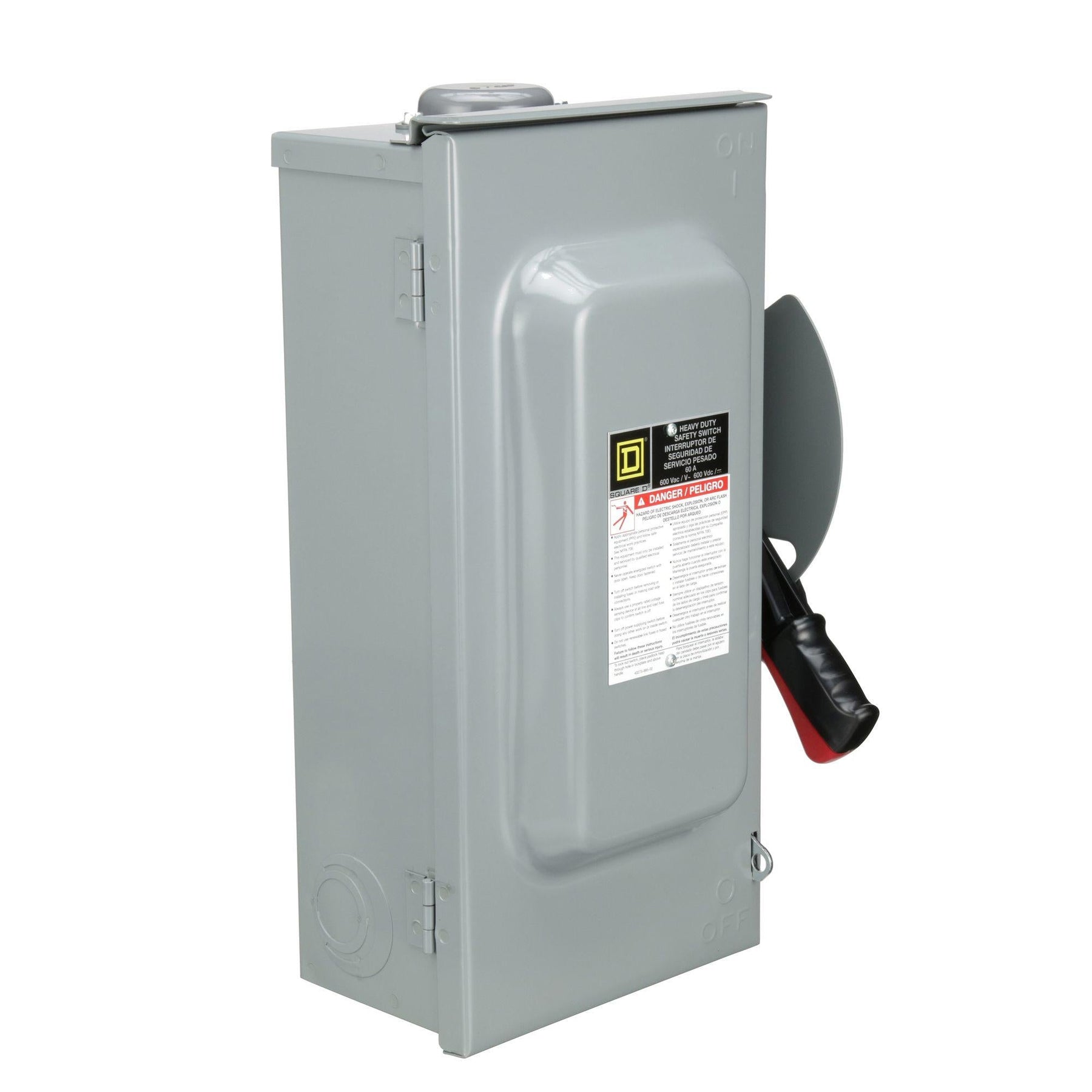

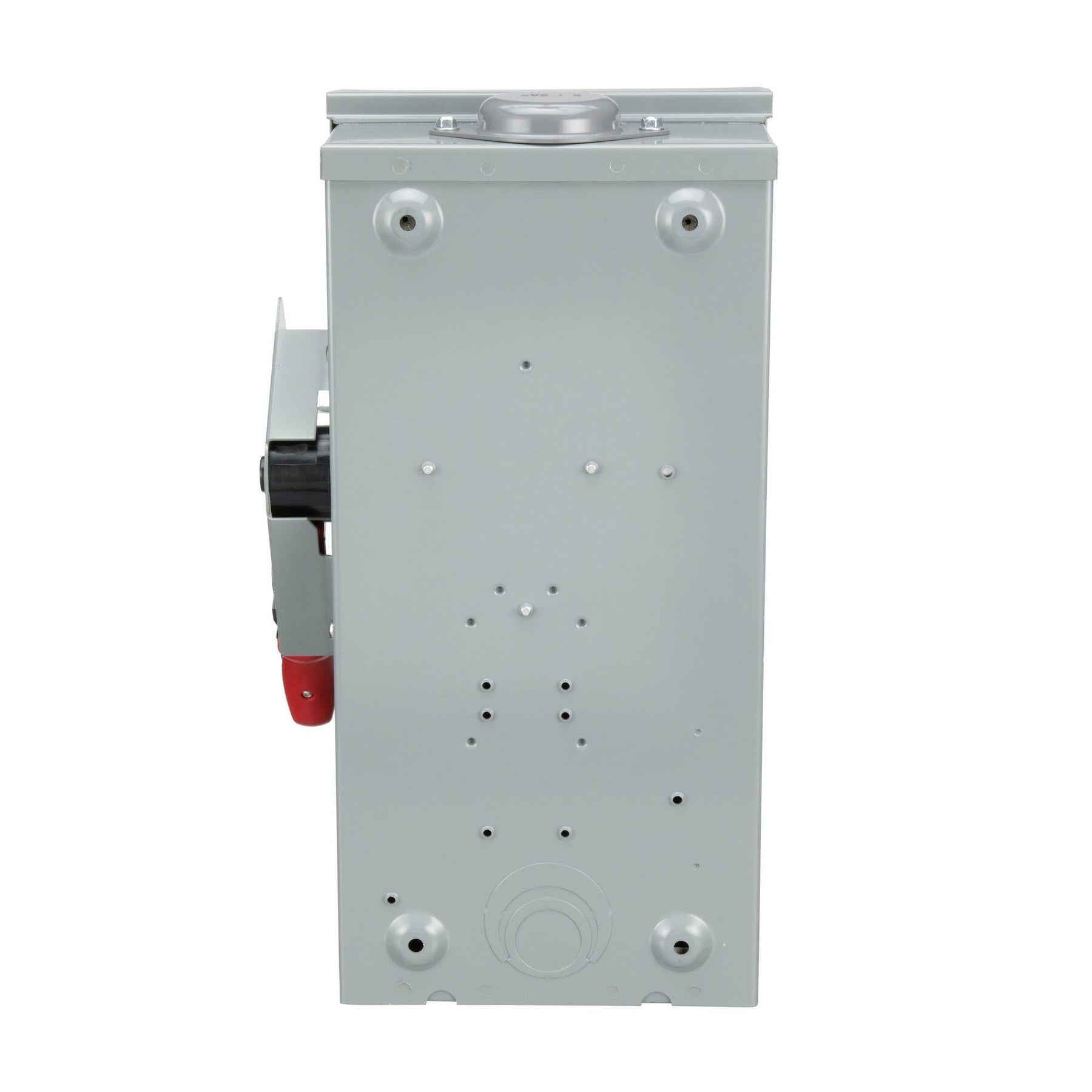

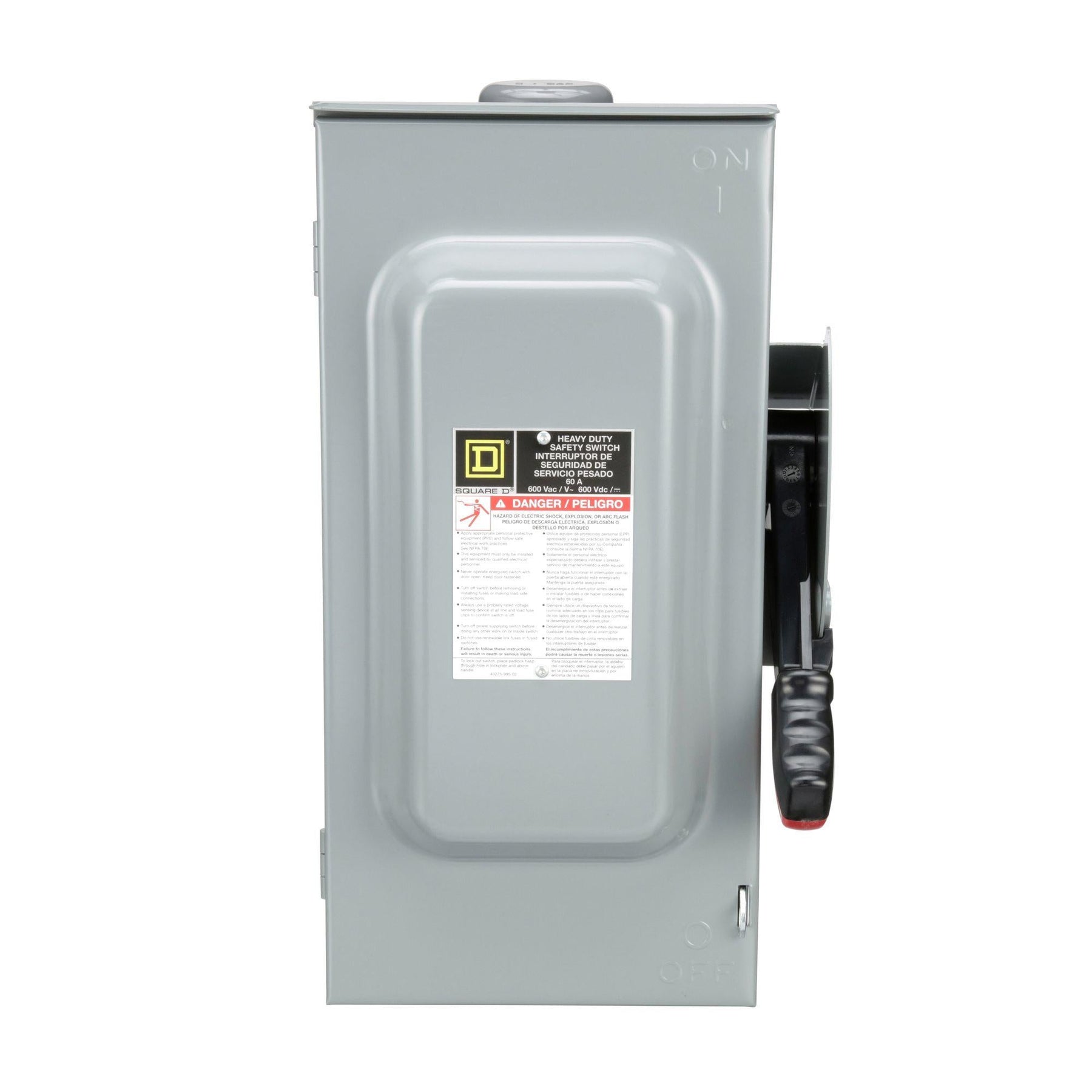

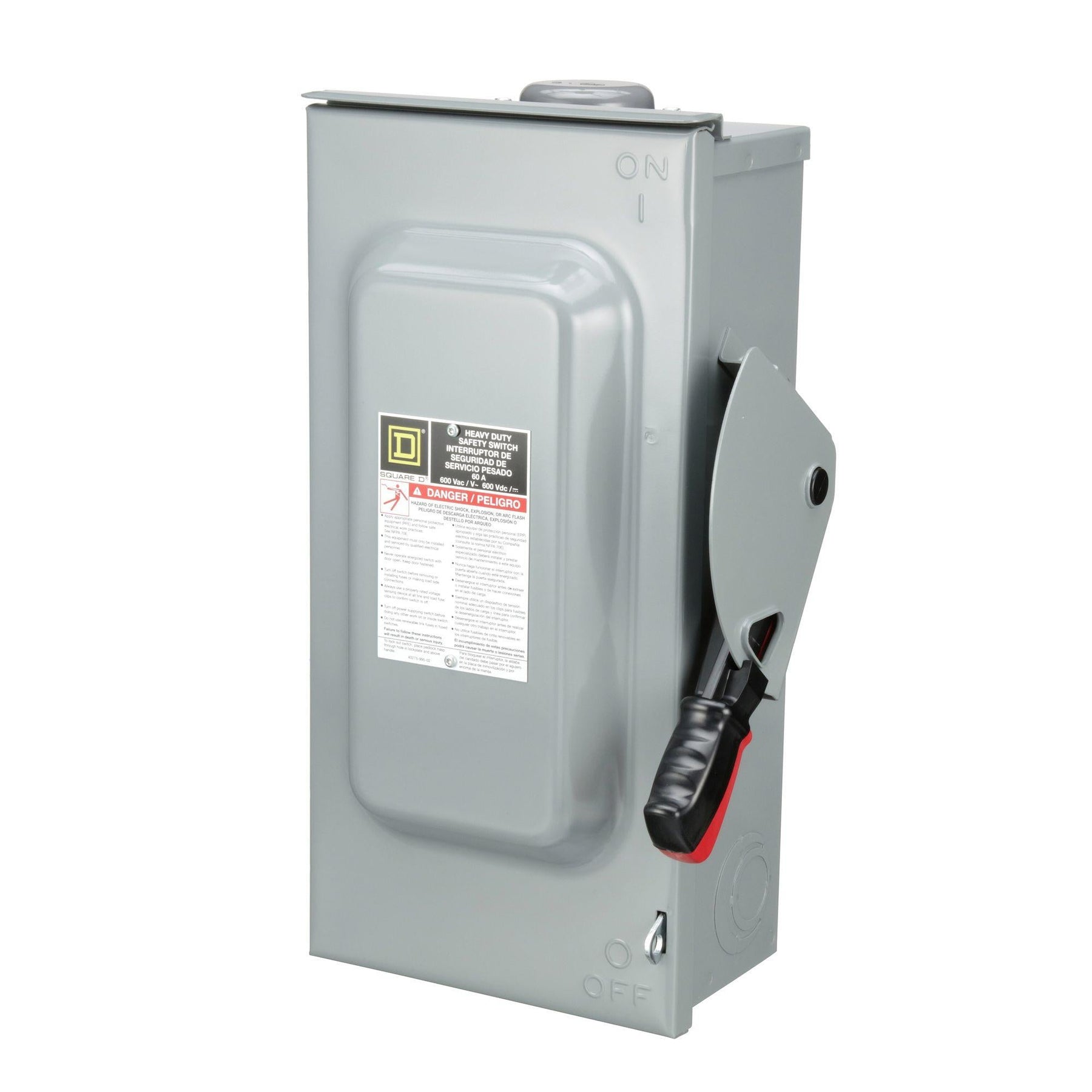

Product Description - HU362RB - Square D Disconnect
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 60A and is UL listed with a NEMA 3R rating of protection. This 3-pole switch has operational voltage ratings of 600VAC/DC. The enclosure is made of galvannealed steel and has no neutral installed. This non-fusible disconnect has a short circuit current rating of 200kA. This safety switch is surface mounted. This switch comes with an 18 months warranty.
