Overview
Product Specifications - 8903SQG2V03 - Square D Contactor
-
Part Number:
8903SQG2V03 -
Manufacturer:
-
Family:
Class 8903 -
Pole:
3 -
Amp
100 -
Volt:
240 -
Phase:
3
-
Category:
-
Type:
S
Dimensions
-
Dimensions (HxWxD):
25.16 x 8.98 x 11.26 -
Weight:
38 lb
Standards
Product Description - 8903SQG2V03 - Square D Contactor

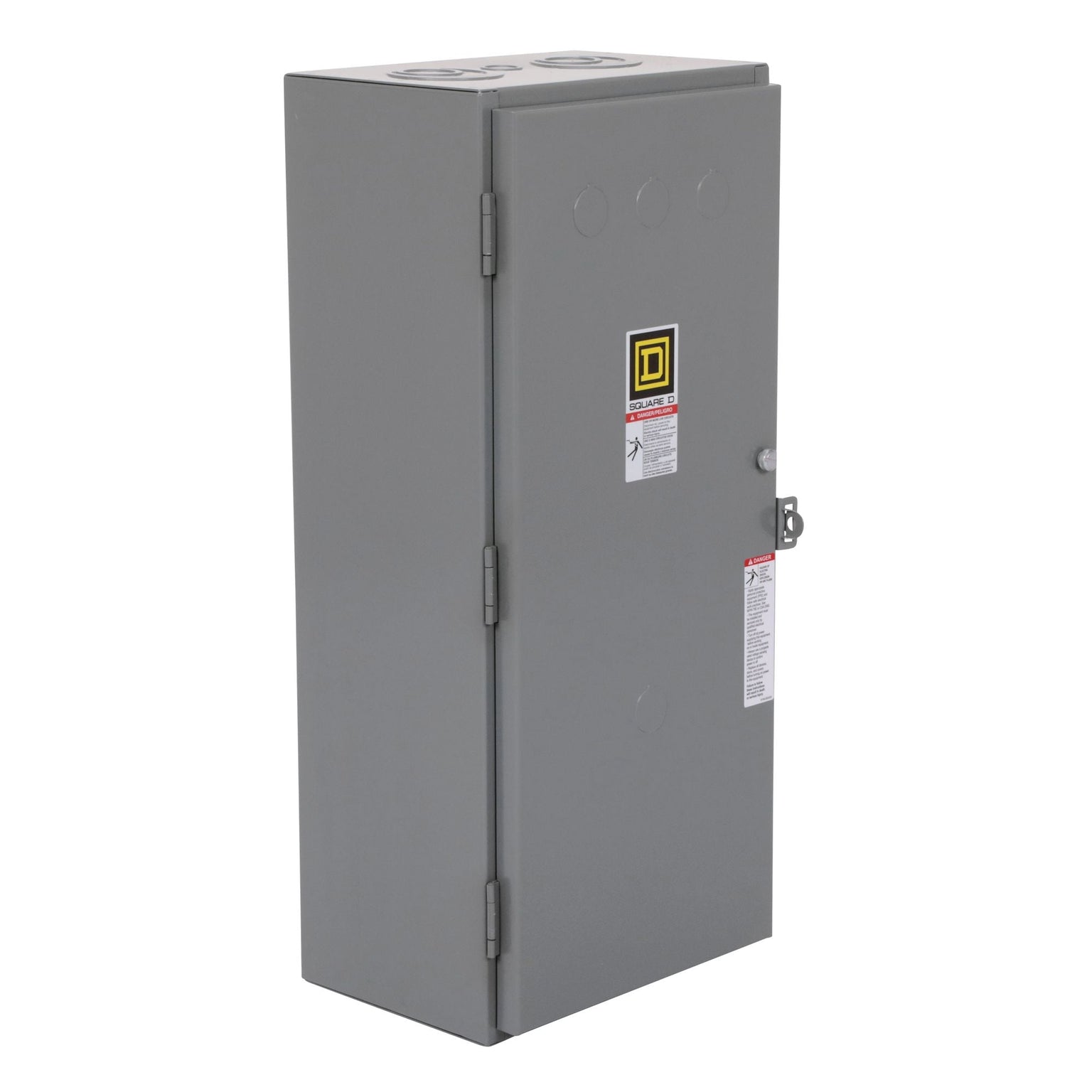

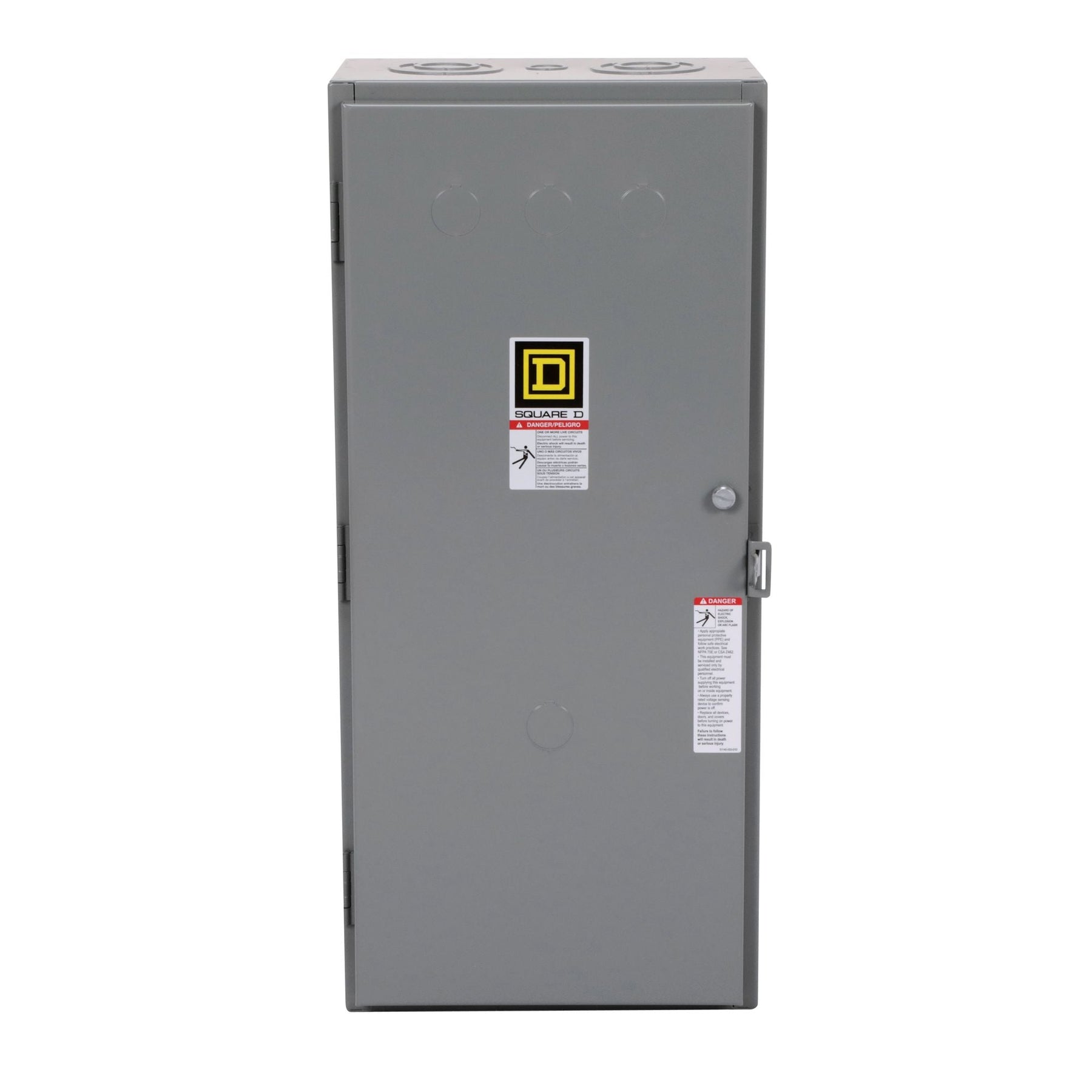

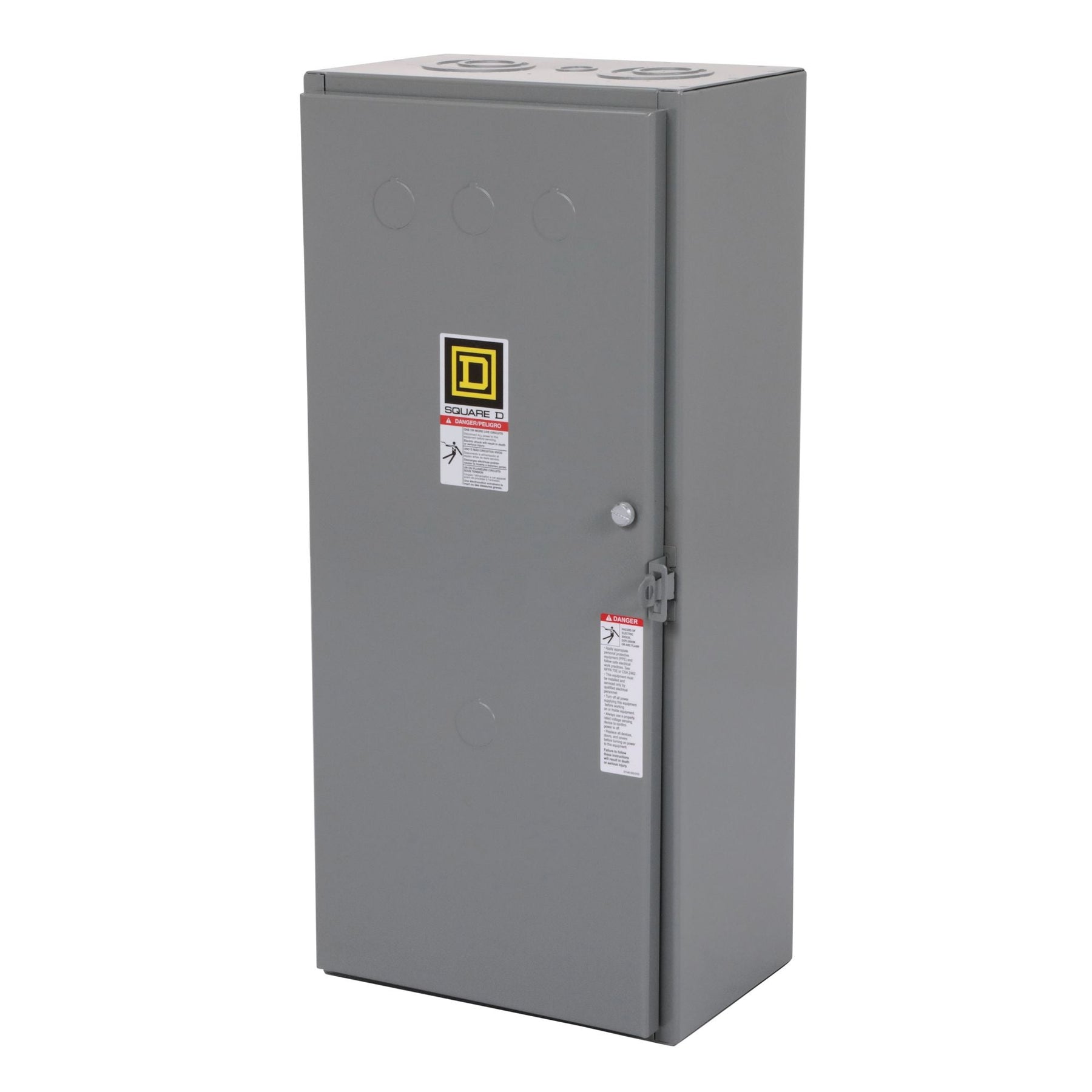

8903S lighting contactors are for lighting control applications. 8903S lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. This contactor is designed to switch 100 amperes. This device 3 pole device has 3 NO contacts. Supplied with a 220/240 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is in a NEMA 1 painted sheet steel enclosure, but a variety of other enclosure types are available. Coil and contacts are easily replaced. Enclosure is 25.15 inches tall, 11.25 inches wide and 8.99 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.
