Overview
Product Specifications - MJA36800E10 - Square D Molded Case Circuit Breakers
-
Part Number:
MJA36800E10 -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp:
800 -
Volt:
600 -
Phase:
3
-
Category:
-
Type:
M Frame -
Protection:
Solid State
Dimensions
-
Dimensions (HxWxD):
12.86 x 8.27 x 8.05 -
Weight:
29 lbs
Standards
Product Description - MJA36800E10 - Square D Molded Case Circuit Breakers

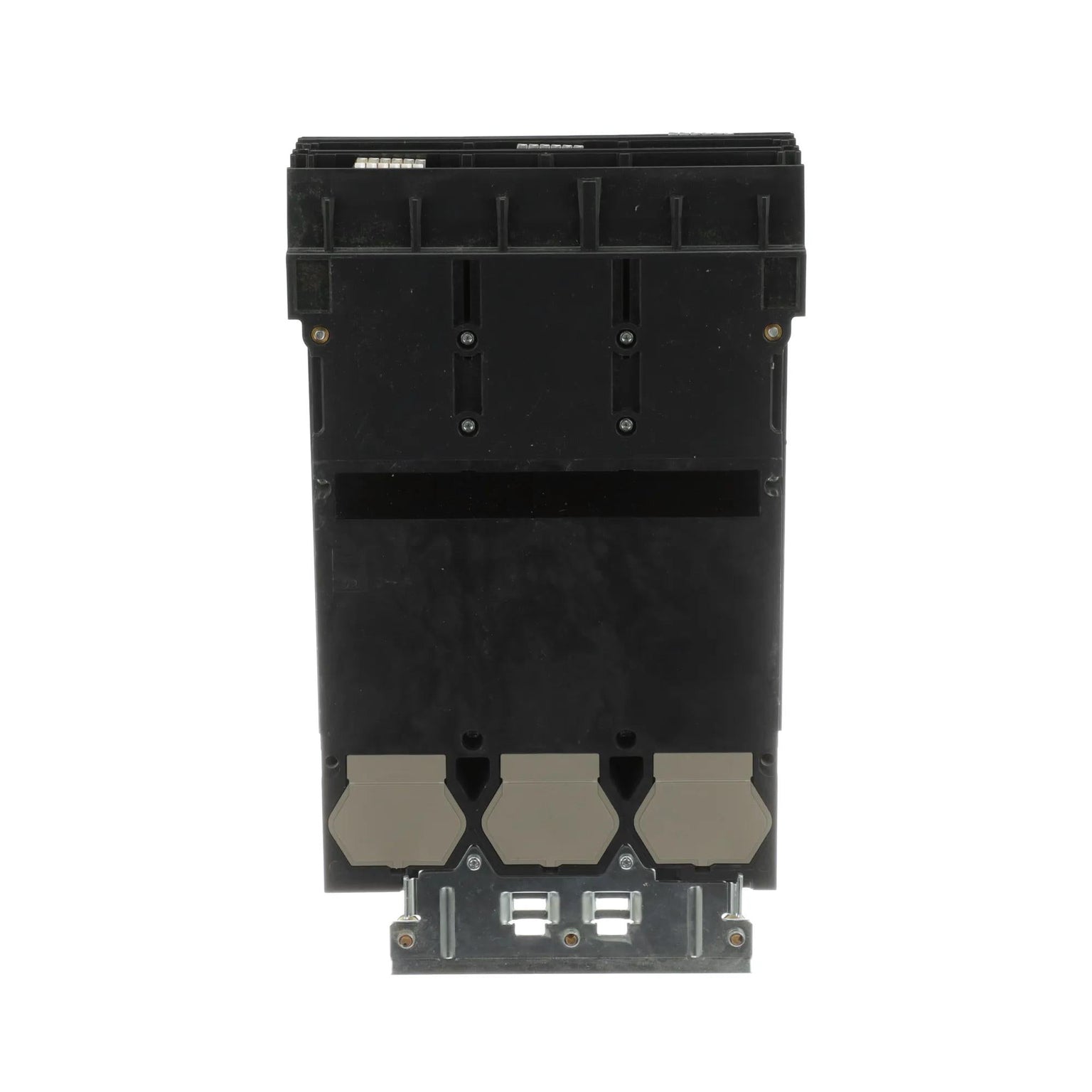

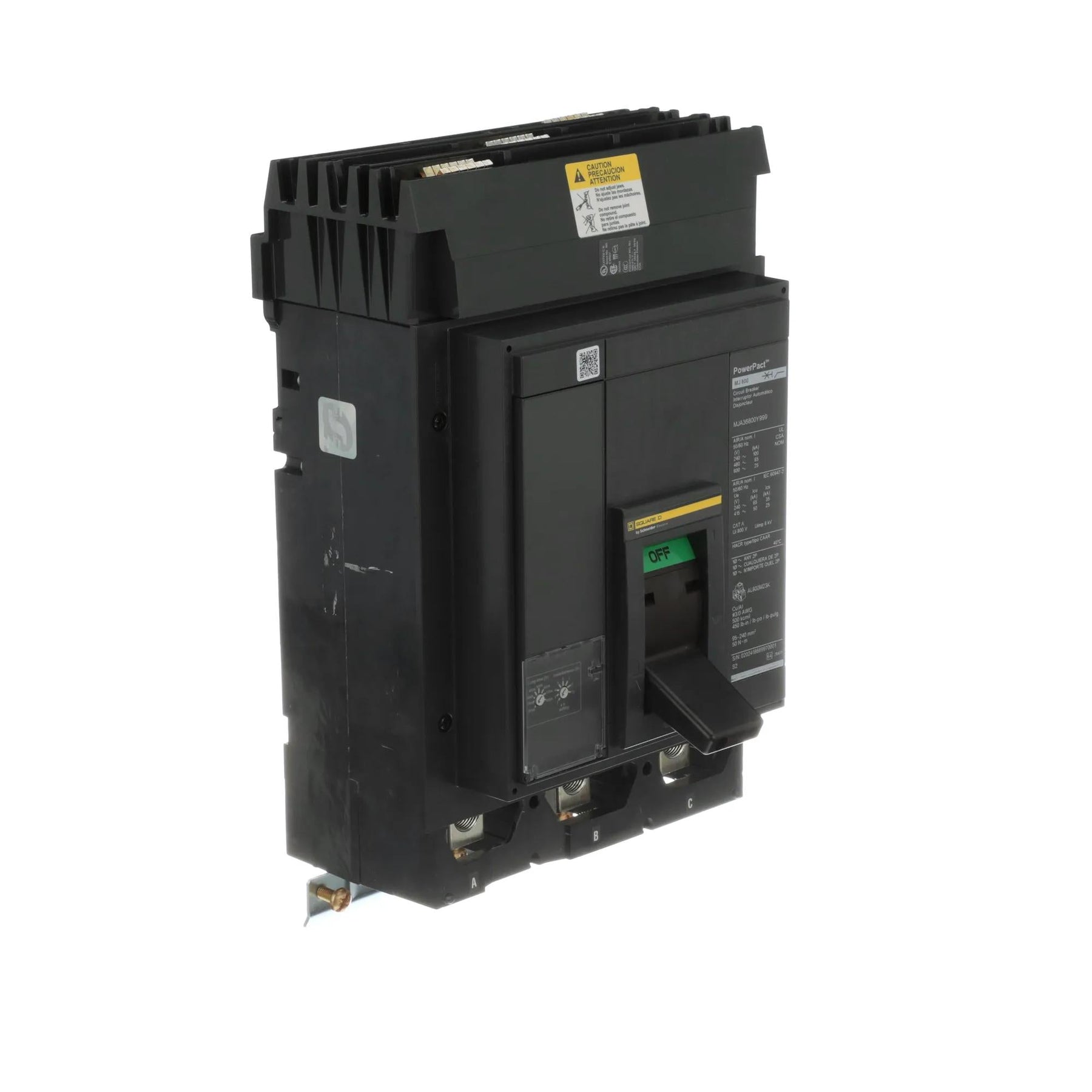

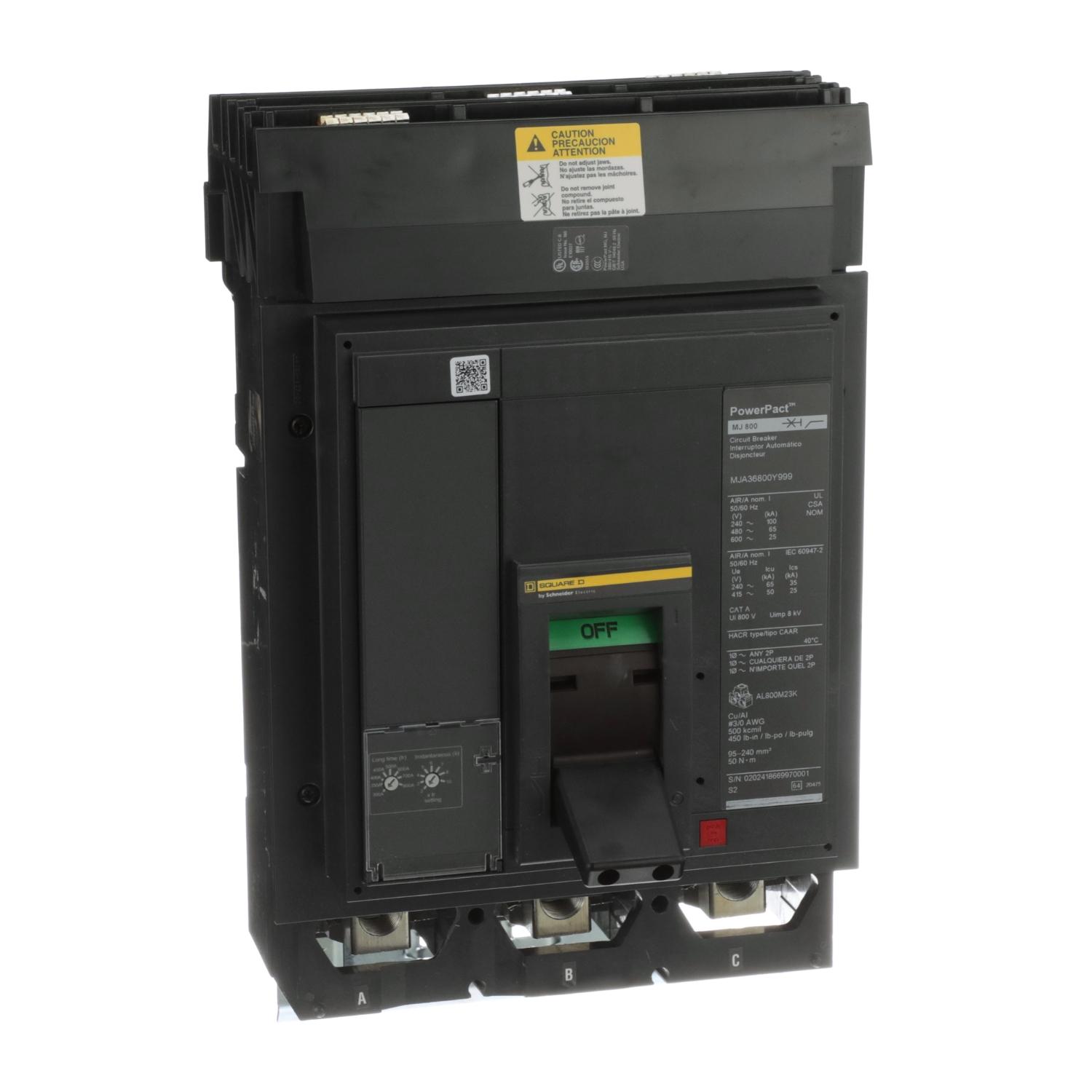

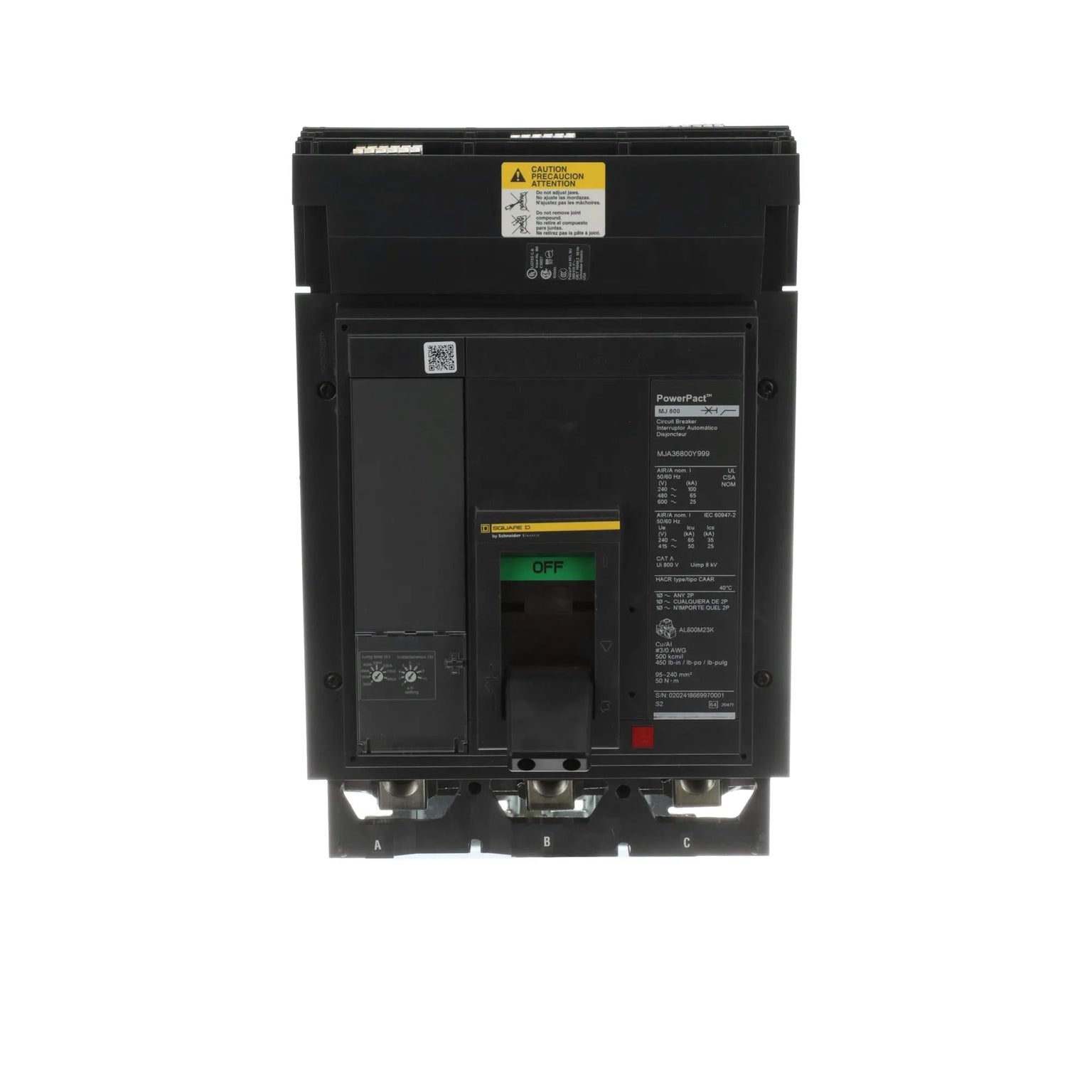

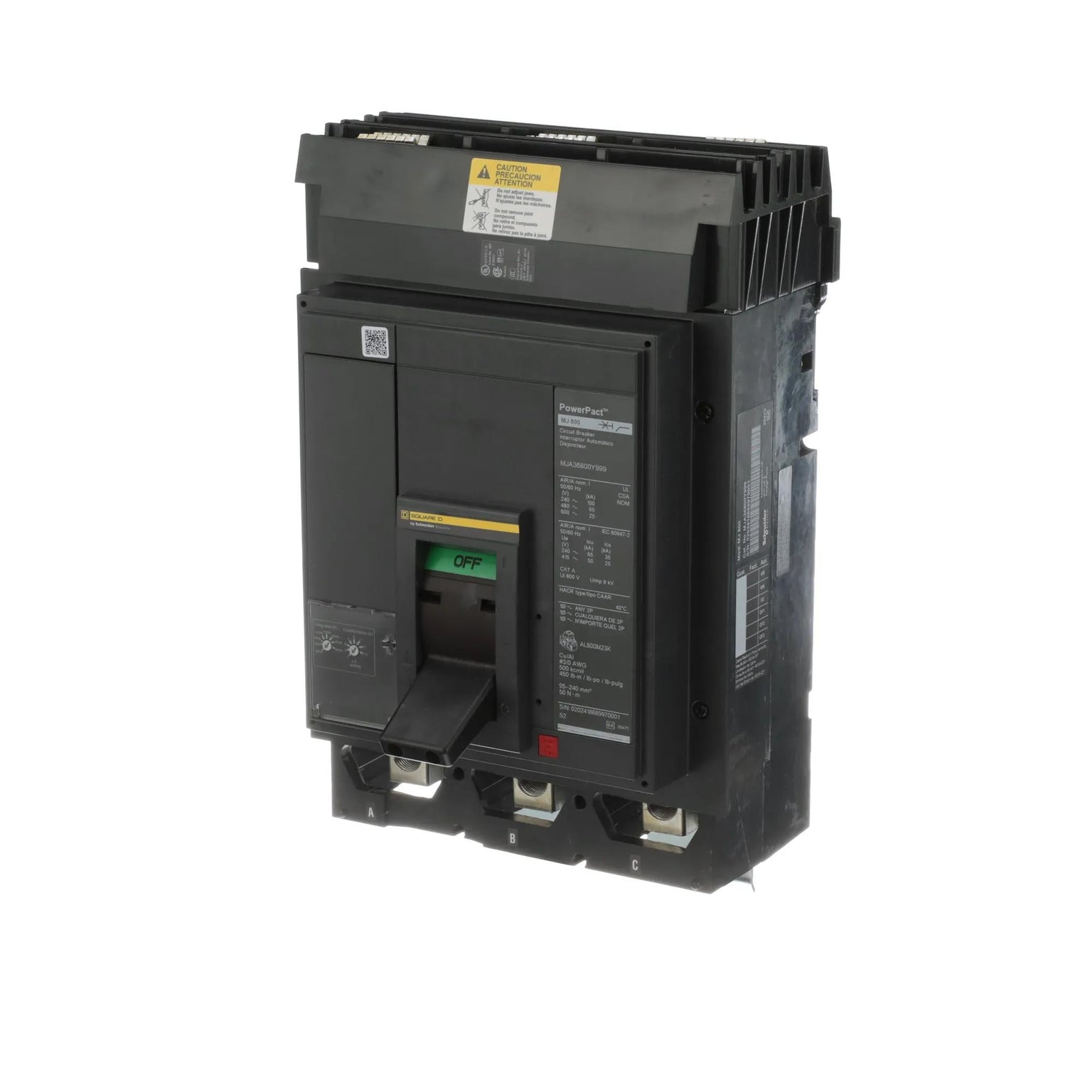

PowerPacT M-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT M-Frame circuit breakers have either a fixed long time electronic trip unit or an adjustable amperage version. This circuit breaker has the adjustable amperage option, allowing trip setting changes between 300A to 800A using a selector switch. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT M, 300A to 800A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT M circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
