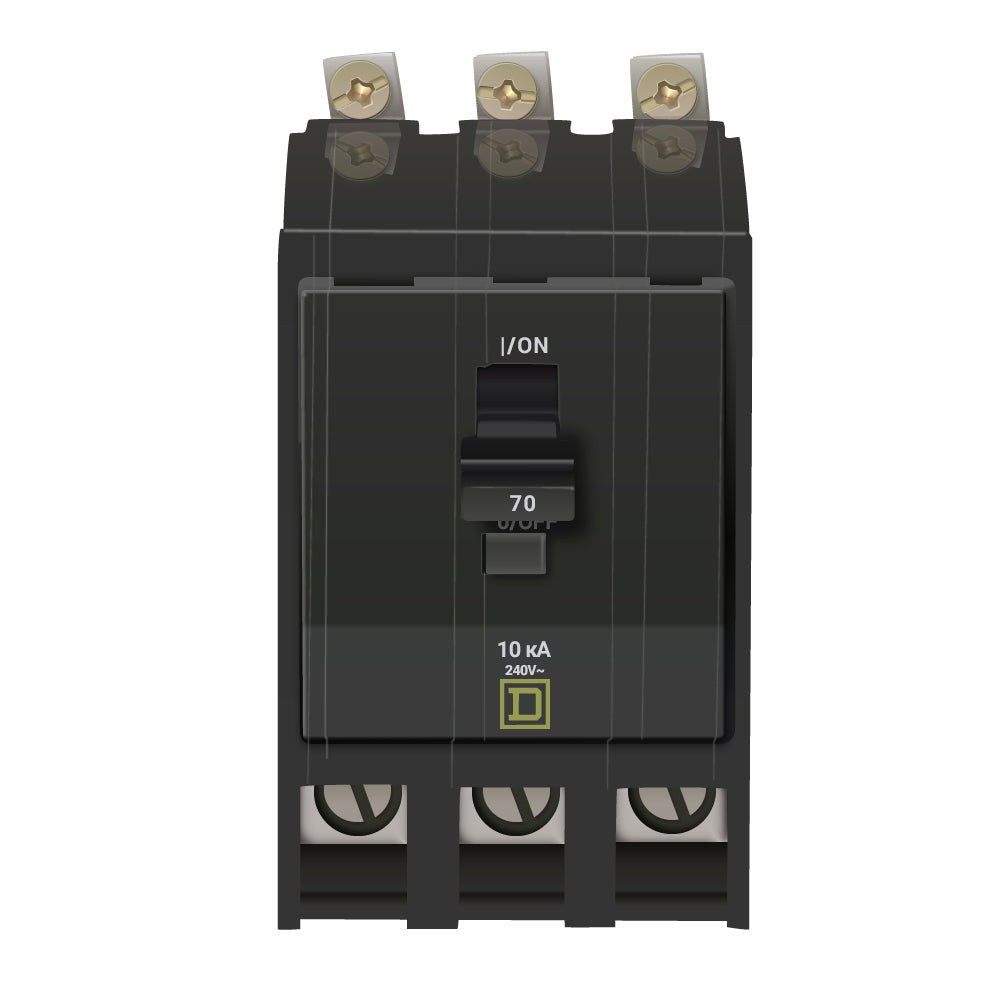

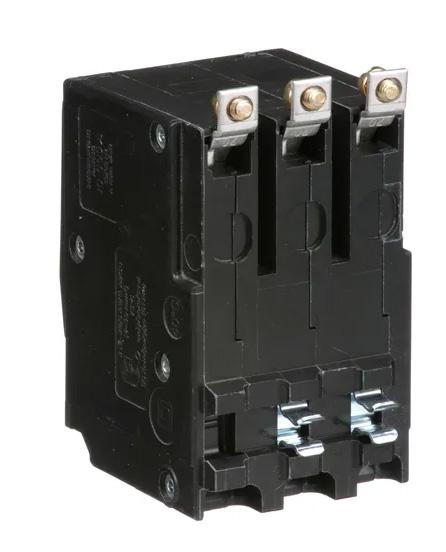

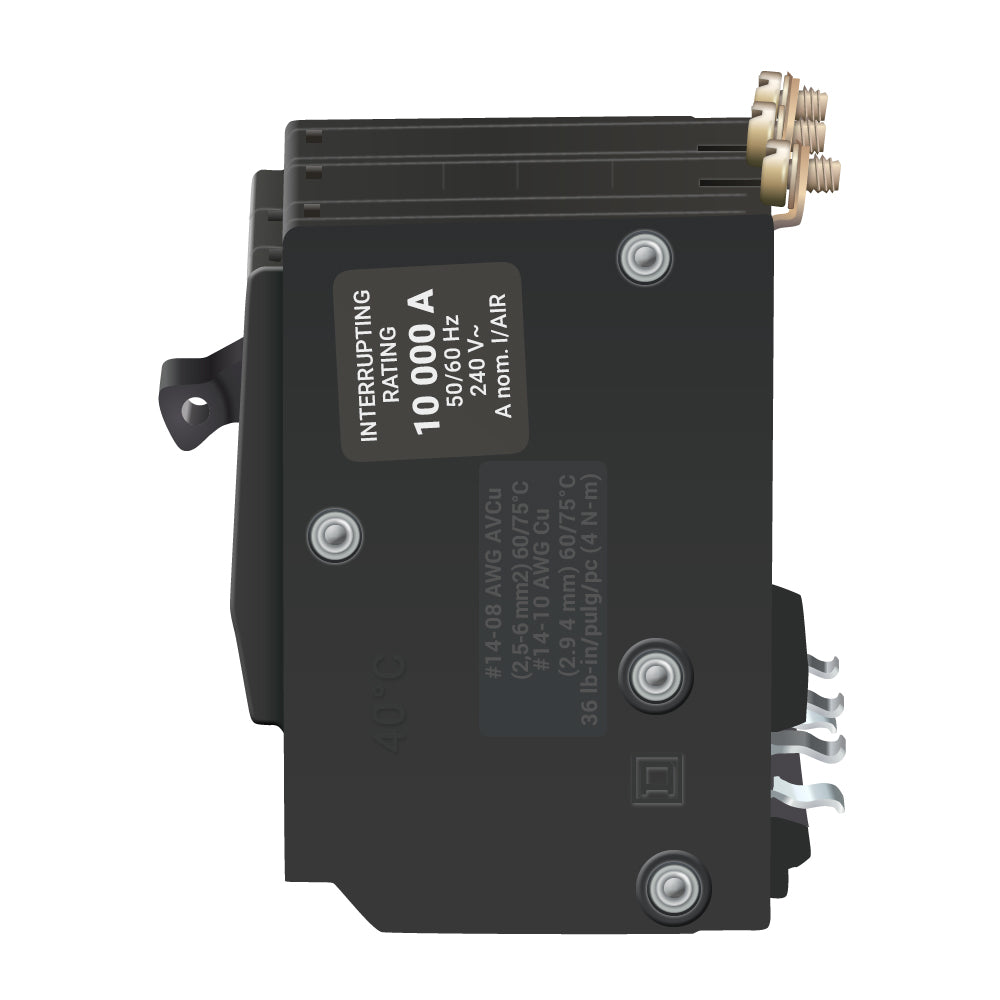

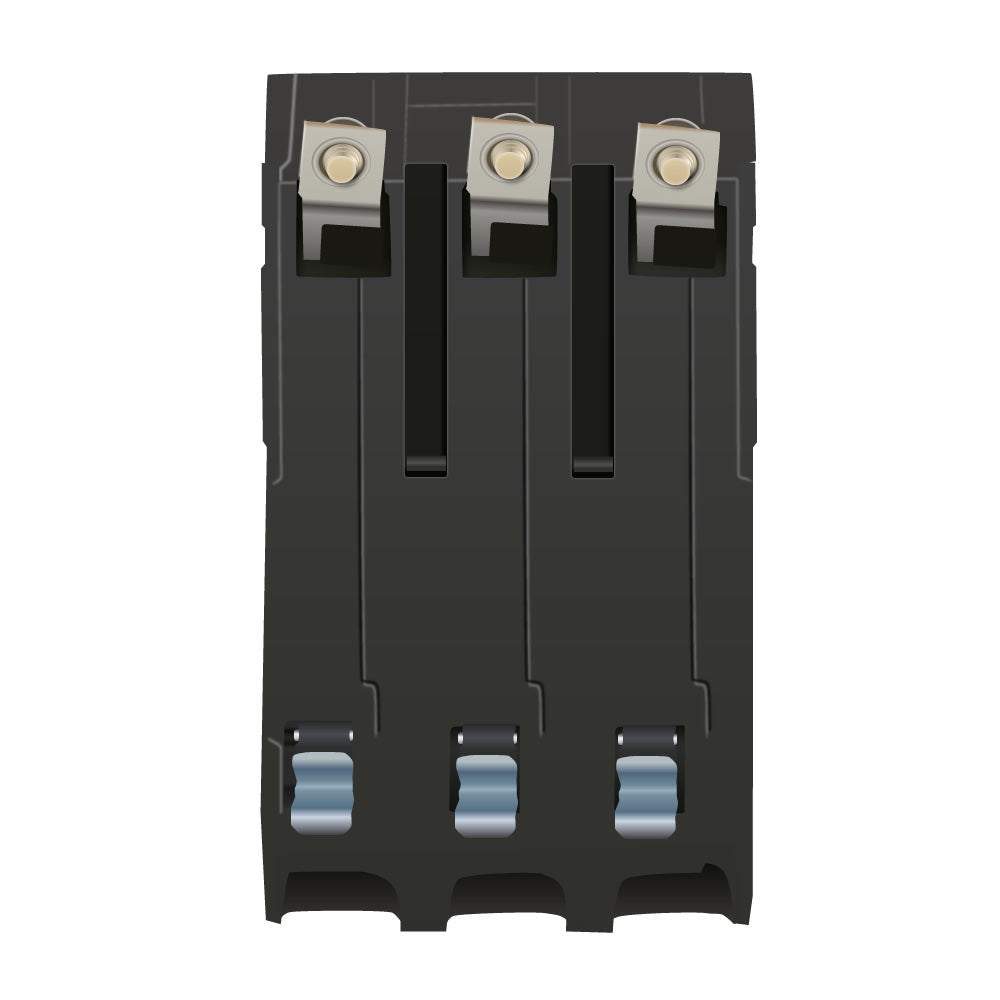

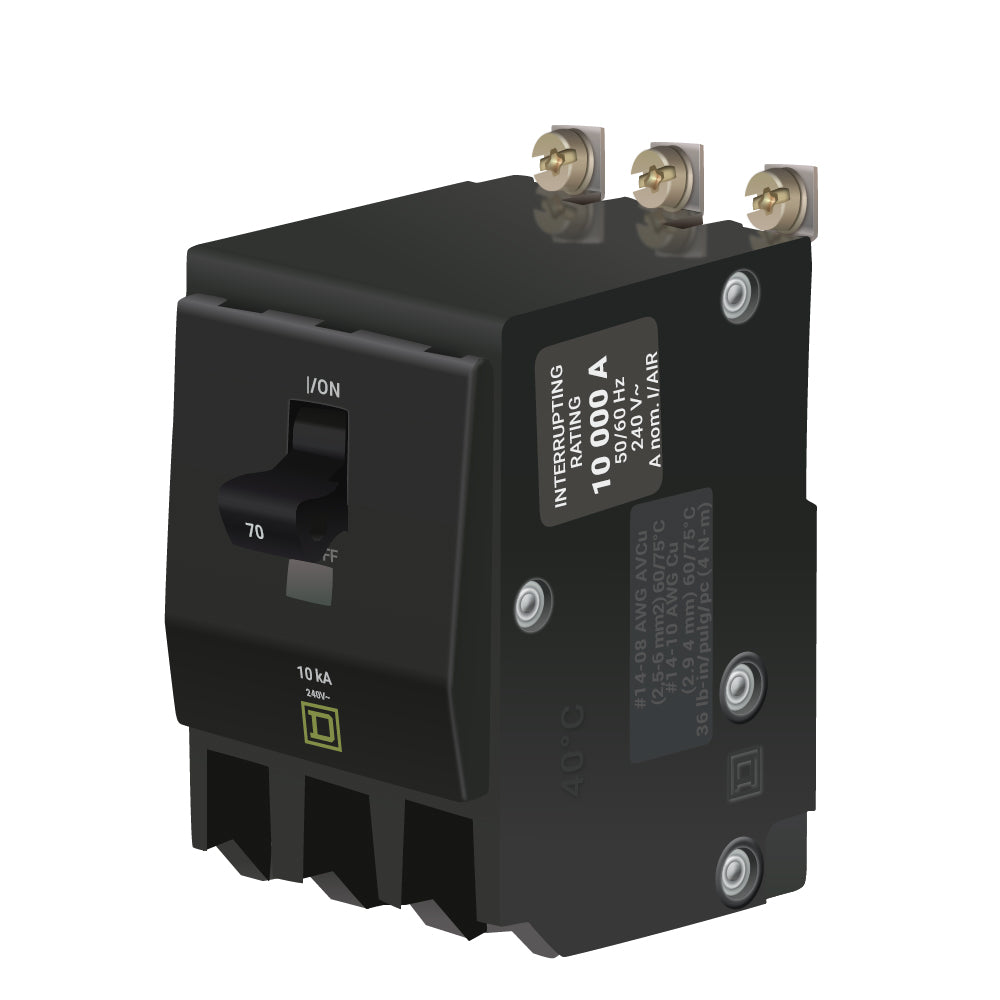

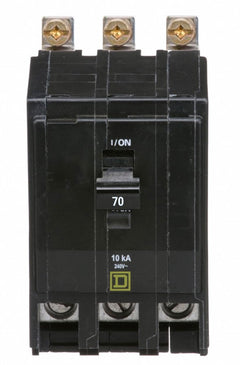

QOB370 - Square D Bolt-On 70 Amp Breaker
Schneider Electric/Square D Miniature circuit breaker with Visi-Trip indicator has box-type lugs to accommodate 4 - 2/0 AWG copper and aluminum wires. The 3-Pole circuit breaker has voltage rating of 240 VAC current rating of 70 Amps and short-circuit current rating of 10 kilo-Amps.
Specifications:
- Product: Miniature circuit-breaker
- Range: QO
- Line Rated Current: 70 A
- System Voltage: 120/240 V AC
- Mounting Type: Bolt-on
- Number of Poles: 3P
- Circuit Breaker Type: Standard
- Ratings: HACR rated
- Electrical Connection: Box lugs
- Inturrupt Rating: 10 kA at: 120/240 V AC 50/60 Hz
- Number of Panel Spaces: 3
- Wire Size: AWG 8...AWG 2 (copper or aluminium)
- Height: 3.12 in
- Depth: 2.91 in
- Width: 2.25 in
- Authentic Schneider Electric / Square D Product
- Dimensions (H x W x L): 3.12" x 2.25" x 2.91"
- 3 phase
Alt model: q0b370
