Overview

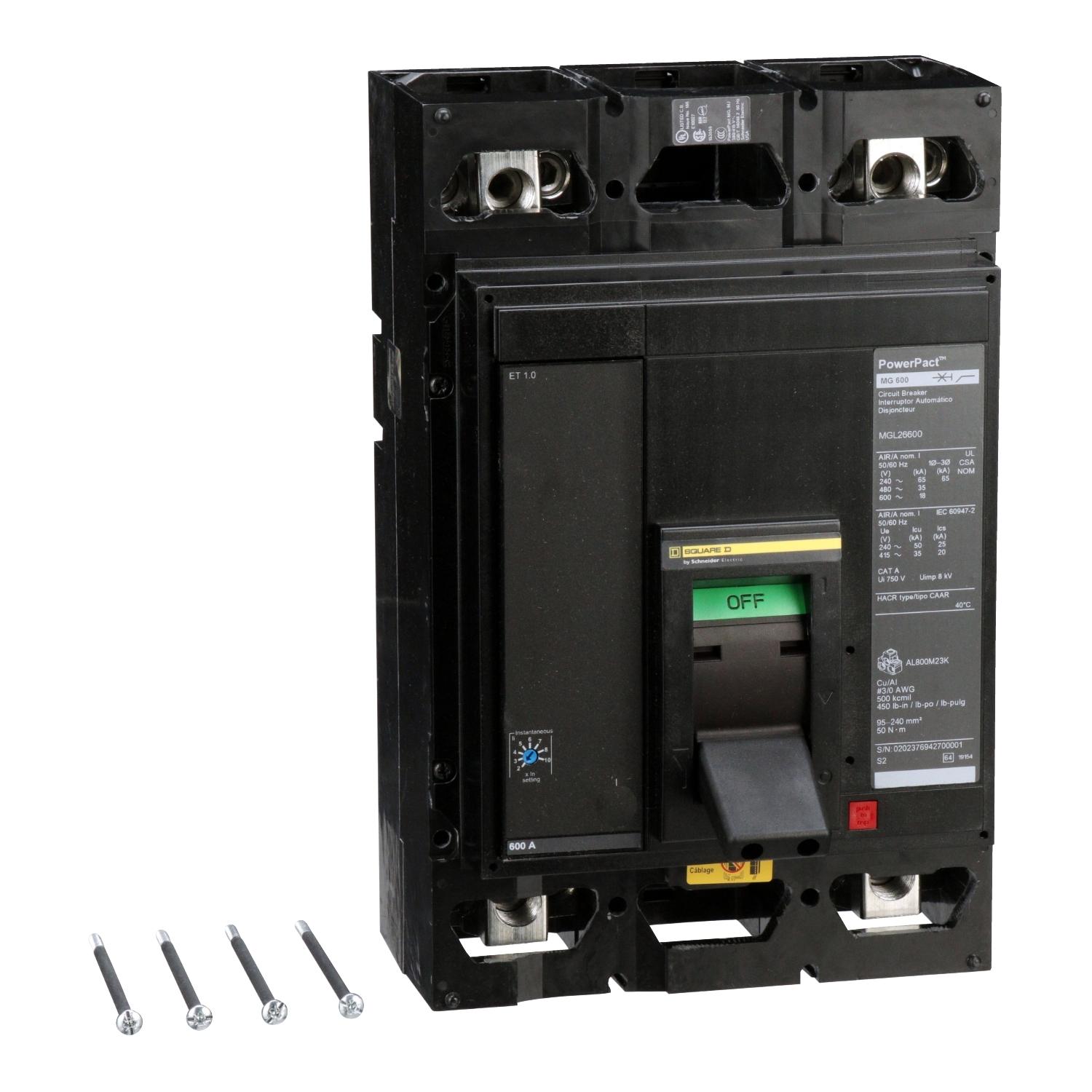

Product Specifications - MGL26600 - Square D Molded Case Circuit Breakers
-
Part Number:
MGL26600 -
Manufacturer:
-
Family:
Powerpact -
Pole:
2 -
Amp:
600 -
Volt:
600 -
Phase:
1
-
Category:
-
Connection:
Feed-Thru -
Type:
M Frame -
Functions:
NGC -
Protection:
Solid State -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
12.86 x 8.27 x 8.05 -
Weight:
29 lbs
Standards
Product Description - MGL26600 - Square D Molded Case Circuit Breakers
PowerPacT M-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT M-Frame circuit breakers have either a fixed long time electronic trip unit or an adjustable amperage version. This circuit breaker has an electronic trip unit, ET 1.0. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line construction. This unit has lugs on both the line and load sides. This PowerPacT M, 600A, 2 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT M circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
