QO260EPD - Square D - 60 Amp GFEP Circuit Breaker
Plug-In - 60 Amp - 2 Pole - 240 Volt
Schneider Electric
SKU: QO260EPD
Images are for reference only
Returns are easy
You may return items within 30 days of delivery for a refund.
FREE Shipping on orders over $49.
Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

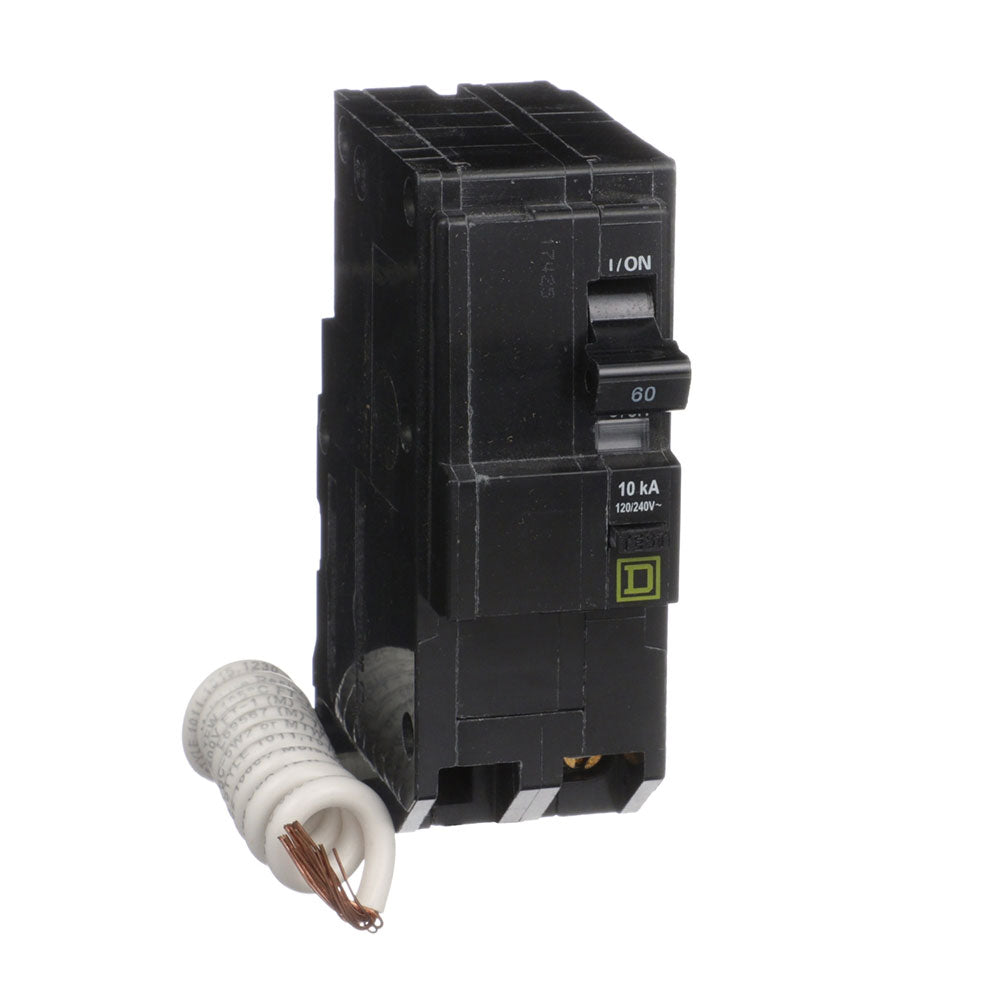

QO260EPD - Square D Plug-In GFEP Circuit Breaker
Square D QO series double pole single phase 60 ampere plug-on molded case circuit breaker with maximum voltage rating of 240V tripping method thermal magnetic and standard interrupting rating of 10 kiloampere at 240V class B ground fault protection for equipment suitable for QO Series load centers.
Specifications:
- Product: Miniature circuit-breaker
- Range: QO
- Line Rated Current: 60 A
- System Voltage: 120 V AC, 120/240 V AC
- Mounting Type: Plug-in
- Number of Poles: 2P
- Circuit Breaker Type: Ground fault protecting class B 30 mA
- Ratings: Not rated
- Electrical Connection: Box lugs
- Inturrupt Rating: 10 kA at: 120/240 V AC 50/60 Hz, 10 kA at: 120 V AC 50/60 Hz
- Number of Panel Spaces: 2
- Wire Size: AWG 12...AWG 4 (aluminium), AWG 14...AWG 6 (copper)
-
Certifications: CSA, UL listed
- Ambient Rating: 104 Degree F (40 Degree C)
- Authentic Square D Product
- Dimensions (H x W x L): 4.12" x 1.5" x 2.91"
Alt model: q0260epd
