QO2501021 - Square D - Molded Case Circuit Breakers
Plug-In - 50 Amp - 2 Pole - 240 Volt
Square D
SKU: QO2501021

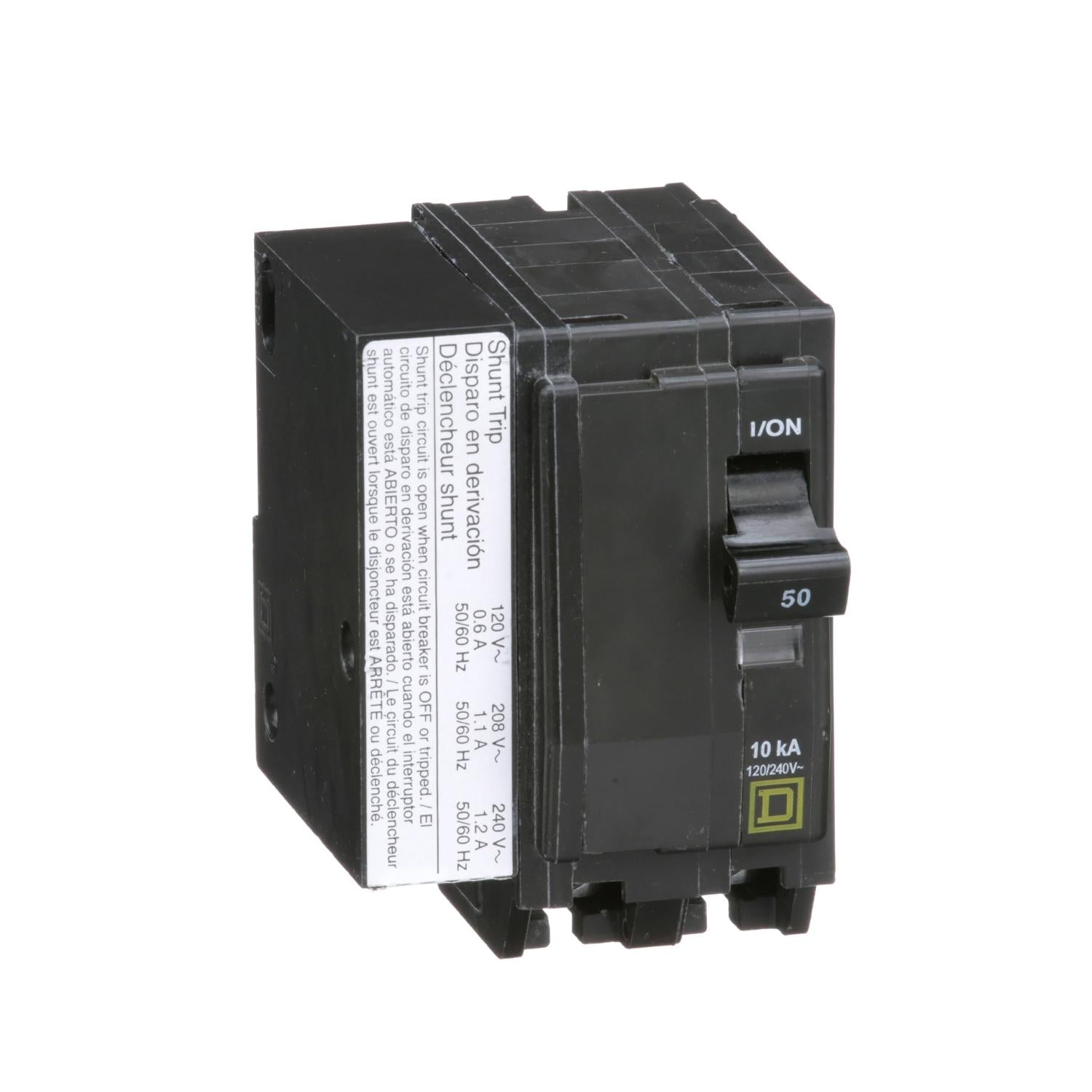

Images are for reference only
Returns are easy
You may return items within 30 days of delivery for a refund.
FREE Shipping on orders over $49.
Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer). Extended warranties are available upon request.
Overview
Product Specifications - QO2501021 - Square D Molded Case Circuit Breakers
-
Part Number:
QO2501021 -
Manufacturer:
-
Family:
QO Series -
Pole:
2 -
Amp:
50 -
Volt:
240 -
Phase:
1
-
Category:
-
Connection:
Plug-In -
Type:
QO -
Functions:
NGC -
Protection:
Thermal Magnetic -
AIC Ratings:
10kA@240V
Dimensions
-
Dimensions (HxWxD):
3.11 x 2.24 x 2.91 -
Weight:
0.95 lbs
Standards
Product Description - QO2501021 - Square D Molded Case Circuit Breakers
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 50A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes an AC shunt trip. This product includes an AC shunt trip. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
