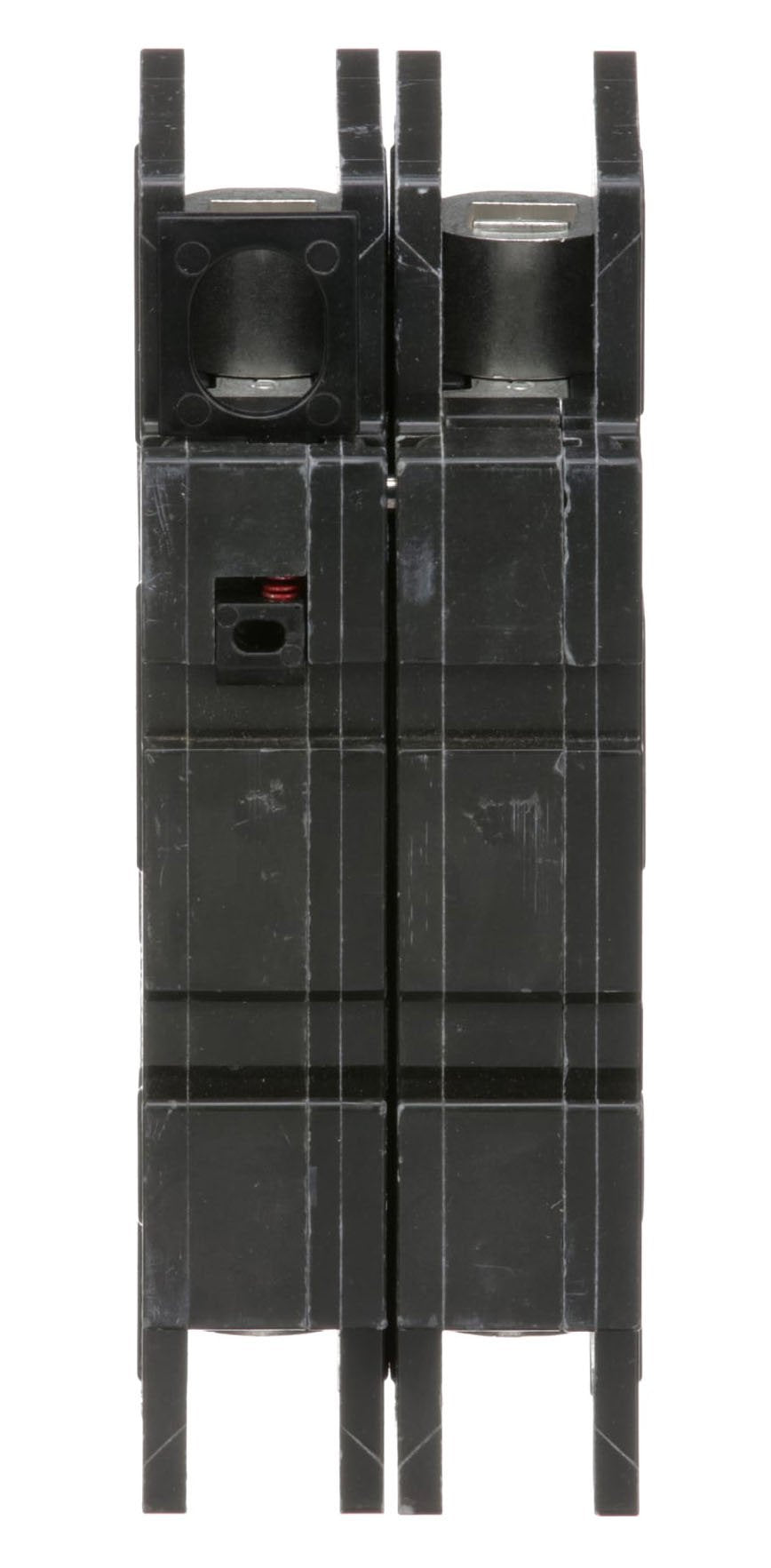

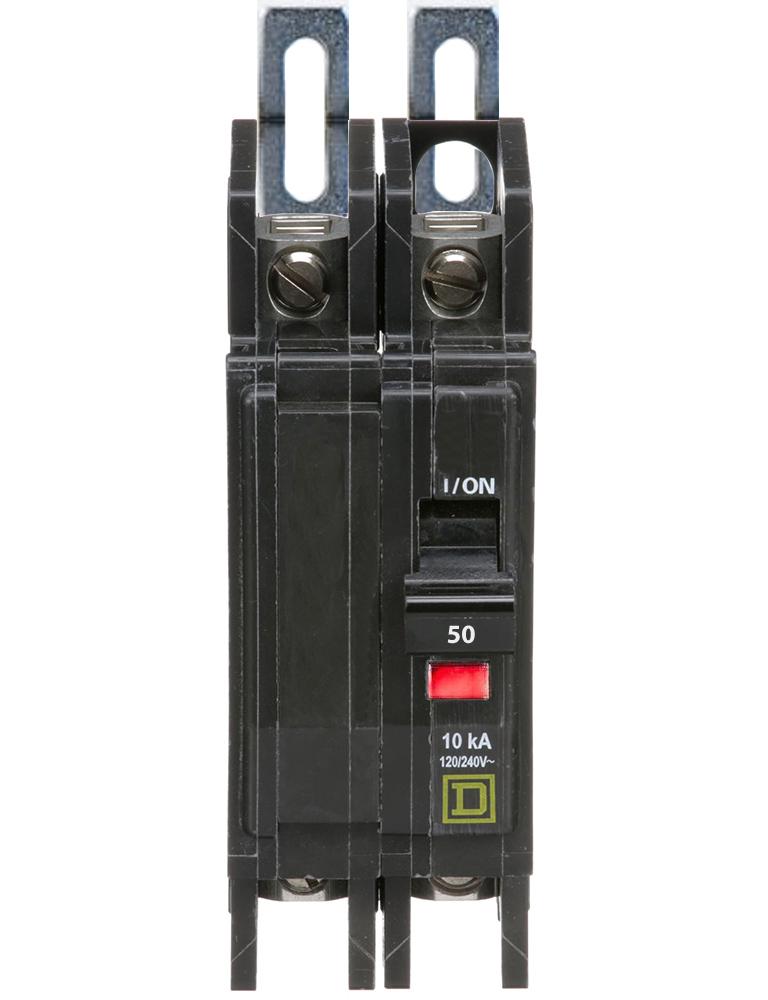

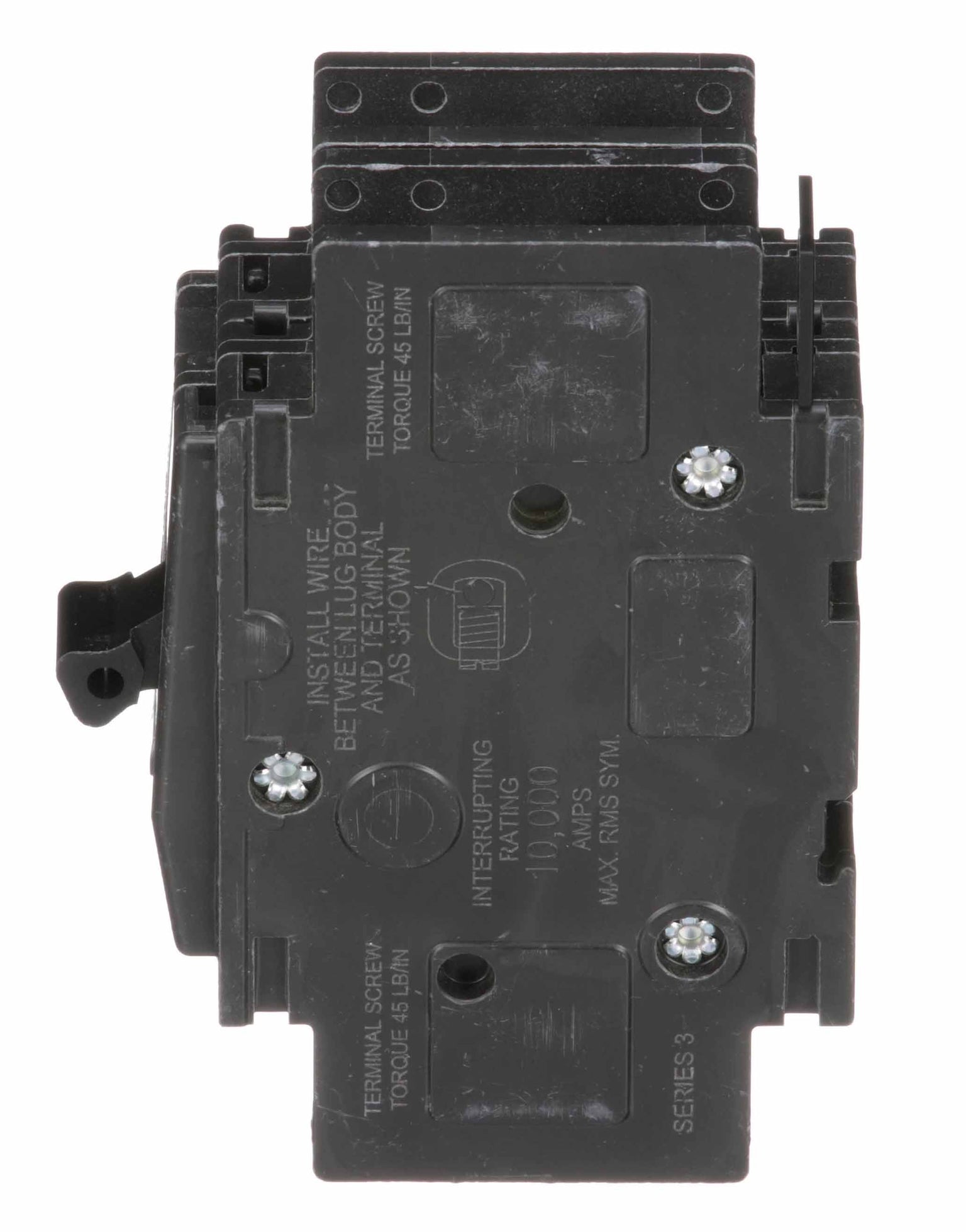

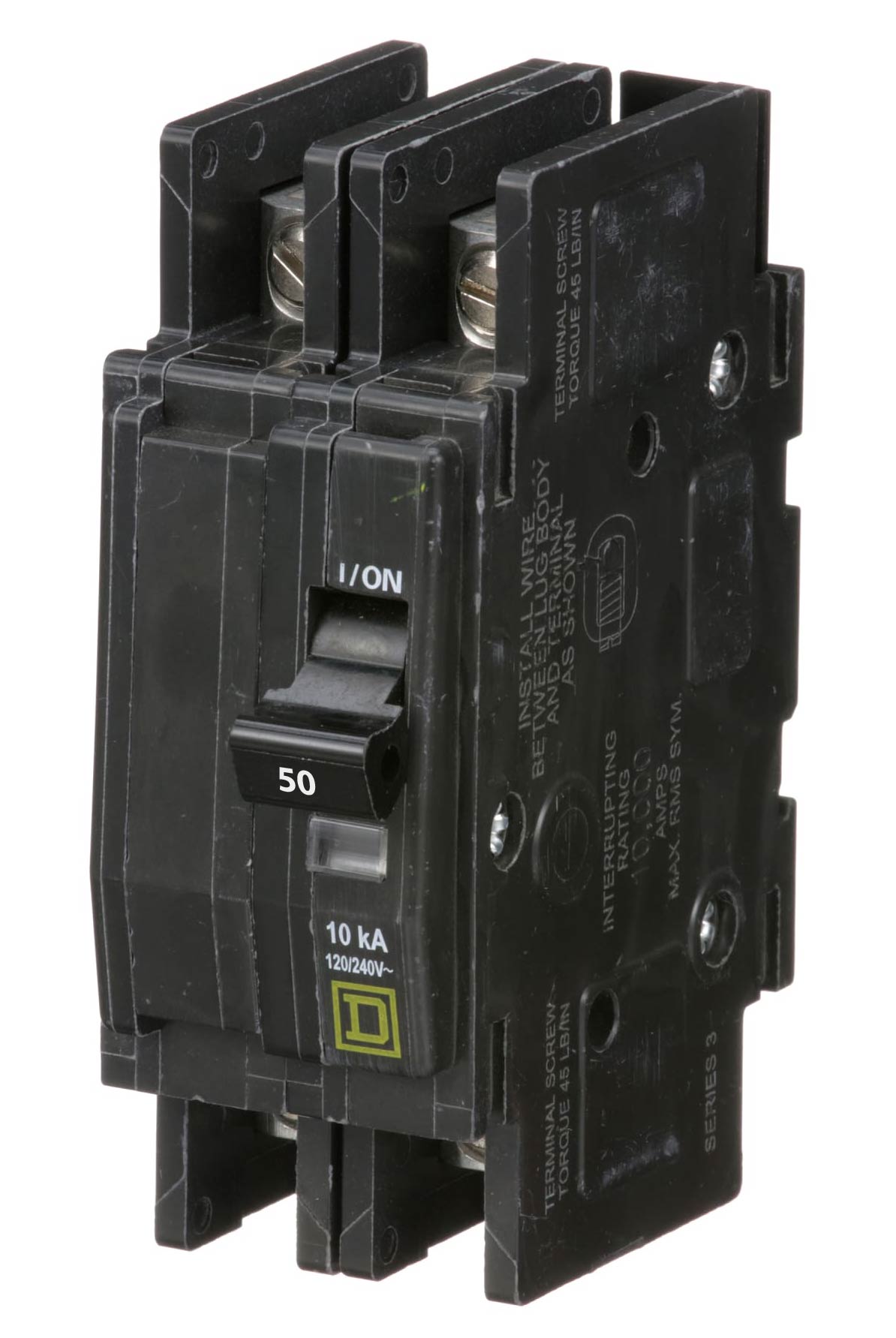

QOU250 - Square D - 50 Amp Circuit Breaker

Bolt-On - 50 Amp - 2 Pole - 240 Volt

QOU250 - Square D 50 Amp 2 Pole 240 Volt Miniature Circuit Breaker
QOU250 - Square D - 50 Amp Circuit Breaker
QOU250 - Square D - 50 Amp Circuit Breaker
QOU250 - Square D - 50 Amp Circuit Breaker

Images are for reference only

QOU250 - Square D - 50 Amp Circuit Breaker

Bolt-On - 50 Amp - 2 Pole - 240 Volt

Regular price $37.99
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Shipping calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a refund.

View our return policy

FREE Shipping on orders over $49.

Simply Breakers offers one to five day delivery in the United States. The variation depends on the chosen shipping speed and the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Simply Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Simply Breakers provides a comprehensive 1-year warranty on both new and reconditioned products. Rest assured, all products are authentic OEM (original equipment manufacturer).

QOU250 - Square D Miniature Circuit Breaker

This product is a Miniature circuit breaker has a voltage rating of 120/240 Volts current rating of 50 Amps and interrupting rating of 10 kilo-Amps. The 2-Pole thermal magnetic circuit breaker features a lug terminal and accommodates aluminum/copper wire size of 14 - 2 AWG. It has DIN rail/flush/surface mounting and provides protection against over current.

Specifications:

  • Product or component type: Miniature circuit-breaker
  • Range of product: QOU
  • Circuit breaker type: Standard
  • Circuit breaker application: HACR and Switching Duty rated
  • Line Rated Current: 50 A
  • Number of Poles: 2P
  • Interrupt Rating: 10 kA at: 120/240 V AC, 5 kA at: 48 V DC, 10 kA at: 120 V AC
  • Electrical connection: Slotted box lugs, line side,Slotted box lugs, load side
  • System Voltage: 120 V AC, 120/240 V AC, 48 V DC
  • Mounting mode: Unit mount
  • AWG gauge: AWG 14...AWG 2 (aluminium/copper)
  • Height: 4.05 in
  • Depth: 2.95 in
  • Width: 1.5 in
  • Product certifications: CSA, IEC, UL Listed
  • Authentic Square D Product
  • Dimensions (H x W x L): 4.05" x 1.5" x 2.95"

Alt model: q0u250
